6-01 — FRONT BUMPER (#61526) — 63 parça

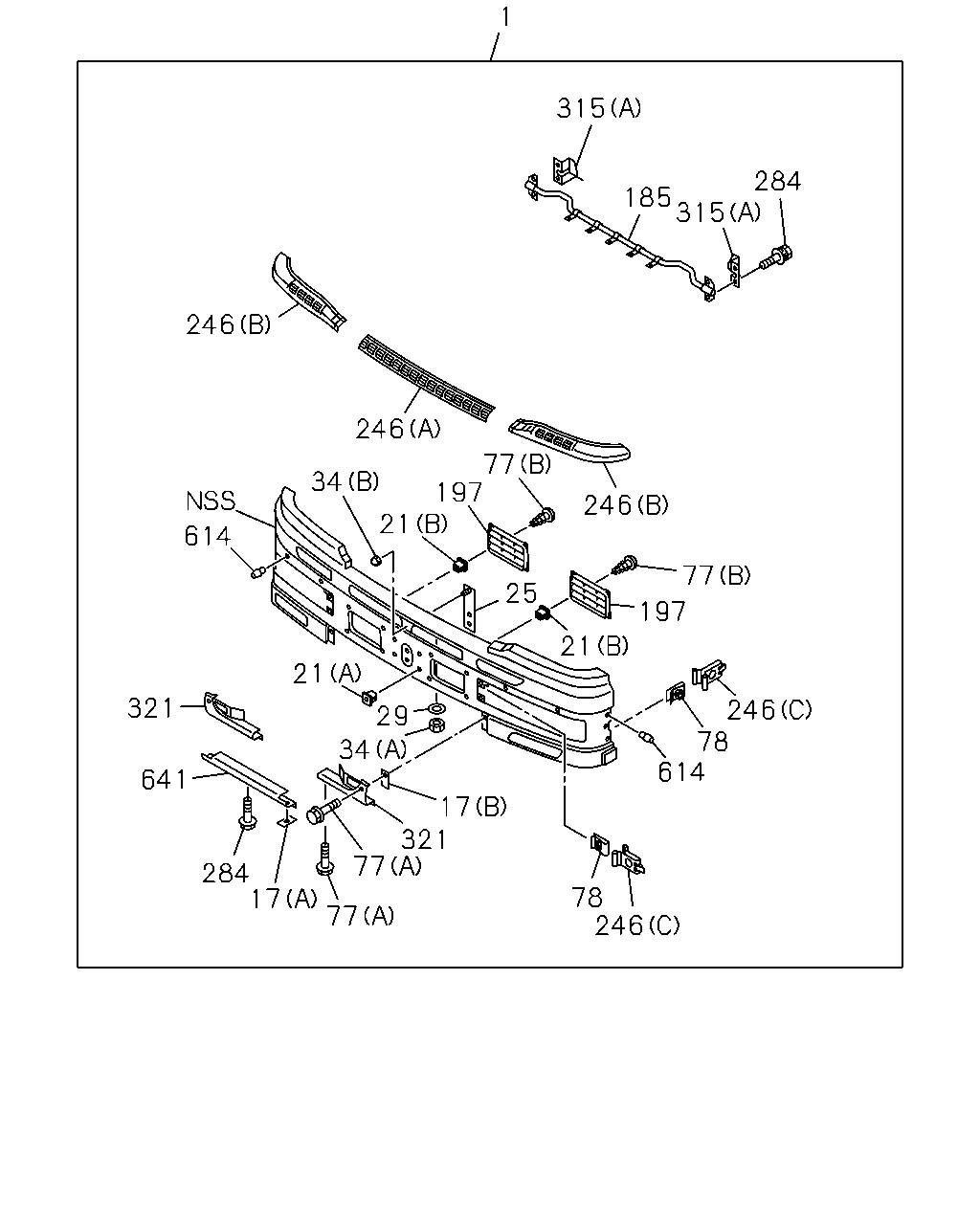

çizim 133760
1 315 284 185 315 246 246 77 197 21 34 246 614 77 25 197 21 21 29 321 246 78 614 34 641 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-427-1 01 1 0811-
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0811-
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0811-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0811-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0811-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0811-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0811-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0811-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0811-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0811-
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0811-
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0811-
78 NUT; SPIRE 1-71260-174-0 06 1 0811-
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0811-
197 GRILLE; BUMPER 1-71260-115-1 01 1 0811-
197 GRILLE; BUMPER 1-71260-116-1 01 1 0811-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0811-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0811-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0811-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0811-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0811-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0811-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0811-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0811-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0811-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0811-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0811-
321 COVER; BUMPER FRT SIDE 1-71260-263-0 01 1 0811-
321 COVER; BUMPER FRT SIDE 1-71260-264-0 01 1 0811-
614 STOPPER; LID 1-71260-163-0 12 1 0811-
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0811-

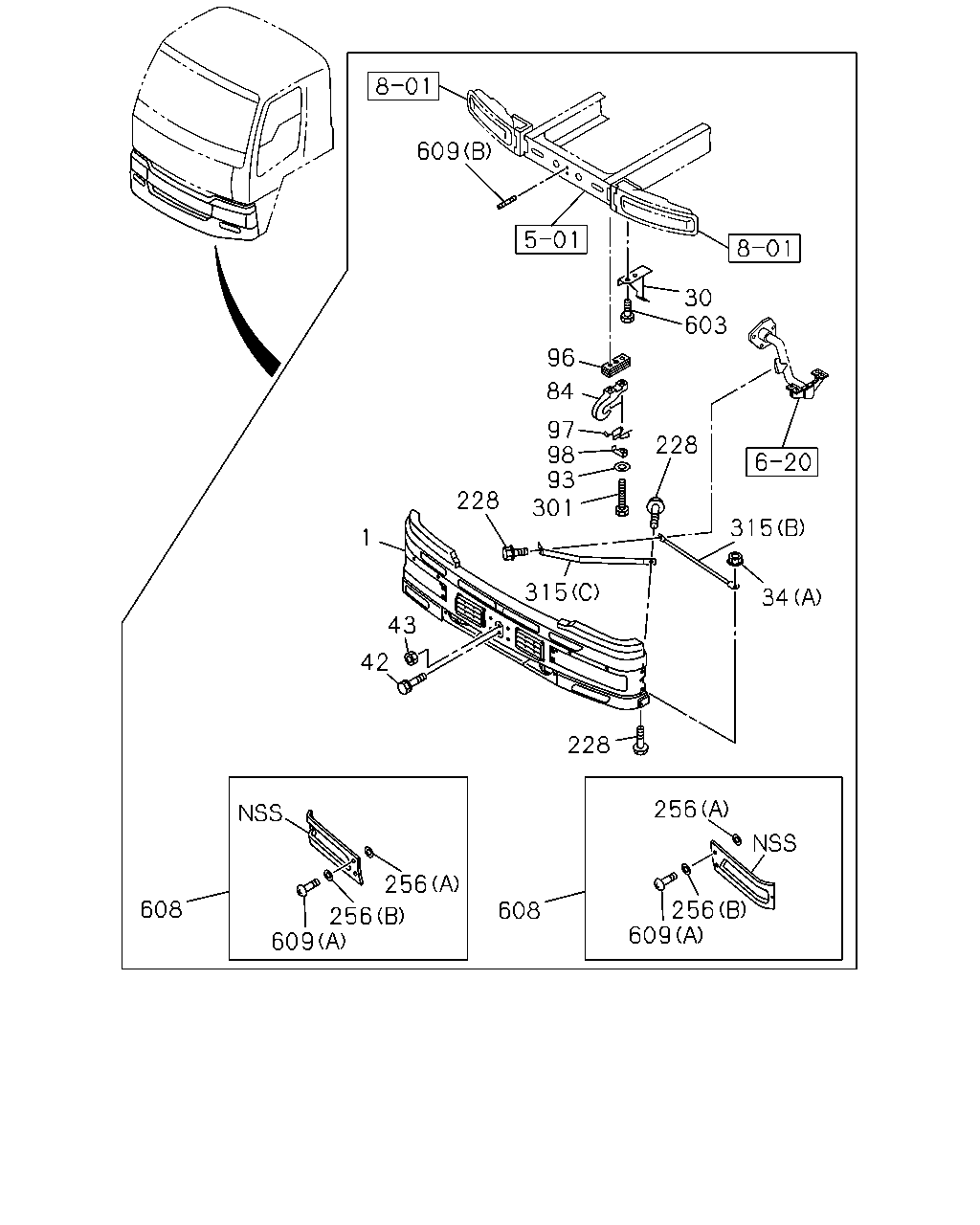

çizim 133765
609 30 603 96 84 97 98 93 301 228 228 315 1 315 34 43 42 228 256 256 608 256 609 608 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-427-1 01 1 0811-
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0811-
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0811-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0811-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0811-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0811-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0811-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0811-
84 HOOK 1-57181-027-1 01 1 0811-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0811-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0811-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0811-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0811-
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0811-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0811-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0811-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0811-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0811-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0811-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0811-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0811-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0811-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0811-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0811-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		1-71211-285-2 01 1 0811-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		1-71211-284-2 01 1 0811-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) 		1-71211-318-2 01 1 0811-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) 		1-71211-317-2 01 1 0811-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		1-71211-285-2 01 1 0811-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		1-71211-284-2 01 1 0811-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0811-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0811-
