7-43 — SUN VISOR AND ASSIST GRIP (#61525) — 131 parça

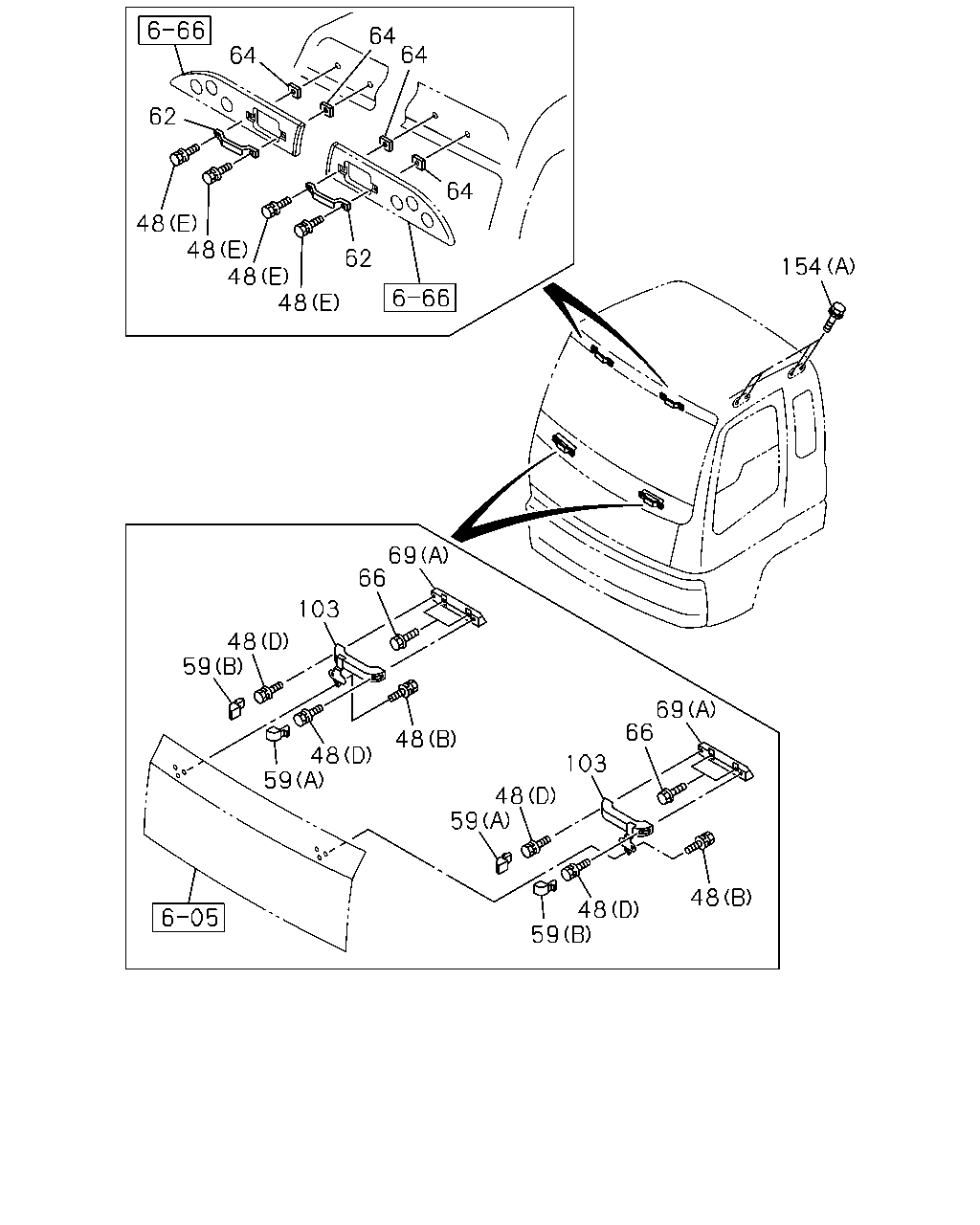

64 62 48 48 48 48 62 64 64 64 69 66 103 48 59 59 48 48 59 103 48 66 59 69 48 48 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1009-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1009-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1009-	●	●
59	COVER; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-73617-565-0	02	1	1009-1302	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1009-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1009-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1009-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	1009-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	1009-	●	●
69	BRACKET; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-178-2	01	1	1009-1302	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1009-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1009-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1009-1302	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1009-1302	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1009-	●	●

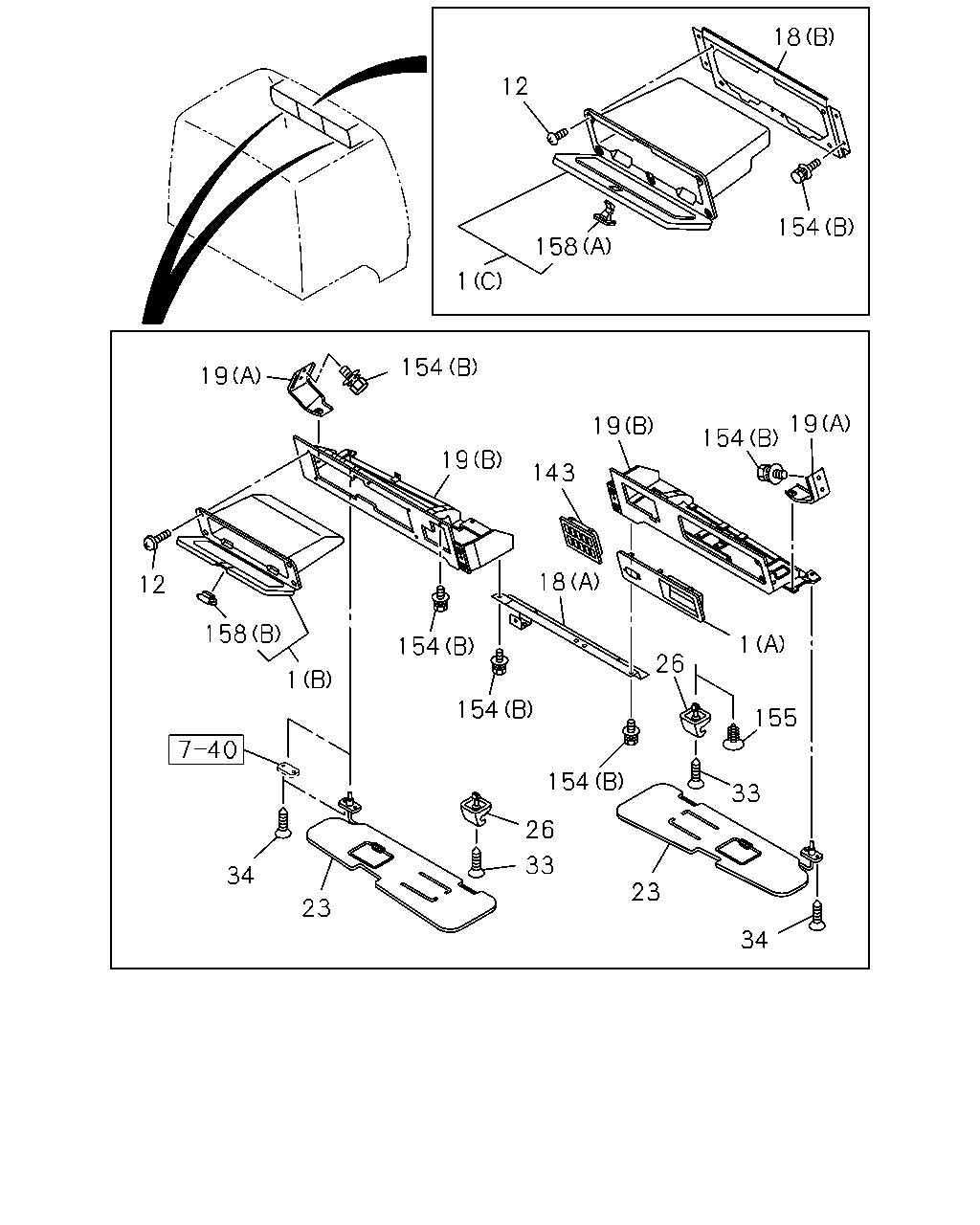

12 1 158 18 154 19 154 12 158 1 34 23 19 154 154 154 26 33 143 19 18 26 23 33 34 155 1 154 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-761-6	01	1	1009-	●	●
1	BOARD; HEADER SHELF (C)	1-72447-968-0	01	1	1009-	●	●
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-876-4	01	1	1009-1302	●	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	1303-	●	●
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-760-4	01	1	1009-1302	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1009-1302	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1009-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1009-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1009-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1009-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1009-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1009-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1009-1302	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1303-1411	●
23	SUN VISOR	1-73138-157-1	01	1	1303-1411		●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1412-	●	●
23	SUN VISOR	1-73138-156-1	01	1	1009-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1009-1302	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1009-1302	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-1411	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1303-1411	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-1411		●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1412-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1412-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-1302	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-1302	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1411	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1411	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1411		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1412-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1412-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1009-	●	●
143	BEZEL	1-72447-768-2	01	1	1009-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1009-1302	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1009-1302	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1009-	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1009-1302	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1303-1411	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1412-	●	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	1009-	●	●
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1009-	●	●

150 54 71 71 59 54 48 56 71 87 76 71 71 54 54 106 55 142 76 150 71 87 59 69 71 54 49 48 142 142 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1009-	●	●
49	NUT; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-106-0	01	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-185-1	02	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (B)	1-73618-185-1	01	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-73617-563-1	01	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-73617-564-1	01	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE HONG KONG EQUIPMENT(PQ1) (C)	8-98139-071-2	01	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98139-071-2	01	1	1009-1302		●
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98139-071-2	01	1	1303-	●	●
54	GRIP; ASSIST,QUARTER SIDE HONG KONG EQUIPMENT(PQ1) (C)	8-98153-870-1	01	1	1009-1302	●
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98153-870-1	01	1	1009-1302		●
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98153-870-1	01	1	1303-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1009-1302	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-	●	●
56	GRIP; ASSIST,SIDE SILL HONG KONG EQUIPMENT(PQ1)	8-98139-072-1	01	1	1009-1302	●
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1009-1302		●
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1303-	●	●
56	GRIP; ASSIST,SIDE SILL HONG KONG EQUIPMENT(PQ1)	8-98139-073-1	01	1	1009-1302	●
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1009-1302		●
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1303-	●	●
56	GRIP; ASSIST,SIDE SILL EXC. HONG KONG EQUIPMENT(PQ1)	8-98081-700-0	02	1	1009-1302	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1009-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1009-	●	●
59	COVER; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-73617-565-0	02	1	1009-1302	●
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	1009-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	1009-	●	●
69	BRACKET; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-178-2	01	1	1009-1302	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	1009-1302	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1009-1302	●	●
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1303-	●	●
71	SCREW ASSIST GRIP A POST<NBK> EXC. HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1009-1302	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1303-	●	●
71	SCREW HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1009-1302	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1009-1302		●
71	SCREW EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	1009-1302	●
71	SCREW EXC. HONG KONG EQUIPMENT(PQ1) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	1009-1302	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-608-1	01	1	1009-1302	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	1009-1302	●	●
76	SPACER; ASSIST GRIP (B) OD=13 T=4.5	8-94230-464-1	02	1	1303-	●	●
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	1009-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	1009-1302	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1303-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	1009-1302	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-1302	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71907-604-0	01	1	1009-1302	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	1009-1302	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1009-1302	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-	●	●
150	CLIP; ASSIST GRIP HOLE HONG KONG EQUIPMENT(PQ1) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-1302	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-1302	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-1302		●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1303-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1009-1302	●	●
