7-40 — INSTRUMENT PANEL AND BOX (#61524) — 258 parça

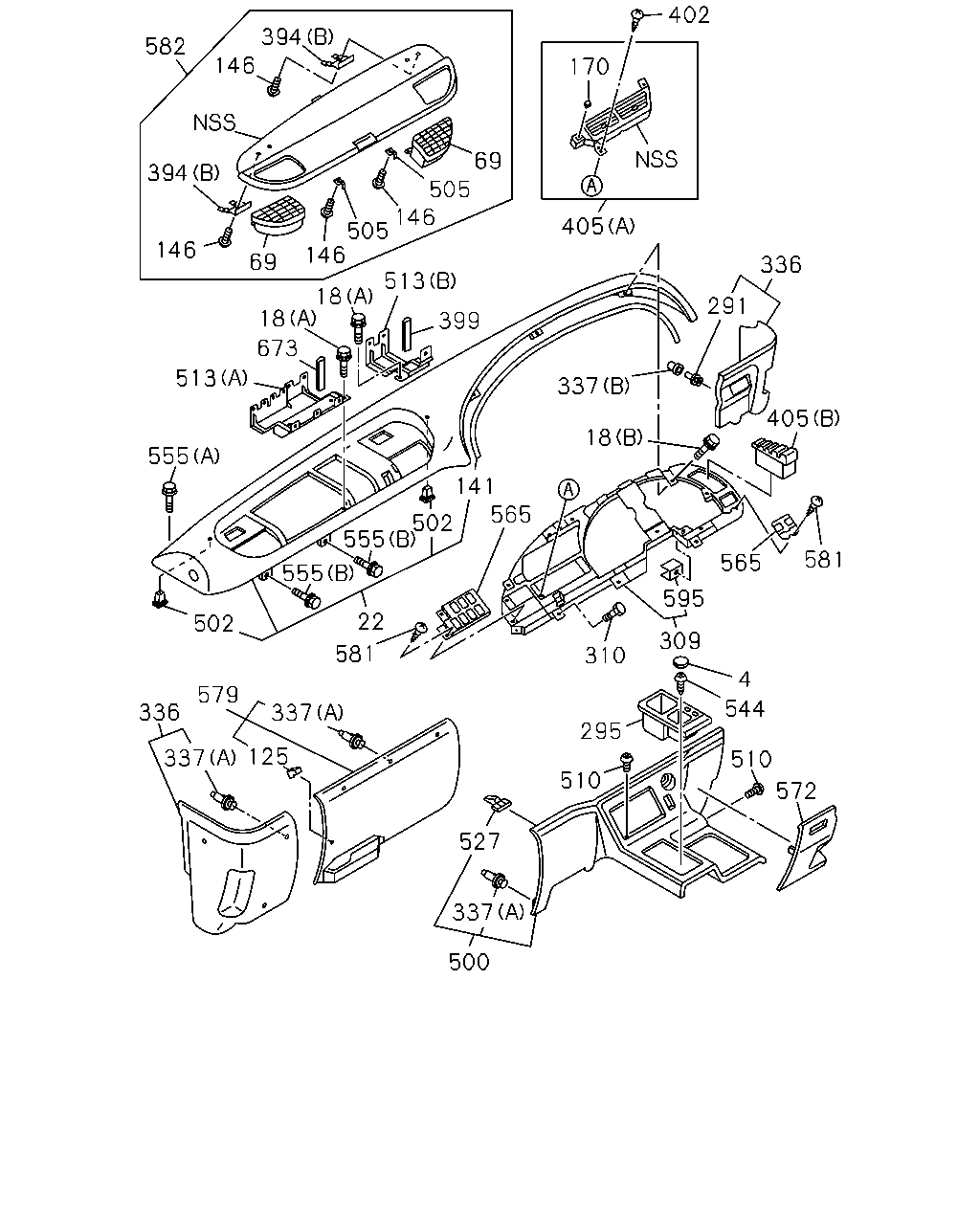

çizim 168574
582 394 146 394 146 146 69 505 146 505 69 170 402 405 513 18 18 673 513 555 502 336 337 125 337 579 581 555 555 565 502 141 399 22 337 18 291 336 405 581 565 595 309 4 544 510 572 510 527 337 500 295 310
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 1009- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-1302 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009- ● ●
22 PAD; INST 1-72317-372-1 01 1 1009- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1009- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1009- ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1303-1305 ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1306-1306 ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1306-1411 ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1412-1412 ●
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1412-1412 ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1412- ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1412- ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 1306-1306 ●
125 CLIP; INST PANEL 8-97217-066-0 06 1 1306-1411 ● ●
125 CLIP; INST PANEL 8-97217-066-0 06 1 1412-1412 ●
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 06 1 1412-1412 ●
125 CLIP; INST PANEL 8-97217-066-0 06 1 1412- ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 06 1 1412- ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 1009-1302 ● ●
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-1305 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1009- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1009- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 1009- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1009- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1009- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 1009- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1009- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1009- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1009- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1009- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 1009- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1009- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1009- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1009- ● ●
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1303- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1009- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-059-3 01 1 1009- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-062-2 01 1 1009- ● ●
500 CLUSTER; INST CENTER 1-72437-619-0 01 1 1009-1302 ●
500 CLUSTER; INST CENTER
EXC. SMOOTHER-G(C1W) 		1-72437-619-0 01 1 1009-1302 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1303-1304 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98217-875-0 01 1 1303-1304 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1305-1305 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1306-1408 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98217-875-0 01 1 1306-1408 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1409- ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1409- ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1009-1302 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		8-98217-877-0 01 1 1303-1304 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1305-1305 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-619-0 01 1 1305-1305 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		8-98217-877-0 01 1 1306-1408 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1409- ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. INST PANEL CARBON<EGW> 		1-72437-619-0 01 1 1409- ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) EXC. INST PANEL CARBON<EGW> 		1-72437-628-0 01 1 1409- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1009- ● ●
505 LOCK; LID 1-72558-024-2 02 1 1009- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1009- ● ●
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1009- ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1009- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 1009- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1009- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1009- ● ●
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1009- ● ●
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1009- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 1009- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 1009- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1009- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1009- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 1009- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1009- ● ●

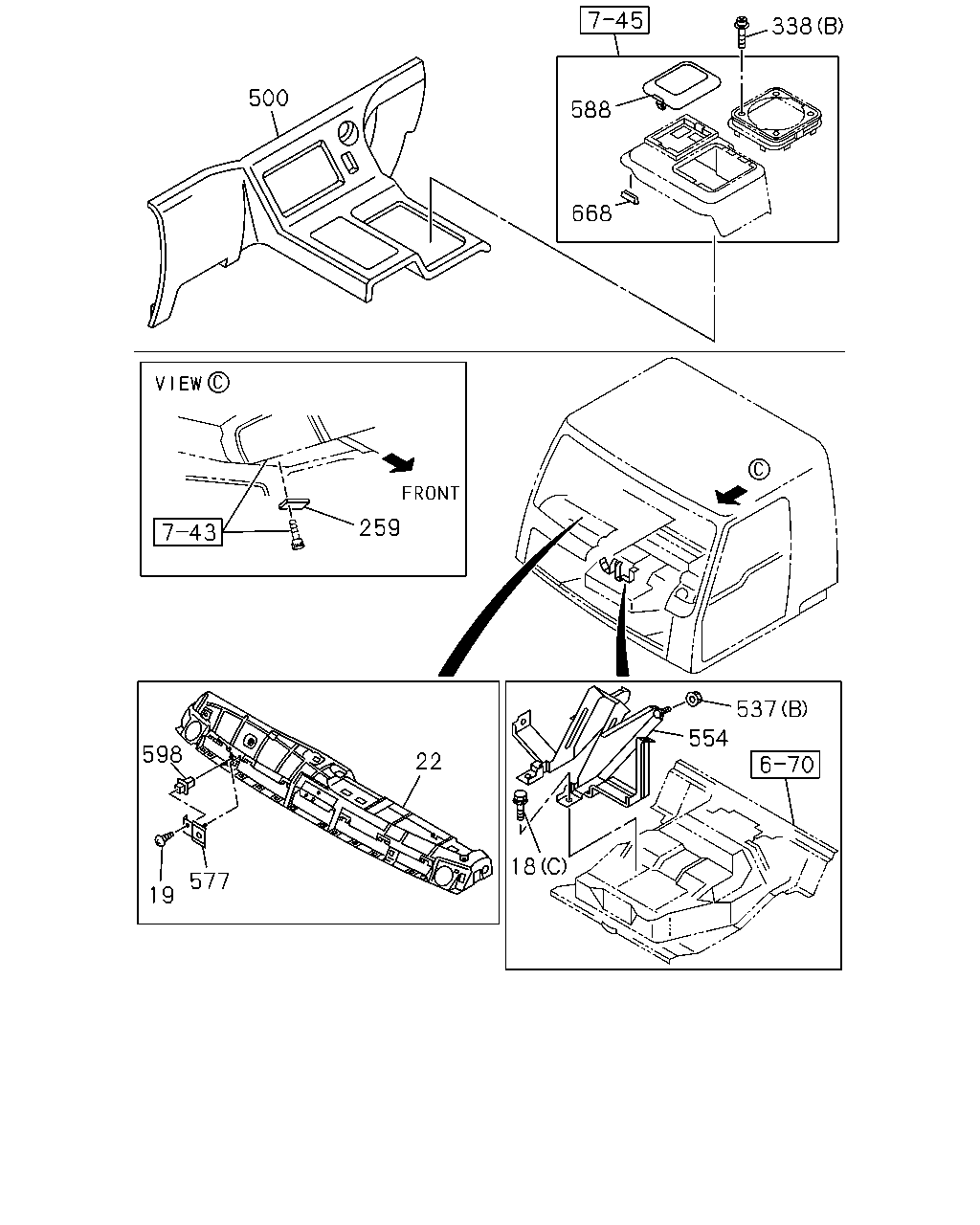

çizim 168585
338 588 668 500 259 22 577 19 598 554 537 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-1302 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1009- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1303- ●
22 PAD; INST 1-72317-372-1 01 1 1009- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1009-1302 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1303-1411 ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1412- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1303- ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1009-1302 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-1305 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1306-1411 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1412-1412 ●
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 07 1 1412-1412 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1412- ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 07 1 1412- ●
338 SCREW; COVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1009-1302 ●
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1303- ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 1303-1305 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1306-1306 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 1306-1411 ●
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1412-1412 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1412- ●
500 CLUSTER; INST CENTER 1-72437-619-0 01 1 1009-1302 ●
500 CLUSTER; INST CENTER
EXC. SMOOTHER-G(C1W) 		1-72437-619-0 01 1 1009-1302 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1303-1304 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98217-875-0 01 1 1303-1304 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1305-1305 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1306-1408 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98217-875-0 01 1 1306-1408 ●
500 CLUSTER; INST CENTER 8-98217-875-0 01 1 1409- ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1409- ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1009-1302 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		8-98217-877-0 01 1 1303-1304 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1305-1305 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-619-0 01 1 1305-1305 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		8-98217-877-0 01 1 1306-1408 ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1409- ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. INST PANEL CARBON<EGW> 		1-72437-619-0 01 1 1409- ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) EXC. INST PANEL CARBON<EGW> 		1-72437-628-0 01 1 1409- ●
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009- ●
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1009- ● ●
577 BRACKET; SENSOR 1-72318-413-0 01 1 1303- ●
588 LID; BOX
MJX12P M/T SMOOTHER-G(Y4S) 		1-72447-974-1 01 1 1009-1302 ●
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 1303- ●
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 1303- ●
668 FINISHER; COVER
MJX12P M/T SMOOTHER-G(Y4S) L=167 		1-71996-271-0 01 1 1009-1302 ●
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 1303- ●

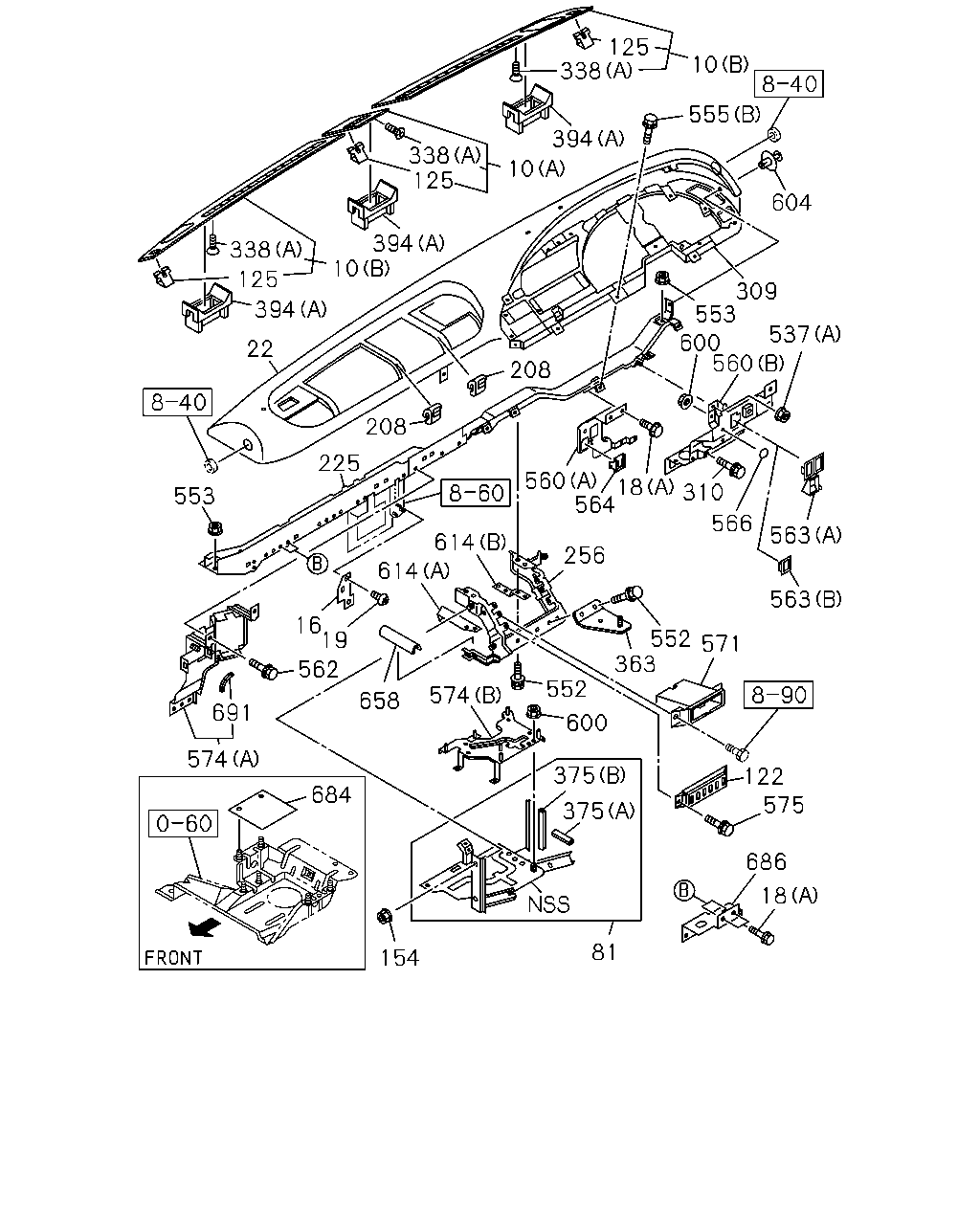

çizim 168586
125 555 10 10 125 338 394 338 394 338 394 10 208 225 22 560 600 553 309 604 537 560 566 563 563 310 18 564 256 552 571 363 552 600 122 575 686 18 375 375 81 154 684 658 614 16 19 562 614 691 574 574 125 208 553
BalonParca AdiParca NoAdetTipApplied Date A B
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1009-1305 ● ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1306-1306 ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1306-1411 ● ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1412-1412 ●
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (A) CENTER 		1-72437-540-6 01 1 1412-1412 ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1412- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) CENTER 		1-72437-540-6 01 1 1412- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 1009-1302 ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 1303- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 1303-1411 ●
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1412-1412 ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1412- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1009-1305 ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1306-1306 ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1306-1411 ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1412-1412 ●
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 1412-1412 ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1412- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 1412- ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 1009- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-1302 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1009- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1303- ●
22 PAD; INST 1-72317-372-1 01 1 1009- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-739-0 01 1 1009-1302 ● ●
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1303- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1009- ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1303-1305 ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1306-1306 ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1306-1411 ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1412-1412 ●
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1412-1412 ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 1412- ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1412- ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 1306-1306 ●
125 CLIP; INST PANEL 8-97217-066-0 06 1 1306-1411 ● ●
125 CLIP; INST PANEL 8-97217-066-0 06 1 1412-1412 ●
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 06 1 1412-1412 ●
125 CLIP; INST PANEL 8-97217-066-0 06 1 1412- ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 06 1 1412- ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 1009-1302 ● ●
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-1305 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306- ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1009- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 1009- ● ●
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1009- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 1009- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1009- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1303- ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1009-1302 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-1305 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1306-1411 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1412-1412 ●
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 07 1 1412-1412 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1412- ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 07 1 1412- ●
338 SCREW; COVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1009-1302 ●
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1303- ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 1303-1305 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1306-1306 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 1306-1411 ●
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1412-1412 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1412- ●
363 SUPPORT ASM; COMPT PANEL CTR
MJX12P M/T SMOOTHER-G(Y4S) 		1-73907-776-0 01 1 1009-1302 ●
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 1303- ●
375 FINISHER; BRKT,CONT UNIT
(A) L=80 		5-71997-133-0 01 1 1009-1302 ● ●
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303- ● ●
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 1009-1302 ● ●
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1303- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1009- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1009- ● ●
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009- ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1009- ● ●
560 BRACKET
(A) 		1-65681-197-2 01 1 1009- ● ●
560 BRACKET
BRAKE SYSTEM HSA(SLD) (B) 		1-65671-757-4 01 1 1009-1302 ●
560 BRACKET
EXC. SMOOTHER-G(C1W) (B) 		1-65671-757-4 01 1 1009-1302 ●
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) BRAKE SYSTEM HSA(SLD) (B) 		1-65671-757-4 01 1 1303- ●
560 BRACKET
EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-65671-760-4 01 1 1009-1302 ●
560 BRACKET
SMOOTHER-G(C1W) (B) 		1-65671-760-4 01 1 1009-1302 ●
560 BRACKET
(B) 		1-65671-760-4 01 1 1303- ●
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-65671-760-4 01 1 1303- ●
560 BRACKET
SMOOTHER-G(C1W) BRAKE SYSTEM HSA(SLD) (B) 		1-65671-760-4 01 1 1303- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009- ● ●
563 BEZEL; BRKT
BRAKE SYSTEM HSA(SLD) (A) 		1-72447-628-5 01 1 1009-1302 ●
563 BEZEL; BRKT
EXC. SMOOTHER-G(C1W) (A) 		1-72447-628-5 01 1 1009-1302 ●
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) BRAKE SYSTEM HSA(SLD) (A) 		1-72447-628-5 01 1 1303- ●
563 BEZEL; BRKT
EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-72448-410-3 01 1 1009-1302 ●
563 BEZEL; BRKT
SMOOTHER-G(C1W) (B) 		1-72448-410-3 01 1 1009-1302 ●
563 BEZEL; BRKT
(B) 		1-72448-410-3 01 1 1303- ●
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-72448-410-3 01 1 1303- ●
563 BEZEL; BRKT
SMOOTHER-G(C1W) BRAKE SYSTEM HSA(SLD) (B) 		1-72448-410-3 01 1 1303- ●
564 COVER; SW
BRAKE SYSTEM HSA(SLD) 		8-97856-401-3 01 1 1009-1302 ●
564 COVER; SW
EXC. SMOOTHER-G(C1W) 		8-97856-401-3 01 1 1009-1302 ●
564 COVER; SW
BRAKE SYSTEM HSA(SLD) 		8-97856-401-3 01 1 1303- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1302 ● ●
566 PLUG; HOLE
EXC. BRAKE SYSTEM HSA(SLD) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1302 ●
566 PLUG; HOLE
SMOOTHER-G(C1W) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1302 ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303- ●
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. BRAKE SYSTEM HSA(SLD) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303- ●
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303- ●
566 PLUG; HOLE
SMOOTHER-G(C1W) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303- ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1009-1302 ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1009-1302 ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1303-1303 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1304- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1304- ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1304- ●
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 1009- ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1009- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1009- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 1009- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1009- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1009- ● ●
658 FINISHER; BEZEL
L=80 		5-71997-133-0 01 1 1009-1302 ● ●
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303- ● ●
684 RUBBER; HARNESS 1-82698-417-1 01 1 1009- ● ●
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1009- ● ●
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
