7-20 — MIRROR AND MIRROR STAY (#61522) — 536 parça

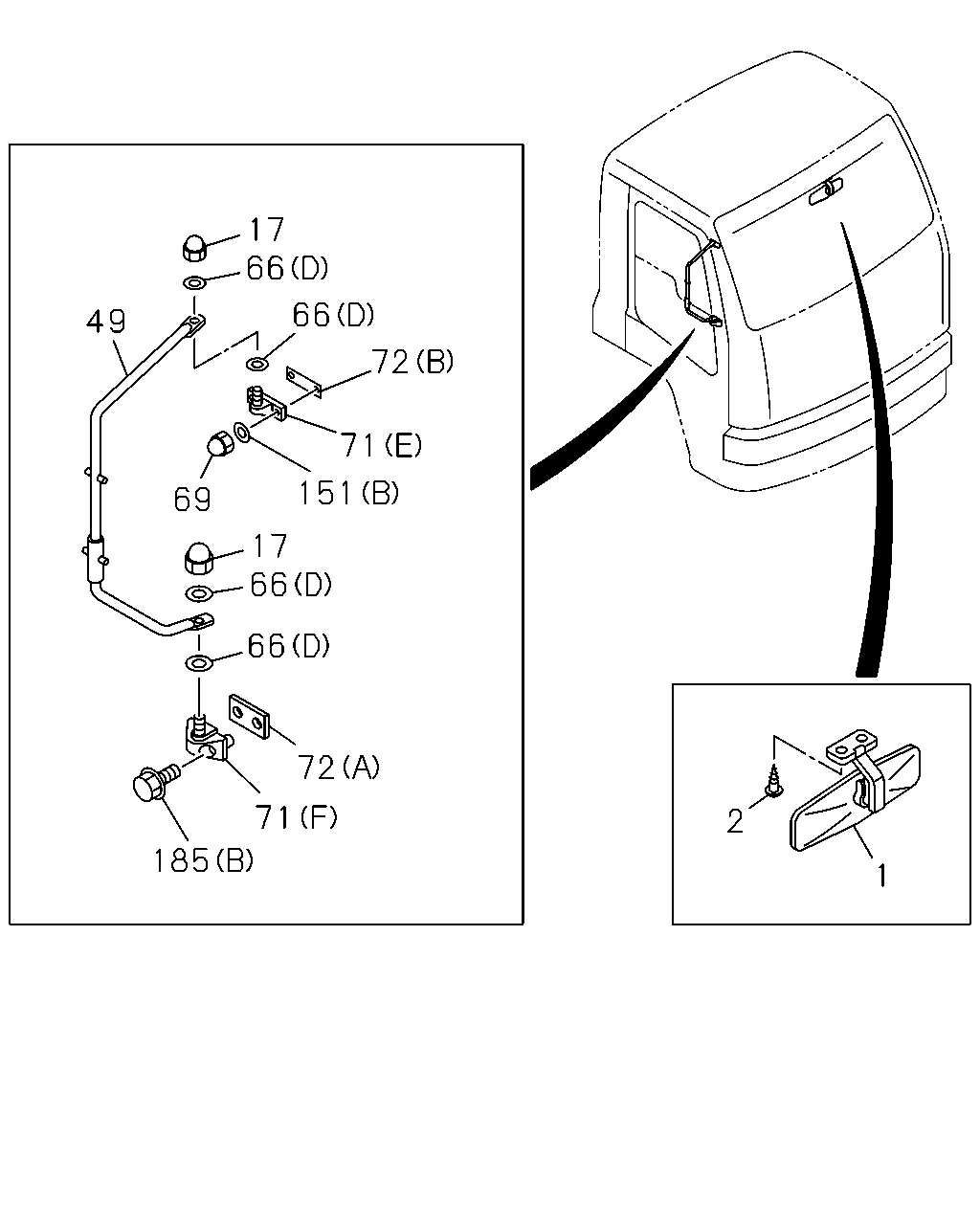

çizim 168577
150 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73117-033-1 01 1 1009-1411 ● ●
1 MIRROR; ROOM 1-73117-033-1 01 1 1412- ●
1 MIRROR; ROOM
RR VIEW MIRROR<D31> 		1-73117-033-1 01 1 1412- ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1009-1411 ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1412- ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X20 		1-09981-310-0 02 1 1412- ●
150 PLUG; MIRROR HOLE
EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1412- ●

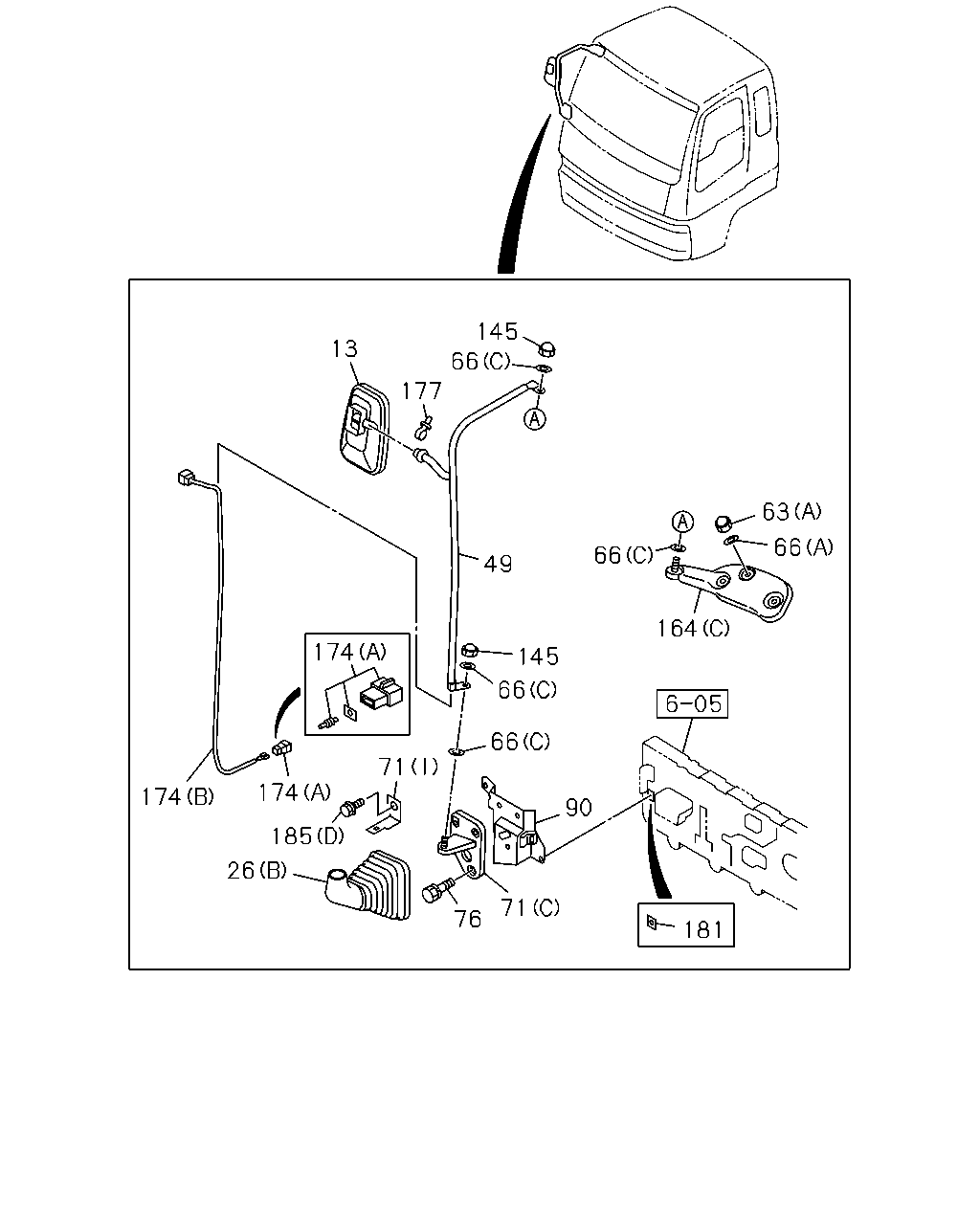

çizim 168609
145 66 177 13 63 66 66 49 145 164 66 66 174 71 174 185 26 174 76 90 71 181
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1009-1302 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1303-1504 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98288-715-1 01 1 1505-1510 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-746-0 01 1 1511- ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1009-1302 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1303-1510 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-747-0 01 1 1511- ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1303- ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1303- ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1303- ●
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (B) M8 		1-71798-603-1 02 1 1009-1302 ●
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1009-1302 ●
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1303- ●
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT 		1-71798-859-0 01 1 1009-1302 ●
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1009-1302 ●
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1303- ●
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1009-1302 ● ●
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1303- ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1009-1302 ● ●
63 NUT; STAY
(A) M8 		1-09984-187-0 03 1 1303- ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1303-1411 ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1412- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1303- ●
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1303- ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-1302 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 08 1 1303- ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1302 ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1303- ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-1302 ● ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-255-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71798-484-1 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(F) 		1-71798-486-2 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(G) 		8-98099-810-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(H) 		8-98167-111-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) 		8-98039-277-2 02 1 1511- ●
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1009-1302 ● ●
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1303- ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1009- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1009- ● ●
145 NUT; CAP,SUB STAY
M10 		1-09984-183-0 02 1 1009-1302 ● ●
145 NUT; CAP,SUB STAY
M10 		1-09984-183-0 02 1 1303- ●
164 STAY; ROOF
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-602-1 01 1 1009-1302 ●
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1009-1302 ●
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1303- ●
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1009-1302 ● ●
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1303- ●
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1009-1302 ● ●
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1303-1411 ●
164 STAY; ROOF
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-71798-299-4 01 1 1412- ●
164 STAY; ROOF
(D) 		1-71707-248-2 01 1 1303- ●
164 STAY; ROOF
(E) 		1-71707-266-1 01 1 1303- ●
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (A) 		1-82662-365-1 02 1 1009-1302 ●
174 HARNESS; MIRROR
(A) 		1-82662-365-1 02 1 1009-1302 ●
174 HARNESS; MIRROR
(A) 		1-82662-365-1 02 1 1303-1411 ●
174 HARNESS; MIRROR
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		1-82662-365-1 02 1 1412- ●
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-652-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-652-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-652-0 01 1 1303-1411 ●
174 HARNESS; MIRROR
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-97610-652-0 01 1 1412- ●
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-653-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-653-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-653-0 01 1 1303-1411 ●
174 HARNESS; MIRROR
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-97610-653-0 01 1 1412- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1009-1302 ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1303- ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1009- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1303- ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1303- ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1304- ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
çizim 168623
29 86 87 21 32 30 135 29 30 32 87 134 132 135 21 86 13 53 53 71 26 25 14
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1009-1302 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1303-1504 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98288-715-1 01 1 1505-1510 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-746-0 01 1 1511- ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1009-1302 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1303-1510 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-747-0 01 1 1511- ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-230-0 01 1 1009-1302 ● ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-230-0 01 1 1303-1504 ●
14 MIRROR ASM; OUTSIDE
(A) 		8-98288-714-0 01 1 1505-1510 ●
14 MIRROR ASM; OUTSIDE
(A) 		8-98324-757-0 01 1 1511- ●
14 MIRROR ASM; OUTSIDE
(B) 		1-71798-895-0 01 1 1303- ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-231-0 01 1 1009-1302 ● ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-231-0 01 1 1303-1510 ●
14 MIRROR ASM; OUTSIDE
(A) 		8-98324-759-0 01 1 1511- ●
21 NUT; MIRROR
M5 		1-09984-124-0 04 1 1009-1302 ● ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1303- ● ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1303- ●
25 SCREW; OUTSIDE MIRROR
M6X40 		1-71707-223-0 04 1 1009-1302 ● ●
25 SCREW; OUTSIDE MIRROR
M6X40 		1-71707-223-0 04 1 1303- ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1303- ●
29 MIRROR ASM; UNDER
(C) 		1-71798-422-0 01 1 1303- ●
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1009-1302 ● ●
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1303- ●
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1009-1302 ● ●
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1303- ●
30 MIRROR; UNDER
(C) 		1-71798-591-1 01 1 1303- ●
30 MIRROR; UNDER
(A) 		1-71797-853-1 01 1 1009-1302 ● ●
30 MIRROR; UNDER
(A) 		1-71797-853-1 01 1 1303- ●
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 1009-1302 ● ●
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 1303- ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 04 1 1009-1302 ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1303- ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1303- ●
53 PIVOT; SIDE MIRROR
ID=22.2 		1-71736-489-2 02 1 1009-1302 ● ●
53 PIVOT; SIDE MIRROR
ID=22.2 		1-71736-489-2 04 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-255-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71798-484-1 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(F) 		1-71798-486-2 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(G) 		8-98099-810-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(H) 		8-98167-111-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) 		8-98039-277-2 02 1 1511- ●
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1303- ●
87 SPACER 1-71737-646-2 02 1 1009-1302 ● ●
87 SPACER 1-71737-646-2 01 1 1303- ● ●
87 SPACER 1-71737-646-2 01 1 1303- ●
132 RING; MIRROR 1-71737-935-0 01 1 1009-1302 ● ●
132 RING; MIRROR 1-71737-935-0 01 1 1303- ●
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1009-1302 ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1303- ●
135 LENS; MIRROR,SIDE UNDER
(C) 		1-71798-838-0 01 1 1303- ●
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71707-130-0 01 1 1009-1302 ● ●
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71707-130-0 01 1 1303- ●
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1009-1302 ● ●
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1303- ●

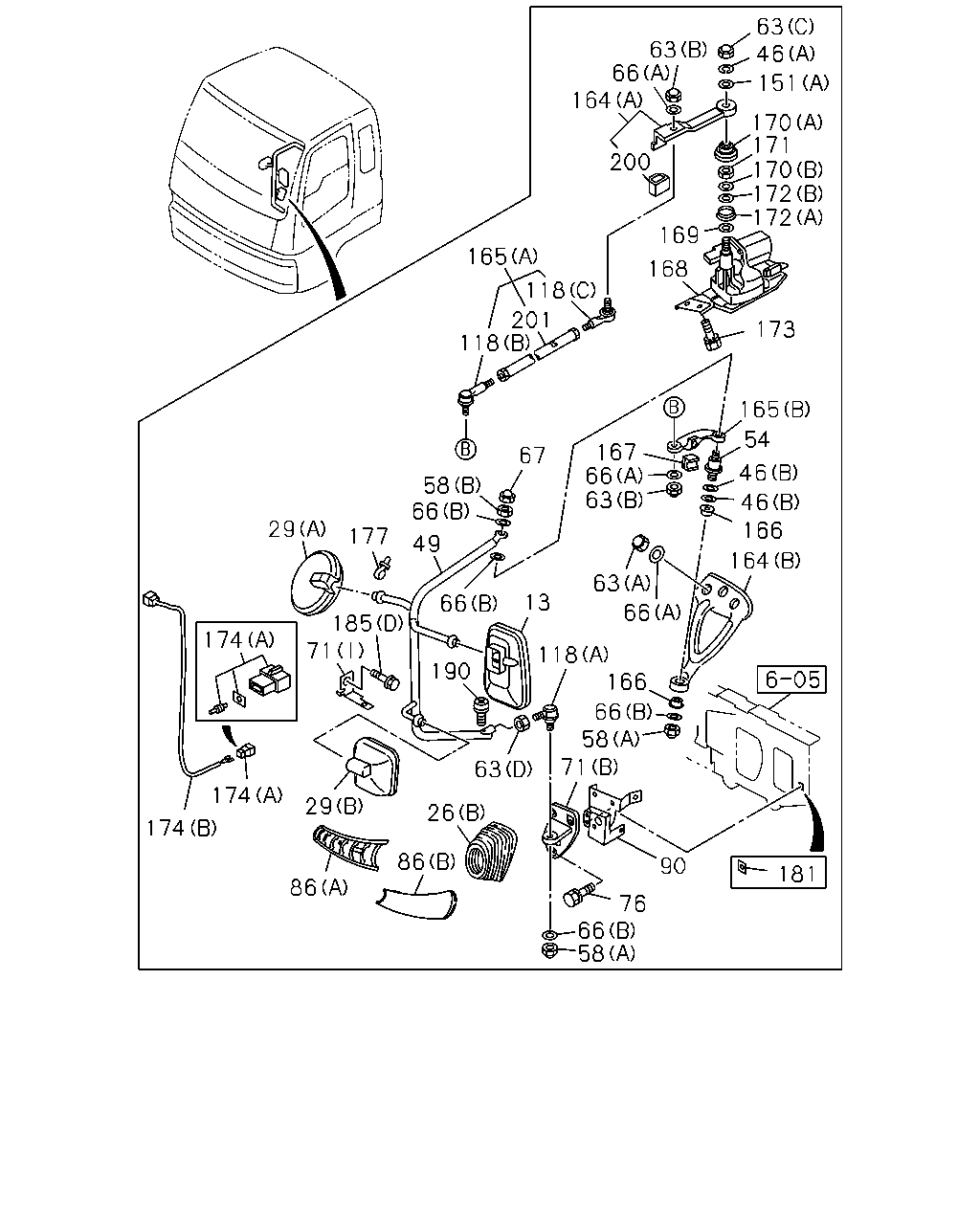

çizim 168627
63 66 164 200 165 201 118 118 173 168 169 172 172 170 171 170 151 46 63 165 46 54 46 164 66 63 166 63 66 167 67 58 66 49 177 29 174 71 29 185 66 13 118 166 66 58 71 90 76 66 58 86 26 63 190 86 174 174
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1009-1302 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1303-1504 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98288-715-1 01 1 1505-1510 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-746-0 01 1 1511- ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1009-1302 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1303-1510 ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-747-0 01 1 1511- ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1303- ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1009-1302 ● ●
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1303- ●
29 MIRROR ASM; UNDER
(C) 		1-71798-422-0 01 1 1303- ●
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1009-1302 ● ●
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1303- ●
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1009-1302 ● ●
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1303- ●
46 WASHER; LK,STAY
MIR STAY O/S W/REMOTE<TBA> (A) ID=10 		1-09985-345-0 01 1 1009-1302 ●
46 WASHER; LK,STAY
(A) ID=10 		1-09985-345-0 01 1 1009-1302 ●
46 WASHER; LK,STAY
(A) ID=10 		1-09985-345-0 01 1 1303- ●
46 WASHER; LK,STAY
(B) ID=16.7 OD=22.5 WAVE WASHER 		9-61166-107-0 02 1 1009-1302 ● ●
46 WASHER; LK,STAY
(B) ID=16.7 OD=22.5 WAVE WASHER 		9-61166-107-0 02 1 1303- ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1303- ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1303- ●
54 BOLT; STAY 1-09980-618-0 01 1 1009-1302 ● ●
54 BOLT; STAY 1-09980-618-0 01 1 1303- ●
58 NUT; MIRROR STAY
(C) M10 		1-09984-183-0 01 1 1303- ●
58 NUT; MIRROR STAY
(A) M12 		1-09984-178-1 02 1 1009-1302 ● ●
58 NUT; MIRROR STAY
(A) M12 		1-09984-178-1 02 1 1303- ●
58 NUT; MIRROR STAY
(B) M12 		1-09984-184-1 01 1 1009-1302 ● ●
58 NUT; MIRROR STAY
(B) M12 		1-09984-184-1 01 1 1303- ●
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (B) M8 		1-71798-603-1 02 1 1009-1302 ●
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1009-1302 ●
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1303- ●
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT 		1-71798-859-0 01 1 1009-1302 ●
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1009-1302 ●
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1303- ●
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1009-1302 ● ●
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1303- ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1009-1302 ● ●
63 NUT; STAY
(A) M8 		1-09984-187-0 03 1 1303- ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1303-1411 ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1412- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1303- ●
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1303- ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-1302 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 08 1 1303- ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1302 ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1303- ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-1302 ● ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1303- ●
67 NUT; STAY
M12 		1-09984-178-1 01 1 1009-1302 ● ●
67 NUT; STAY
M12 		1-09984-178-1 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-255-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71798-484-1 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(F) 		1-71798-486-2 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(G) 		8-98099-810-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(H) 		8-98167-111-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) 		8-98039-277-2 02 1 1511- ●
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1009-1302 ● ●
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1303- ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1009- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1009- ● ●
118 JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD 		1-71798-819-2 01 1 1009-1302 ●
118 JOINT ASM; BALL
(C) RH THREAD 		1-71798-819-2 01 1 1009-1302 ●
118 JOINT ASM; BALL
(C) RH THREAD 		1-71798-819-2 01 1 1303- ●
118 JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD 		1-71798-820-2 01 1 1009-1302 ●
118 JOINT ASM; BALL
(B) LH THREAD 		1-71798-820-2 01 1 1009-1302 ●
118 JOINT ASM; BALL
(B) LH THREAD 		1-71798-820-2 01 1 1303- ●
118 JOINT ASM; BALL
(A) 		1-71797-805-1 01 1 1009-1302 ● ●
118 JOINT ASM; BALL
(A) 		1-71797-805-1 01 1 1303- ●
151 WASHER; PL,MIRROR
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1303- ●
151 WASHER; PL,MIRROR
MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-1302 ●
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-1302 ●
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1303- ●
164 STAY; ROOF
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-602-1 01 1 1009-1302 ●
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1009-1302 ●
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1303- ●
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1009-1302 ● ●
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1303- ●
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1009-1302 ● ●
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1303-1411 ●
164 STAY; ROOF
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-71798-299-4 01 1 1412- ●
164 STAY; ROOF
(D) 		1-71707-248-2 01 1 1303- ●
164 STAY; ROOF
(E) 		1-71707-266-1 01 1 1303- ●
165 LINK; POWER MIRROR
MIR STAY O/S W/REMOTE<TBA> (B) 		1-71798-600-1 01 1 1009-1302 ●
165 LINK; POWER MIRROR
(B) 		1-71798-600-1 01 1 1009-1302 ●
165 LINK; POWER MIRROR
(B) 		1-71798-600-1 01 1 1303- ●
165 LINK; POWER MIRROR
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-782-2 01 1 1009-1302 ●
165 LINK; POWER MIRROR
(A) 		1-71798-782-2 01 1 1009-1302 ●
165 LINK; POWER MIRROR
(A) 		1-71798-782-2 01 1 1303- ●
166 BUSHING; STAY 1-09983-179-0 02 1 1009-1302 ● ●
166 BUSHING; STAY 1-09983-179-0 02 1 1303- ●
167 RUBBER; STOPPER
MIR STAY O/S W/REMOTE<TBA> 		1-71798-308-0 01 1 1009-1302 ●
167 RUBBER; STOPPER 1-71798-308-0 01 1 1009-1302 ●
167 RUBBER; STOPPER 1-71798-308-0 01 1 1303- ●
168 POWER UNIT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA> 		1-86855-031-0 01 1 1009-1302 ●
168 POWER UNIT; MIRROR STAY 1-86855-031-0 01 1 1009-1302 ●
168 POWER UNIT; MIRROR STAY 1-86855-031-0 01 1 1303-1311 ●
168 POWER UNIT; MIRROR STAY 8-98251-163-0 01 1 1312- ●
169 WASHER; PL,POWER UNIT
MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2 		1-86855-011-1 01 1 1009-1302 ●
169 WASHER; PL,POWER UNIT
ID=26.2 OD=44 T=2 		1-86855-011-1 01 1 1009-1302 ●
169 WASHER; PL,POWER UNIT
ID=26.2 OD=44 T=2 		1-86855-011-1 01 1 1303- ●
170 CAP; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (A) 		1-86855-012-0 01 1 1009-1302 ●
170 CAP; POWER UNIT
(A) 		1-86855-012-0 01 1 1009-1302 ●
170 CAP; POWER UNIT
(A) 		1-86855-012-0 01 1 1303- ●
170 CAP; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (B) 		1-86855-014-1 01 1 1009-1302 ●
170 CAP; POWER UNIT
(B) 		1-86855-014-1 01 1 1009-1302 ●
170 CAP; POWER UNIT
(B) 		1-86855-014-1 01 1 1303- ●
171 NUT; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> M26 		1-86855-013-1 01 1 1009-1302 ●
171 NUT; POWER UNIT
M26 		1-86855-013-1 01 1 1009-1302 ●
171 NUT; POWER UNIT
M26 		1-86855-013-1 01 1 1303- ●
172 SEAL; RUBBER,POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (A) 		1-79928-003-1 01 1 1009-1302 ●
172 SEAL; RUBBER,POWER UNIT
(A) 		1-79928-003-1 01 1 1009-1302 ●
172 SEAL; RUBBER,POWER UNIT
(A) 		1-79928-003-1 01 1 1303- ●
172 SEAL; RUBBER,POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (B) 		1-86855-015-0 01 1 1009-1302 ●
172 SEAL; RUBBER,POWER UNIT
(B) 		1-86855-015-0 01 1 1009-1302 ●
172 SEAL; RUBBER,POWER UNIT
(B) 		1-86855-015-0 01 1 1303- ●
173 BOLT; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1009-1302 ●
173 BOLT; POWER UNIT
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1009-1302 ●
173 BOLT; POWER UNIT
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1303- ●
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (A) 		1-82662-365-1 02 1 1009-1302 ●
174 HARNESS; MIRROR
(A) 		1-82662-365-1 02 1 1009-1302 ●
174 HARNESS; MIRROR
(A) 		1-82662-365-1 02 1 1303-1411 ●
174 HARNESS; MIRROR
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		1-82662-365-1 02 1 1412- ●
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-652-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-652-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-652-0 01 1 1303-1411 ●
174 HARNESS; MIRROR
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-97610-652-0 01 1 1412- ●
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-653-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-653-0 01 1 1009-1302 ●
174 HARNESS; MIRROR
(B) 		8-97610-653-0 01 1 1303-1411 ●
174 HARNESS; MIRROR
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-97610-653-0 01 1 1412- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1009-1302 ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1303- ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1303- ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1303- ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1304- ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
190 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 1009-1302 ● ●
190 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 1303- ●
200 STOPPER; STAY
MIR STAY O/S W/REMOTE<TBA> 		1-71798-597-0 01 1 1009-1302 ●
200 STOPPER; STAY 1-71798-597-0 01 1 1009-1302 ●
200 STOPPER; STAY 1-71798-597-0 01 1 1303- ●
201 ROD; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-71798-821-0 01 1 1009-1302 ●
201 ROD; MIRROR 1-71798-821-0 01 1 1009-1302 ●
201 ROD; MIRROR 1-71798-821-0 01 1 1303- ●
çizim 336668
17 66 66 72 71 151 69 17 66 66 72 71 185 49 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73117-033-1 01 1 1009-1411 ● ●
1 MIRROR; ROOM 1-73117-033-1 01 1 1412- ●
1 MIRROR; ROOM
RR VIEW MIRROR<D31> 		1-73117-033-1 01 1 1412- ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1009-1411 ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1412- ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X20 		1-09981-310-0 02 1 1412- ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1303- ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 1303- ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1303- ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1303- ●
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1303- ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-1302 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 08 1 1303- ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1302 ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1303- ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-1302 ● ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1303- ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-255-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71798-484-1 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(F) 		1-71798-486-2 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(G) 		8-98099-810-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(H) 		8-98167-111-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) 		8-98039-277-2 02 1 1511- ●
72 SHEET
(B) 		1-71798-487-3 02 1 1303- ●
72 SHEET
(A) 		1-71798-488-1 02 1 1303- ●
151 WASHER; PL,MIRROR
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1303- ●
151 WASHER; PL,MIRROR
MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-1302 ●
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-1302 ●
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1303- ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1303- ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1303- ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1304- ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●

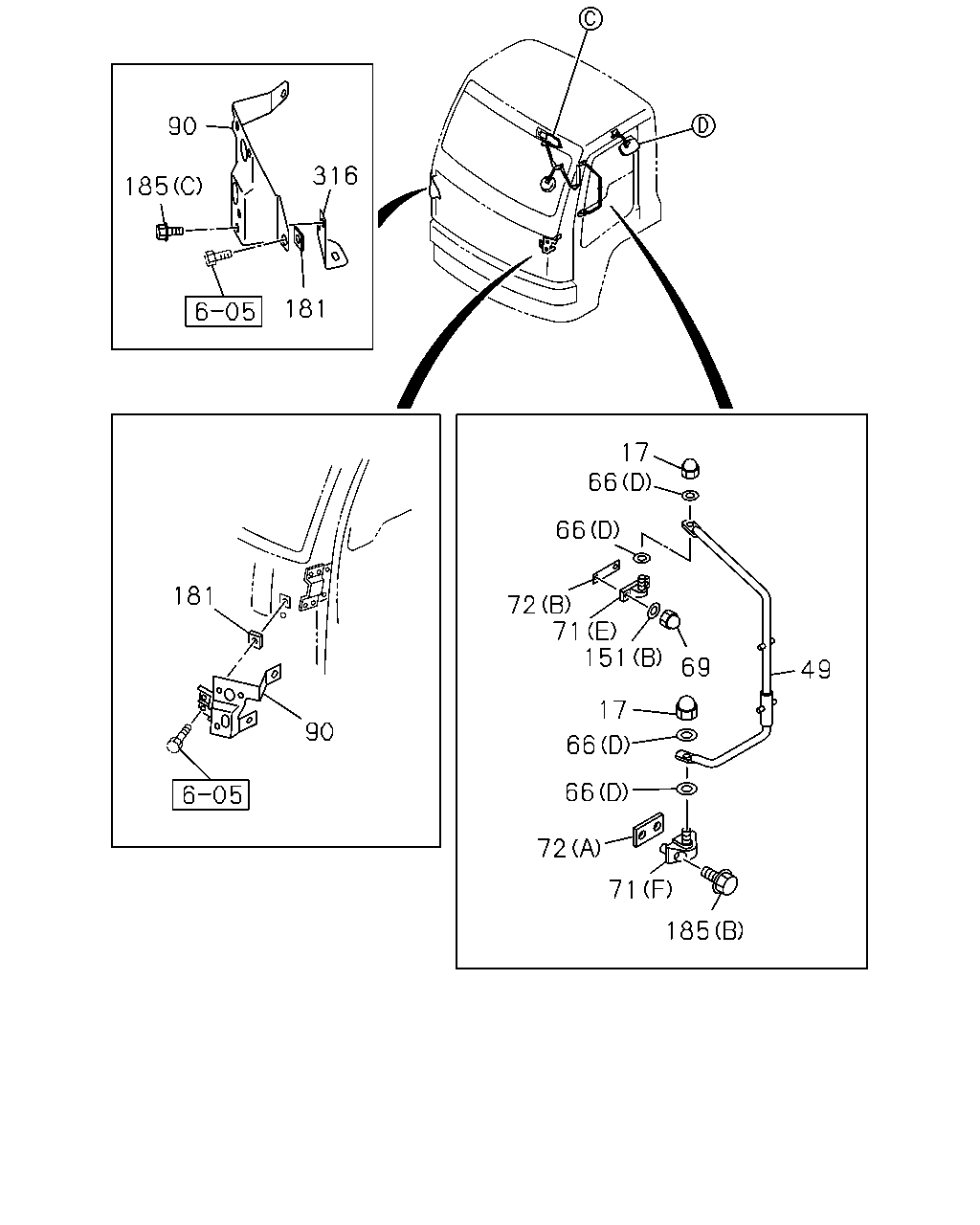

çizim 336678
90 185 316 181 181 90 17 66 66 72 71 151 17 69 66 66 72 71 49 185
BalonParca AdiParca NoAdetTipApplied Date A B
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1303- ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 1303- ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 1303-1309 ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1303- ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1009-1302 ● ●
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1303- ●
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1303- ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-1302 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 08 1 1303- ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1302 ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1303- ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-1302 ● ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1303- ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-255-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71798-484-1 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(F) 		1-71798-486-2 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(G) 		8-98099-810-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(H) 		8-98167-111-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) 		8-98039-277-2 02 1 1511- ●
72 SHEET
(B) 		1-71798-487-3 02 1 1303- ●
72 SHEET
(A) 		1-71798-488-1 02 1 1303- ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1009- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1009- ● ●
151 WASHER; PL,MIRROR
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1303- ●
151 WASHER; PL,MIRROR
MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-1302 ●
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-1302 ●
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1303- ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1009- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1303- ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1303- ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1304- ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
316 BRACKET; CONNECTOR 1-71798-896-1 01 1 1304- ●
çizim 336774
17 66 66 17 66 99 66 29 86 87 21 32 135 30 164 66 63 71 164 17 66 66 185 116 116 58 22 14 71 71 77 163
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-230-0 01 1 1009-1302 ● ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-230-0 01 1 1303-1504 ●
14 MIRROR ASM; OUTSIDE
(A) 		8-98288-714-0 01 1 1505-1510 ●
14 MIRROR ASM; OUTSIDE
(A) 		8-98324-757-0 01 1 1511- ●
14 MIRROR ASM; OUTSIDE
(B) 		1-71798-895-0 01 1 1303- ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-231-0 01 1 1009-1302 ● ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71707-231-0 01 1 1303-1510 ●
14 MIRROR ASM; OUTSIDE
(A) 		8-98324-759-0 01 1 1511- ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1303- ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 1303- ●
21 NUT; MIRROR
M5 		1-09984-124-0 04 1 1009-1302 ● ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1303- ● ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1303- ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 1303- ●
29 MIRROR ASM; UNDER
(C) 		1-71798-422-0 01 1 1303- ●
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1009-1302 ● ●
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1303- ●
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1009-1302 ● ●
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1303- ●
30 MIRROR; UNDER
(C) 		1-71798-591-1 01 1 1303- ●
30 MIRROR; UNDER
(A) 		1-71797-853-1 01 1 1009-1302 ● ●
30 MIRROR; UNDER
(A) 		1-71797-853-1 01 1 1303- ●
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 1009-1302 ● ●
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 1303- ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 04 1 1009-1302 ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1303- ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1303- ●
58 NUT; MIRROR STAY
(C) M10 		1-09984-183-0 01 1 1303- ●
58 NUT; MIRROR STAY
(A) M12 		1-09984-178-1 02 1 1009-1302 ● ●
58 NUT; MIRROR STAY
(A) M12 		1-09984-178-1 02 1 1303- ●
58 NUT; MIRROR STAY
(B) M12 		1-09984-184-1 01 1 1009-1302 ● ●
58 NUT; MIRROR STAY
(B) M12 		1-09984-184-1 01 1 1303- ●
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (B) M8 		1-71798-603-1 02 1 1009-1302 ●
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1009-1302 ●
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1303- ●
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT 		1-71798-859-0 01 1 1009-1302 ●
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1009-1302 ●
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1303- ●
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1009-1302 ● ●
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1303- ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1009-1302 ● ●
63 NUT; STAY
(A) M8 		1-09984-187-0 03 1 1303- ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1303-1411 ●
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1412- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1303- ●
66 WASHER; PL
(D) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1303- ●
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-1302 ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1303- ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-1302 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 08 1 1303- ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1302 ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1303- ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-1302 ● ●
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-1302 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-255-2 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71798-484-1 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(F) 		1-71798-486-2 02 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(G) 		8-98099-810-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
(H) 		8-98167-111-0 01 1 1303- ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) 		8-98039-277-2 02 1 1511- ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1303- ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1009-1302 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1303- ●
87 SPACER 1-71737-646-2 02 1 1009-1302 ● ●
87 SPACER 1-71737-646-2 01 1 1303- ● ●
87 SPACER 1-71737-646-2 01 1 1303- ●
99 STAY; MAIN UNDER MIRROR 1-71707-265-1 01 1 1303- ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1303- ●
135 LENS; MIRROR,SIDE UNDER
(C) 		1-71798-838-0 01 1 1303- ●
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71707-130-0 01 1 1009-1302 ● ●
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71707-130-0 01 1 1303- ●
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1009-1302 ● ●
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1303- ●
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 1303- ●
164 STAY; ROOF
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-602-1 01 1 1009-1302 ●
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1009-1302 ●
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1303- ●
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1009-1302 ● ●
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1303- ●
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1009-1302 ● ●
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1303-1411 ●
164 STAY; ROOF
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-71798-299-4 01 1 1412- ●
164 STAY; ROOF
(D) 		1-71707-248-2 01 1 1303- ●
164 STAY; ROOF
(E) 		1-71707-266-1 01 1 1303- ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1303- ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1303- ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1304- ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
