◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#61521) — 140 parça

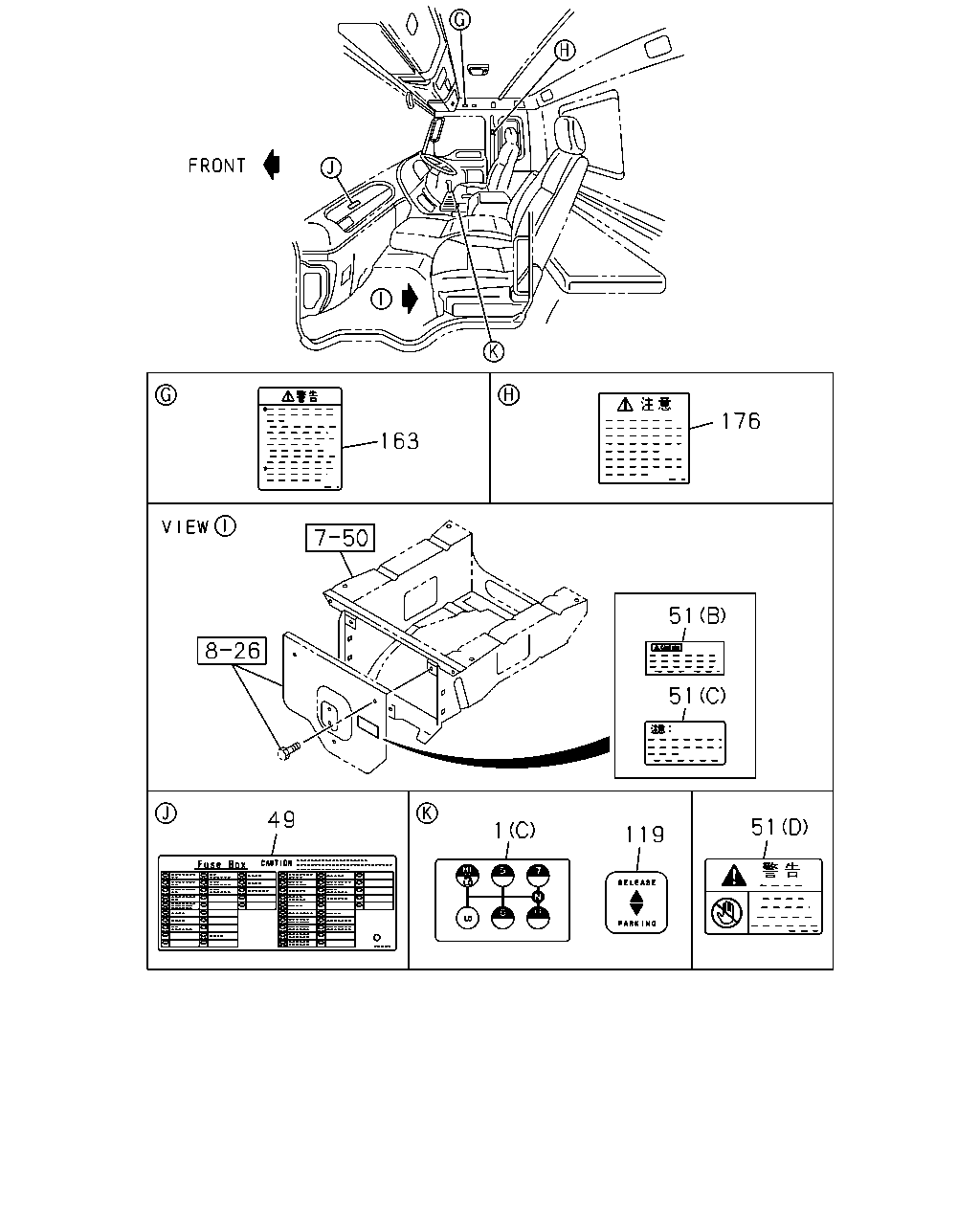

çizim 168616
163 176 51 51 51 119 1 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-85881-842-0 01 1 1009- ●
1 PLATE; CAUTION,SHIFT PATTERN
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-85881-879-1 01 1 1009- ●
1 PLATE; CAUTION,SHIFT PATTERN
(C) 		1-85881-519-0 01 1 1303- ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-97631-090-1 01 1 1009-1302 ● ●
49 PLATE; CAUTION,FUSE BOX 8-97631-090-1 01 1 1303-1411 ●
49 PLATE; CAUTION,FUSE BOX 8-97631-090-1 01 1 1412- ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-97631-090-1 01 1 1412- ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-97631-089-1 01 1 1009-1302 ● ●
49 PLATE; CAUTION,FUSE BOX 8-97631-089-1 01 1 1303-1411 ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-97631-089-1 01 1 1412- ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1009-1302 ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1303-1411 ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1412- ●
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1412- ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (C) 		8-97616-500-0 01 1 1009-1302 ● ●
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) (C) 		8-97616-500-0 01 1 1303-1411 ●
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> (C) 		8-97616-500-0 01 1 1412- ●
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1009- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1303- ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1009-1302 ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1303-1411 ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A) 		1-85880-777-0 01 1 1412- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 1303-1411 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 1412- ●
119 PLATE; CAUTION,HAND BRK LEVER
FULL TRACTOR TRUCK<RD6> CAUTIONS ENGLISH<RR8> 		1-85881-791-0 01 1 1412- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1009-1302 ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-874-0 01 1 1303-1411 ●
119 PLATE; CAUTION,HAND BRK LEVER
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85881-874-0 01 1 1412- ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> EXC. FULL TRACTOR TRUCK<RD6> 		1-85881-759-0 01 1 1412- ●
163 PLATE; NAME,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-485-0 01 1 1009-1302 ●
163 PLATE; NAME,AIR BAG
CAUTIONS ENGLISH<RR8> 		1-85878-485-0 01 1 1009-1302 ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 1303-1411 ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 1412- ●
163 PLATE; NAME,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-485-0 01 1 1412- ●
163 PLATE; NAME,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-109-0 01 1 1009-1302 ●
163 PLATE; NAME,AIR BAG
CAUTIONS CHINESE<SL7> 		1-85878-109-0 01 1 1009-1302 ●
163 PLATE; NAME,AIR BAG 1-85878-109-0 01 1 1303-1411 ●
163 PLATE; NAME,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-109-0 01 1 1412- ●
176 LABEL; SEAT BELT
CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-108-0 01 1 1009-1302 ●
176 LABEL; SEAT BELT
CAUTIONS CHINESE<SL7> 		1-85878-108-0 01 1 1009-1302 ●
176 LABEL; SEAT BELT 1-85878-108-0 01 1 1303-1411 ●
176 LABEL; SEAT BELT
CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-108-0 01 1 1412- ●
176 LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-486-0 01 1 1009-1302 ●
176 LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> 		1-85878-486-0 01 1 1009-1302 ●
176 LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-486-0 01 1 1412- ●

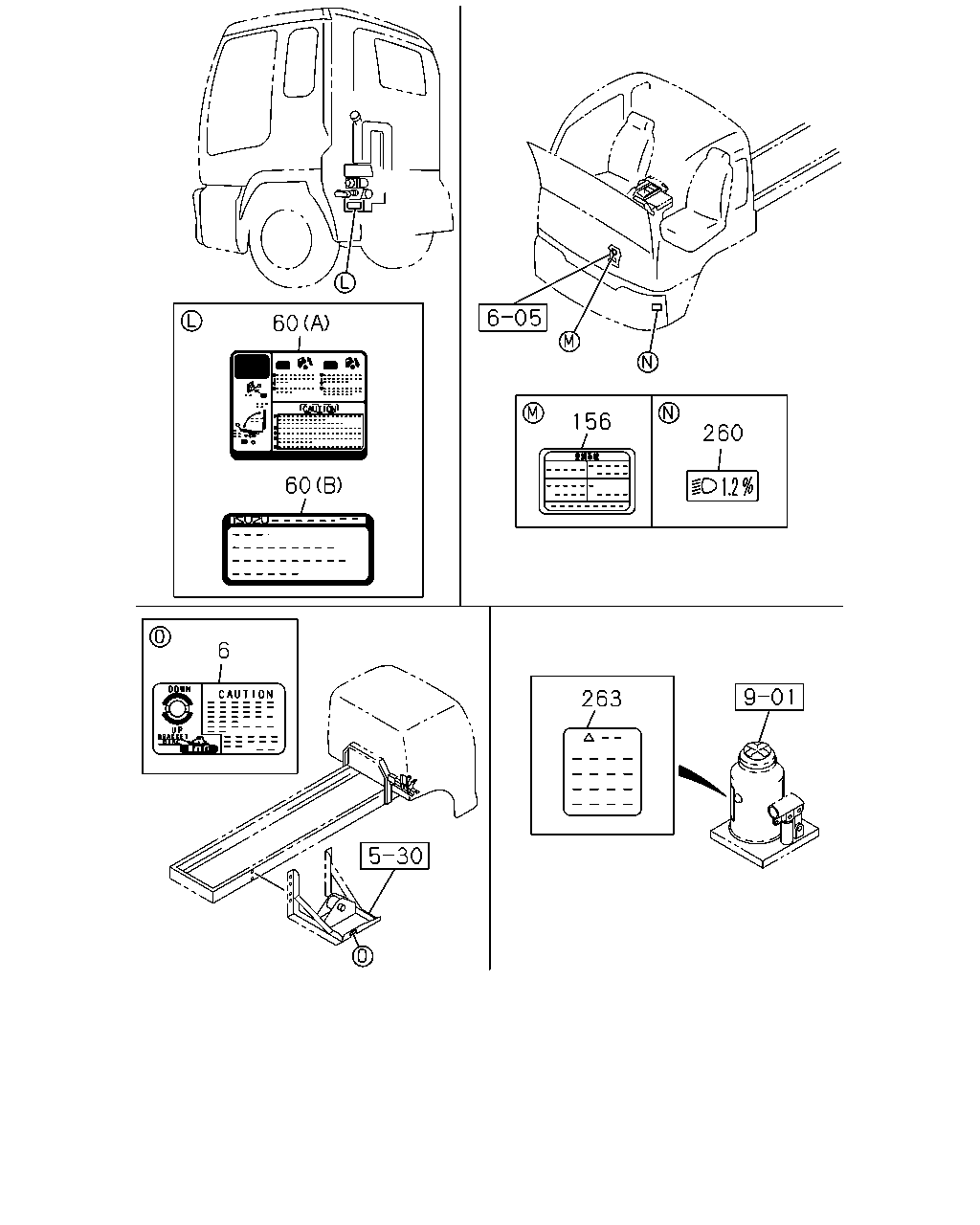

çizim 168638
60 156 260 263 6 60
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009-1302 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009-1302 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1412- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		8-98082-438-0 01 1 1009-1302 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		8-98082-438-0 01 1 1009-1302 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-438-0 01 1 1303-1411 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS CHINESE<SL7> 		8-98082-438-0 01 1 1412- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (A) 		1-85883-234-0 01 1 1009-1302 ● ●
60 PLATE; CAUTION,CAB TILT
(A) 		8-98174-581-0 01 1 1303-1411 ●
60 PLATE; CAUTION,CAB TILT
(A) 		8-98174-581-0 01 1 1412- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (A) 		8-98174-581-0 01 1 1412- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (A) 		1-85883-242-0 01 1 1009-1302 ● ●
60 PLATE; CAUTION,CAB TILT
(B) 		8-98174-582-0 01 1 1303-1411 ●
60 PLATE; CAUTION,CAB TILT
(B) 		8-98174-582-0 01 1 1412- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (B) 		8-98174-582-0 01 1 1412- ●
60 PLATE; CAUTION,CAB TILT
(A) 		8-98191-063-0 01 1 1303-1411 ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (A) 		8-98191-063-0 01 1 1412- ●
60 PLATE; CAUTION,CAB TILT
(B) 		8-98191-071-0 01 1 1303-1411 ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (B) 		8-98191-071-0 01 1 1412- ●
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98055-383-0 01 1 1009-1302 ● ●
156 PLATE; CAUTION,A/C 8-98231-357-0 01 1 1303-1411 ●
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98231-357-0 01 1 1412-1412 ●
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7> 		8-98231-357-0 01 1 1412- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1009-1302 ● ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 1009-1302 ● ●
263 PLATE; CAUTION,JACK 1-85881-878-0 01 1 1303-1411 ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 1412- ●

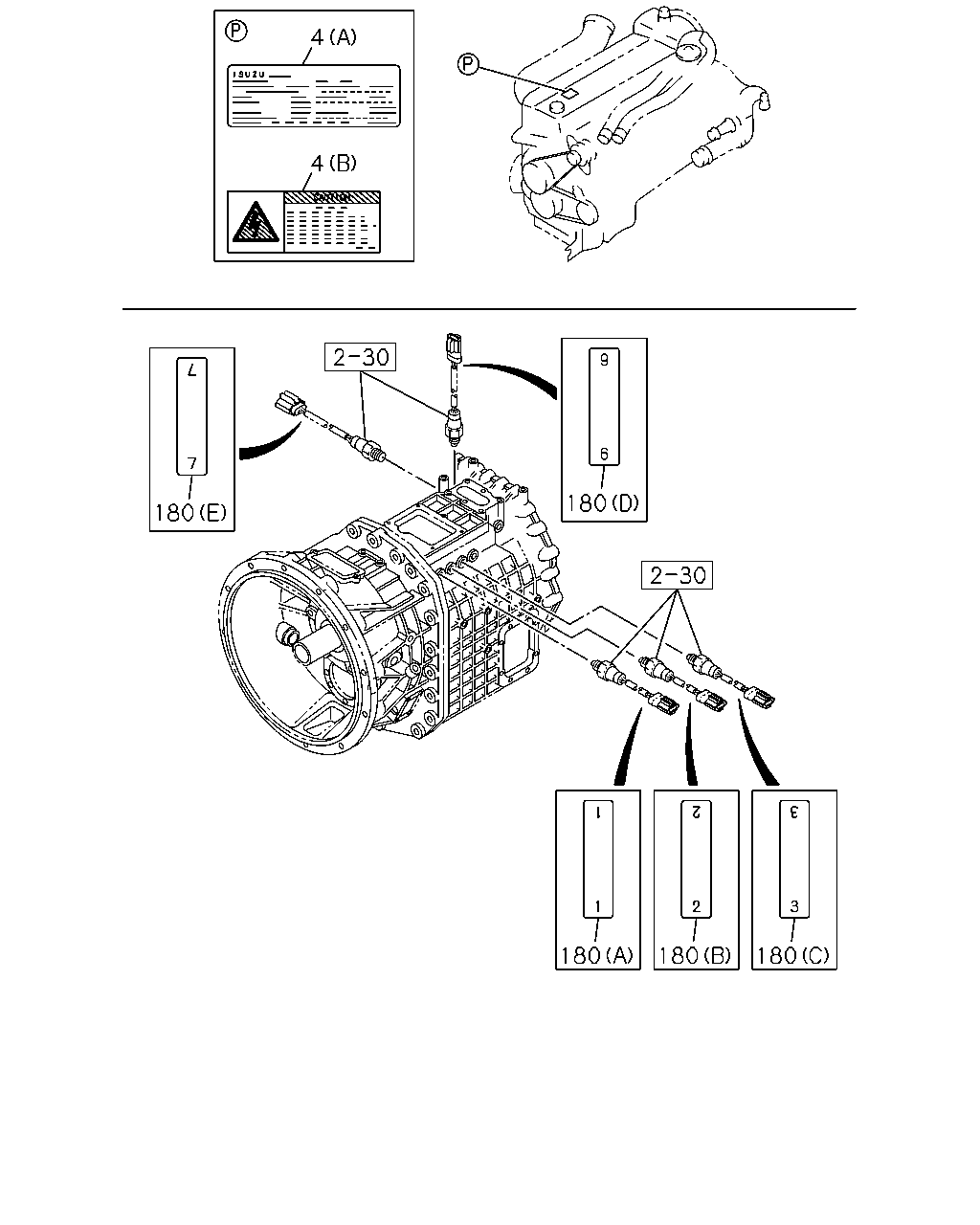

çizim 168674
4 4 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 1009- ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1009- ● ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-85881-871-0 01 1 1009- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-85881-872-0 01 1 1009- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-85881-873-0 01 1 1009- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (D) 		1-85881-880-0 01 1 1009- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (E) 		1-85881-881-0 01 1 1009- ●
çizim 168757
181 181 175
BalonParca AdiParca NoAdetTipApplied Date A B
175 LABEL; STRG,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-116-0 02 1 1009-1302 ●
175 LABEL; STRG,AIR BAG
CAUTIONS ENGLISH<RR8> 		1-85878-116-0 02 1 1009-1302 ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 1303-1411 ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 1412- ●
175 LABEL; STRG,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-116-0 02 1 1412- ●
175 LABEL; STRG,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-107-0 02 1 1009-1302 ●
175 LABEL; STRG,AIR BAG
CAUTIONS CHINESE<SL7> 		1-85878-107-0 02 1 1009-1302 ●
175 LABEL; STRG,AIR BAG 1-85878-107-0 02 1 1303-1411 ●
175 LABEL; STRG,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-107-0 02 1 1412- ●
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1009- ● ●
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1303- ● ●

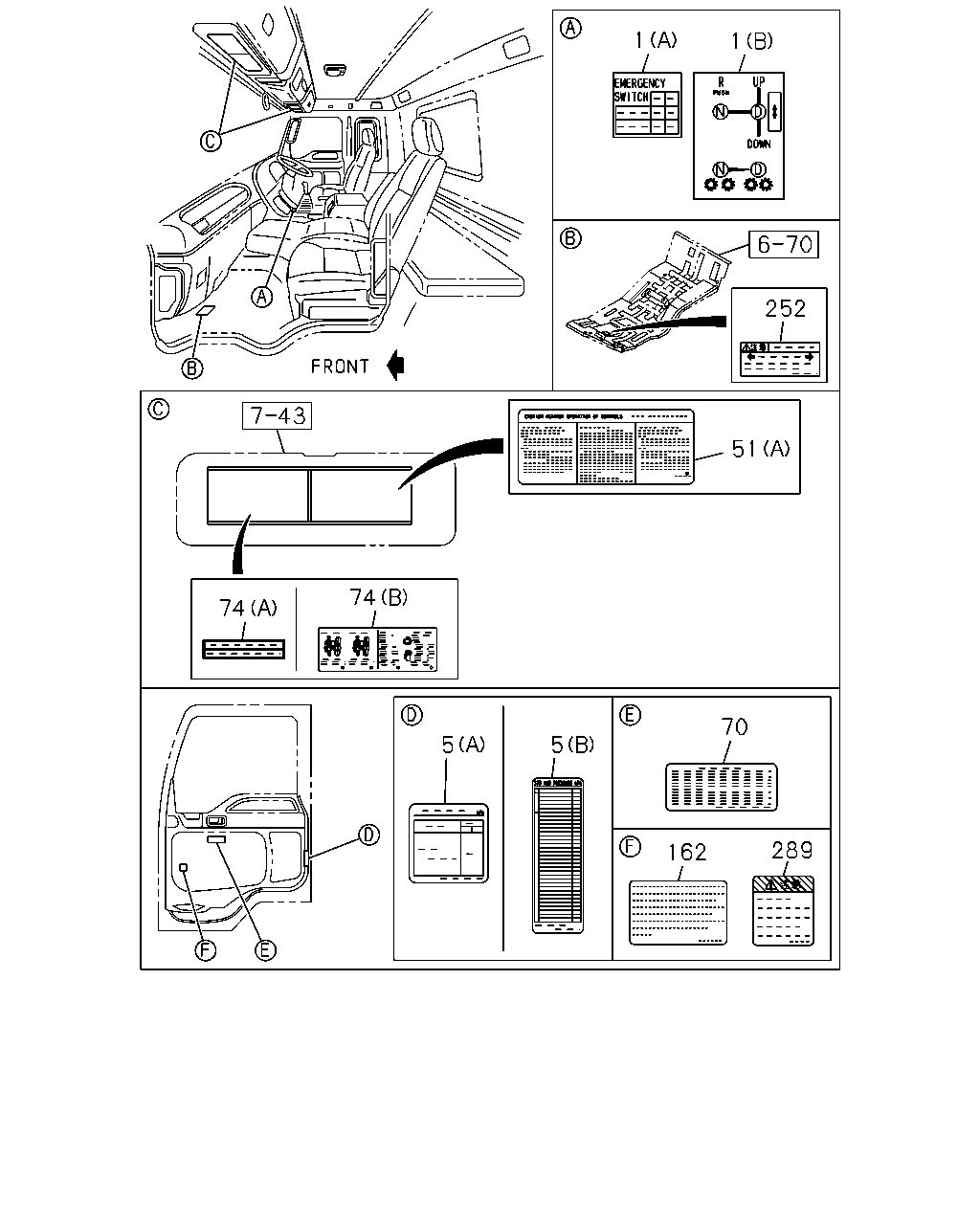

çizim 168763
1 1 252 74 74 5 70 162 289 51 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-85881-842-0 01 1 1009- ●
1 PLATE; CAUTION,SHIFT PATTERN
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-85881-879-1 01 1 1009- ●
1 PLATE; CAUTION,SHIFT PATTERN
(C) 		1-85881-519-0 01 1 1303- ●
5 LABEL; TIRE AIR PRESSURE
TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 12R22.5-16RIB(75N) CAUTIONS CHINESE<SL7> (A) 		1-85881-947-0 01 1 1009-1302 ● ●
5 LABEL; TIRE AIR PRESSURE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) CAUTIONS CHINESE<SL7> (A) 		1-85881-887-0 01 1 1009-1302 ● ●
5 LABEL; TIRE AIR PRESSURE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) (A) 		1-85881-887-0 01 1 1303-1411 ●
5 LABEL; TIRE AIR PRESSURE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) CAUTIONS CHINESE<SL7> (A) 		1-85881-887-0 01 1 1412- ●
5 LABEL; TIRE AIR PRESSURE
EXC. CAUTIONS CHINESE<SL7> (B) 		1-85880-778-0 01 1 1009-1302 ● ●
5 LABEL; TIRE AIR PRESSURE
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) (B) 		1-85880-778-0 01 1 1303-1411 ●
5 LABEL; TIRE AIR PRESSURE
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) (B) 		1-85880-778-0 01 1 1412-1510 ●
5 LABEL; TIRE AIR PRESSURE
TIRE FT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X), TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUG OFF ROAD(5N4),FT315/80R22.5-156/150L RR295/80R22.5 152/148J(5S5),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) CAUTIONS ENGLISH<RR8> (B) 		1-85880-778-0 01 1 1412-1510 ●
5 LABEL; TIRE AIR PRESSURE
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) (B) 		1-85880-778-0 01 1 1511- ●
5 LABEL; TIRE AIR PRESSURE
TIRE FT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X), TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R20-16RIBLUG OFF ROAD(5N4),FT315/80R22.5-156/150L RR295/80R22.5 152/148J(5S5),TIRE 11.00R20-16 RIB(85R),T IRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) CAUTIONS ENGLISH<RR8> (B) 		1-85880-778-0 01 1 1511- ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1009-1302 ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1303-1411 ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1412- ●
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1412- ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (C) 		8-97616-500-0 01 1 1009-1302 ● ●
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) (C) 		8-97616-500-0 01 1 1303-1411 ●
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> (C) 		8-97616-500-0 01 1 1412- ●
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1009- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1303- ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1009-1302 ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1303-1411 ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A) 		1-85880-777-0 01 1 1412- ●
70 PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> 		1-85878-484-0 01 1 1009-1302 ●
70 PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> 		1-85878-547-0 01 1 1009-1302 ●
70 PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S) CAUTIONS CHINESE<SL7> 		1-85878-547-0 01 1 1303- ●
74 PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (A) 		1-85881-869-0 01 1 1009-1302 ●
74 PLATE; CAUTION,CHANGE LEV
(B) 		1-85881-786-0 01 1 1303- ●
74 PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> (B) 		1-85881-928-0 01 1 1009-1302 ●
74 PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) CAUTIONS CHINESE<SL7> (B) 		1-85881-928-0 01 1 1303- ●
162 PLATE; CAUTION,FUEL
CAUTIONS ENGLISH<RR8> 		8-97623-712-0 01 1 1009-1302 ● ●
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 1303-1411 ●
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 1412- ●
162 PLATE; CAUTION,FUEL
CAUTIONS ENGLISH<RR8> 		8-97623-712-0 01 1 1412- ●
162 PLATE; CAUTION,FUEL
CAUTIONS CHINESE<SL7> 		1-85875-457-0 01 1 1009-1302 ● ●
162 PLATE; CAUTION,FUEL 1-85875-457-0 01 1 1303-1411 ●
162 PLATE; CAUTION,FUEL
CAUTIONS CHINESE<SL7> 		1-85875-457-0 01 1 1412- ●
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> 		1-85878-488-1 01 1 1009-1302 ● ●
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 1303-1411 ●
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 1412- ●
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> 		1-85878-488-1 01 1 1412- ●
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> 		1-85878-515-0 01 1 1009-1302 ● ●
252 PLATE; CAUTION,HARNESS 1-85878-515-0 01 1 1303-1411 ●
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> 		1-85878-515-0 01 1 1412- ●
289 PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1009-1302 ●
289 PLATE; CAUTION,DRIVING
CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1009-1302 ●
289 PLATE; CAUTION,DRIVING 1-85883-223-1 01 1 1303-1411 ●
289 PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
