Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11290 - CYZ RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

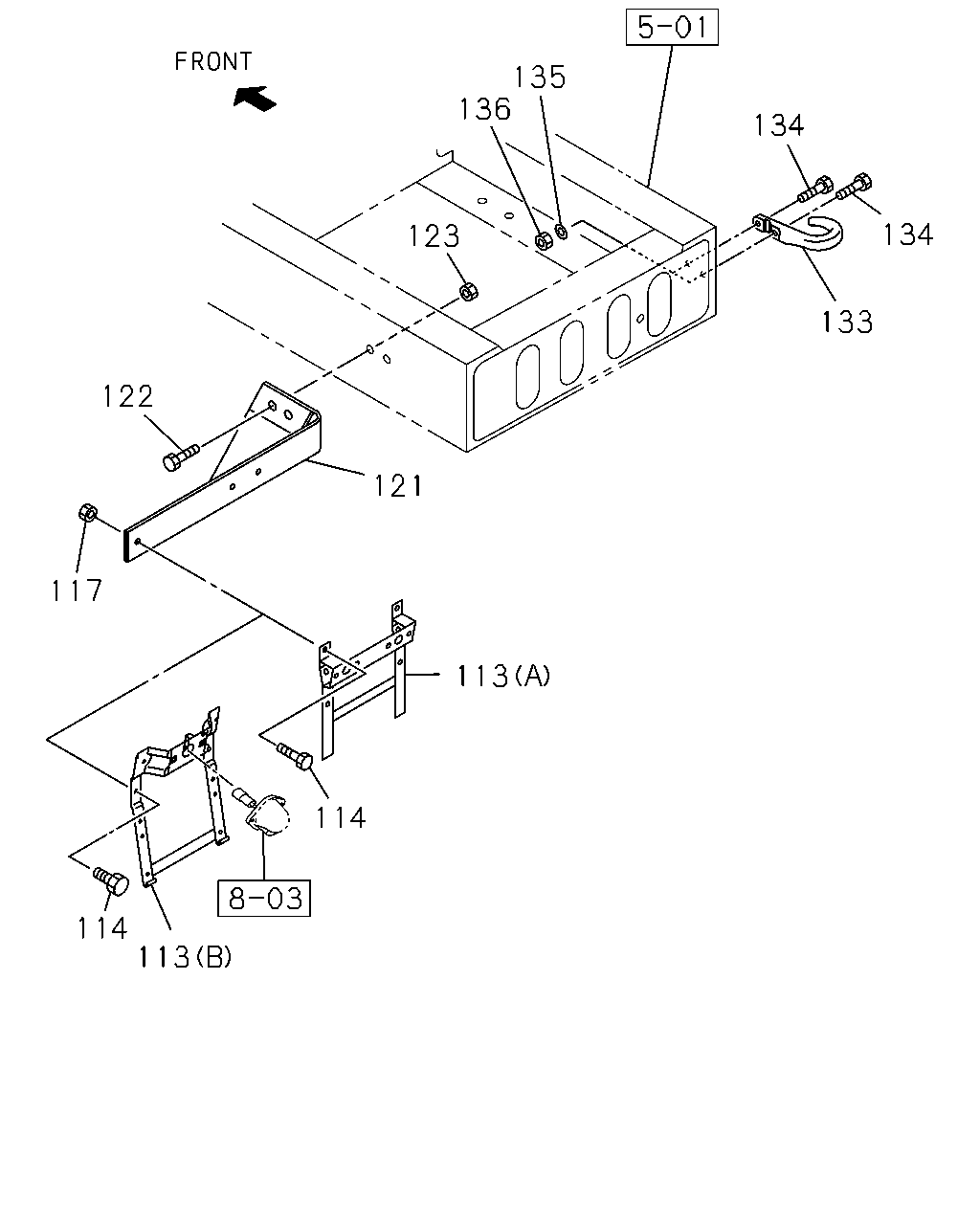

6-90 — REAR BUMPER
(#61519) — 18 parça
Tümü
A - CYZ5MC
B - CYZ5MF
122
117
121
113
114
114
113
123
135
134
134
133
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
(B)
8-98052-734-1
01
1
1303-
●
113
BRACKET; LICENSE PLATE
(A)
8-98144-961-0
01
1
1009-1111
●
●
113
BRACKET; LICENSE PLATE
(A)
8-98163-444-1
01
1
1112-1302
●
●
113
BRACKET; LICENSE PLATE
(A)
8-98163-444-1
01
1
1303-
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
1009-
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
●
●
121
STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)
1-53485-002-1
01
1
1009-1111
●
121
STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)
8-98179-582-0
01
1
1112-1302
●
121
STAY; RR LICENSE PLATE BRKT
8-98179-582-0
01
1
1303-
●
122
BOLT; STAY TO FRAME
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M12X40 FLANGE
0-28651-240-0
02
1
1009-1302
●
122
BOLT; STAY TO FRAME
M12X40 FLANGE
0-28651-240-0
02
1
1303-
●
123
NUT; STAY
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M12 FLANGE
0-91180-212-0
02
1
1009-1302
●
123
NUT; STAY
M12 FLANGE
0-91180-212-0
02
1
1303-
●
133
HOOK
1-57181-027-1
01
1
1009-
●
●
134
BOLT; HOOK
M16X60
0-10861-660-0
01
1
1009-
●
●
134
BOLT; HOOK
M16X70
0-10861-670-0
01
1
1009-
●
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
1009-
●
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
1009-
●
●
