Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11290 - CYZ RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-87 - TRUNK ROOM PACKAGE AND REAR PARCEL
▶
6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL
(#61518) — 23 parça
Tümü
A - CYZ5MC
B - CYZ5MF
◀

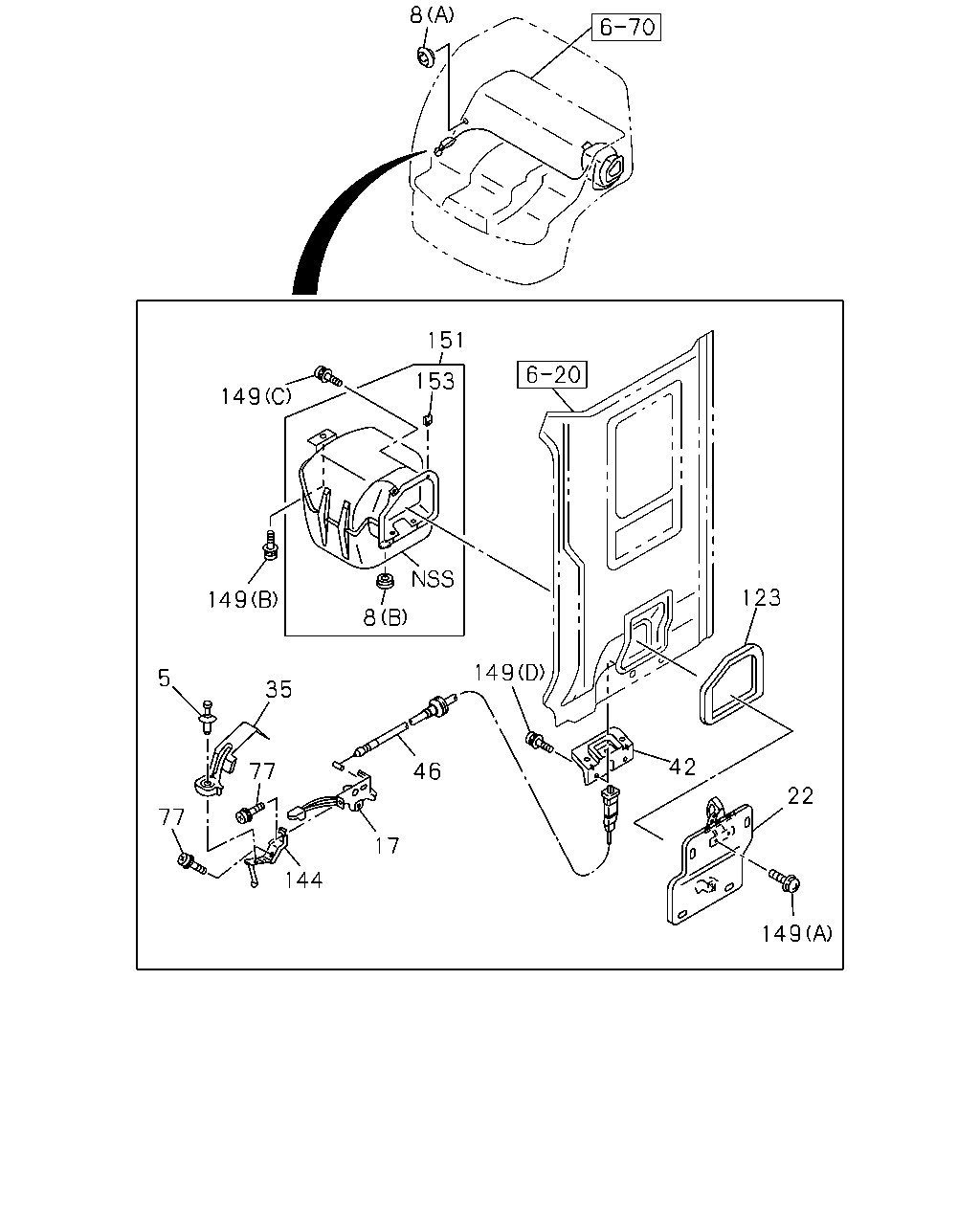

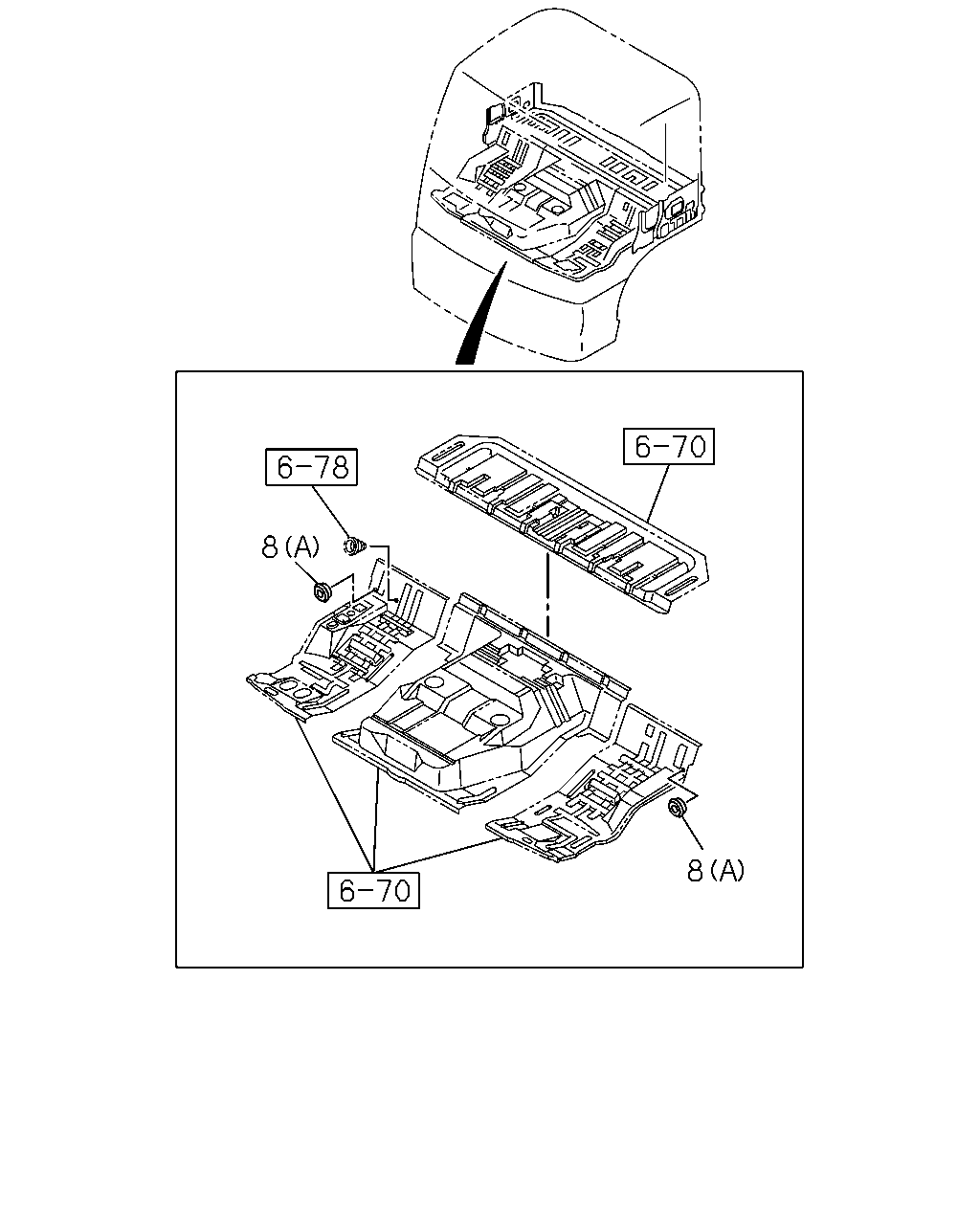

[687A] -'13/2,'13/3- LONG (4 parça)
[687A] '13/3- SHORT (19 parça)
▶
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
GROMMET; BOARD FIX
(B) OD=44
8-94279-727-0
01
1
1303-
●
8
GROMMET; BOARD FIX
(A) OD=28
8-94279-720-0
02
1
1303-
●
8
GROMMET; BOARD FIX
(A) OD=28
8-94279-720-0
02
1
1009-1302
●
●
8
GROMMET; BOARD FIX
(A) OD=28
8-94279-720-0
01
1
1303-
●
8
151
149
153
149
8
35
5
77
77
17
149
144
46
123
42
22
149
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
FASTENER
ID=6X6 OD=8
1-09987-194-0
01
1
1303-
●
8
GROMMET; BOARD FIX
(B) OD=44
8-94279-727-0
01
1
1303-
●
8
GROMMET; BOARD FIX
(A) OD=28
8-94279-720-0
02
1
1303-
●
8
GROMMET; BOARD FIX
(A) OD=28
8-94279-720-0
02
1
1009-1302
●
●
8
GROMMET; BOARD FIX
(A) OD=28
8-94279-720-0
01
1
1303-
●
17
KNOB; LUGGAGE SIDE
1-73328-018-0
01
1
1303-
●
22
LID; LUGGAGE SIDE
1-71707-063-0
01
1
1303-
●
35
COVER; LUGGAGE
1-79517-005-1
01
1
1303-
●
42
BRACKET ASM; HOOK
1-71797-068-1
01
1
1303-
●
46
LOCK; RR COMPT LID
L=2842
1-79517-008-0
01
1
1303-
●
77
SCREW; BRKT
M6X20 W/LK&PL WASHER
8-94279-403-0
02
1
1303-
●
123
SEAL; REAR
1-71797-061-1
01
1
1303-
●
144
BRACKET
1-73907-267-2
01
1
1303-
●
149
SCREW; BRKT
(D) BOLT M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1303-
●
149
SCREW; BRKT
(A) M6X16 W/LK&PL WASHER
8-94279-402-0
02
1
1303-
●
149
SCREW; BRKT
(C) M6X20 W/LK&PL WASHER
8-94279-403-0
04
1
1303-
●
149
SCREW; BRKT
(B) BOLT M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1303-
●
151
BOX ASM
1-71797-951-2
01
1
1303-
●
153
J-NUT
8-94279-056-0
02
1
1303-
●
