◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#61512) — 93 parça

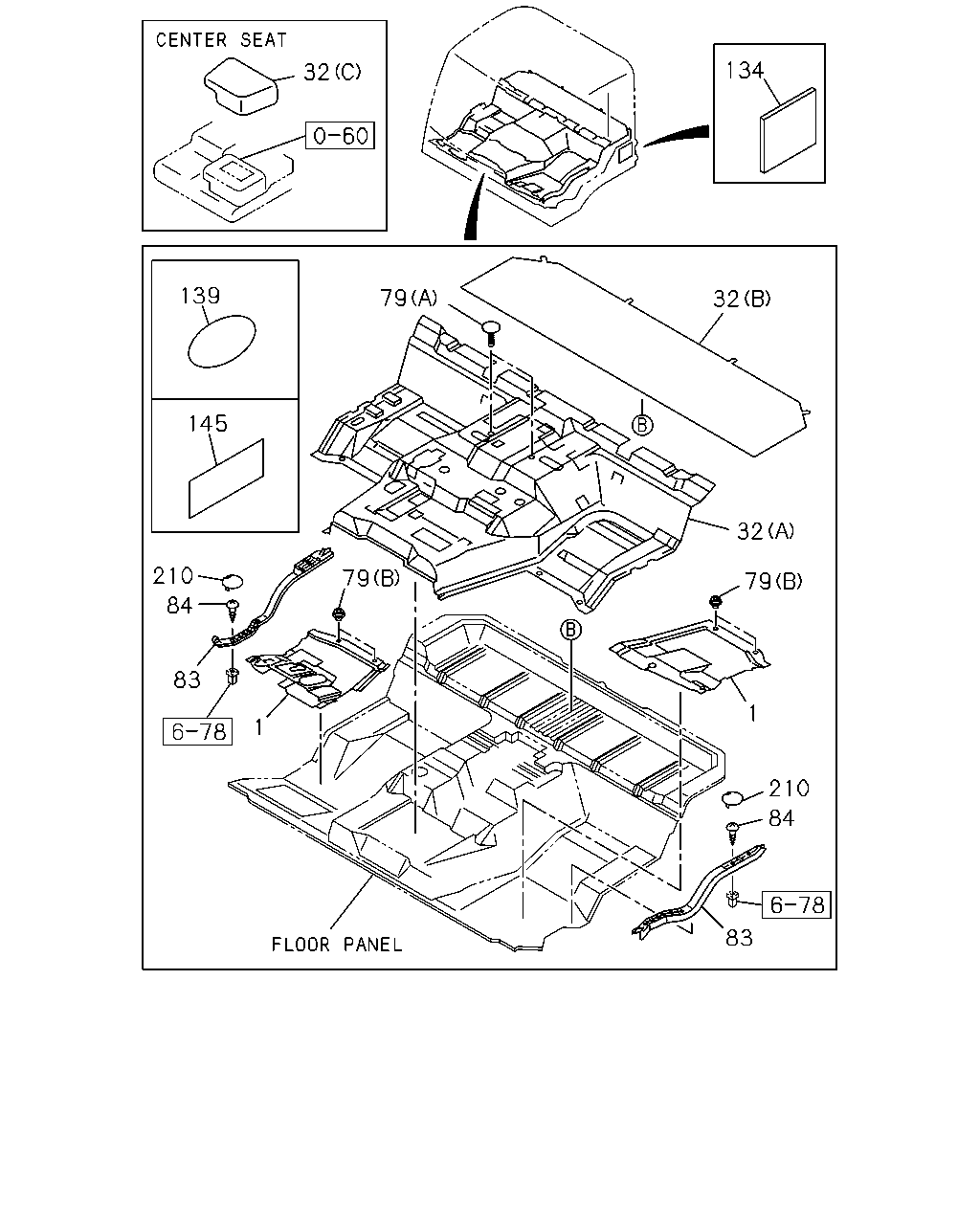

çizim 168598
32 139 145 210 84 83 79 1 79 32 32 79 210 84 83 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-1 01 1 1009-1302 ●
1 CARPET; FLOOR,FRT 1-73237-863-2 01 1 1303-1411 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 1412- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-1 01 1 1009-1302 ●
1 CARPET; FLOOR,FRT 1-73237-864-2 01 1 1303-1411 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 1412- ●
32 CARPET; FLOOR
EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-2 01 1 1412-1412 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-2 01 1 1412- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-920-1 01 1 1009-1302 ●
32 CARPET; FLOOR
(A) 		1-73237-920-2 01 1 1303-1411 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-920-2 01 1 1412- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-1 01 1 1009-1302 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-835-1 01 1 1009-1302 ●
32 CARPET; FLOOR
EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-835-1 01 1 1303-1411 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-835-1 01 1 1412- ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1009- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1009- ● ●
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1009-1302 ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1009-1302 ●
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1303-1411 ●
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1412- ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-805-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-805-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-805-3 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-805-3 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-806-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-806-3 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-045-0 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-045-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-046-0 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-046-0 01 1 1412- ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1009- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1009-1302 ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1303- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 1009-1302 ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1009- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1009- ● ●

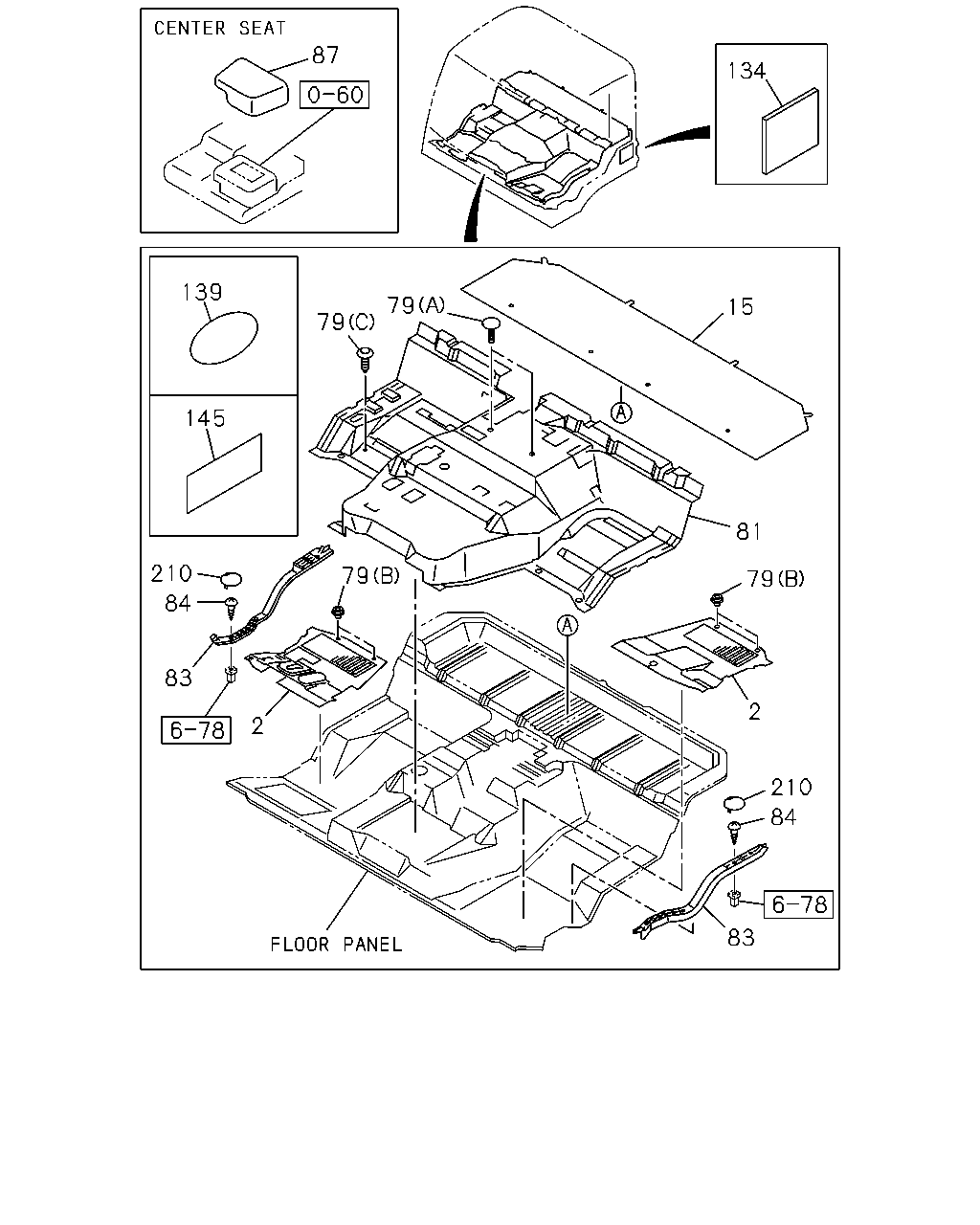

çizim 168759
87 139 145 134 79 79 210 84 83 2 79 81 79 2 210 84 83 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR 1-73237-784-1 01 1 1009-1302 ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 1009-1302 ●
2 MAT; FLOOR 1-73237-784-1 01 1 1303-1411 ●
2 MAT; FLOOR 1-73237-784-1 01 1 1412- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 1412- ●
2 MAT; FLOOR 1-73237-786-1 01 1 1009-1302 ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 1009-1302 ●
2 MAT; FLOOR 1-73237-786-1 01 1 1303-1411 ●
2 MAT; FLOOR 1-73237-786-1 01 1 1412- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 1412- ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 1412- ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 1009-1302 ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>, CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 1009-1302 ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1009- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1009- ● ●
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1009-1302 ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1009-1302 ●
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1303-1411 ●
79 HOOK; MALE
(C) OD=16 L=11 		1-76378-155-0 01 1 1412- ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1412- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-923-1 01 1 1412- ●
81 MAT; FLOOR,CENTER 1-73237-923-1 01 1 1009-1302 ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-923-1 01 1 1009-1302 ●
81 MAT; FLOOR,CENTER 1-73237-930-1 01 1 1303- ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-805-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-805-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-805-3 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-805-3 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-806-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-806-3 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-045-0 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-045-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-046-0 01 1 1009-1302 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1303-1411 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1412- ●
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-046-0 01 1 1412- ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1009- ● ●
87 MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-779-1 01 1 1412- ●
87 MAT; FLOOR
EXC. CENTER SEAT DELETE(SP9) 		1-73237-779-1 01 1 1009-1302 ●
87 MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-779-1 01 1 1009-1302 ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1009-1302 ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1303- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 1009-1302 ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1009- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1009- ● ●
