◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#61511) — 31 parça

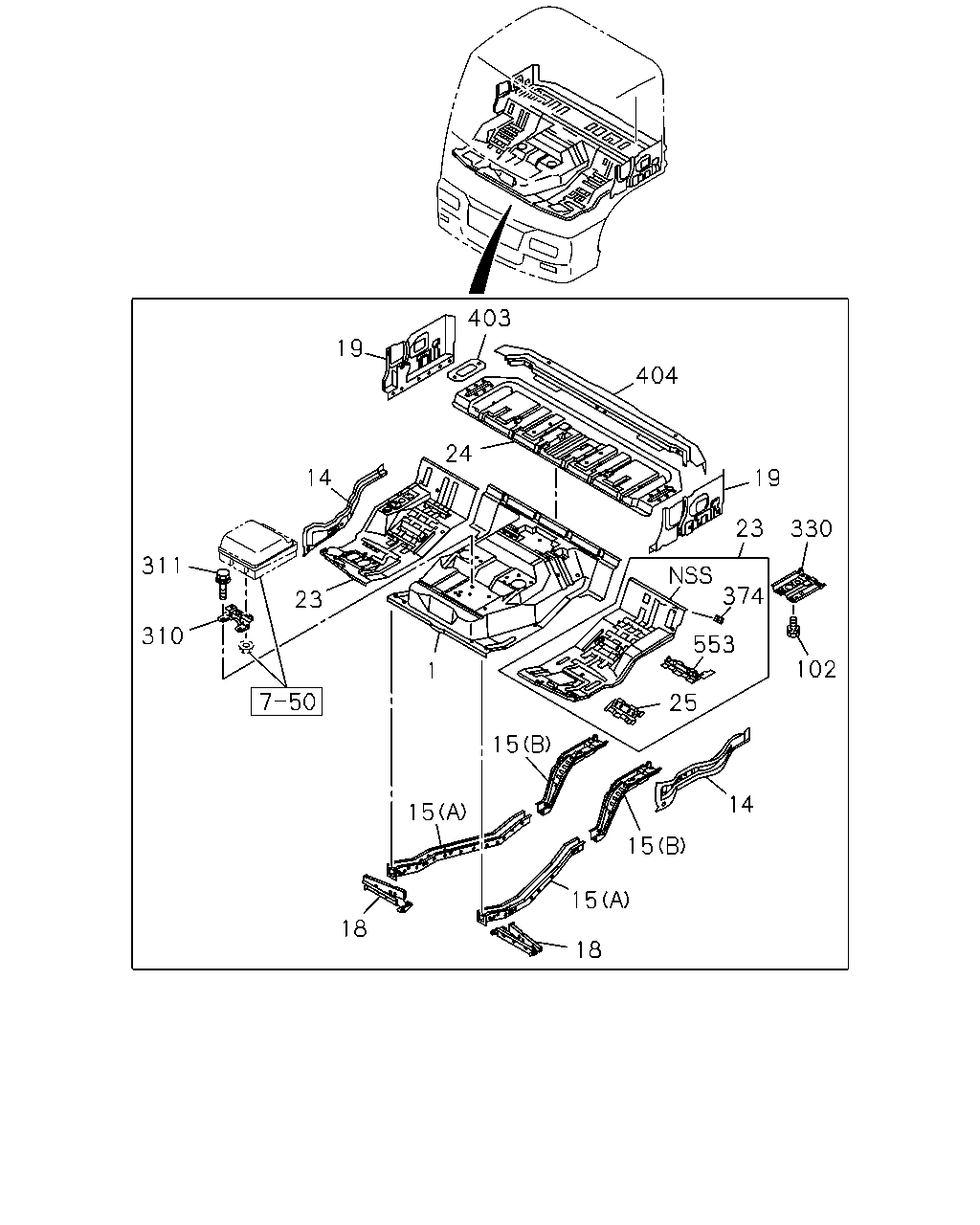

çizim 168672
19 403 404 19 330 23 374 102 24 14 311 310 23 553 25 14 15 15 15 18 15 18 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-98211-082-0 01 1 1303- ●
1 PANEL; FLOOR 1-62172-992-0 01 1 1009-1302 ● ●
1 PANEL; FLOOR 8-98211-325-0 01 1 1303- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 1009- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 1009- ● ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 1009- ● ●
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 1009- ● ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 1009- ● ●
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 1009- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 1009- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 1009- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-615-4 01 1 1303- ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 1009- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 1009-1302 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 1303- ●
23 PANEL; FLOOR,SIDE
FULL TRACTOR TRUCK<RD6> 		1-62172-866-0 01 1 1303- ●
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 1009- ● ●
23 PANEL; FLOOR,SIDE 1-62172-860-0 01 1 1009-1302 ● ●
23 PANEL; FLOOR,SIDE
EXC. FULL TRACTOR TRUCK<RD6> 		1-62172-860-0 01 1 1303- ●
24 PANEL; BED PAN 1-62172-540-9 01 1 1009- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 1009- ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1009- ● ●
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 1009-1302 ● ●
310 BRACKET; SEAT STAND
CENTER SEAT(SA1) 		1-76397-015-0 01 1 1303- ●
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-1302 ● ●
311 BOLT; BRKT
CENTER SEAT(SA1) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303- ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 1009- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 1009- ● ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 1009- ● ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 1009- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
