4-55 — FRONT LEAF SPRING (#6151) — 57 parça

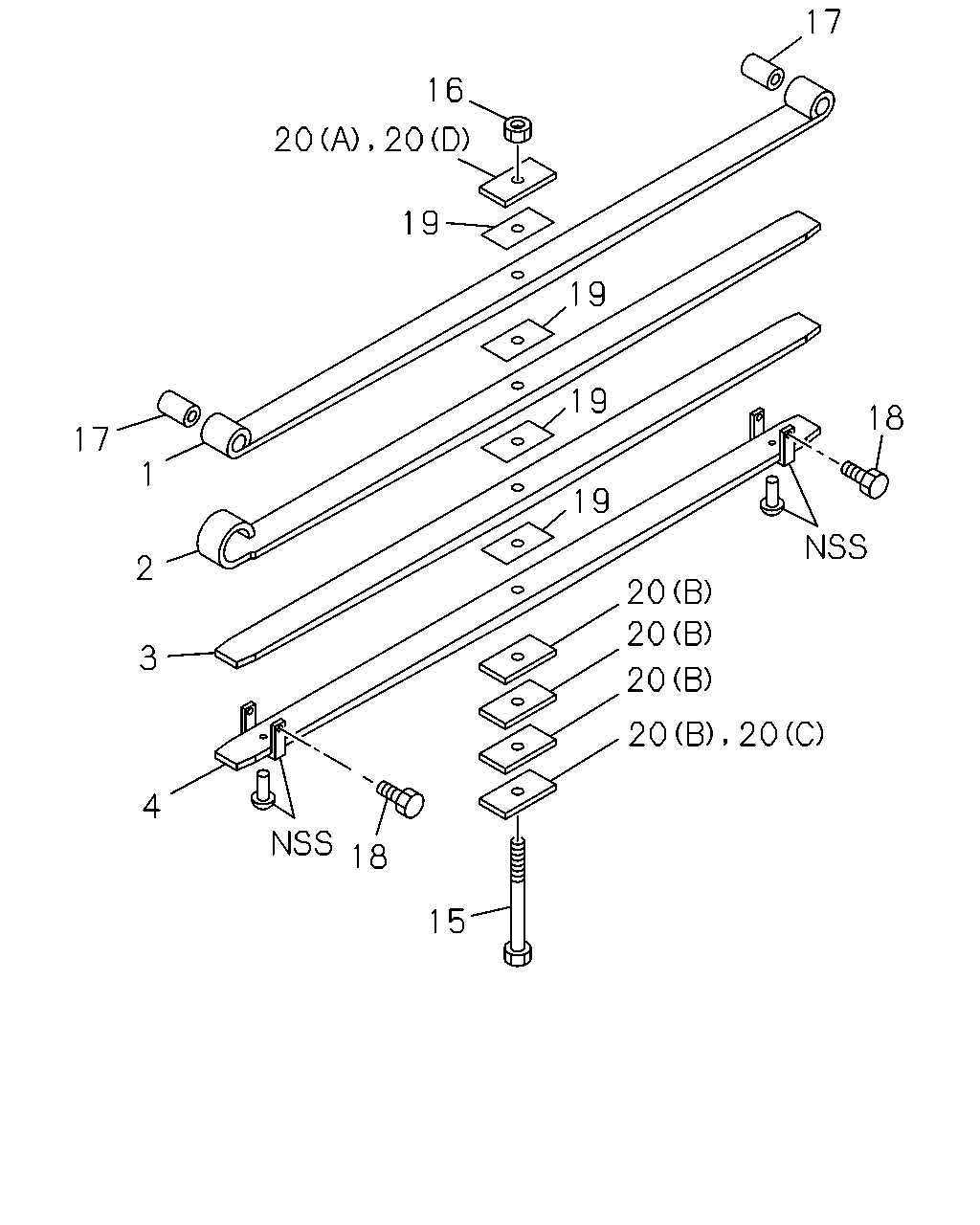

17 16 20 20 19 19 19 18 17 1 19 2 20 20 3 20 4 18 15 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-273-0	1-51131-273-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-275-0	1-51131-275-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-597-0	1-51131-597-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-842-0	1-51131-842-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-273-0	1-51132-273-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-275-0	1-51132-275-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-597-0	1-51132-597-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-842-0	1-51132-842-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-273-0	1-51133-273-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-275-0	1-51133-275-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-597-0	1-51133-597-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-842-0	1-51133-842-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-273-0	1-51134-273-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-275-0	1-51134-275-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: C = 1-51130-597-0	1-51134-597-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: D = 1-51130-842-0	1-51134-842-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-273-0, D = 1-51130-842-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: B = 1-51130-275-0, C = 1-51130-597-0	1-51156-328-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0, C = 1-51130-597-0, D = 1-51130-842-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: C = 1-51130-597-0, D = 1-51130-842-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0, C = 1-51130-597-0, D = 1-51130-842-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0, C = 1-51130-597-0, D = 1-51130-842-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-273-0, C = 1-51130-597-0, D = 1-51130-842-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: B = 1-51130-275-0	1-51177-109-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: B = 1-51130-275-0, C = 1-51130-597-0	1-51177-114-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: A = 1-51130-273-0, D = 1-51130-842-0	1-51177-114-0	04	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 1-51130-275-0, C = 1-51130-597-0	1-51177-161-0	01	1	-

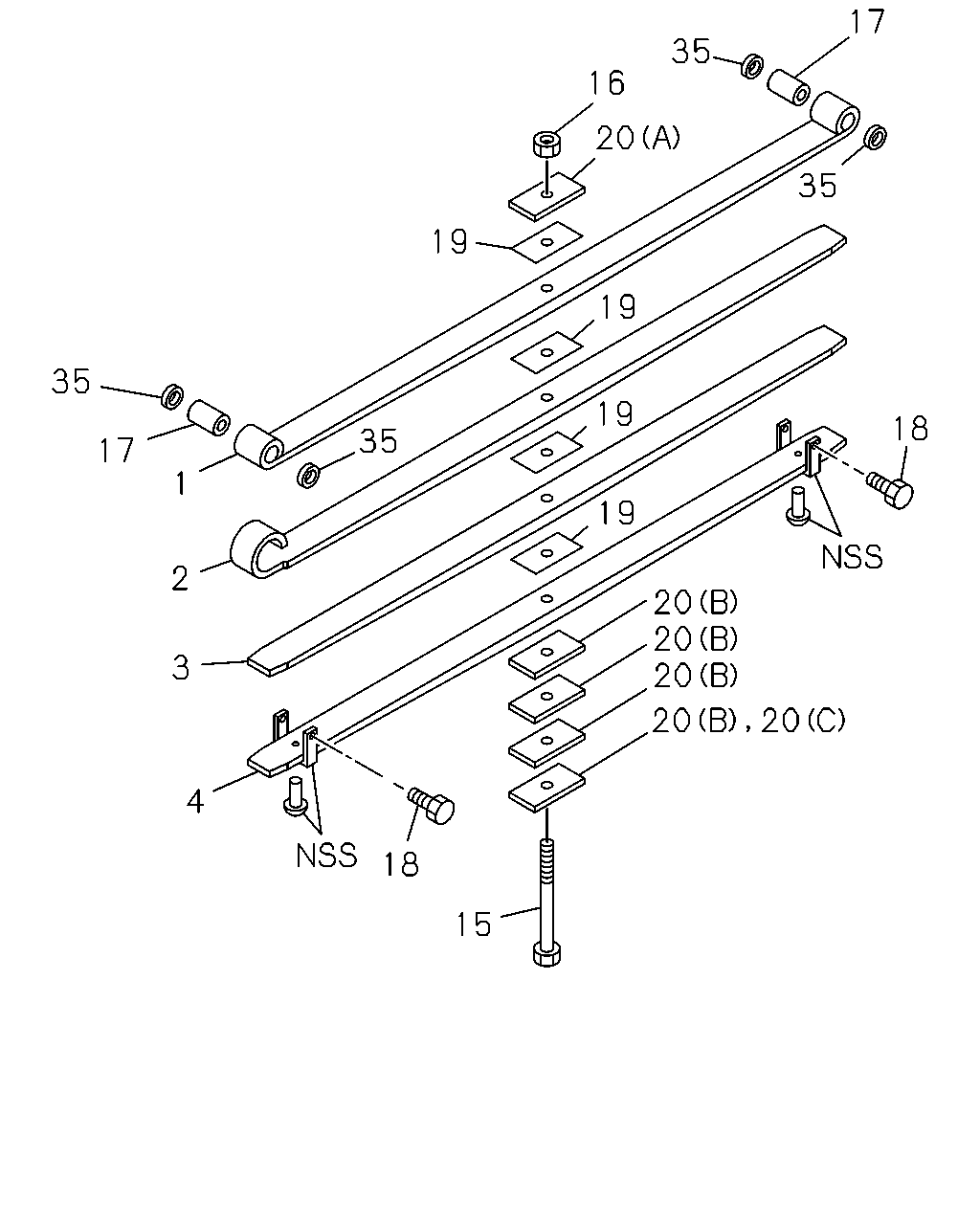

17 35 16 20 35 19 19 35 19 18 35 17 1 19 2 20 20 20 3 4 18 15 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-273-0	1-51131-273-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-275-0	1-51131-275-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-597-0	1-51131-597-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-842-0	1-51131-842-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-273-0	1-51132-273-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-275-0	1-51132-275-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-597-0	1-51132-597-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-842-0	1-51132-842-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-273-0	1-51133-273-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-275-0	1-51133-275-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-597-0	1-51133-597-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-842-0	1-51133-842-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-273-0	1-51134-273-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-275-0	1-51134-275-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: C = 1-51130-597-0	1-51134-597-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: D = 1-51130-842-0	1-51134-842-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-273-0, D = 1-51130-842-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: B = 1-51130-275-0, C = 1-51130-597-0	1-51156-328-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0, C = 1-51130-597-0, D = 1-51130-842-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: C = 1-51130-597-0, D = 1-51130-842-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0, C = 1-51130-597-0, D = 1-51130-842-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-273-0, B = 1-51130-275-0, C = 1-51130-597-0, D = 1-51130-842-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-273-0, C = 1-51130-597-0, D = 1-51130-842-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: B = 1-51130-275-0	1-51177-109-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: B = 1-51130-275-0, C = 1-51130-597-0	1-51177-114-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: A = 1-51130-273-0, D = 1-51130-842-0	1-51177-114-0	04	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 1-51130-275-0, C = 1-51130-597-0	1-51177-161-0	01	1	-
35	SEAL; DUST ASM PART: C = 1-51130-597-0, D = 1-51130-842-0	1-51177-321-0	04	1	-
