◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#61509) — 39 parça

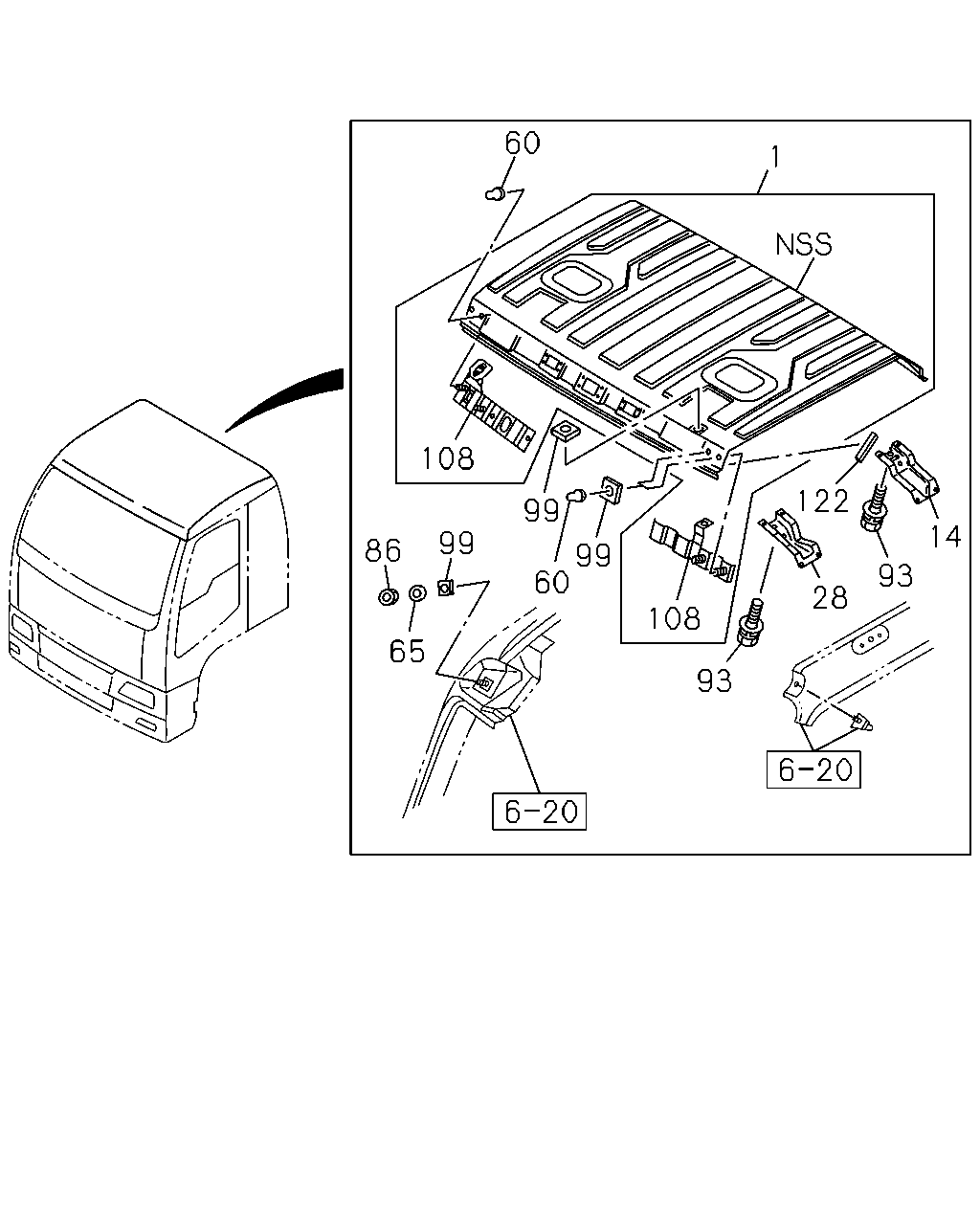

çizim 168671
1 60 108 99 86 65 99 60 99 93 108 28 122 93 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF 1-61170-861-0 01 1 1303- ●
1 PANEL; ROOF 1-61170-847-0 01 1 1009-1302 ● ●
1 PANEL; ROOF 1-61170-847-0 01 1 1303-1411 ●
1 PANEL; ROOF
MIR STAY O/S W/REMOTE<TBA> 		1-61170-847-0 01 1 1412- ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 1009- ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 1009- ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 1009- ● ●
60 COVER; ROOF 1-79998-922-3 02 1 1303-1411 ●
60 COVER; ROOF 1-79998-922-3 02 1 1412- ●
60 COVER; ROOF
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-79998-922-3 02 1 1412- ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 01 1 1303-1411 ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 01 1 1412- ●
65 WASHER; PL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=8 T=2.3 		8-98073-399-0 01 1 1412- ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 1303-1411 ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 1412- ●
86 NUT; ROOF
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 LOCK NUT 		0-91370-008-0 01 1 1412- ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 1009- ● ●
99 SEAL; BODY,METAL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 14X14 ID=10 T=0.7 		1-61281-427-1 06 1 1412- ●
99 SEAL; BODY,METAL
75X50 ID=36 		1-61281-458-1 02 1 1303- ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 04 1 1303- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 04 1 1303- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 18 1 1009-1302 ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 10 1 1303- ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 04 1 1009-1302 ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 04 1 1303- ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 04 1 1303- ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-1 02 1 1009-1302 ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-1 01 1 1303- ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-1 01 1 1303- ● ●
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-1 02 1 1009- ● ●
108 PATCH; MIRROR 1-61170-772-3 01 1 1303- ●
108 PATCH; MIRROR 1-61170-862-1 01 1 1303- ●
108 PATCH; MIRROR 1-61170-438-6 01 1 1009-1302 ● ●
108 PATCH; MIRROR 1-61170-438-6 01 1 1303-1411 ●
108 PATCH; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-61170-438-6 01 1 1412- ●
108 PATCH; MIRROR 1-61170-857-2 01 1 1009-1302 ● ●
108 PATCH; MIRROR 1-61170-857-2 01 1 1303-1411 ●
108 PATCH; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-61170-857-2 01 1 1412- ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 1009- ● ●
