◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#61508) — 424 parça

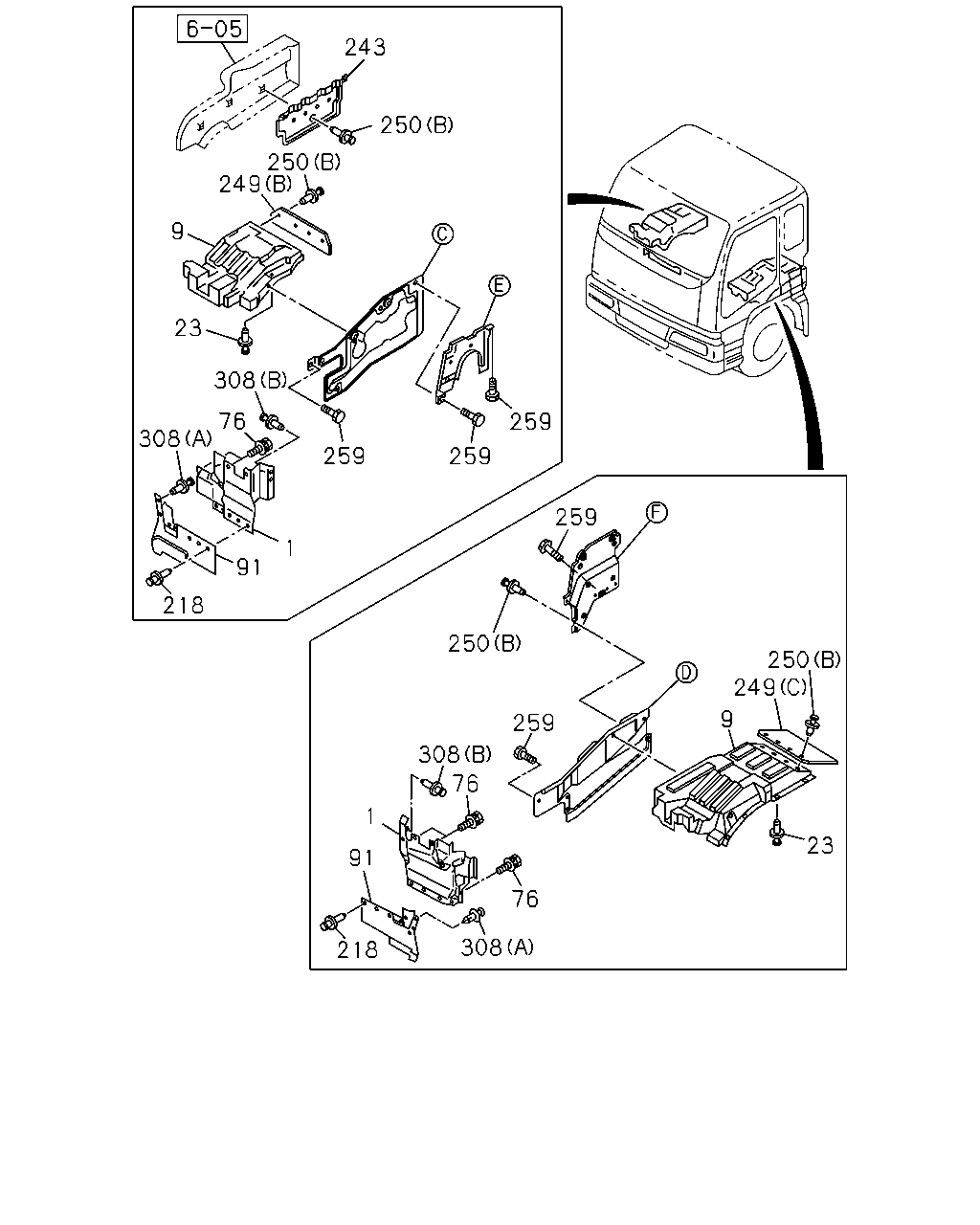

çizim 168576
243 250 250 249 9 23 308 308 76 259 259 259 250 259 250 249 9 23 76 308 218 91 1 91 1 218 259 308 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1009- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1009- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1009- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1009- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1009- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009- ● ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 1009-1302 ● ●
91 COVER; MUD,FRT 8-98134-825-2 01 1 1303- ● ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 1009-1302 ● ●
91 COVER; MUD,FRT 8-98134-826-2 01 1 1303- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302 ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-1510 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-1510 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1009-1510 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1009- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1009- ● ●
çizim 168580
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date A B
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4500MM(45W) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412- ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A) 		8-98131-353-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-171-0 01 1 1303-1303 ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303- ● ●
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303 ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302 ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009- ● ●
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1009-1302 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-1303 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1304- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009- ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302 ● ●
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1009-1411 ● ●
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1412- ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1412- ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-1302 ● ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1303- ●

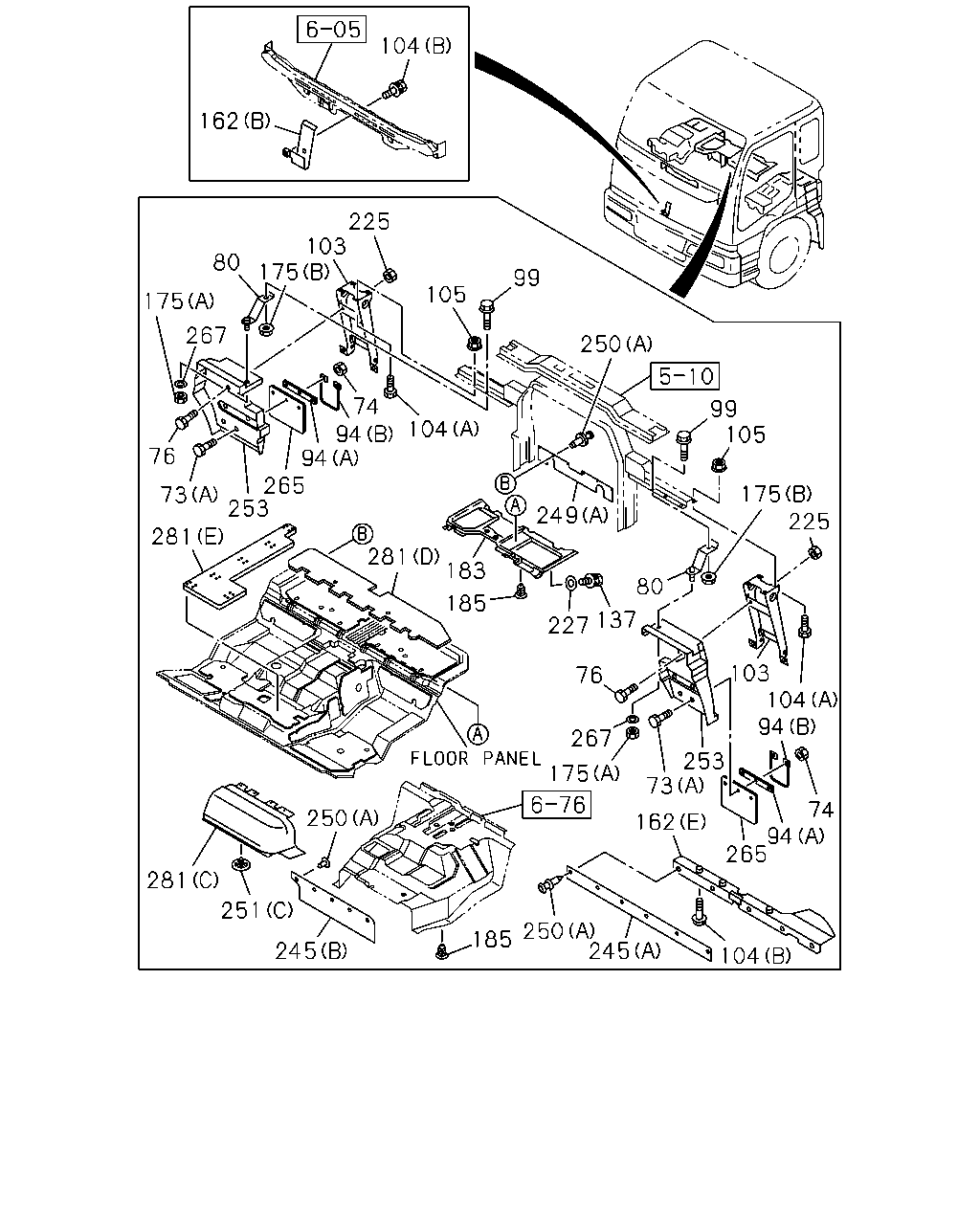

çizim 168599
162 104 225 103 80 175 76 73 281 265 253 175 94 74 94 405 99 104 281 183 185 250 281 251 85 250 99 175 225 249 227 80 37 76 267 175 73 162 265 94 103 104 94 74 250 245 245 104 253 105 267
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28250-816-0 03 1 1009-1302 ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-1411 ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ●
73 BOLT; MUD COVER BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-1411 ●
73 BOLT; MUD COVER BRKT
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1412- ●
74 NUT
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1009-1302 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1411 ●
74 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1009- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1009- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1009- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1009- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 1009-1302 ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 1303- ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1009- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1009-1302 ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1303-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-527-0 01 1 1009-1302 ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-527-0 01 1 1303-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-895-0 01 1 1503- ● ●
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1009- ● ●
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 1009-1302 ● ●
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1303- ● ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1009- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009- ● ●
162 BRACKET
WHEEL BASE 4500MM(45W) (C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
(C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4500MM(45W) (D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
(D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
(D) 		1-53441-522-0 01 1 1303- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1009- ● ●
162 BRACKET
(B) 		1-71907-815-0 01 1 1009- ● ●
162 BRACKET
(E) 		8-98113-210-2 01 1 1009-1302 ● ●
162 BRACKET
(C) 		1-53441-521-2 01 1 1303- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1009- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1009- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303- ● ●
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303 ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1009- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1009- ● ●
245 RUBBER; SHUTTER,RAD
(A) 		8-98113-211-0 01 1 1009-1302 ● ●
245 RUBBER; SHUTTER,RAD
(B) 		8-98227-395-0 01 1 1303- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302 ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-1510 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-1510 ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1009-1302 ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1303-1411 ●
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (A) 		8-94165-394-0 09 1 1412- ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1009-1302 ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-1302 ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1303-1411 ●
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-94279-048-0 05 1 1412- ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009- ● ●
253 GUARD; MUD 8-98134-759-0 01 1 1009- ● ●
253 GUARD; MUD 8-98134-766-1 01 1 1009-1302 ● ●
253 GUARD; MUD 8-98134-766-1 01 1 1303- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1009- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1009- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1009- ● ●
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1009-1302 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-1303 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1304- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009- ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302 ● ●
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1009-1411 ● ●
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1412- ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1412- ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-1302 ● ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1303- ●
çizim 168612
185 130 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date A B
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4500MM(45W) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412- ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A) 		8-98131-353-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-171-0 01 1 1303-1303 ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303- ● ●
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303 ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302 ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009- ● ●
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1009-1302 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-1303 ●
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1304- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009- ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302 ● ●
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1009-1411 ● ●
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1412- ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1412- ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-1302 ● ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1303- ●

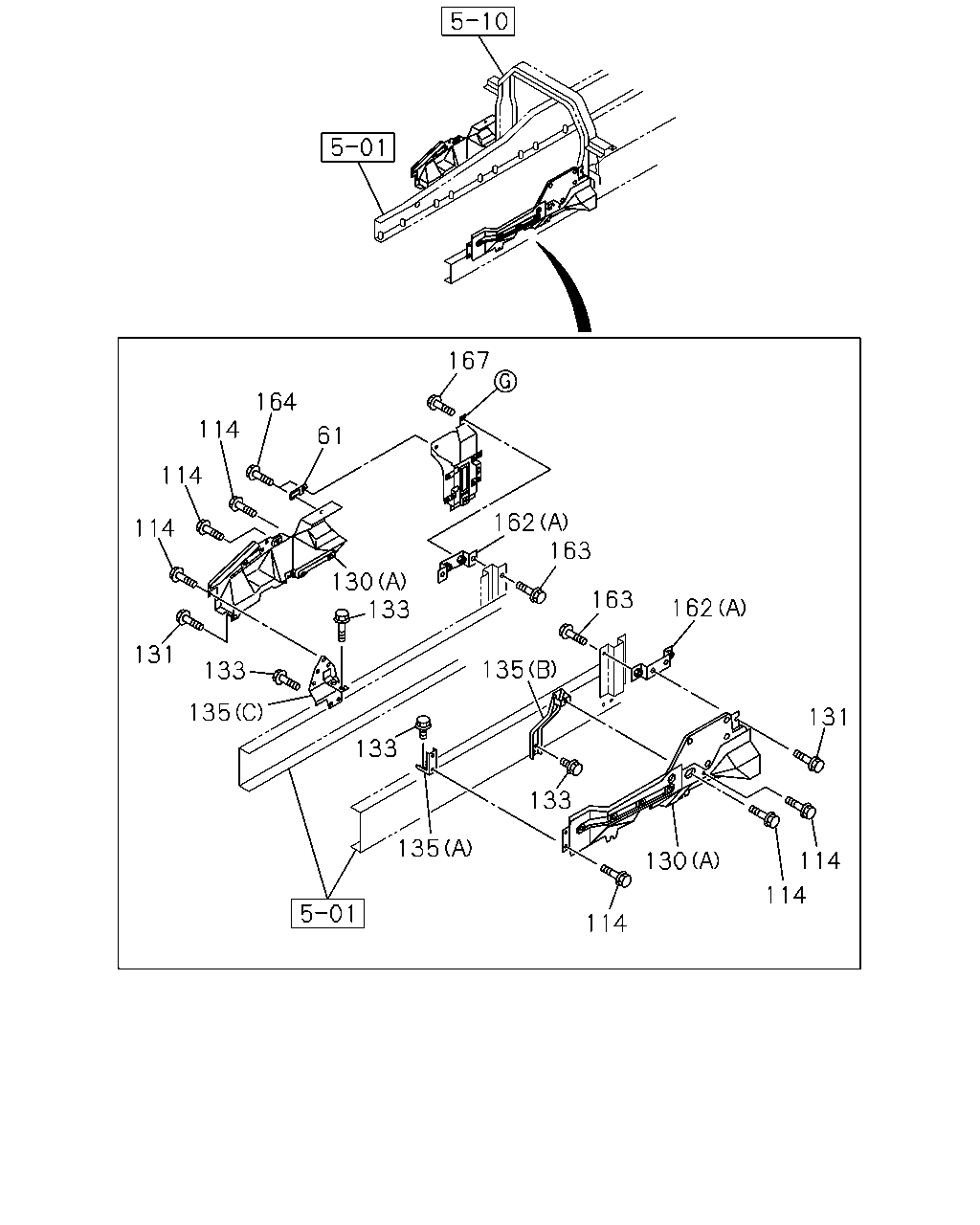

çizim 168677
167 61 164 114 114 114 131 133 135 133 133 130 162 163 163 162 131 114 114 130 133 135 114 135
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
WHEEL BASE 4500MM(45W) 		8-98039-501-1 01 1 1009-1302 ●
61 BRACKET; COVER
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) 		8-98039-501-1 01 1 1009-1302 ●
61 BRACKET; COVER 8-98039-501-1 01 1 1009-1302 ●
61 BRACKET; COVER 8-98039-501-1 01 1 1303- ● ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4500MM(45W) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412- ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A) 		8-98131-353-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-171-0 01 1 1303-1303 ●
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302 ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1009- ● ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 01 1 1303- ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 FLANGE 		0-28851-445-0 01 1 1303- ●
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 01 1 1303- ●
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE 		0-28651-035-0 01 1 1303- ●
133 BOLT; FRAME
M14X45 FLANGE 		0-28851-445-0 01 1 1303- ●
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE 		0-28851-445-0 01 1 1303- ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302 ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1303- ● ●
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 1009-1302 ● ●
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1303- ● ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1009-1302 ● ●
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1303- ● ●
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 1009-1302 ● ●
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		8-98216-394-1 01 1 1303- ●
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1009- ● ●
135 BRACKET; SIDE PANEL
(C) 		8-98216-298-1 01 1 1303- ●
135 BRACKET; SIDE PANEL
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98216-298-1 01 1 1303- ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009- ● ●
162 BRACKET
WHEEL BASE 4500MM(45W) (C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
(C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4500MM(45W) (D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
(D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
(D) 		1-53441-522-0 01 1 1303- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1009- ● ●
162 BRACKET
(B) 		1-71907-815-0 01 1 1009- ● ●
162 BRACKET
(E) 		8-98113-210-2 01 1 1009-1302 ● ●
162 BRACKET
(C) 		1-53441-521-2 01 1 1303- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009- ● ●
164 BOLT; FLEX COVER
WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
164 BOLT; FLEX COVER
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
167 BOLT; EXH COVER
WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ●
167 BOLT; EXH COVER
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1303- ● ●
çizim 168760
73 251 74 74 73 251 251 122 167 122 162 162 122 160 122 160 167 168 130 130
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28250-816-0 03 1 1009-1302 ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-1411 ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ●
73 BOLT; MUD COVER BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-1411 ●
73 BOLT; MUD COVER BRKT
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1412- ●
74 NUT
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1009-1302 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1411 ●
74 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302 ● ●
122 BOLT
WHEEL BASE 4500MM(45W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ●
122 BOLT
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303- ● ●
122 BOLT
WHEEL BASE 4500MM(45W) (B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1302 ●
122 BOLT
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1302 ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1302 ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1303- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1412- ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4500MM(45W) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1412- ●
130 PANEL; SHUTTER NOISE
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A) 		8-98131-353-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-1411 ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1412- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302 ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-171-0 01 1 1303-1303 ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009- ● ●
160 COVER ASM; EXH
WHEEL BASE 4500MM(45W) (A) 		1-79931-408-4 01 1 1009-1207 ●
160 COVER ASM; EXH
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) 		1-79931-408-4 01 1 1009-1207 ●
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 1009-1207 ●
160 COVER ASM; EXH
WHEEL BASE 4500MM(45W) (A) 		1-79931-411-2 01 1 1208-1302 ●
160 COVER ASM; EXH
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (A) 		1-79931-411-2 01 1 1208-1302 ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-1302 ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1303- ● ●
160 COVER ASM; EXH
WHEEL BASE 4500MM(45W) (B) 		1-79931-412-1 01 1 1009-1302 ●
160 COVER ASM; EXH
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (B) 		1-79931-412-1 01 1 1009-1302 ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 1009-1302 ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 1303- ● ●
162 BRACKET
WHEEL BASE 4500MM(45W) (C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
(C) 		1-53441-521-2 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4500MM(45W) (D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) (D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
(D) 		1-53441-522-0 01 1 1009-1302 ●
162 BRACKET
(D) 		1-53441-522-0 01 1 1303- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1009- ● ●
162 BRACKET
(B) 		1-71907-815-0 01 1 1009- ● ●
162 BRACKET
(E) 		8-98113-210-2 01 1 1009-1302 ● ●
162 BRACKET
(C) 		1-53441-521-2 01 1 1303- ● ●
167 BOLT; EXH COVER
WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ●
167 BOLT; EXH COVER
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1303- ● ●
168 NUT; EXH COVER
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
168 NUT; EXH COVER
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 1303- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1009-1302 ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1303-1411 ●
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (A) 		8-94165-394-0 09 1 1412- ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1009-1302 ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-1302 ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1303-1411 ●
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-94279-048-0 05 1 1412- ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
