6-35 — FRONT DOOR TRIM (#61505) — 90 parça

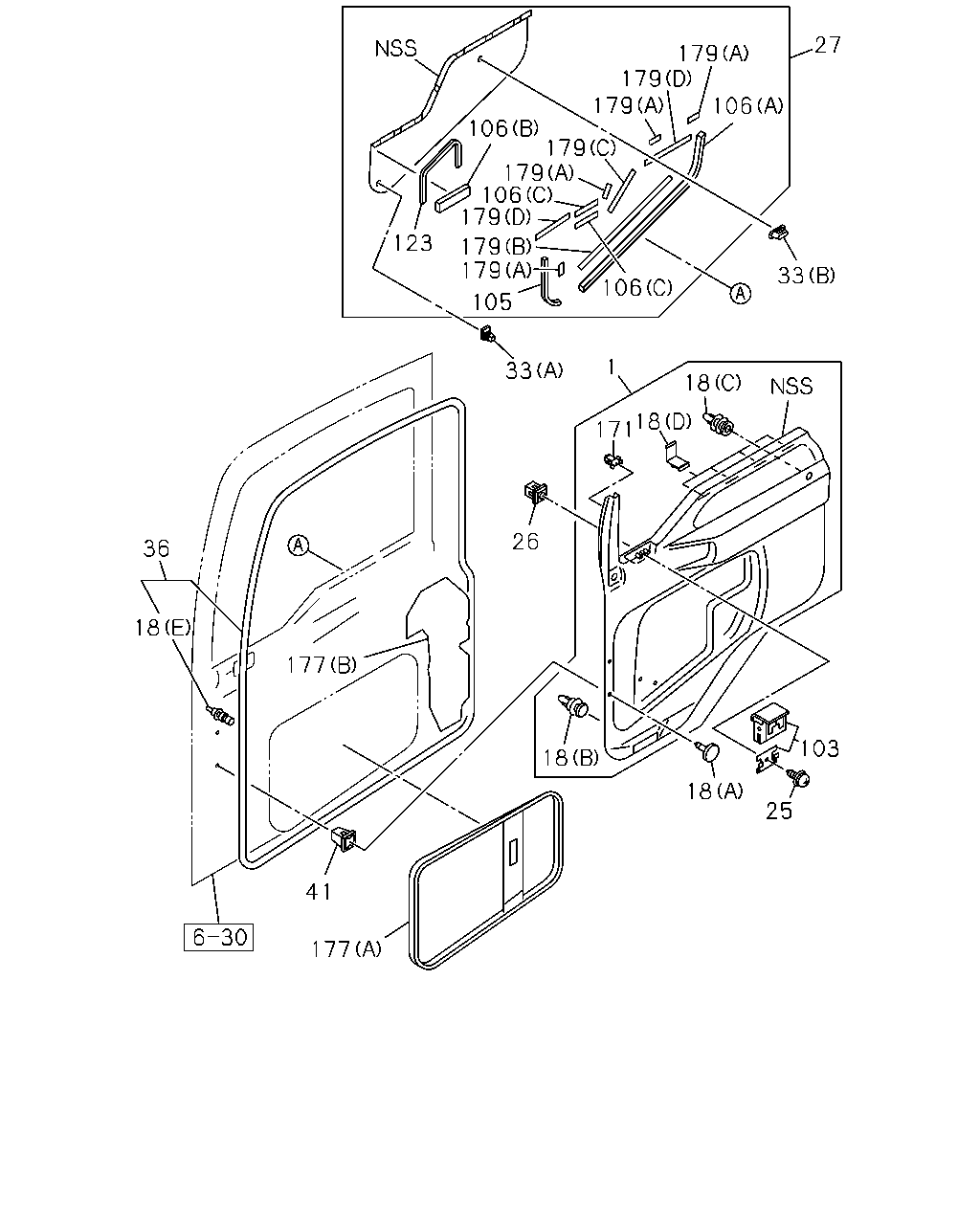

çizim 168567
36 18 177 41 177 18 18 25 103 26 33 171 18 118 33 106 179 123 106 179 179 179 179 179 179 179 105 106 106 27 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
HONG KONG EQUIPMENT(PQ1) 		8-98145-252-1 01 1 1009-1302 ●
1 PAD; TRIM,FRT DOOR 8-98145-252-1 01 1 1009-1302 ●
1 PAD; TRIM,FRT DOOR 8-98145-252-2 01 1 1303- ● ●
1 PAD; TRIM,FRT DOOR
HONG KONG EQUIPMENT(PQ1) 		8-98145-253-1 01 1 1009-1302 ●
1 PAD; TRIM,FRT DOOR 8-98145-253-1 01 1 1009-1302 ●
1 PAD; TRIM,FRT DOOR 8-98145-253-2 01 1 1303- ● ●
1 PAD; TRIM,FRT DOOR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-73337-513-0 01 1 1009-1302 ●
1 PAD; TRIM,FRT DOOR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-73337-516-0 01 1 1009-1302 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1009- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1009- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 1009- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1009- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1009- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 1009- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1009- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1009- ● ●
27 PANEL; ORNAMENT,DOOR
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-97632-479-0 01 1 1412- ●
27 PANEL; ORNAMENT,DOOR
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98229-332-0 01 1 1412- ●
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 1303- ●
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1303- ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 1009-1302 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 1303-1411 ●
27 PANEL; ORNAMENT,DOOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-099-7 01 1 1412- ●
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 1009-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-329-0 01 1 1211-1302 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-329-0 01 1 1303- ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1009- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1009- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 1009-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 1009-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1009- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1009- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1009- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 1303-1411 ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 1303-1411 ●
105 SEAL; DOOR ORNAMENT,FRT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-082-2 01 1 1412- ●
105 SEAL; DOOR ORNAMENT,FRT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-082-2 01 1 1412- ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1009-1302 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1303-1411 ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1412- ●
105 SEAL; DOOR ORNAMENT,FRT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-082-2 02 1 1412- ●
106 SEAL; DOOR ORNAMENT
(C) 		1-76218-104-0 04 1 1303- ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 1303-1411 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 1303-1411 ●
106 SEAL; DOOR ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-76218-083-2 01 1 1412- ●
106 SEAL; DOOR ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-76218-083-2 01 1 1412- ●
106 SEAL; DOOR ORNAMENT
(B) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1009-1302 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1303-1411 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1412- ●
106 SEAL; DOOR ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-76218-083-2 02 1 1412- ●
123 SEAL; ORNAMENT PANEL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98150-731-0 01 1 1412- ●
123 SEAL; ORNAMENT PANEL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98150-732-0 01 1 1412- ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 1009- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1009- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1009- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1009- ● ●
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=600 		8-97633-876-0 02 1 1412- ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 1303-1411 ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 1303-1411 ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=45 		1-76218-063-2 04 1 1412- ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=45 		1-76218-063-2 04 1 1412- ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 1303-1411 ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 1303-1411 ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=770 		1-76218-091-2 01 1 1412- ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=770 		1-76218-091-2 01 1 1412- ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 1303-1411 ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 1303-1411 ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=160 		1-76218-094-1 01 1 1412- ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=160 		1-76218-094-1 01 1 1412- ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 1303-1411 ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 1303-1411 ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=235 		1-76218-127-1 02 1 1412- ●
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=235 		1-76218-127-1 02 1 1412- ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1009-1302 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1303-1411 ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1412- ●
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=45 		1-76218-063-2 08 1 1412- ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 1009-1302 ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 1303- ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1009-1302 ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1303-1411 ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1412- ●
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=160 		1-76218-094-1 02 1 1412- ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1009-1302 ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1303-1411 ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1412- ●
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=235 		1-76218-127-1 04 1 1412- ●
