Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#61501) — 542 parça

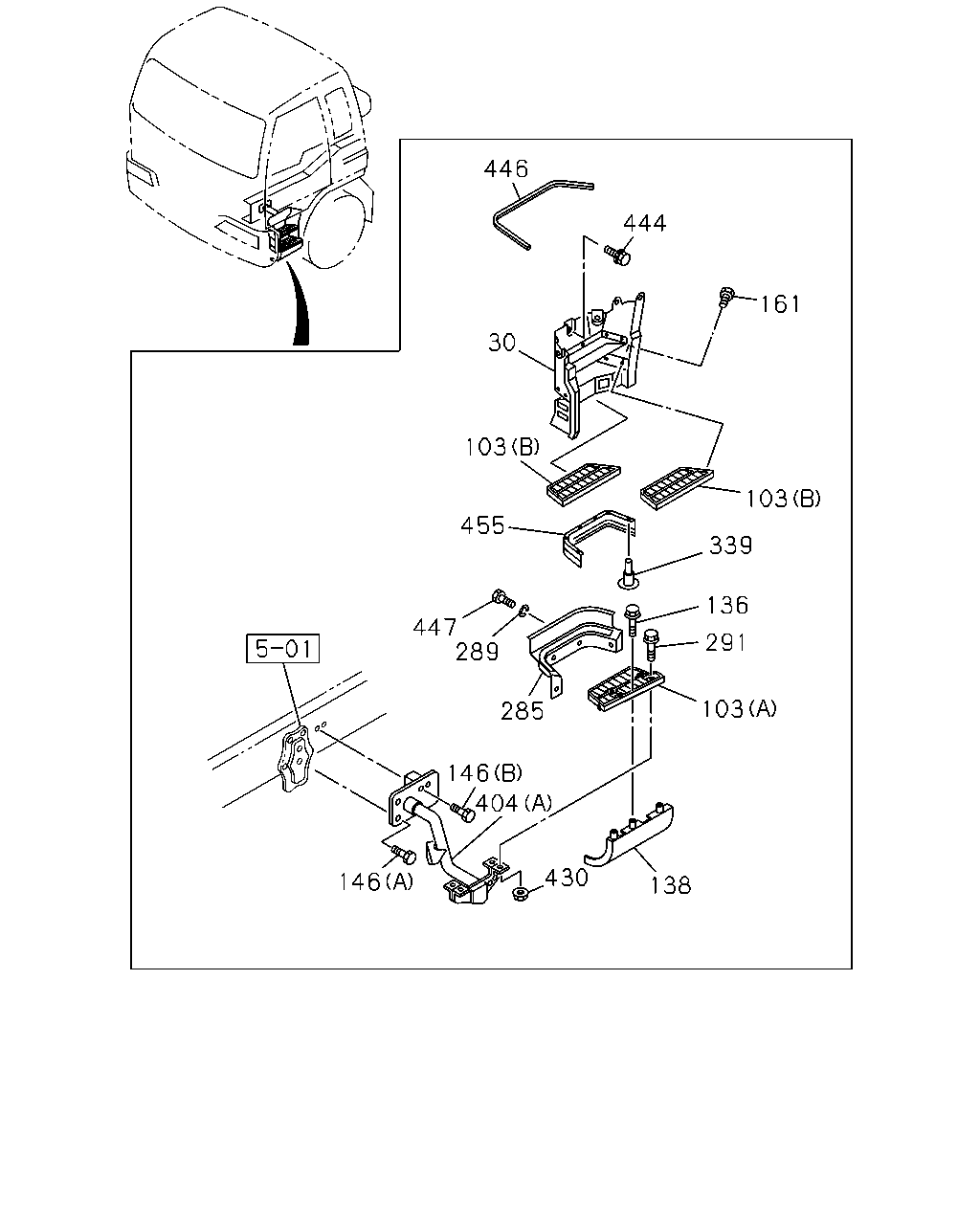

446 444 161 103 339 136 291 103 138 430 404 146 146 285 289 447 455 103 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-809-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-810-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302	●
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1303-		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1303-		●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504	●	●
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302	●	●
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302	●	●
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302		●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-091-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-094-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X60 FLANGE	0-28050-860-0	08	1	1009-1111	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X60 FLANGE	0-28050-860-0	08	1	1009-1111		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28050-850-0	08	1	1112-1302	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X50 FLANGE	0-28050-850-0	08	1	1112-1302		●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-	●	●
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302		●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-	●	●
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302	●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302		●
404	BRACKET (C)	8-98227-951-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-951-0	01	1	1303-		●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302		●
404	BRACKET (C)	8-98227-952-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-952-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98129-531-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (B)	8-98129-531-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98129-549-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (A)	8-98129-549-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1303-		●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302	●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-256-3	01	1	1009-1302	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-	●	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302	●

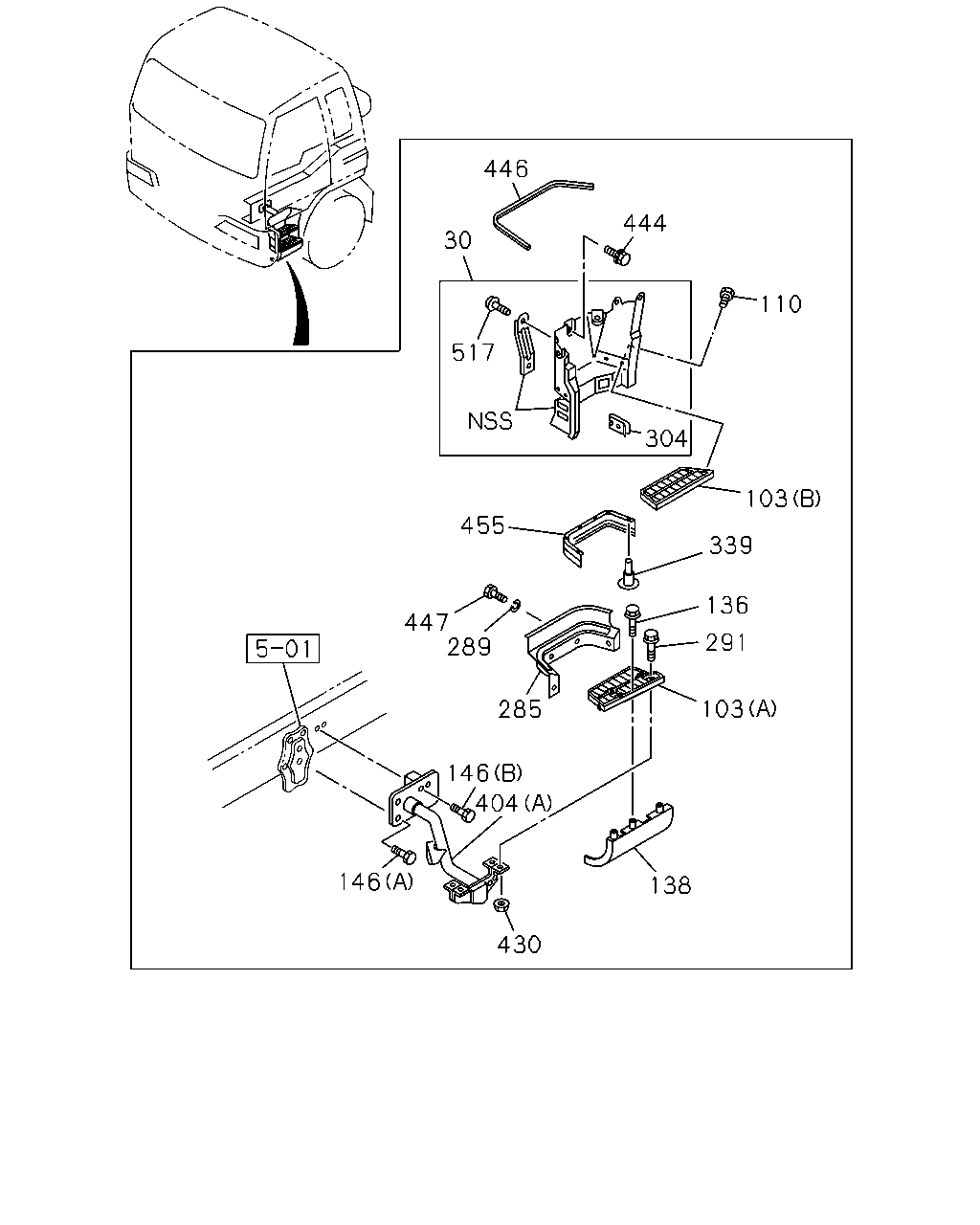

446 30 517 444 110 308 339 136 103 455 447 289 285 146 404 430 146 138 103 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-809-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-810-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302	●
110	BOLT; 1ST STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	1009-1302	●
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1303-		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1303-		●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504	●	●
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302	●	●
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-091-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-094-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X60 FLANGE	0-28050-860-0	08	1	1009-1111	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X60 FLANGE	0-28050-860-0	08	1	1009-1111		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28050-850-0	08	1	1112-1302	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X50 FLANGE	0-28050-850-0	08	1	1112-1302		●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-	●	●
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302		●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-	●	●
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302	●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302		●
404	BRACKET (C)	8-98227-951-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-951-0	01	1	1303-		●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302		●
404	BRACKET (C)	8-98227-952-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-952-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98129-531-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (B)	8-98129-531-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98129-549-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (A)	8-98129-549-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1303-		●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302	●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-256-3	01	1	1009-1302	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-	●	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302	●
517	SCREW; TAP EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	1009-1302	●

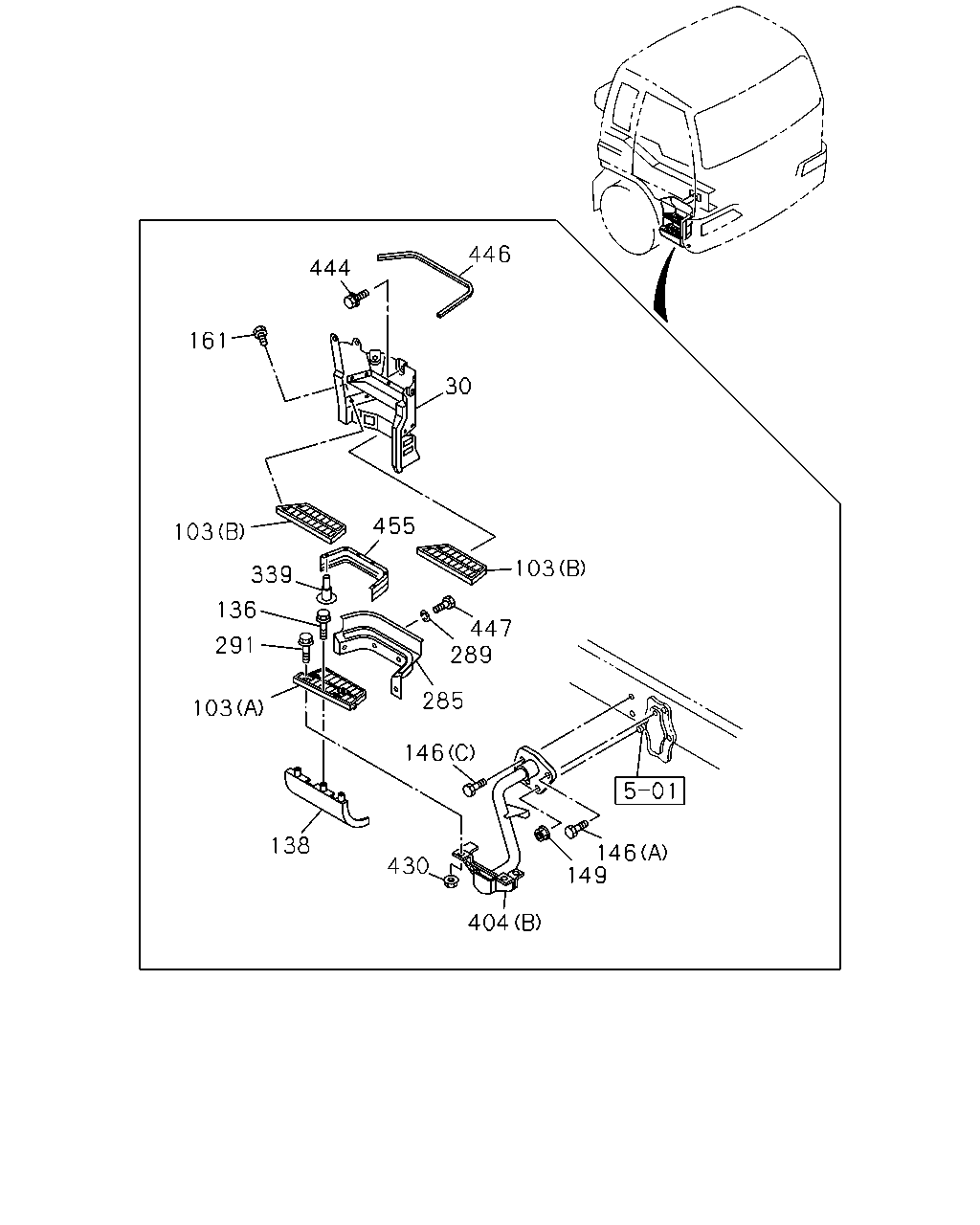

444 446 30 455 161 103 339 136 291 103 138 430 146 285 289 103 146 149 404 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-809-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-810-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302	●

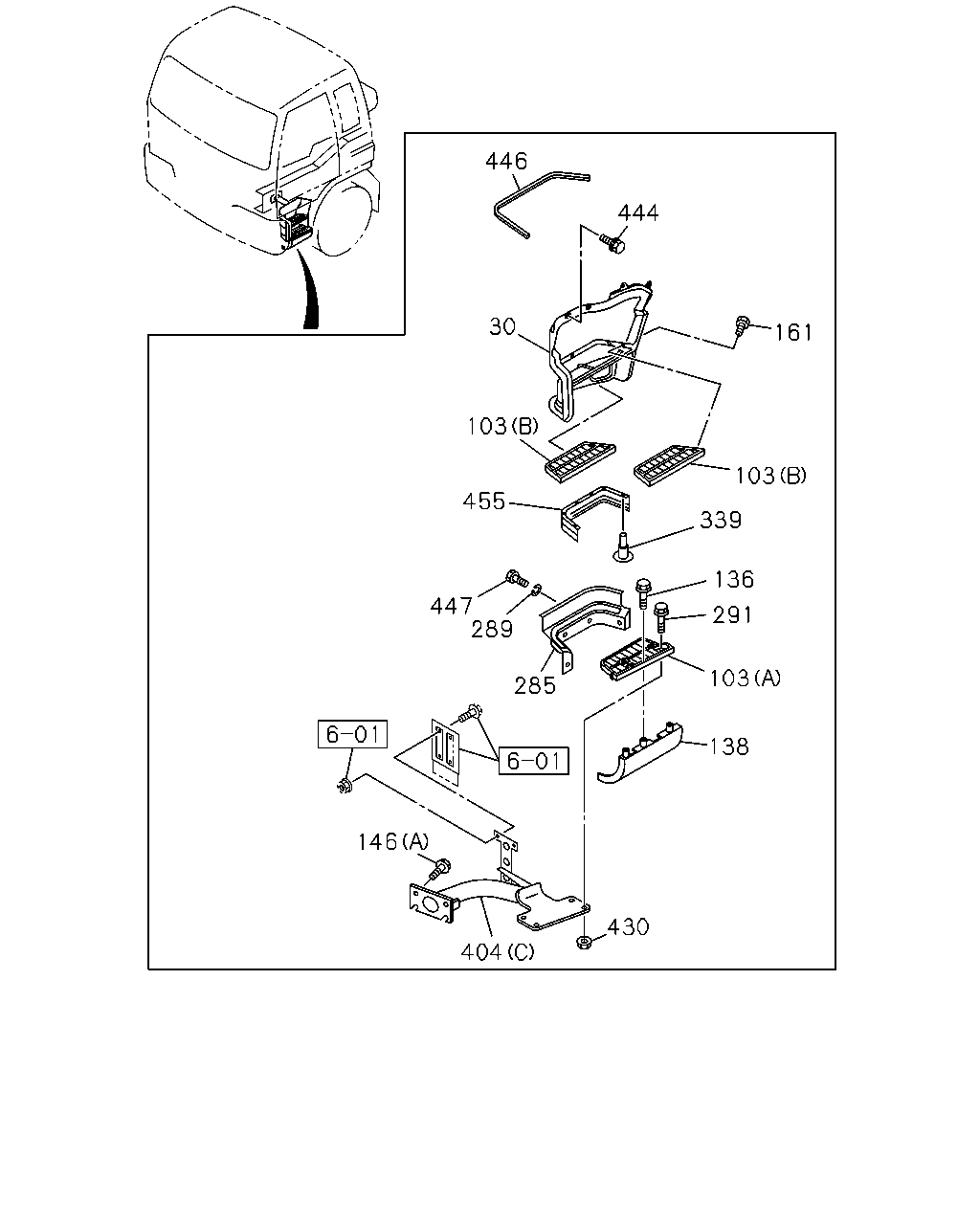

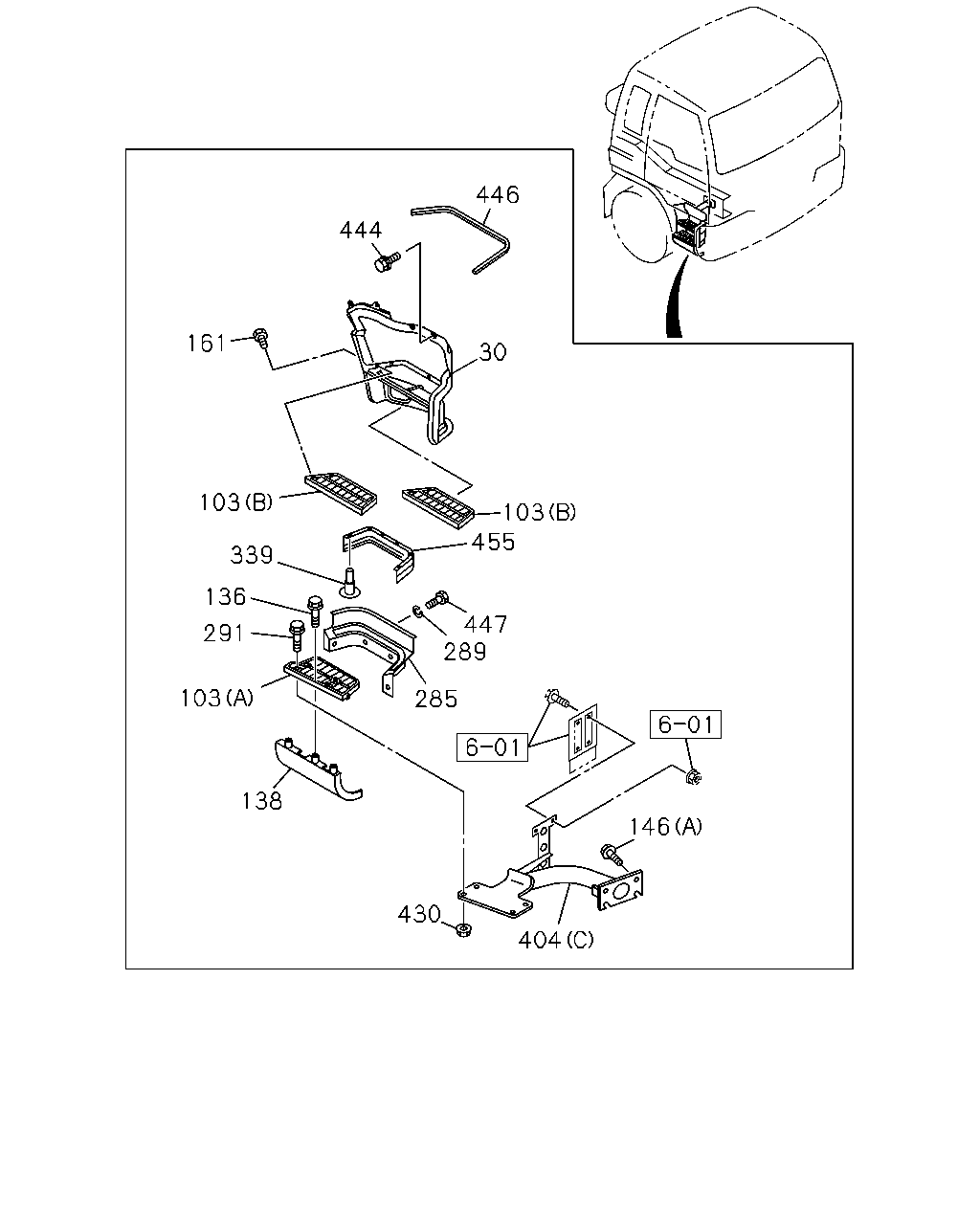

103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302	●
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1303-		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1303-		●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504	●	●
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302	●	●
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302	●	●
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	01	1	1009-1302	●	●
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302		●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-091-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-094-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X60 FLANGE	0-28050-860-0	08	1	1009-1111	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X60 FLANGE	0-28050-860-0	08	1	1009-1111		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28050-850-0	08	1	1112-1302	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X50 FLANGE	0-28050-850-0	08	1	1112-1302		●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-	●	●
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302		●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-	●	●
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302	●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302		●
404	BRACKET (C)	8-98227-951-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-951-0	01	1	1303-		●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302		●
404	BRACKET (C)	8-98227-952-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-952-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98129-531-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (B)	8-98129-531-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98129-549-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (A)	8-98129-549-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1303-		●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302	●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-256-3	01	1	1009-1302	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-	●	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302	●

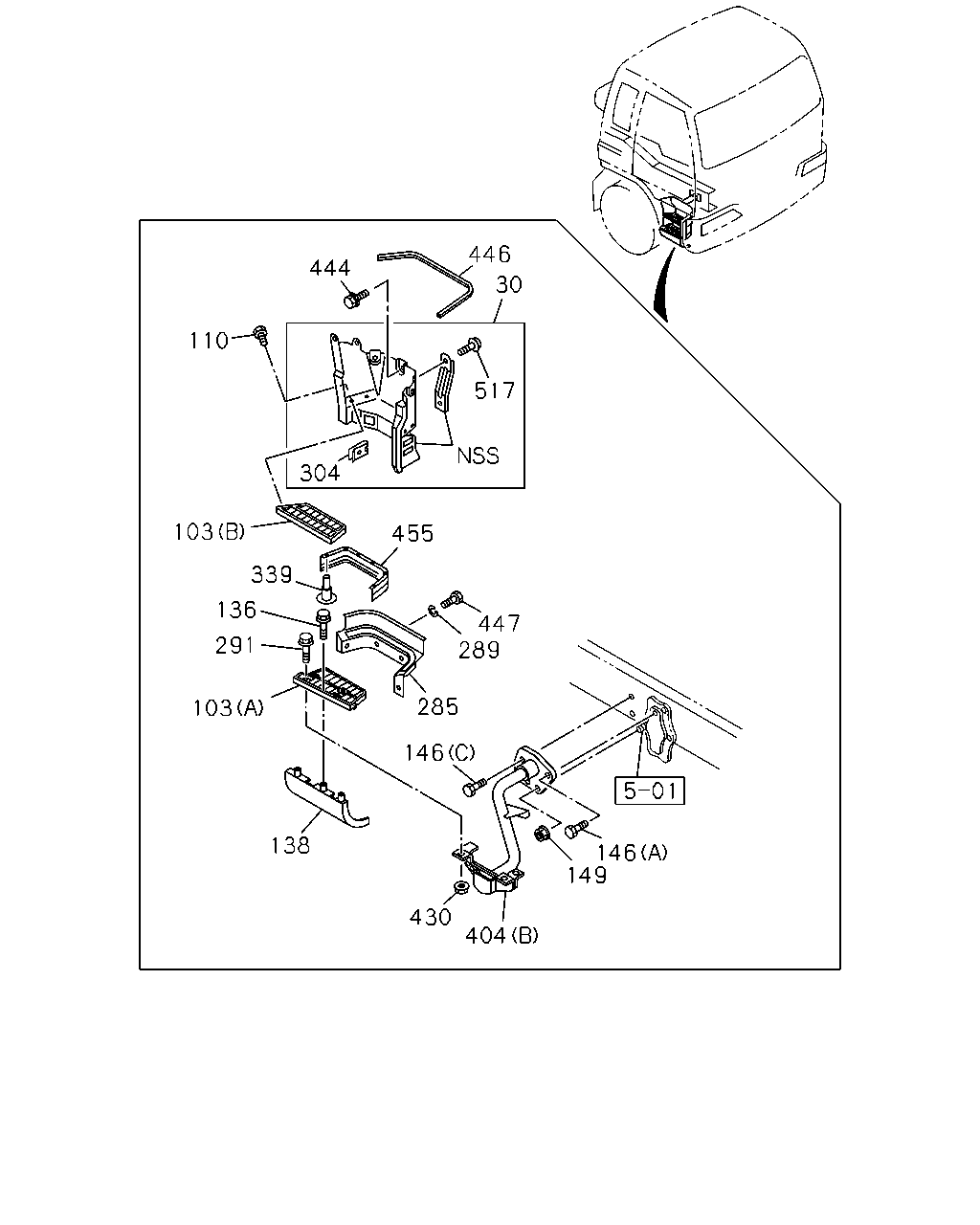

446 30 517 304 110 444 103 339 455 136 291 103 138 430 404 149 146 146 285 289 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-809-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-810-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302	●
110	BOLT; 1ST STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	1009-1302	●
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1303-		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1303-		●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504	●	●
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302	●	●
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302	●	●
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	01	1	1009-1302	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-091-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-094-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X60 FLANGE	0-28050-860-0	08	1	1009-1111	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X60 FLANGE	0-28050-860-0	08	1	1009-1111		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28050-850-0	08	1	1112-1302	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X50 FLANGE	0-28050-850-0	08	1	1112-1302		●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-	●	●
304	NUT; SPIRE EXC. HONG KONG EQUIPMENT(PQ1) M6	1-09984-182-0	04	1	1009-1302	●
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302		●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-	●	●
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302	●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302		●
404	BRACKET (C)	8-98227-951-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-951-0	01	1	1303-		●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302		●
404	BRACKET (C)	8-98227-952-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-952-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98129-531-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (B)	8-98129-531-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98129-549-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (A)	8-98129-549-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1303-		●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302	●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-256-3	01	1	1009-1302	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-	●	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302	●
517	SCREW; TAP EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	1009-1302	●

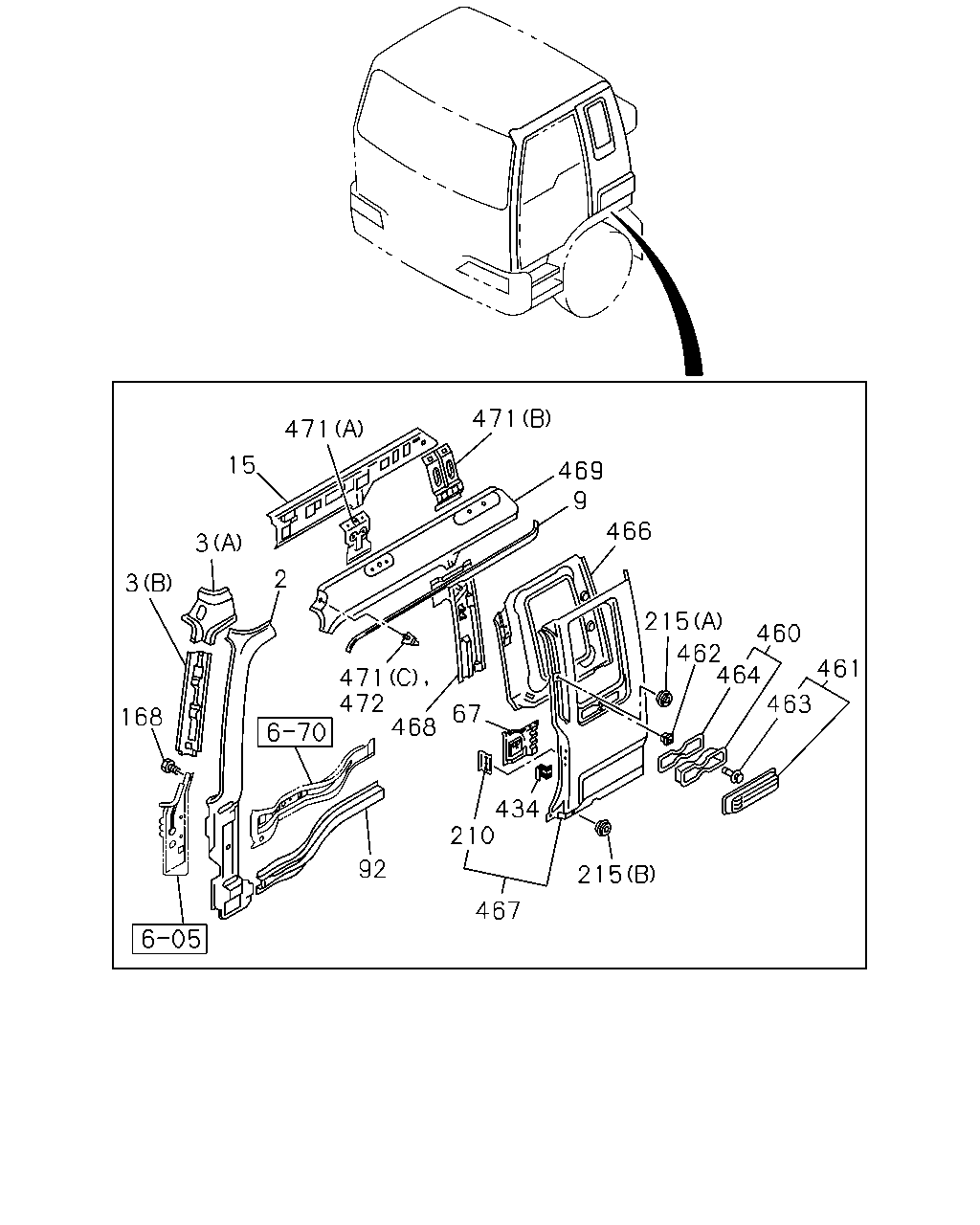

215 467 210 92 434 468 472 471 168 3 3 15 471 471 469 466 9 215 462 464 460 463 461 67 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PILLAR; FRT	1-61281-410-2	01	1	1303-1411	●
2	PILLAR; FRT	1-61281-410-2	01	1	1412-	●
2	PILLAR; FRT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-61281-410-2	01	1	1412-		●
2	PILLAR; FRT	1-61281-155-4	01	1	1009-	●	●
2	PILLAR; FRT	1-61281-156-4	01	1	1009-1302	●	●
2	PILLAR; FRT	1-61281-156-4	01	1	1303-1411		●
2	PILLAR; FRT MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-61281-156-4	01	1	1412-		●
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	1009-	●	●
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	1009-	●	●
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	1009-	●	●
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	1009-	●	●
9	MOLDING; DRIP,CAB SIDE	1-61281-280-5	01	1	1009-	●	●
9	MOLDING; DRIP,CAB SIDE	1-61281-281-5	01	1	1009-	●	●
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	1009-	●	●
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	1009-	●	●
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	1009-	●	●
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	1009-	●	●
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	1009-	●	●
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	1009-	●	●
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	1009-	●	●
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	1009-	●	●
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	1009-	●	●
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	1009-	●	●
434	PATCH; ASSIST GRIP	1-61270-763-1	02	1	1009-1302	●	●
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1303-	●	●
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1303-	●	●
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	1009-	●	●
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	1009-	●	●
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	1009-	●	●
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	1009-	●	●
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	1009-	●	●
464	SEAL; VENTILATOR	1-76378-299-0	02	1	1009-	●	●
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	1009-	●	●
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	1009-	●	●
467	PANEL; OUTER,BACK CORNER	1-61270-773-3	01	1	1303-	●
467	PANEL; OUTER,BACK CORNER	1-61281-203-4	01	1	1009-	●	●
467	PANEL; OUTER,BACK CORNER	1-61281-204-4	01	1	1009-1302	●	●
467	PANEL; OUTER,BACK CORNER	1-61281-204-4	01	1	1303-		●
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	1009-	●	●
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	1009-	●	●
469	ROOF; SIDE	1-61281-198-8	01	1	1009-	●	●
469	ROOF; SIDE	1-61281-199-8	01	1	1009-	●	●
471	PATCH; AIR DEFLECTOR (A)	1-61281-200-3	01	1	1009-	●	●
471	PATCH; AIR DEFLECTOR (A)	1-61281-201-3	01	1	1009-	●	●
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	02	1	1009-1302	●	●
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1303-	●	●
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1303-	●	●
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	1009-	●	●
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	1009-	●	●

446 444 30 103 455 447 289 285 138 103 291 339 136 103 161 146 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-809-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-810-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302	●
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1303-		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1303-		●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504	●	●
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302	●	●
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302	●	●
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302		●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-091-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-094-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X60 FLANGE	0-28050-860-0	08	1	1009-1111	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X60 FLANGE	0-28050-860-0	08	1	1009-1111		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28050-850-0	08	1	1112-1302	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X50 FLANGE	0-28050-850-0	08	1	1112-1302		●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-	●	●
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302		●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-	●	●
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302	●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302		●
404	BRACKET (C)	8-98227-951-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-951-0	01	1	1303-		●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302		●
404	BRACKET (C)	8-98227-952-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-952-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98129-531-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (B)	8-98129-531-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98129-549-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (A)	8-98129-549-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1303-		●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302	●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-256-3	01	1	1009-1302	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-	●	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302	●

446 444 161 103 339 136 291 103 138 430 404 146 285 289 447 455 103 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-809-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302	●
30	CLOSING; SIDE STEP	8-98125-810-4	01	1	1009-1302		●
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-	●	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302	●
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1009-1302		●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302	●
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1009-		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-265-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-79931-266-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-263-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1303-		●
138	FENDER; OVER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-79931-264-0	01	1	1009-1302		●
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1303-		●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	03	1	1009-1302	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504	●	●
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302	●	●
146	BOLT; STEP BRKT (C) M12X80 FLANGE	0-28051-280-0	02	1	1009-1302	●	●
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302		●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-091-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP	8-98160-094-0	01	1	1009-1302		●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-	●	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302	●
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28050-840-0	08	1	1009-1302	●
291	BOLT; STEP PLATE EXC. DUMP TRUCK<RA1> M8X40 FLANGE	0-28050-840-0	08	1	1009-1302		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X60 FLANGE	0-28050-860-0	08	1	1009-1111	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X60 FLANGE	0-28050-860-0	08	1	1009-1111		●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28050-850-0	08	1	1112-1302	●
291	BOLT; STEP PLATE DUMP TRUCK<RA1> M8X50 FLANGE	0-28050-850-0	08	1	1112-1302		●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-	●	●
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302		●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-	●	●
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302	●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (A)	1-53414-158-4	01	1	1009-1302		●
404	BRACKET (C)	8-98227-951-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-951-0	01	1	1303-		●
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302	●
404	BRACKET EXC. DUMP TRUCK<RA1> (B)	1-53414-255-3	01	1	1009-1302		●
404	BRACKET (C)	8-98227-952-0	01	1	1303-	●
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> (C)	8-98227-952-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98129-531-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (B)	8-98129-531-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-383-0	01	1	1303-		●
404	BRACKET DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98129-549-0	01	1	1009-1302	●
404	BRACKET DUMP TRUCK<RA1> (A)	8-98129-549-0	01	1	1009-1302		●
404	BRACKET FRONT SPOILER<VP1> (C)	8-98241-384-0	01	1	1303-		●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302	●
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-53414-256-3	01	1	1009-1302	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-	●	●
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302	●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1009-1302		●
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-	●	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302	●
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
