4-50 — FRONT SUSPENSION (#6150) — 63 parça

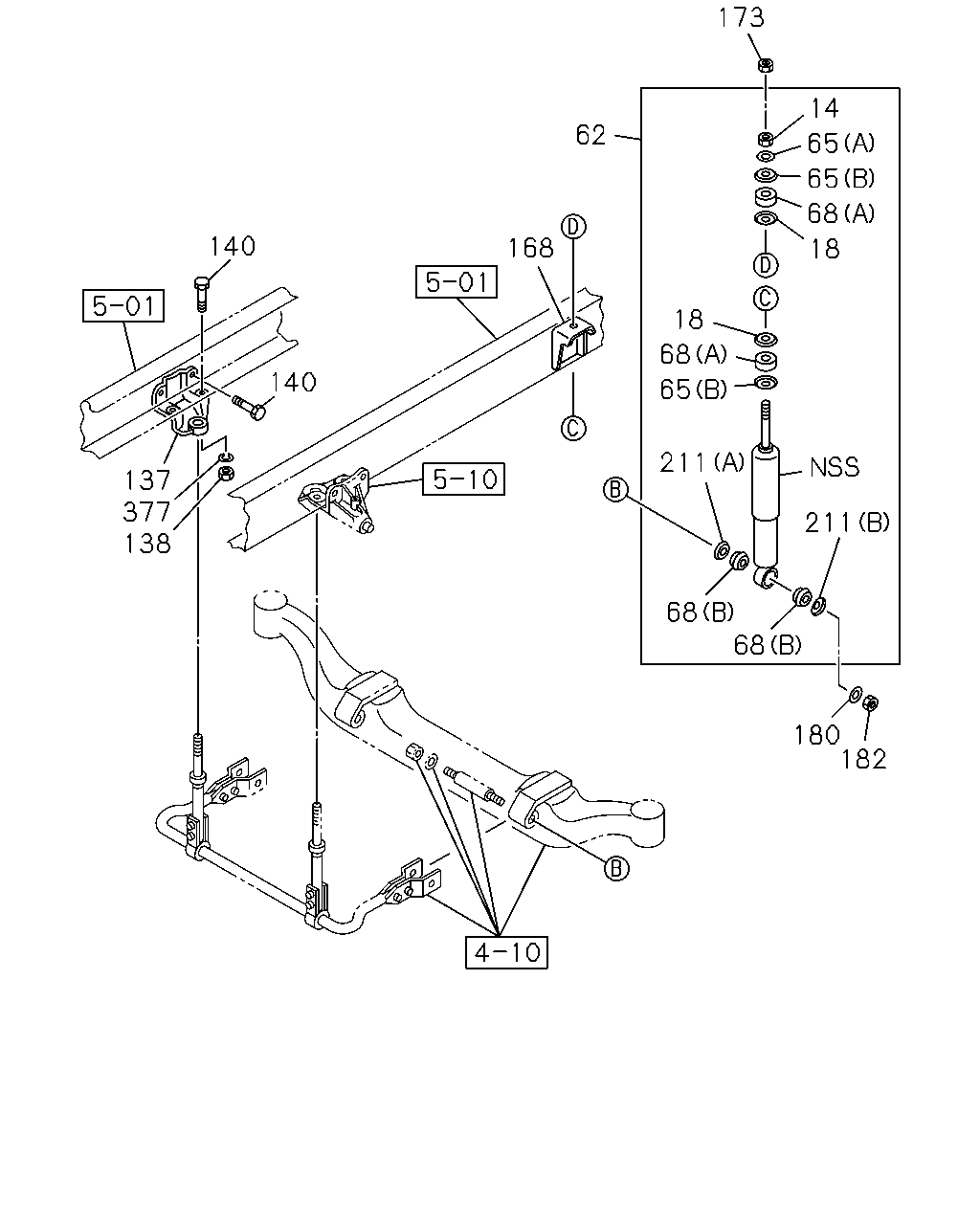

çizim 38284
173 14 62 65 65 68 140 168 18 18 68 140 65 211 137 377 138 211 68 68 180 182
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9905-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9905-
62 ABSORBER ASM; SHOCK,FRT 1-51600-399-0 02 1 9905-0310
62 ABSORBER ASM; SHOCK,FRT 1-51600-415-0 02 1 0311-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9905-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9905-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9905-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9905-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 9905-
138 NUT; BRKT
M14 		9-99110-514-0 02 1 9905-0512
138 NUT; BRKT
M14 		0-91110-514-0 02 1 0601-
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 9905-0512
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9905-
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9905-0512
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9905-0605
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606-
182 NUT; S/ABS LWR
M20 		9-99110-420-0 02 1 9905-0301
182 NUT; S/ABS LWR
M20 		9-99110-520-0 02 1 0302-0512
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 0601-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9905-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9905-
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 9905-1201
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1202-

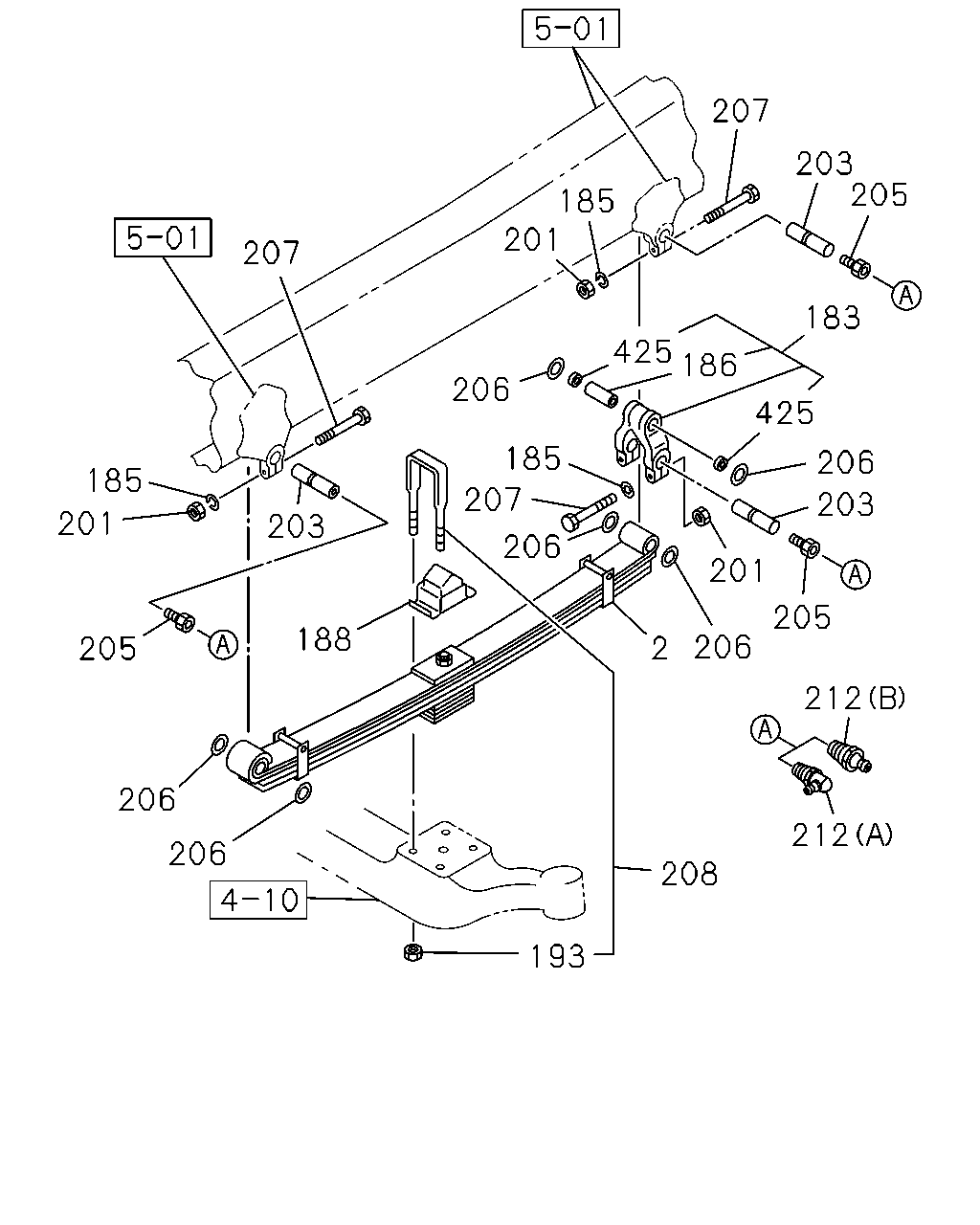

çizim 40275
207 203 205 185 201 207 183 425 186 206 425 185 206 185 207 203 201 203 206 201 205 188 206 2 205 212 206 212 206 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 4-LEAF 		1-51130-273-0 02 1 9905-0104
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-273-0 02 1 9905-0104
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 4-LEAF 		1-51130-842-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-842-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONTSPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-275-0 02 1 9905-0104
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONTSPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-597-0 02 1 0105-
183 SHACKLE; FRT SUSP
WO/DOST SEAL 		1-51162-029-4 02 1 9905-0104
183 SHACKLE; FRT SUSP
W/DOST SEAL 		1-51162-064-0 02 1 0105-0602
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0603-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9905-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9905-0104
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 02 1 0105-0602
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0603-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 9905-0602
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-097-1 02 1 0603-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9905-0512
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905-0512
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9905-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9905-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9905-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9905-0104
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 9905-0104
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0105-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONTSPRING HEAVY DUTY VAR1(F60) L=250 		1-87870-343-0 04 1 9905-0104
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0603-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 ELBOW 		9-09031-210-0 06 1 9905-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 ELBOW 		0-90301-610-0 06 1 0601-0602
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 ELBOW 		0-90301-610-0 04 1 0603-
425 SEAL; DUST 1-51177-321-0 04 1 0105-1005
