Isuzu WW
▶
TRUCKS
▶
FSR
▶
10624 - FSR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶

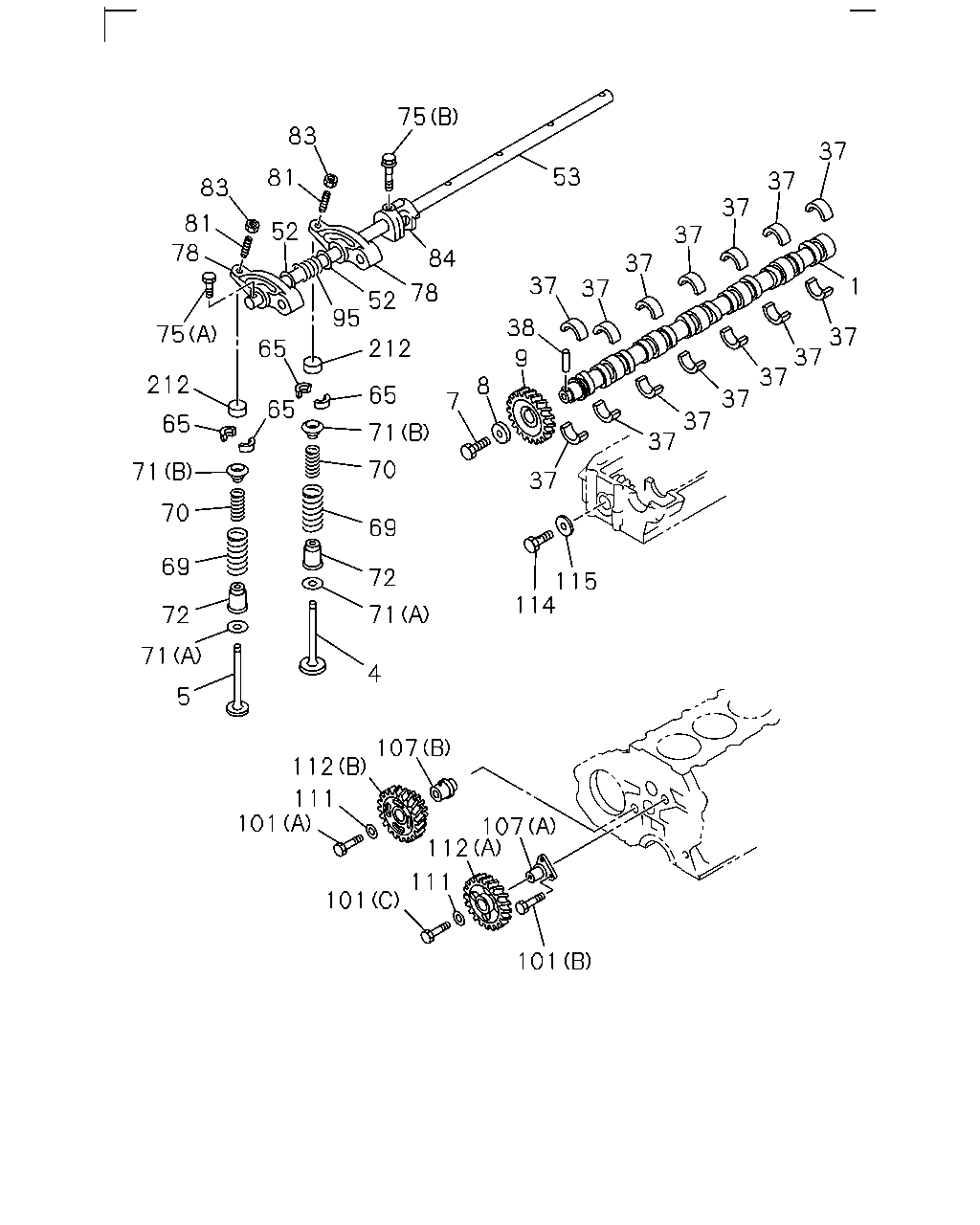

0-14 — CAMSHAFT AND VALVE
(#615) — 49 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
75
83
37
53
81
37
83
37
81
78
52
37
84
37
37
1
37
78
52
95
38
75
37
37
37
37
212
65
9
212
8
65
7
65
37
37
65
71
70
71
37
70
69
69
72
115
114
71
72
71
4
5
107
112
111
101
107
112
111
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAMSHAFT
8-94396-425-1
01
1
9202-
●
●
4
VALVE; INL
8-94399-387-3
06
1
9202-9306
●
●
4
VALVE; INL
8-94395-112-0
06
1
9307-
●
●
5
VALVE; EXH
8-94399-386-3
06
1
9202-9203
●
●
5
VALVE; EXH
8-97060-415-0
06
1
9204-
●
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
9202-
●
●
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
9202-
●
●
9
GEAR; CM/SHF
Z=35
8-94396-836-0
01
1
9202-9302
●
●
9
GEAR; CM/SHF
Z=35
8-97094-440-2
01
1
9303-
●
●
37
METAL; CM/SHF
8-94363-100-0
14
1
9202-9211
●
●
37
METAL; CM/SHF
8-94393-380-0
14
1
9212-
●
●
38
PIN; CAM BRG SET
8-94399-487-0
01
1
9202-
●
●
52
WASHER; ROCKER ARM SHAFT
8-94362-105-0
12
1
9202-
●
●
53
SHAFT; ROCKER ARM
8-94396-671-1
01
1
9202-9202
●
●
53
SHAFT; ROCKER ARM
8-94393-984-1
01
1
9203-
●
●
65
COLLAR; SPLIT
5-12565-006-0
24
1
9202-
●
●
69
SPRING; VLV,OUTER
EXHAUST
8-94393-310-0
06
1
9202-
●
●
69
SPRING; VLV,OUTER
INLET
8-94393-396-1
06
1
9202-9410
●
●
69
SPRING; VLV,OUTER
INLET
8-94394-996-0
06
1
9411-
●
●
70
SPRING; VLV,INNER
INLET
8-94393-397-1
06
1
9202-9410
●
●
70
SPRING; VLV,INNER
EXHAUST
8-94397-500-0
06
1
9202-
●
●
70
SPRING; VLV,INNER
INLET
8-94395-266-0
06
1
9411-
●
●
71
SEAT; SPR
(B) OD=38
8-94385-029-1
12
1
9202-
●
●
71
SEAT; SPR
(A) ID=14.3 T=0.5
8-94396-014-0
12
1
9202-
●
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-609-2
12
1
9202-
●
●
75
BOLT; BRKT
(A) M8X35 FLANGE
0-28080-835-0
02
1
9202-
●
●
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
9202-
●
●
78
ARM; ROCKER
INLET
8-94397-253-1
06
1
9202-9202
●
●
78
ARM; ROCKER
INLET
8-94394-424-0
06
1
9203-
●
●
78
ARM; ROCKER
EXHAUST
8-94397-362-1
06
1
9202-
●
●
81
SCREW; ADJ,ROCKER ARM
8-94393-679-0
12
1
9202-9312
●
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
9401-
●
●
83
NUT; ADJ SCREW,LK
M10
9-09111-510-0
12
1
9202-
●
●
84
BRACKET; ROCKER SHAFT,INTER
JBK
8-94388-109-3
05
1
9202-
●
●
95
SPRING; ROCKER SHAFT
JBK
8-94397-263-0
06
1
9202-
●
●
101
BOLT; THRUST COLLAR
(B)
8-97073-782-0
03
1
9202-
●
●
101
BOLT; THRUST COLLAR
(A) M14X60
9-91666-460-0
01
1
9202-
●
●
101
BOLT; THRUST COLLAR
(C) M14X30
9-92361-430-0
01
1
9202-
●
●
107
SHAFT; IDLE GEAR
(B)
8-94399-245-4
01
1
9202-9405
●
●
107
SHAFT; IDLE GEAR
(B)
8-97104-380-0
01
1
9406-
●
●
107
SHAFT; IDLE GEAR
(A)
8-97073-938-1
01
1
9202-
●
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-94370-688-0
02
1
9202-
●
●
112
GEAR; IDLE
(A) Z=61
8-94396-832-1
01
1
9202-9303
●
●
112
GEAR; IDLE
(A) Z=61
8-97094-546-1
01
1
9304-
●
●
112
GEAR; IDLE
(B) Z=72 & 30
8-94396-960-1
01
1
9202-9303
●
●
112
GEAR; IDLE
(B) Z=72-30
8-94395-107-1
01
1
9304-
●
●
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
9202-
●
●
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-94370-688-0
01
1
9202-
●
●
212
CAP; ADJ SCREW
8-94396-015-1
12
1
9202-
●
●
