◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#61499) — 328 parça

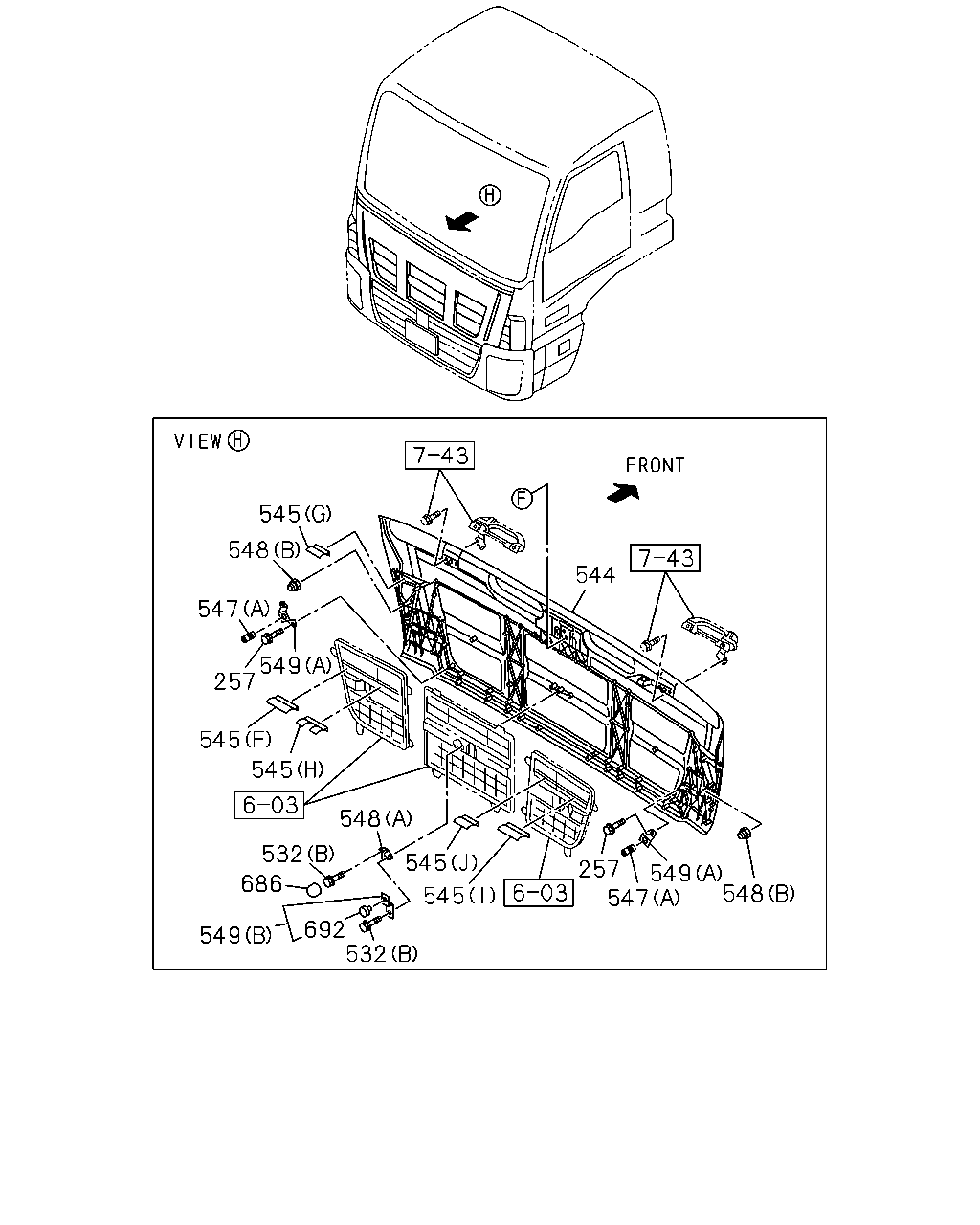

çizim 168495
545 548 547 549 257 545 545 532 548 686 549 692 532 545 545 544 257 549 547 548
BalonParca AdiParca NoAdetTipApplied Date A B
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1303- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1009- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1009-1511 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1009- ● ●
544 LID; FRT
WHITE 		8-97417-923-3 01 1 1303- ● ●
544 LID; FRT
WHITE 		1-71101-023-1 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 1009- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(H) 		8-98133-469-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(I) 		8-98133-467-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(J) 		8-98133-468-0 01 1 1303- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1303-1411 ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1009- ● ●
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 1009-1302 ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1009- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1009- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1009- ● ●
549 BRACKET; STOPPER,FRT LID
(B) 		8-98274-092-0 01 1 1411- ● ●
549 BRACKET; STOPPER,FRT LID
(A) 		8-98135-101-0 02 1 1303- ● ●
686 CAP; BOLT 8-98217-298-0 01 1 1303-1410 ● ●
692 BUFFER 8-98251-459-0 01 1 1411- ● ●

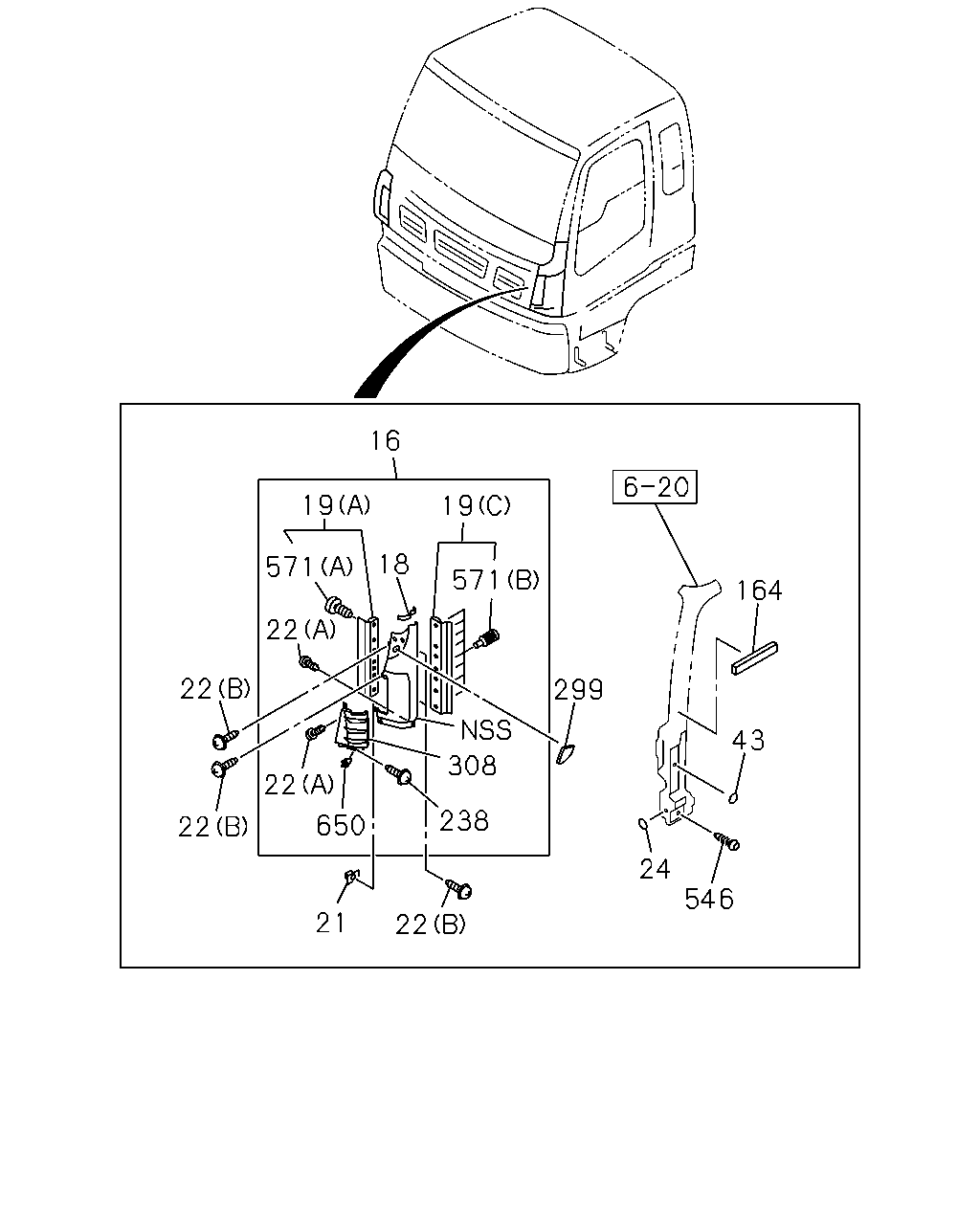

çizim 168497
16 19 571 22 22 22 22 650 21 18 19 57 308 238 22 299 164 43 24 546
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65473-182-4 01 1 1009-1302 ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97417-867-2 01 1 1303- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65473-185-4 01 1 1009-1302 ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97417-875-2 01 1 1303- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 1009- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 1009-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-1302 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1303- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 1009-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-1302 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1303- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1009- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 1009- ● ●
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 1009- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 1009-1010 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011- ● ●
24 SEAL; FRT PANEL LWR
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 05 1 1009-1302 ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1009-1302 ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1303- ● ●
24 SEAL; FRT PANEL LWR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 09 1 1009-1302 ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 1009- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 1009- ● ●
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1009-1302 ● ●
299 COVER; FRT PANEL SIDE
WHITE 		8-97423-348-1 01 1 1303- ●
299 COVER; FRT PANEL SIDE
WHITE 		8-97423-349-1 01 1 1303- ●
308 PLATE; FRT PANEL 1-65473-181-3 01 1 1009-1302 ● ●
308 PLATE; FRT PANEL
WHITE 		8-97417-899-1 01 1 1303- ● ●
308 PLATE; FRT PANEL 1-65473-184-3 01 1 1009-1302 ● ●
308 PLATE; FRT PANEL
WHITE 		8-97417-907-1 01 1 1303- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 1009- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 1009-1302 ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 20 1 1303- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 1009- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 1009- ● ●
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 1009- ● ●

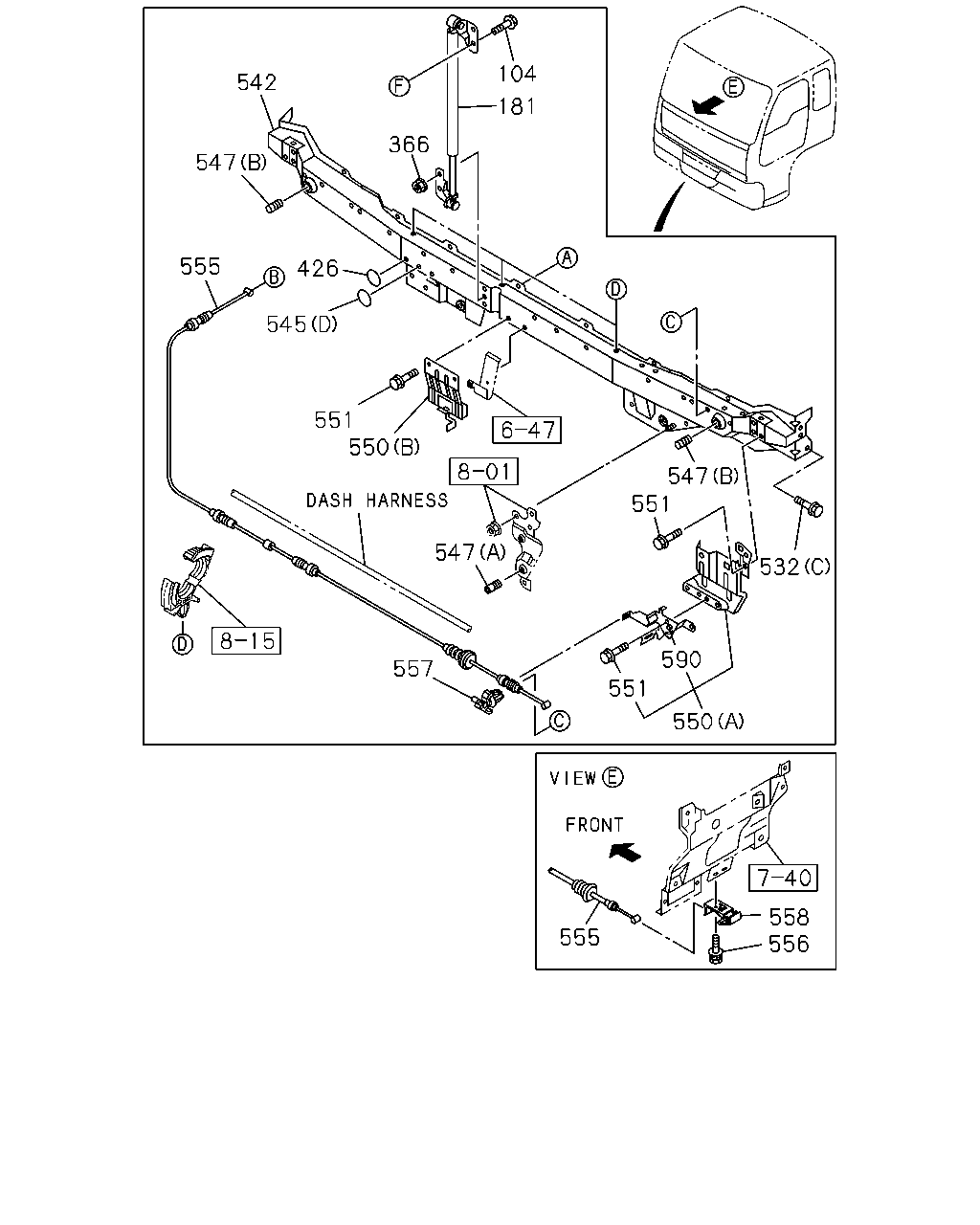

çizim 168507
104 366 547 542 426 555 545 551 547 557 551 550 590 532 547 551 550 555 558 556 181
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1009- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 1009- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1009- ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 1009-1302 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 1303-1411 ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 1412- ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 1412- ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 1009-1302 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 1303-1411 ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 1412- ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1009- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1009-1511 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1009- ● ●
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 1009- ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 1009- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(H) 		8-98133-469-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(I) 		8-98133-467-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(J) 		8-98133-468-0 01 1 1303- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1303-1411 ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1009- ● ●
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 1009-1302 ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1009- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-020-1 01 1 1009-1302 ● ●
550 LOCK ASM; FRT LID
(B) 		8-98174-767-0 01 1 1303- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-025-1 01 1 1009- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-026-1 01 1 1009- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1303- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 1009-1302 ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 1303- ● ●
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 1009- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 1009- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 1009- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1009- ● ●
590 LOCK; FRT LID 1-79318-009-4 01 1 1009- ● ●
590 LOCK; FRT LID 1-79318-010-2 01 1 1009- ● ●

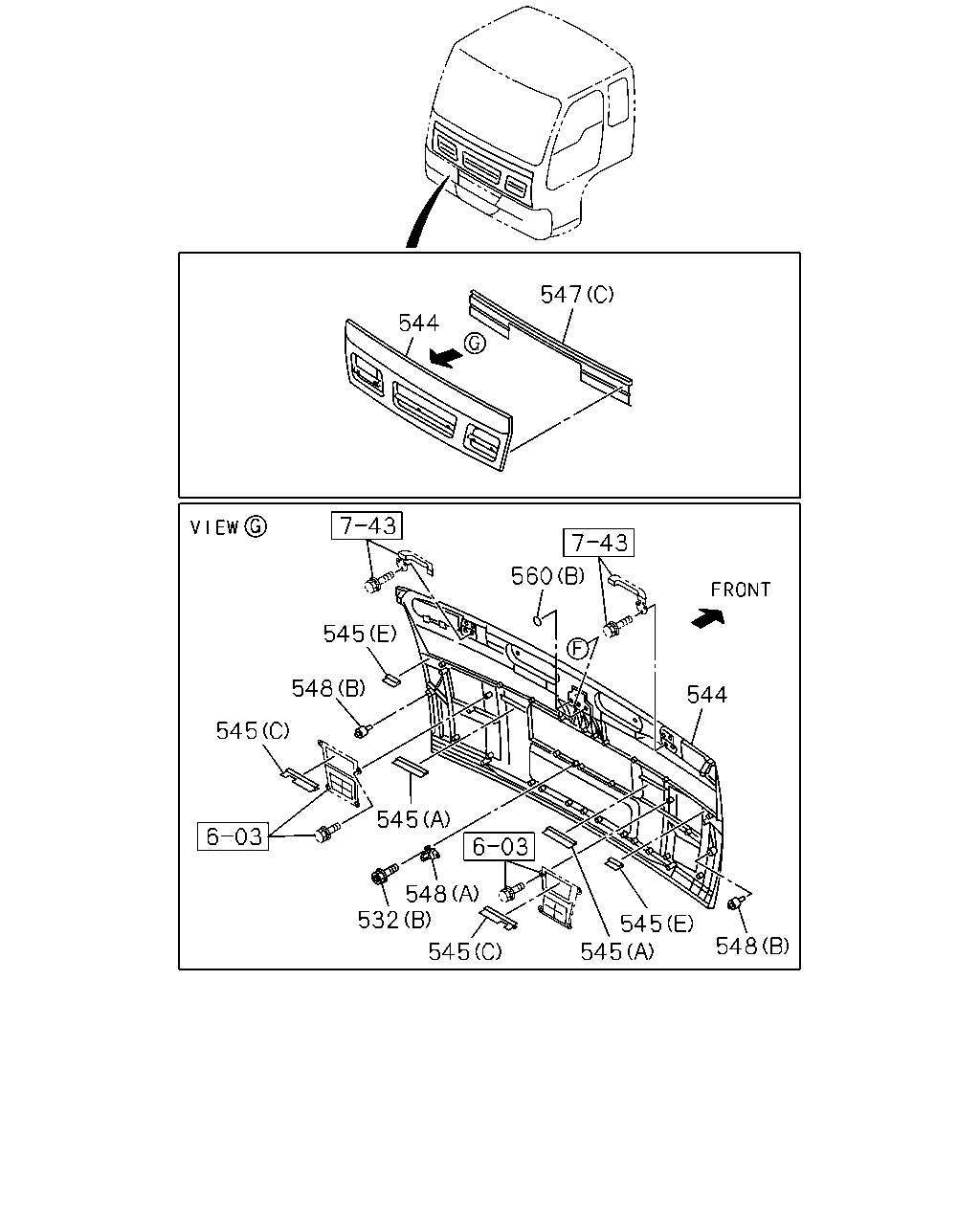

çizim 168513
547 544 545 560 544 545 548 545 545 545 548 545 532 548
BalonParca AdiParca NoAdetTipApplied Date A B
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1009- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1009-1511 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1009- ● ●
544 LID; FRT
WHITE 		8-97417-923-3 01 1 1303- ● ●
544 LID; FRT
WHITE 		1-71101-023-1 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 1009- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(H) 		8-98133-469-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(I) 		8-98133-467-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(J) 		8-98133-468-0 01 1 1303- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1303-1411 ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1009- ● ●
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 1009-1302 ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1009- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1009- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1009- ● ●
560 SEAL; COVER
HEATER & DEFROSTER(C41) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1412- ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009-1105 ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009-1105 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1106-1302 ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1009- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1009-1105 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1009-1302 ● ●

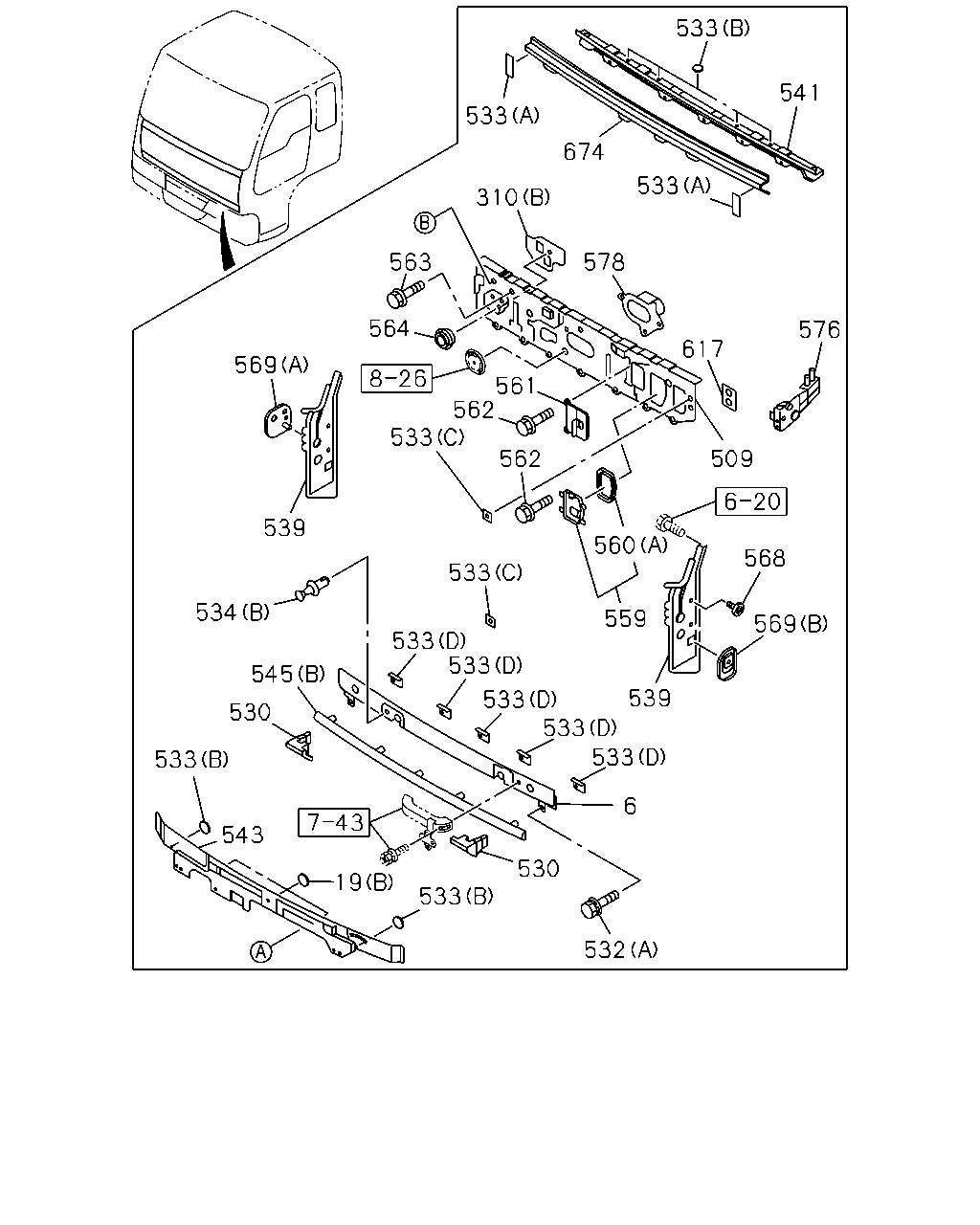

çizim 168521
533 541 533 674 533 310 578 617 576 509 560 568 569 559 533 533 562 562 561 564 563 569 539 534 545 530 533 543 19 533 530 532 6 533 533 533 533 533 539
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65473-144-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 1009-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-1302 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1303- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 1009-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-1302 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1303- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1009- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 1009- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 1009- ● ●
509 PANEL; DASH 1-62270-478-6 01 1 1009- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 1009- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 1009- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1009- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1009-1511 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1009- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 1009- ● ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 1009- ● ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 1009- ● ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 1009- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1009-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1009- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 1009- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 1009- ● ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 1009- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 1009- ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 1009- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(H) 		8-98133-469-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(I) 		8-98133-467-0 01 1 1303- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 1009-1302 ● ●
545 SEAL; FRT LID
(J) 		8-98133-468-0 01 1 1303- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 1009-1302 ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 1009- ● ●
560 SEAL; COVER
HEATER & DEFROSTER(C41) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1412- ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009-1105 ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009-1105 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1106-1302 ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1009- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1009-1105 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1009-1302 ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 1009- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1009- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 1009- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 1009- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 1009- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 1009- ● ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 1009- ● ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 1009- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 1009- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 1009- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 1009- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 1009- ● ●
674 PANEL; UPR 1-61470-688-2 01 1 1009- ● ●

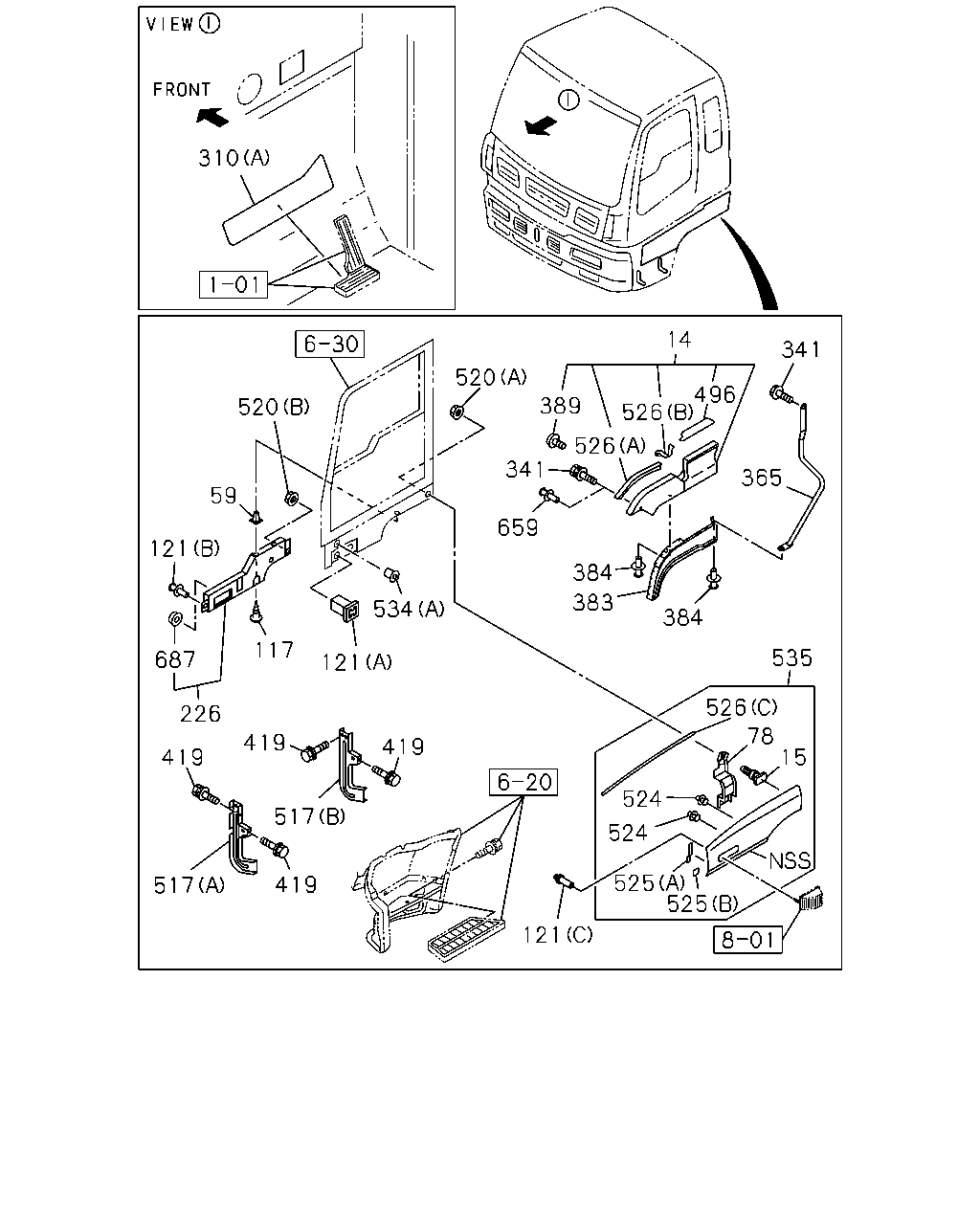

çizim 168557
310 520 59 121 687 226 419 517 419 517 419 419 121 534 117 520 341 659 384 383 389 14 341 496 526 526 365 384 535 526 78 15 524 524 525 525 121
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 8-98154-744-1 01 1 1009- ● ●
14 FENDER; FRT 8-98154-745-1 01 1 1009- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1009- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1009- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 1009- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 1009- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1009- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1009- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1009- ● ●
121 GROMMET; FENDER
(C) 		8-98111-356-0 02 1 1009-1306 ● ●
226 PROTECTOR; FRT 8-98109-132-1 01 1 1009-1306 ● ●
226 PROTECTOR; FRT 8-98234-709-0 01 1 1307- ● ●
226 PROTECTOR; FRT 8-98109-134-1 01 1 1009-1306 ● ●
226 PROTECTOR; FRT 8-98234-710-0 01 1 1307- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 1009- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 1009- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1009- ● ●
365 SUPPORT; FENDER 8-98120-231-0 01 1 1009- ● ●
365 SUPPORT; FENDER 8-98120-232-0 01 1 1009- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1009- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1009- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 1009-1510 ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 15 1 1511- ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1009- ● ●
419 BOLT; STEP
HONG KONG EQUIPMENT(PQ1) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1009-1302 ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1009-1302 ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1303- ● ●
419 BOLT; STEP
EXC. HONG KONG EQUIPMENT(PQ1) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1009-1302 ●
496 RUBBER; STEP 1-71998-861-2 01 1 1009- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 1009- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (C) 		8-98125-814-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-814-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-814-2 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (C) 		8-98125-815-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-815-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-815-1 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-816-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-816-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-816-2 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-817-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-817-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-817-2 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-65671-530-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-65671-531-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-65671-766-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-65671-774-0 01 1 1009-1302 ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1009- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1009- ● ●
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1009- ● ●
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1009- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1009- ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1009- ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1009- ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1009- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1009-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1009- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-663-1 01 1 1009-1303 ● ●
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1304- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-664-1 01 1 1009-1303 ● ●
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1304- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1009- ● ●
687 COVER; FENDER 8-98234-587-0 02 1 1307- ● ●

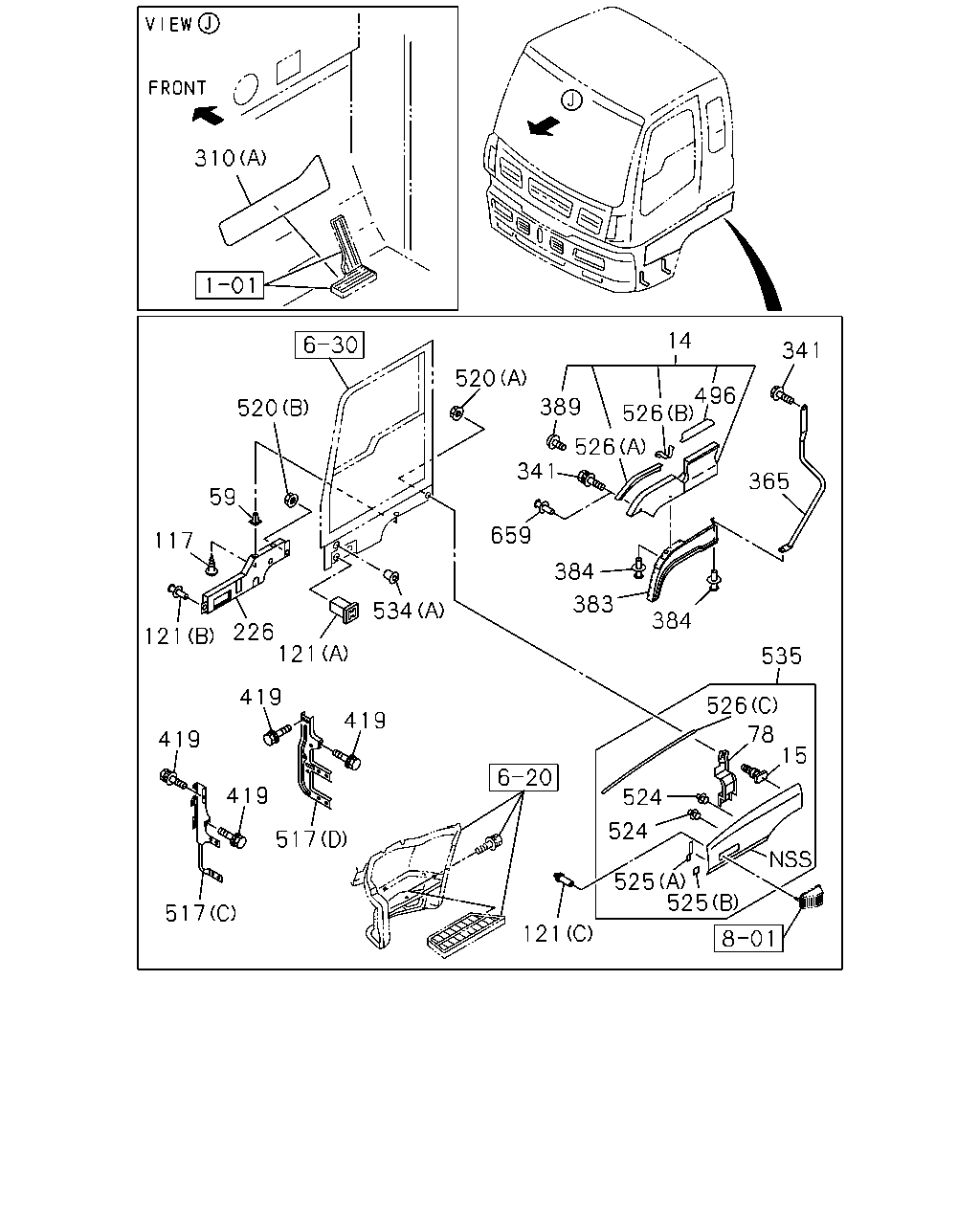

çizim 336959
310 520 59 117 121 226 534 121 419 419 419 419 517 517 121 520 389 341 659 384 383 384 526 526 14 496 365 341 535 526 78 15 524 524 525 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 8-98154-744-1 01 1 1009- ● ●
14 FENDER; FRT 8-98154-745-1 01 1 1009- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1009- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1009- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 1009- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 1009- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1009- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1009- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1009- ● ●
121 GROMMET; FENDER
(C) 		8-98111-356-0 02 1 1009-1306 ● ●
226 PROTECTOR; FRT 8-98109-132-1 01 1 1009-1306 ● ●
226 PROTECTOR; FRT 8-98234-709-0 01 1 1307- ● ●
226 PROTECTOR; FRT 8-98109-134-1 01 1 1009-1306 ● ●
226 PROTECTOR; FRT 8-98234-710-0 01 1 1307- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 1009- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 1009- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1009- ● ●
365 SUPPORT; FENDER 8-98120-231-0 01 1 1009- ● ●
365 SUPPORT; FENDER 8-98120-232-0 01 1 1009- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1009- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1009- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 1009-1510 ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 15 1 1511- ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1009- ● ●
419 BOLT; STEP
HONG KONG EQUIPMENT(PQ1) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1009-1302 ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1009-1302 ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1303- ● ●
419 BOLT; STEP
EXC. HONG KONG EQUIPMENT(PQ1) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1009-1302 ●
496 RUBBER; STEP 1-71998-861-2 01 1 1009- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 1009- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (C) 		8-98125-814-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-814-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-814-2 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (C) 		8-98125-815-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-815-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-815-1 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-816-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-816-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-816-2 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-817-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-817-2 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-817-2 01 1 1303- ● ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-65671-530-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-65671-531-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-65671-766-1 01 1 1009-1302 ●
517 SUPPORT; STEP PANEL
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-65671-774-0 01 1 1009-1302 ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1009- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1009- ● ●
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1009- ● ●
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1009- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1009- ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1009- ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1009- ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1009- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1009-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1009- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-663-1 01 1 1009-1303 ● ●
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1304- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-664-1 01 1 1009-1303 ● ●
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1304- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
