Sayfa 6-01 - Isuzu EPC

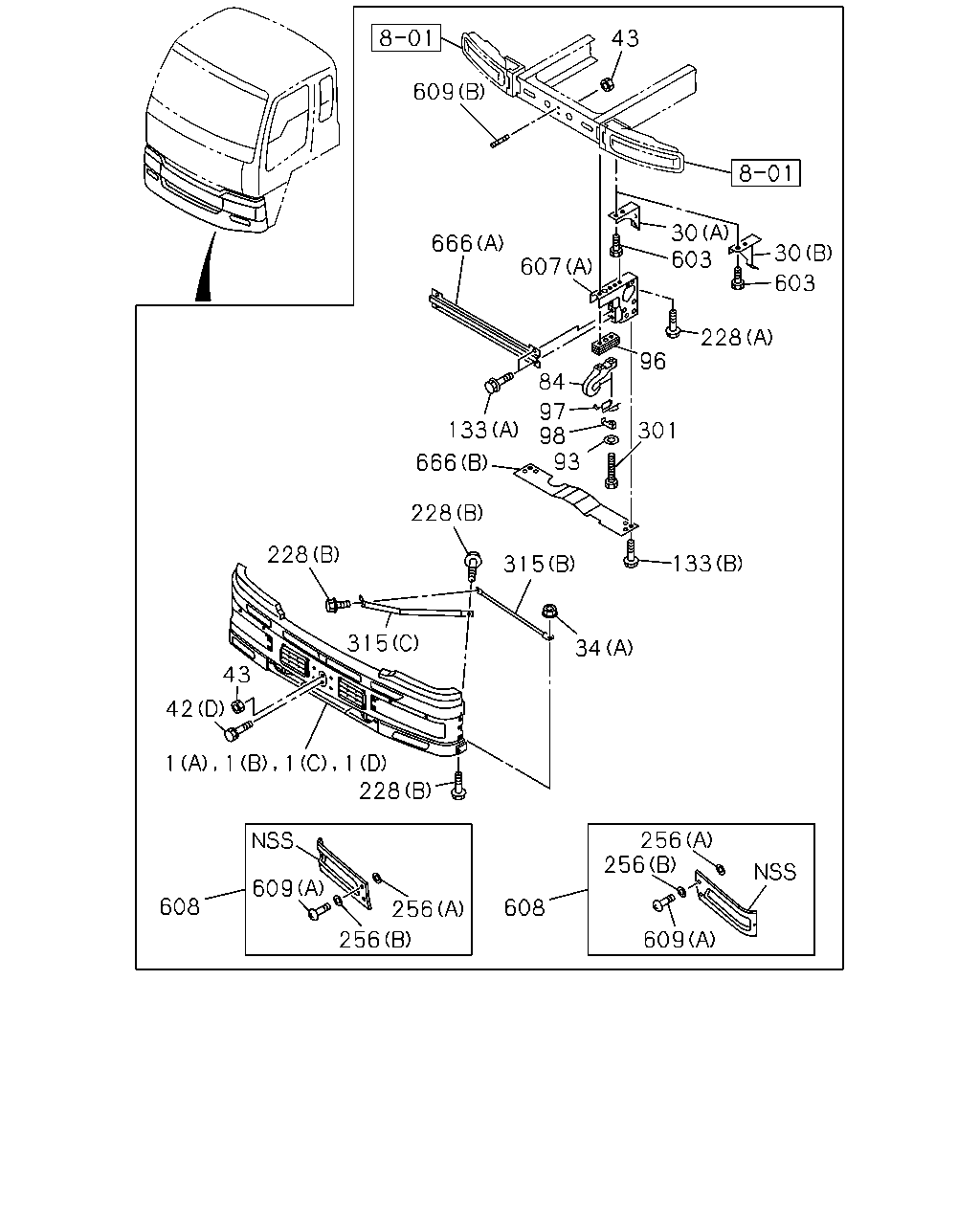

6-01 — FRONT BUMPER (#61497) — 691 parça

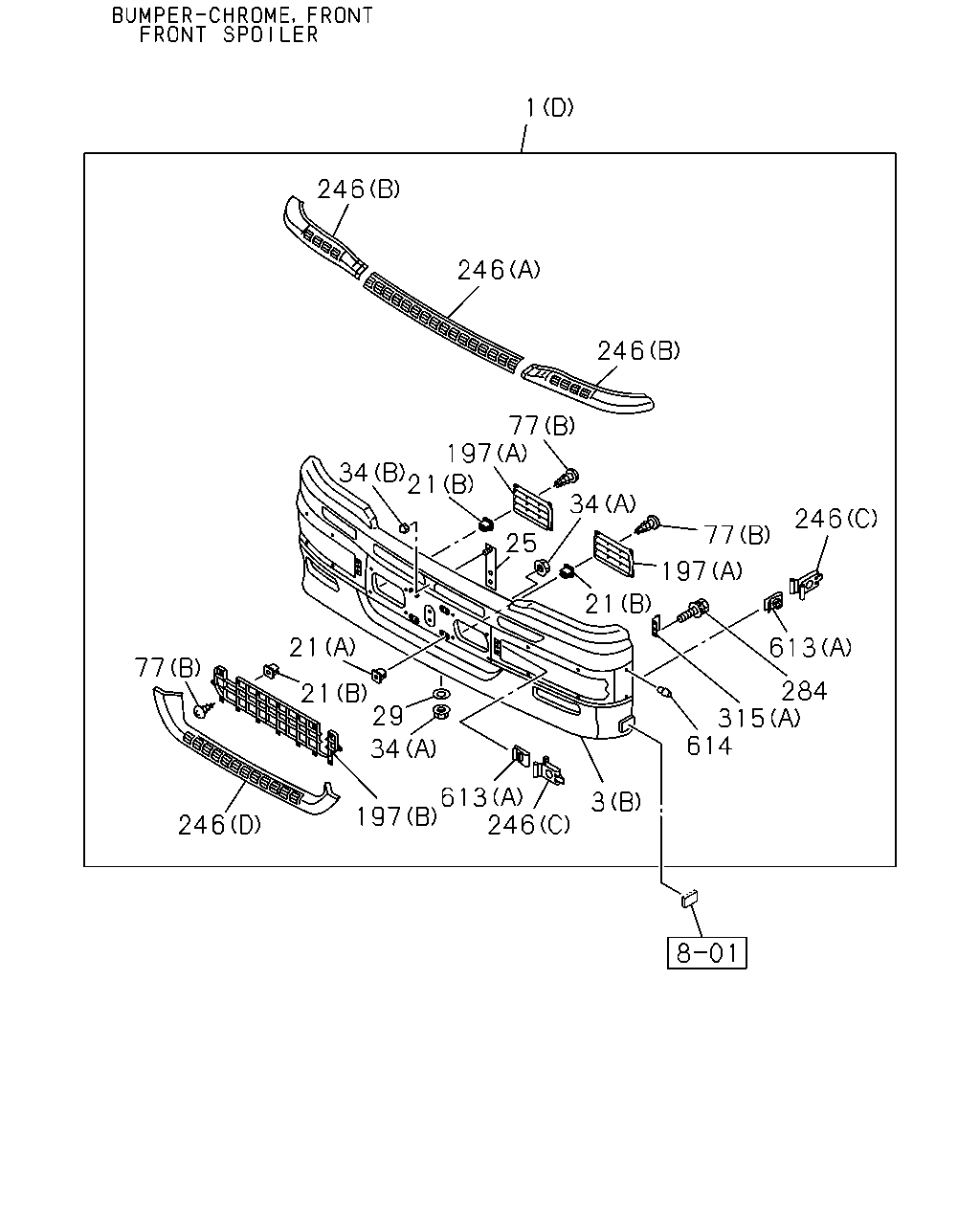

1 315 246 185 284 315 246 614 321 641 284 17 77 21 29 34 77 17 321 613 246 614 246 77 246 613 21 25 21 34 77 197 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
17	PROTECTOR; FRT BUMPER (A)	1-71260-185-0	02	1	1009-1302	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	1009-1302		●
17	PROTECTOR; FRT BUMPER (B)	1-71260-277-0	02	1	1009-1302	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302		●
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302		●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302		●
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	1009-1302	●
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	1009-1302		●
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1303-		●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302		●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302	●	●
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302		●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-636-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-637-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-458-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-071-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-072-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-457-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-		●
613	CLIP (E)	8-97581-651-2	04	1	1303-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-	●	●
613	CLIP (A)	1-71260-174-0	06	1	1009-1302	●	●
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-	●	●
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302	●	●
641	BUMPER; FRT,LWR BUMPER-CHROME,FRONT<V46>	1-86792-073-0	01	1	1009-1302	●
641	BUMPER; FRT,LWR BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-073-0	01	1	1009-1302		●
641	BUMPER; FRT,LWR EXC. BUMPER-CHROME,FRONT<V46>	1-71211-304-1	01	1	1009-1302	●
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-304-1	01	1	1009-1302		●

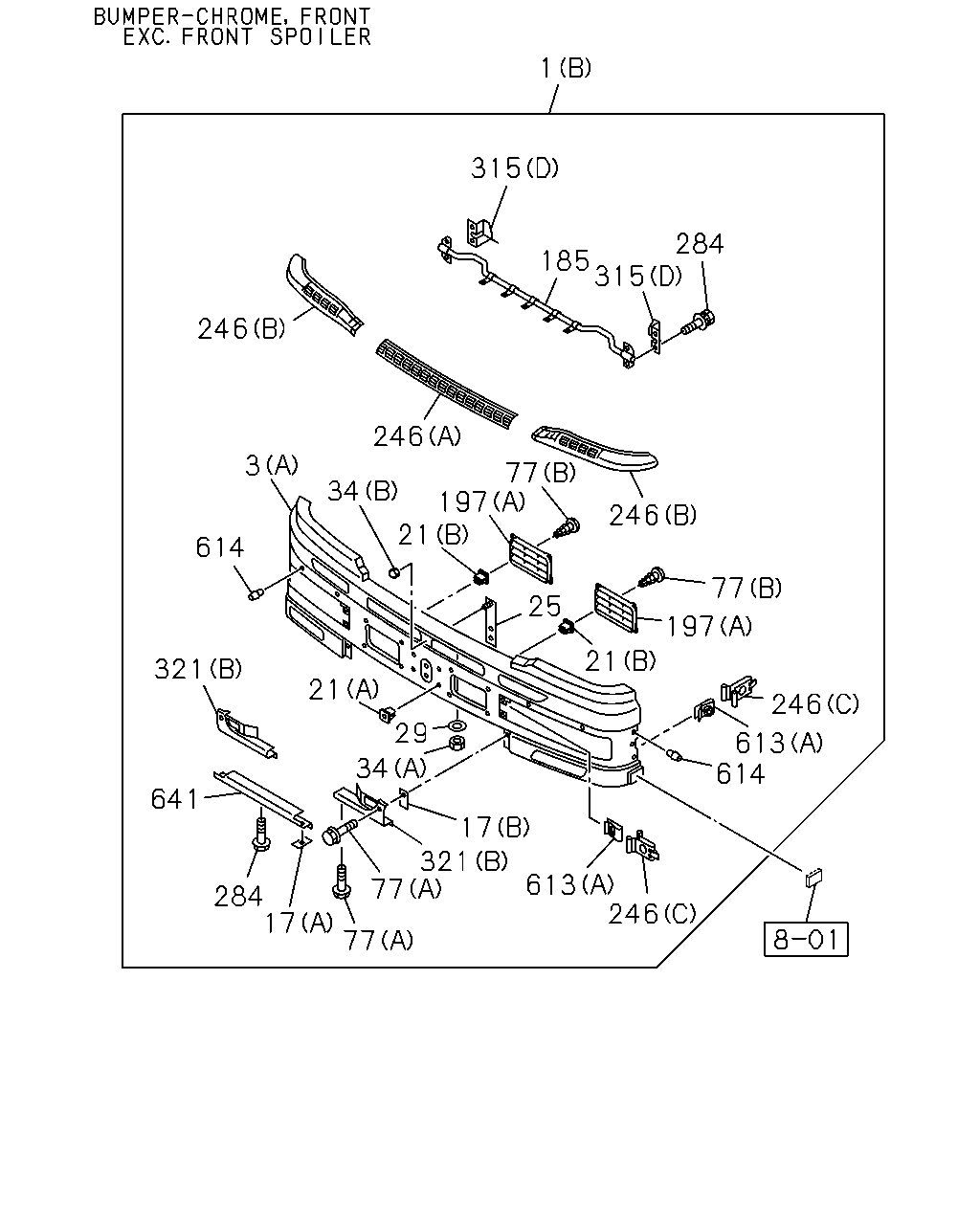

1 246 246 246 77 246 97 613 284 315 614 21 25 77 34 21 197 34 21 21 29 34 197 246 613 3 246 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> (A) CHROMIUM PLATE	1-86712-092-1	01	1	1009-1302	●
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (A) CHROMIUM PLATE	1-86712-092-1	01	1	1009-1302		●
3	BUMPER; FRT,SIDE FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	1-86712-088-3	01	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302		●
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302		●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302		●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302	●	●
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302		●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-636-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-637-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302		●
613	CLIP (E)	8-97581-651-2	04	1	1303-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-	●	●
613	CLIP (A)	1-71260-174-0	06	1	1009-1302	●	●
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-	●	●
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302	●	●

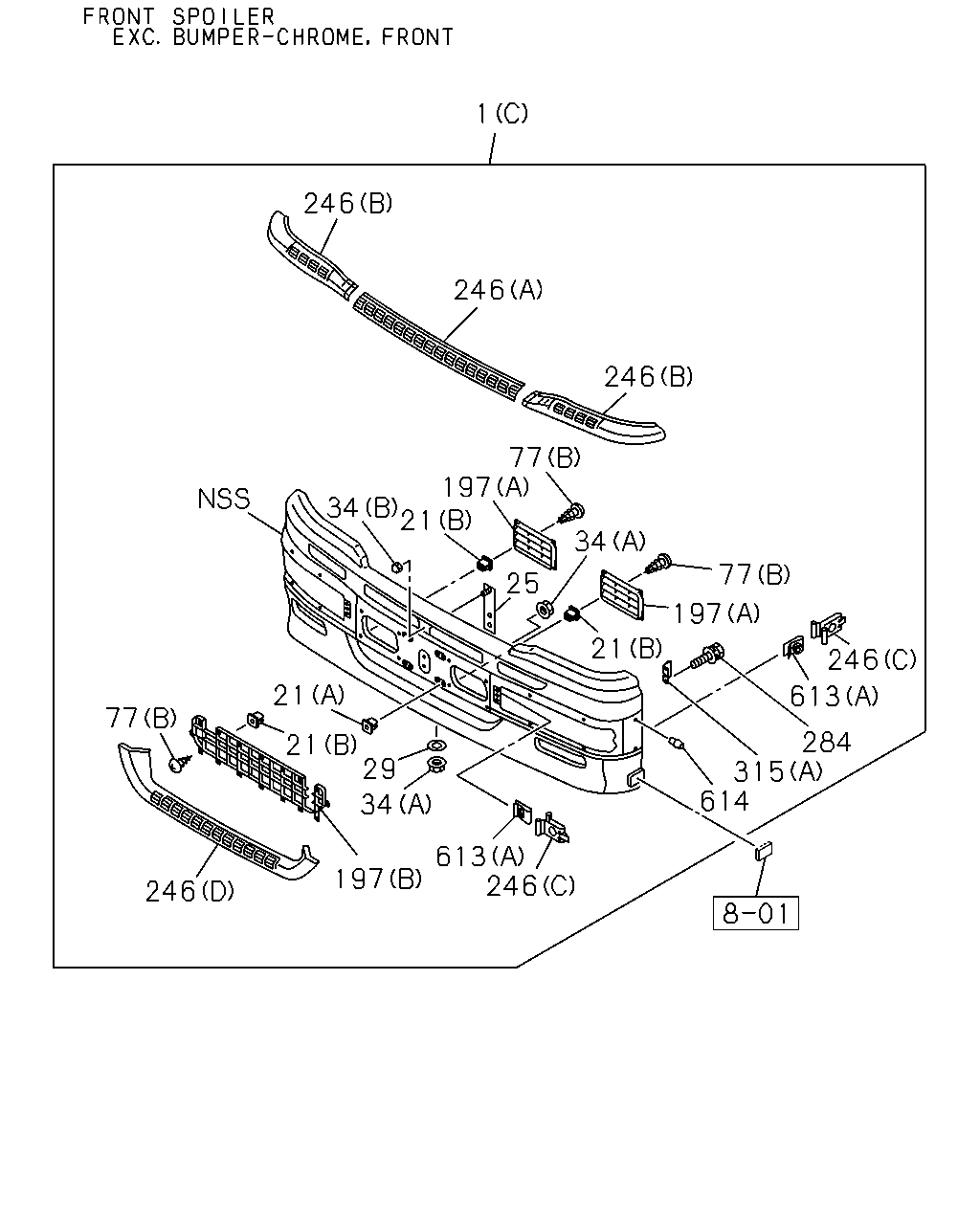

1 246 246 246 77 197 246 613 284 315 614 21 34 77 197 21 34 21 21 29 34 613 246 197 246 77 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302		●
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302		●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302		●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302		●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302	●	●
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302		●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-636-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-637-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302		●
613	CLIP (E)	8-97581-651-2	04	1	1303-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-	●	●
613	CLIP (A)	1-71260-174-0	06	1	1009-1302	●	●
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-	●	●
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302	●	●

609 666 43 607 30 30 603 84 228 603 97 96 301 98 133 666 228 93 315 133 34 228 315 43 42 1 1 1 1 228 608 256 609 256 608 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
30	BRACKET; FRT BUMPER (B)	1-71230-638-0	01	1	1009-1302	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER (D)	8-98135-977-1	01	1	1303-	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-639-0	01	1	1009-1302	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER (D)	8-98135-978-1	01	1	1303-	●	●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-907-0	01	1	1303-		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-909-0	01	1	1303-		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-		●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-		●
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-		●
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	03	1	1009-1302	●
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	03	1	1009-1302		●
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	01	1	1009-1302		●
84	HOOK	1-57181-027-1	01	1	1009-1302	●	●
84	HOOK	8-98126-930-0	01	1	1303-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	1009-1302	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-	●	●
96	PLATE; DIST,HOOK DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-53497-595-0	01	1	1009-1302	●
96	PLATE; DIST,HOOK DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	1009-1302		●
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-	●	●
96	PLATE; DIST,HOOK EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-53497-473-0	01	1	1009-1302	●
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302		●
96	PLATE; DIST,HOOK EXC. DUMP TRUCK<RA1>,FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	1009-1302	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	1009-1302	●	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M12X60 FLANGE	0-28051-260-0	04	1	1009-1302	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	1009-1302		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X25 FLANGE	0-28661-225-0	06	1	1009-1207	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28661-225-0	06	1	1009-1207		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-1302	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-1302		●
228	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M16X40	0-20951-640-0	06	1	1009-1302	●
228	BOLT; BRKT DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	1009-1302		●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1009-1302	●	●
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1303-	●	●
256	WASHER; PL (A)	1-71260-173-0	06	1	1009-1302	●	●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	1009-1302	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1009-1302	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1009-1302	●	●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-636-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-637-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302		●
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-1302	●	●
607	BRACKET (D)	8-98211-758-0	01	1	1303-	●	●
607	BRACKET (D)	8-98211-759-0	01	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-034-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-035-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-035-2	01	1	1009-1302		●
607	BRACKET (B)	8-98147-054-0	02	1	1303-	●	●
608	LID; BUMPER BUMPER-CHROME,FRONT<V46>	1-86792-077-0	01	1	1009-1302	●
608	LID; BUMPER BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-077-0	01	1	1009-1302		●
608	LID; BUMPER BUMPER-CHROME,FRONT<V46>	1-86792-076-0	01	1	1009-1302	●
608	LID; BUMPER BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-076-0	01	1	1009-1302		●
608	LID; BUMPER EXC. BUMPER-CHROME,FRONT<V46>	1-71211-284-2	01	1	1009-1302	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-284-2	01	1	1009-1302		●
608	LID; BUMPER EXC. BUMPER-CHROME,FRONT<V46>	1-71211-285-2	01	1	1009-1302	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-285-2	01	1	1009-1302		●
608	LID; BUMPER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-86792-013-2	01	1	1009-1302		●
608	LID; BUMPER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-86792-014-2	01	1	1009-1302		●
608	LID; BUMPER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-71210-752-6	01	1	1009-1302		●
608	LID; BUMPER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-71210-753-6	01	1	1009-1302		●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	1009-1302	●	●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	1009-1302	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	8-97608-467-1	01	1	1009-1302	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	1009-1302		●
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1303-	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-033-0	01	1	1009-1302	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	1009-1302		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> (D)	8-98194-529-0	01	1	1303-		●

1 315 185 284 315 246 77 77 197 246 613 614 246 613 17 321 77 77 17 284 641 321 614 34 21 21 197 25 21 246 34 3 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> (A) CHROMIUM PLATE	1-86712-092-1	01	1	1009-1302	●
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (A) CHROMIUM PLATE	1-86712-092-1	01	1	1009-1302		●

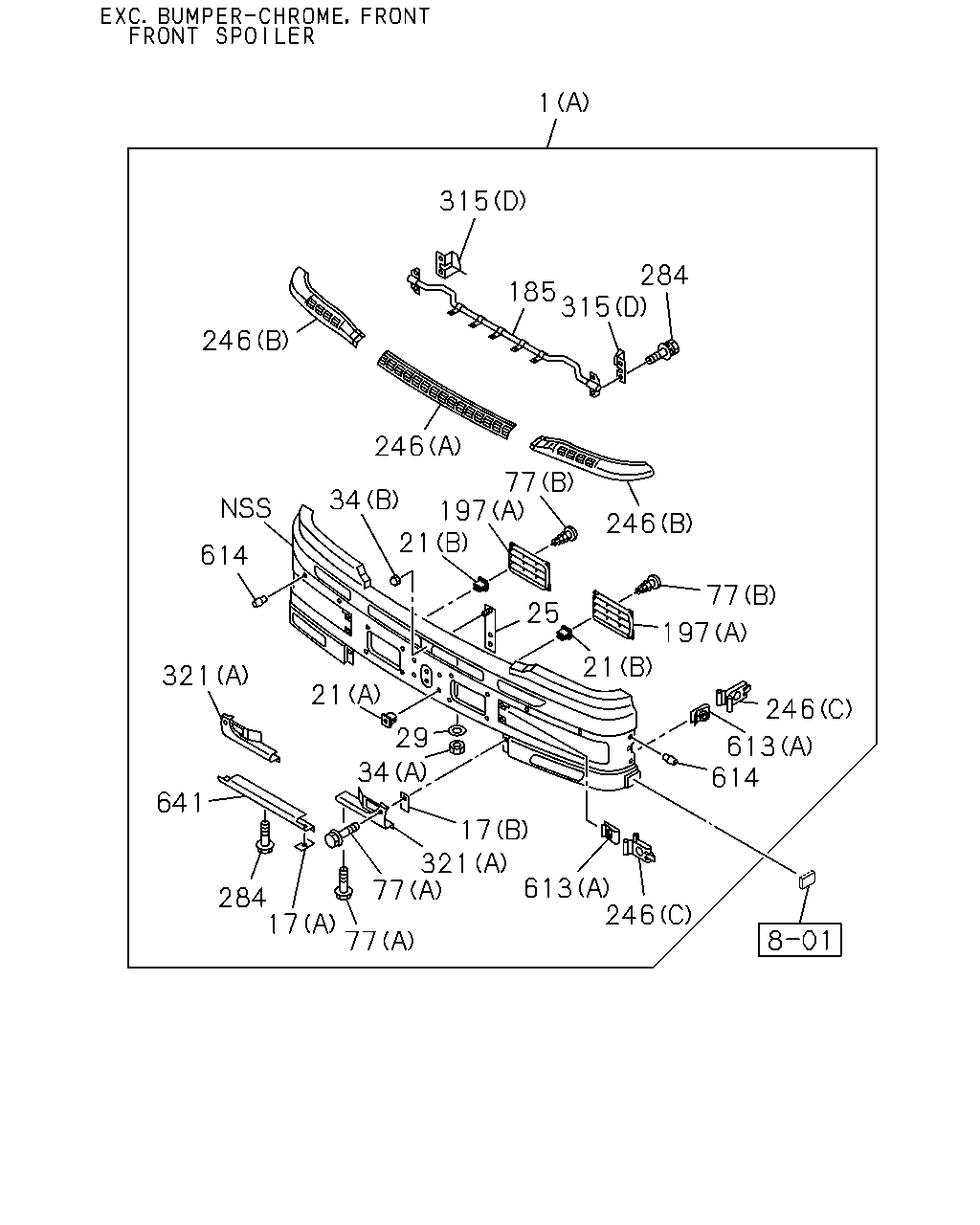

3	BUMPER; FRT,SIDE FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	1-86712-088-3	01	1	1009-1302		●
17	PROTECTOR; FRT BUMPER (A)	1-71260-185-0	02	1	1009-1302	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	1009-1302		●
17	PROTECTOR; FRT BUMPER (B)	1-71260-277-0	02	1	1009-1302	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302		●
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302		●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302		●
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	1009-1302	●
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	1009-1302		●
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1303-		●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302		●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302	●	●
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302	●	●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302		●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-636-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302		●
315	STAY; BUMPER (D)	1-71230-637-0	01	1	1009-1302	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	1009-1302		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-458-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-071-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-072-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-457-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-		●
613	CLIP (E)	8-97581-651-2	04	1	1303-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-	●	●
613	CLIP (A)	1-71260-174-0	06	1	1009-1302	●	●
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-	●	●
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302	●	●
641	BUMPER; FRT,LWR BUMPER-CHROME,FRONT<V46>	1-86792-073-0	01	1	1009-1302	●
641	BUMPER; FRT,LWR BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-073-0	01	1	1009-1302		●
641	BUMPER; FRT,LWR EXC. BUMPER-CHROME,FRONT<V46>	1-71211-304-1	01	1	1009-1302	●
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-304-1	01	1	1009-1302		●

197 613 613 613 613 613 613 613 613 613 321 321 613 613 321 341 275 259 663 260 650 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

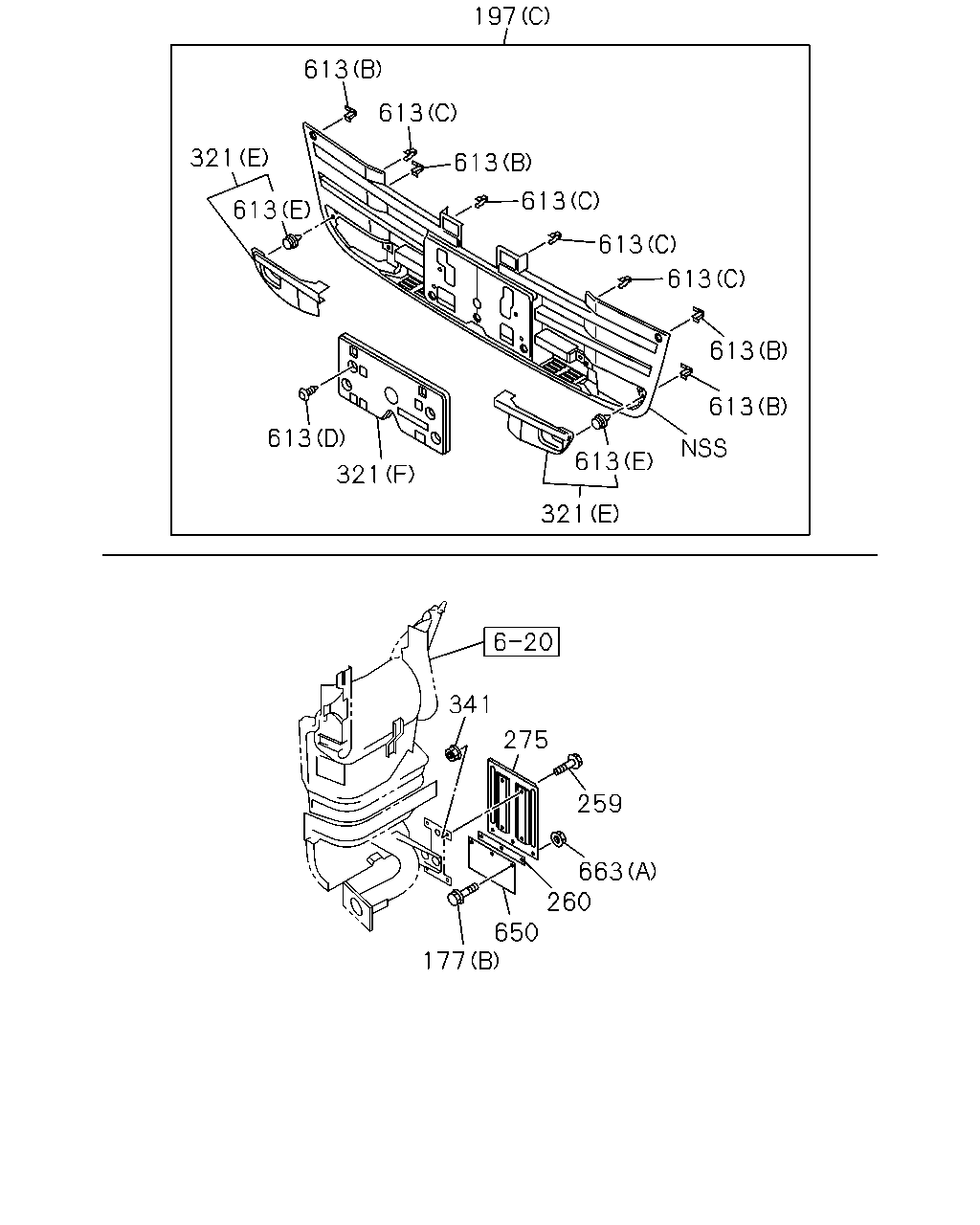

177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-	●	●
177	BOLT DUMP TRUCK<RA1> (C) M12X25 FLANGE	0-28051-225-0	04	1	1303-		●
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-		●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302		●
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1303-	●	●
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1303-	●	●
275	GUARD; FRT	8-98125-825-0	02	1	1303-	●	●
321	COVER; BUMPER FRT SIDE (D)	8-98123-458-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-071-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-072-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-457-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-		●
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1303-	●	●
613	CLIP (E)	8-97581-651-2	04	1	1303-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-	●	●
613	CLIP (A)	1-71260-174-0	06	1	1009-1302	●	●
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-	●	●
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1303-	●	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-	●	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1303-		●
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1303-		●

1 607 125 125 125 321 254 125 139 42 101 125 607 607 139 139 139 125 607 125 321 686 125 34 254 42 101 229 70 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

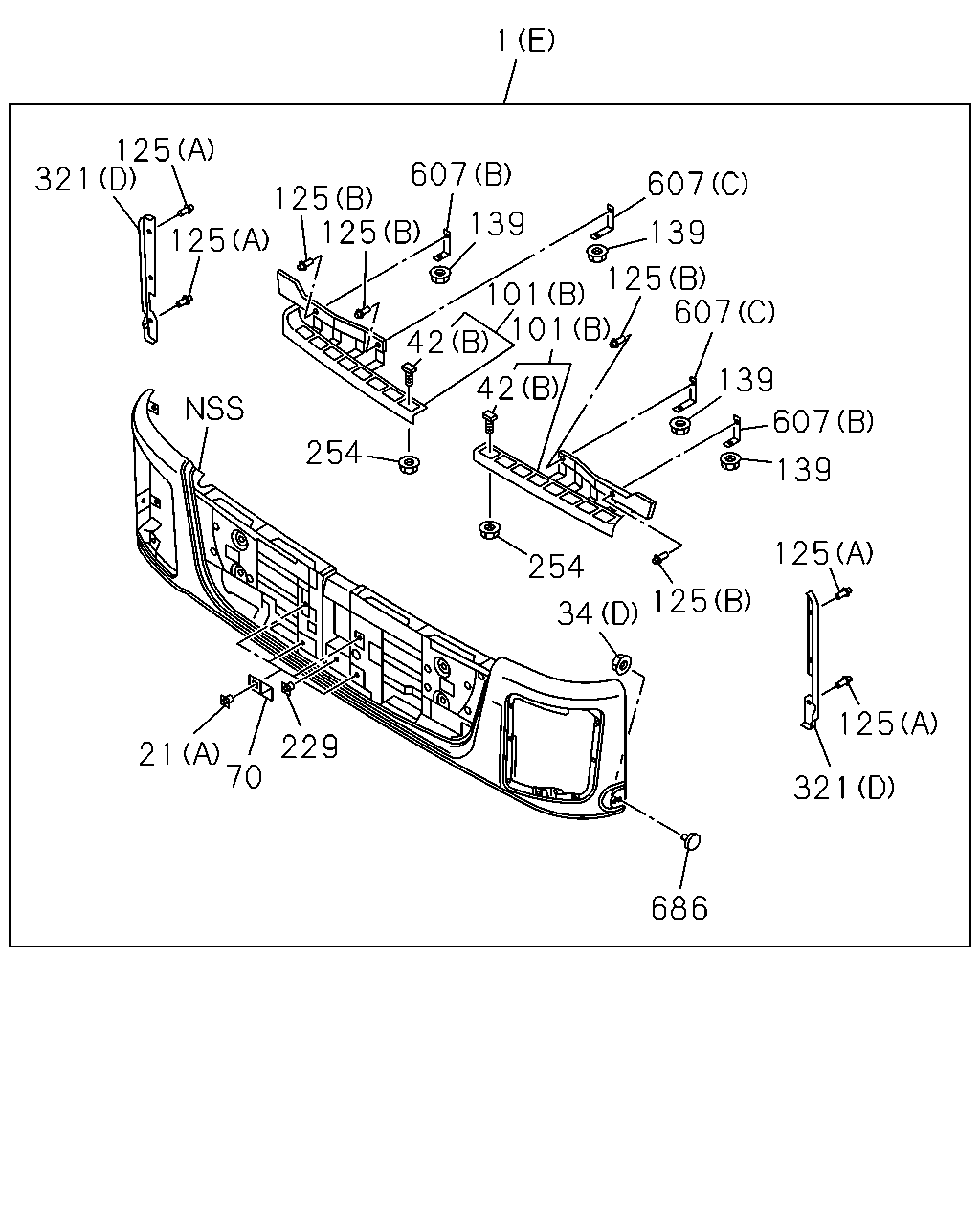

1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●

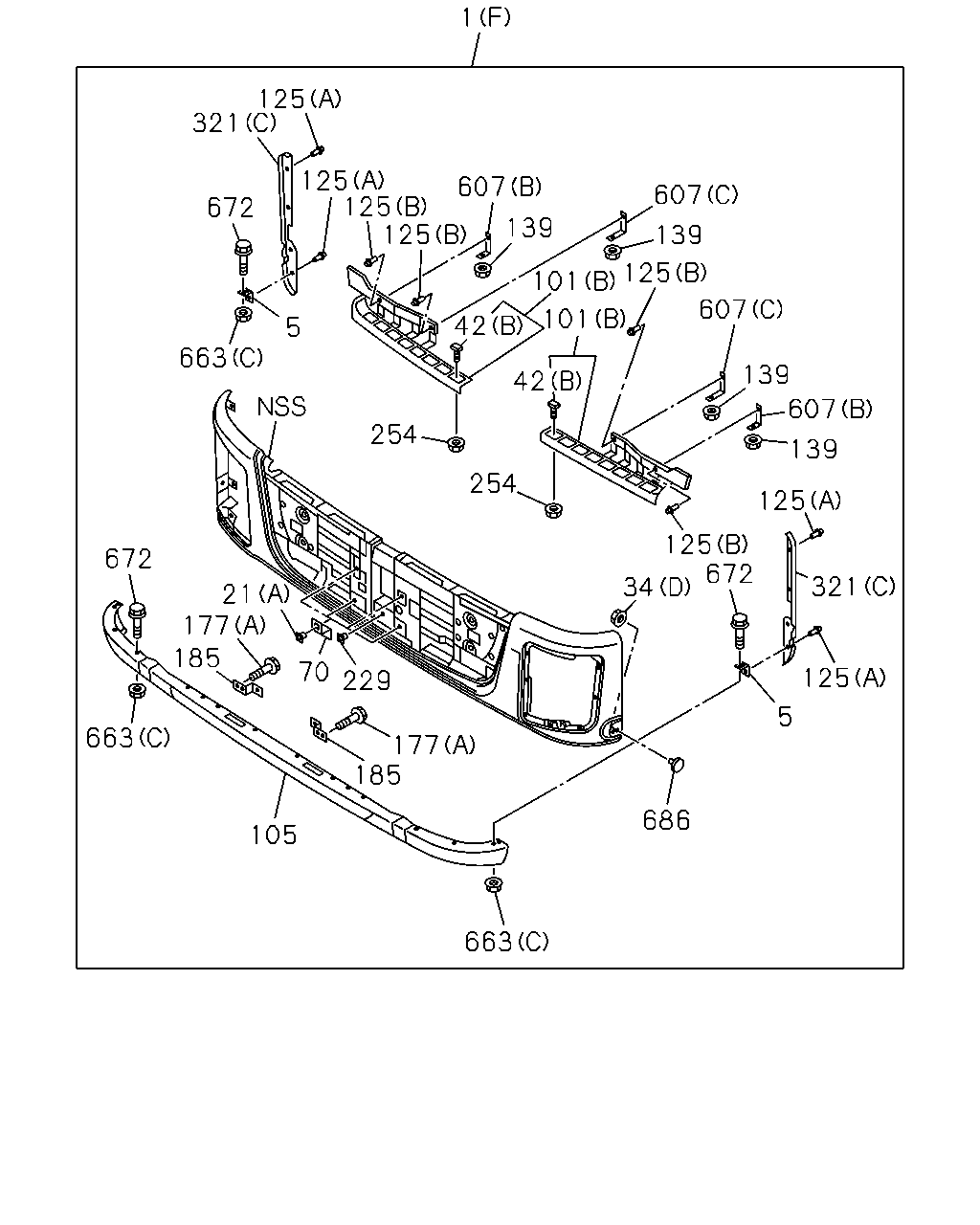

1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-		●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-		●
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-		●
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-	●	●
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-	●	●
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-	●	●
125	CLIP; STEP (A)	8-98157-186-0	06	1	1303-	●
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1303-		●
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1303-		●
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-	●	●
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-	●	●
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-	●	●
321	COVER; BUMPER FRT SIDE (D)	8-98123-458-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-071-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-072-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-457-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-		●
607	BRACKET (D)	8-98211-758-0	01	1	1303-	●	●
607	BRACKET (D)	8-98211-759-0	01	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-034-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-035-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-035-2	01	1	1009-1302		●
607	BRACKET (B)	8-98147-054-0	02	1	1303-	●	●
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-	●	●

1 607 607 125 139 607 139 139 125 321 125 5 672 125 34 686 663 185 105 70 229 177 185 663 672 254 254 42 101 101 139 125 125 125 125 321 672 663 5 21 177 607 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
5	BRACKET; AIR DAM FRONT SPOILER<VP1>	8-98154-762-0	02	1	1303-		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-		●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-		●
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-		●
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-	●	●
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-	●	●
105	AIR DAM FRONT SPOILER<VP1> WHITE	8-97417-859-4	01	1	1303-		●
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-	●	●
125	CLIP; STEP (A)	8-98157-186-0	06	1	1303-	●
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1303-		●
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1303-		●
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-	●	●
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-	●	●
177	BOLT DUMP TRUCK<RA1> (C) M12X25 FLANGE	0-28051-225-0	04	1	1303-		●
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-		●
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	1009-1302	●
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	1009-1302		●
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1303-		●
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-	●	●
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-	●	●
321	COVER; BUMPER FRT SIDE (D)	8-98123-458-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-		●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-071-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> (B)	1-86792-072-0	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302		●
321	COVER; BUMPER FRT SIDE (D)	8-98123-457-1	01	1	1303-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-		●
607	BRACKET (D)	8-98211-758-0	01	1	1303-	●	●
607	BRACKET (D)	8-98211-759-0	01	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-034-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-035-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-035-2	01	1	1009-1302		●
607	BRACKET (B)	8-98147-054-0	02	1	1303-	●	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-	●	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1303-		●
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1303-		●
672	STUD; STEP FRONT SPOILER<VP1> M6X16 FLANGE	0-28050-616-0	13	1	1303-		●
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-	●	●

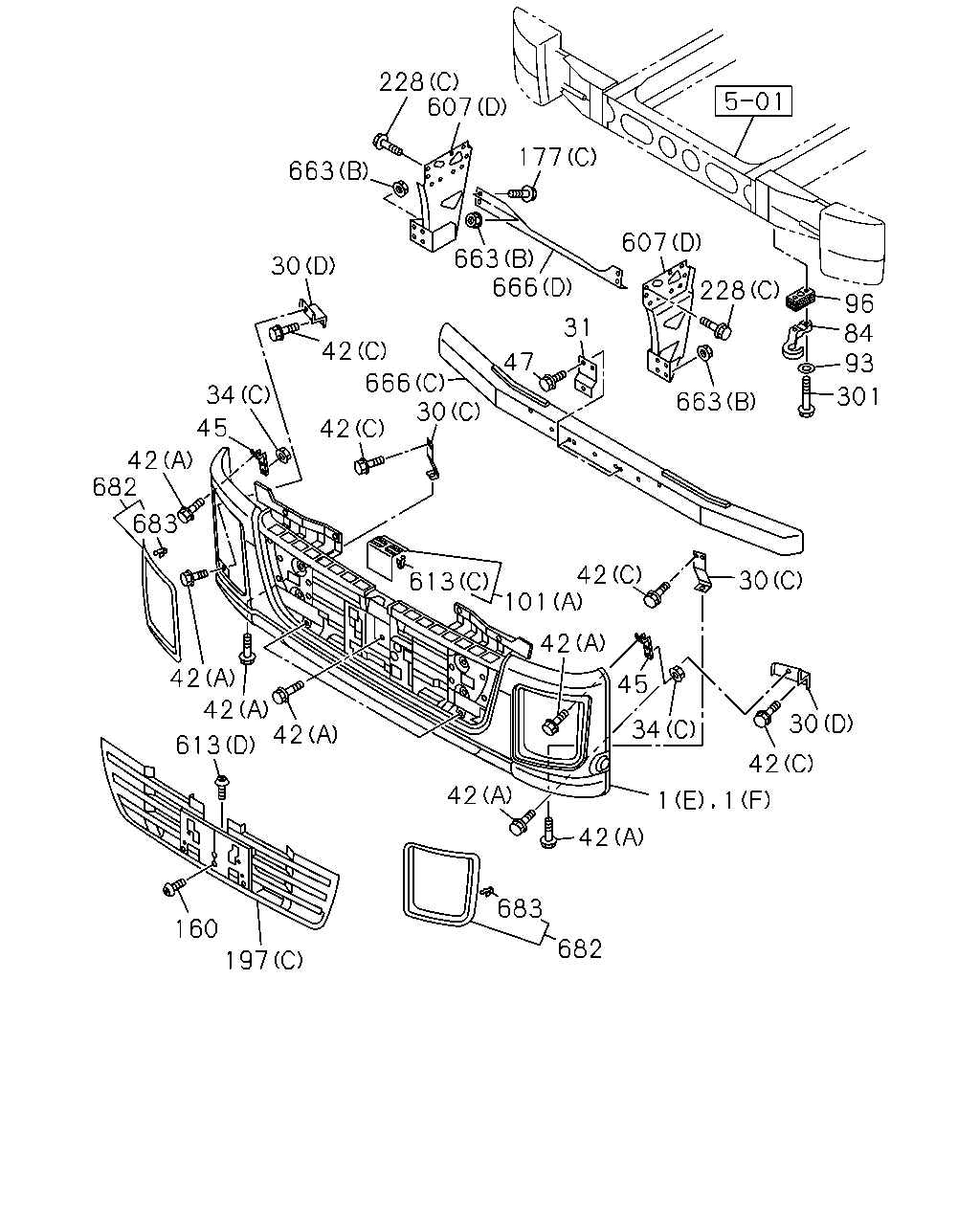

228 177 607 96 93 84 301 228 663 31 47 666 663 30 42 42 30 663 607 666 34 45 42 682 2 683 2 613 160 197 683 42 42 682 42 1 1 30 42 30 34 45 42 42 101 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302	●
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302		●
1	BUMPER ASM; FRT (E) WHITE	8-97417-846-3	01	1	1303-	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-		●
1	BUMPER ASM; FRT EXC. BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302		●
30	BRACKET; FRT BUMPER (B)	1-71230-638-0	01	1	1009-1302	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER (D)	8-98135-977-1	01	1	1303-	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-639-0	01	1	1009-1302	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER (D)	8-98135-978-1	01	1	1303-	●	●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-907-0	01	1	1303-		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	1009-1302		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-909-0	01	1	1303-		●
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1>	8-98139-742-0	02	1	1303-		●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302	●	●
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-		●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-		●
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-		●
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-	●	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1303-	●	●
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> M10X30 FLANGE	0-28051-030-0	04	1	1303-		●
84	HOOK	1-57181-027-1	01	1	1009-1302	●	●
84	HOOK	8-98126-930-0	01	1	1303-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	1009-1302	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-	●	●
96	PLATE; DIST,HOOK DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-53497-595-0	01	1	1009-1302	●
96	PLATE; DIST,HOOK DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	1009-1302		●
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-	●	●
96	PLATE; DIST,HOOK EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-53497-473-0	01	1	1009-1302	●
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302		●
96	PLATE; DIST,HOOK EXC. DUMP TRUCK<RA1>,FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302		●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-	●	●
160	SCREW M5X16	8-94380-268-0	01	1	1303-	●	●
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-	●	●
177	BOLT DUMP TRUCK<RA1> (C) M12X25 FLANGE	0-28051-225-0	04	1	1303-		●
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-		●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-	●	●
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302	●	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302		●
228	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M16X40	0-20951-640-0	06	1	1009-1302	●
228	BOLT; BRKT DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	1009-1302		●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1009-1302	●	●
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1303-	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1009-1302	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1009-1302	●	●
607	BRACKET (D)	8-98211-758-0	01	1	1303-	●	●
607	BRACKET (D)	8-98211-759-0	01	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-034-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-035-2	01	1	1009-1302	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-035-2	01	1	1009-1302		●
607	BRACKET (B)	8-98147-054-0	02	1	1303-	●	●
613	CLIP (E)	8-97581-651-2	04	1	1303-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-	●	●
613	CLIP (A)	1-71260-174-0	06	1	1009-1302	●	●
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-	●	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-	●	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1303-		●
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1303-		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	8-97608-467-1	01	1	1009-1302	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	1009-1302		●
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1303-	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	8-97610-033-0	01	1	1009-1302	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	1009-1302		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> (D)	8-98194-529-0	01	1	1303-		●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1303-	●	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1303-	●	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1303-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
