5-30 — SPARE TIRE CARRIER AND COVER (#61496) — 30 parça

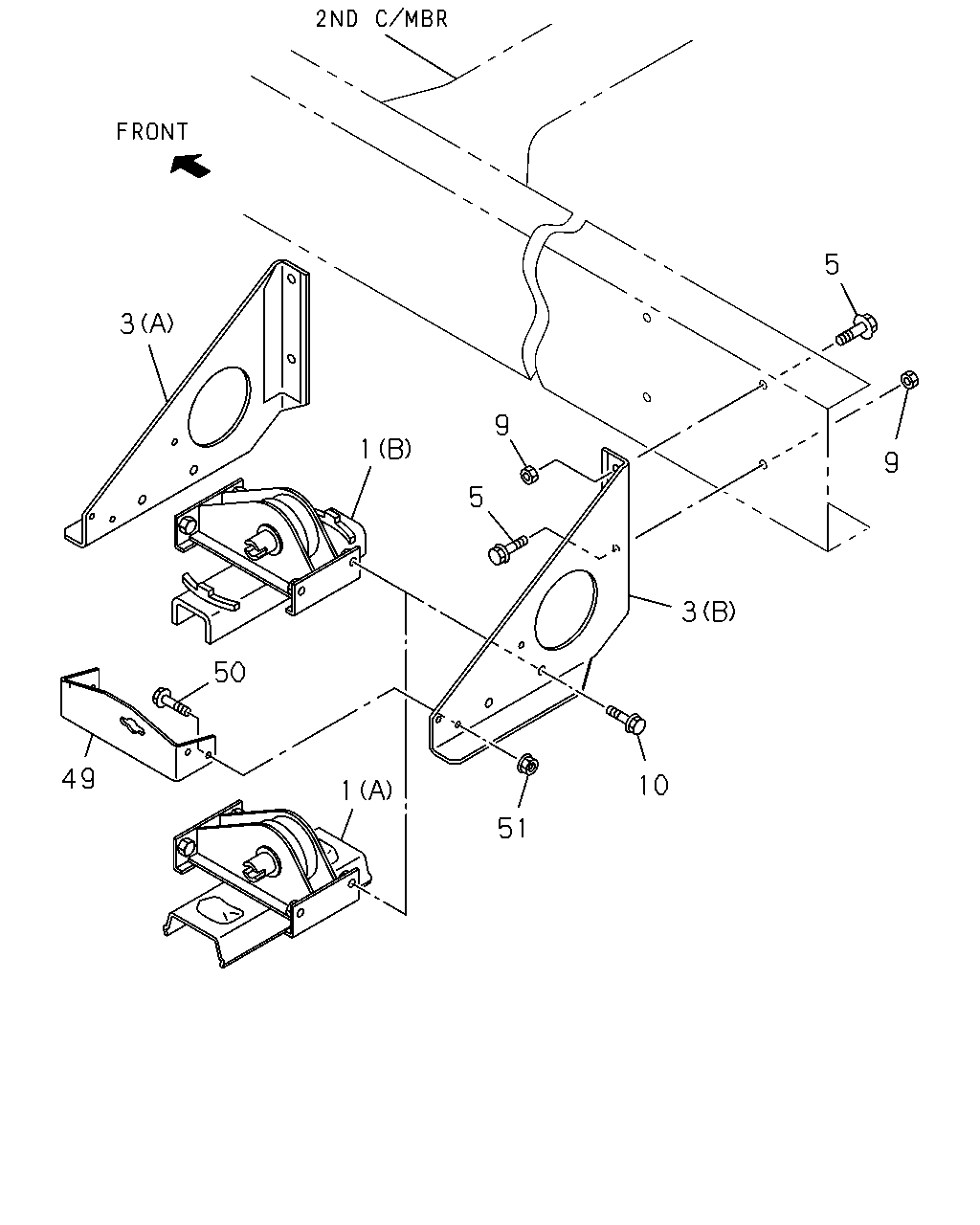

çizim 168551
3 49 50 1 1 51 5 9 10 3 9 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53630-210-3 01 1 1009-1302 ●
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53630-210-3 01 1 1009-1302 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> (B) 		1-53630-210-4 01 1 1303- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-53630-208-3 01 1 1009-1302 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-53630-208-3 01 1 1009-1302 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-97383-718-1 01 1 1009-1302 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-97383-719-1 01 1 1009-1302 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 04 1 1009-1302 ● ●
9 NUT; BRKT TO FRAME
SILENCER LAYOUT REAR VAR1<JAZ> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 02 1 1009-1302 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1009-1302 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1009-1302 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28651-230-0 04 1 1303- ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-97383-722-0 01 1 1009-1302 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1009-1302 ● ●

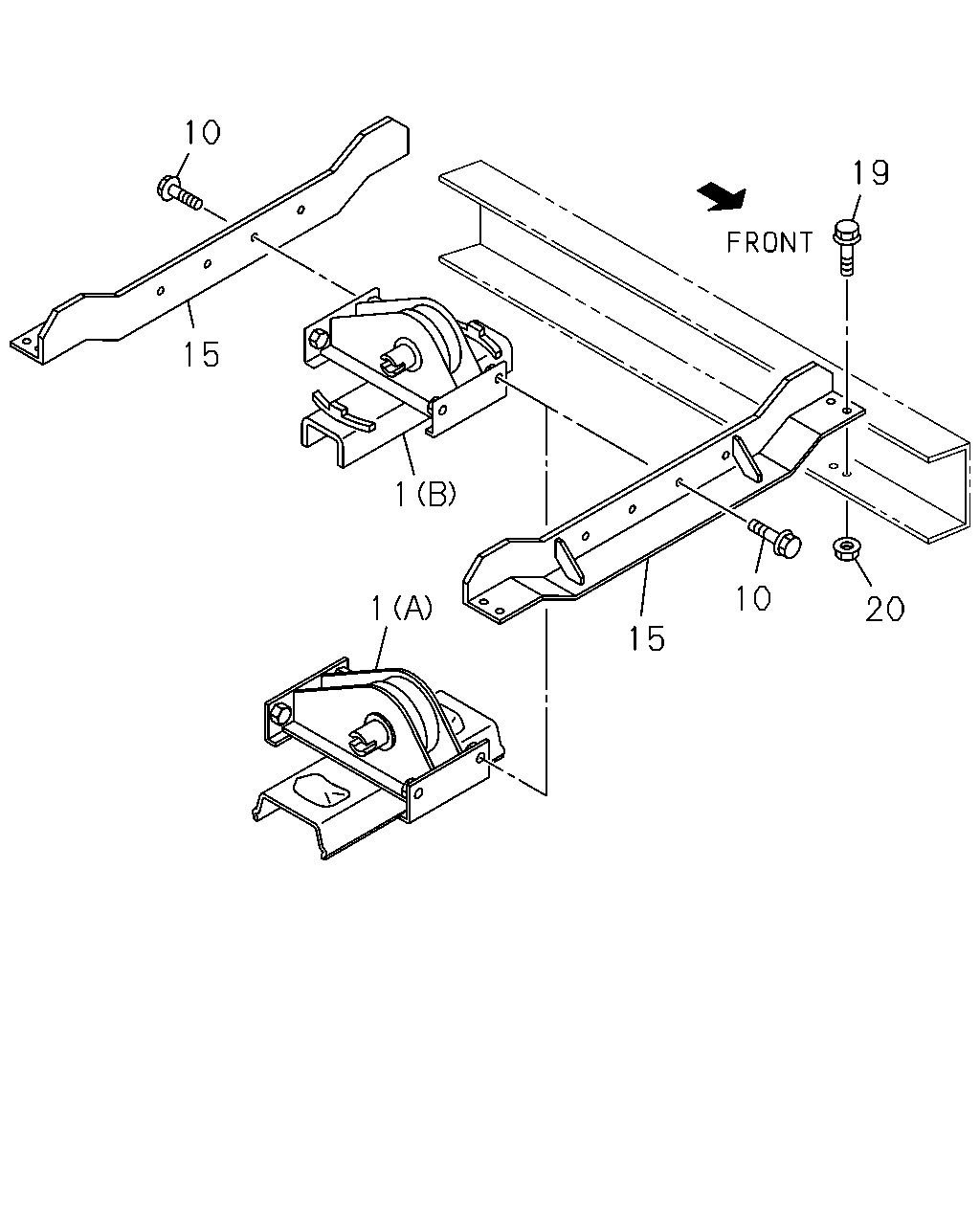

çizim 168554
10 15 19 1 1 15 20 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53630-210-3 01 1 1009-1302 ●
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53630-210-3 01 1 1009-1302 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> (B) 		1-53630-210-4 01 1 1303- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-53630-208-3 01 1 1009-1302 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-53630-208-3 01 1 1009-1302 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1009-1302 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1009-1302 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28651-230-0 04 1 1303- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-97608-196-1 02 1 1009- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. HONG KONG EQUIPMENT(PQ1) M10X50 FLANGE 		0-28051-050-0 08 1 1412-1502 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M10X50 FLANGE 		0-28051-050-0 08 1 1503- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28051-040-0 08 1 1009-1411 ●
19 BOLT; C/MBR
HONG KONG EQUIPMENT(PQ1) SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28051-040-0 08 1 1412-1502 ●
19 BOLT; C/MBR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28051-040-0 08 1 1503- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 1009- ●
