Sayfa 5-20 - Isuzu EPC

5-20 — BATTERY CARRIER (#61495) — 284 parça

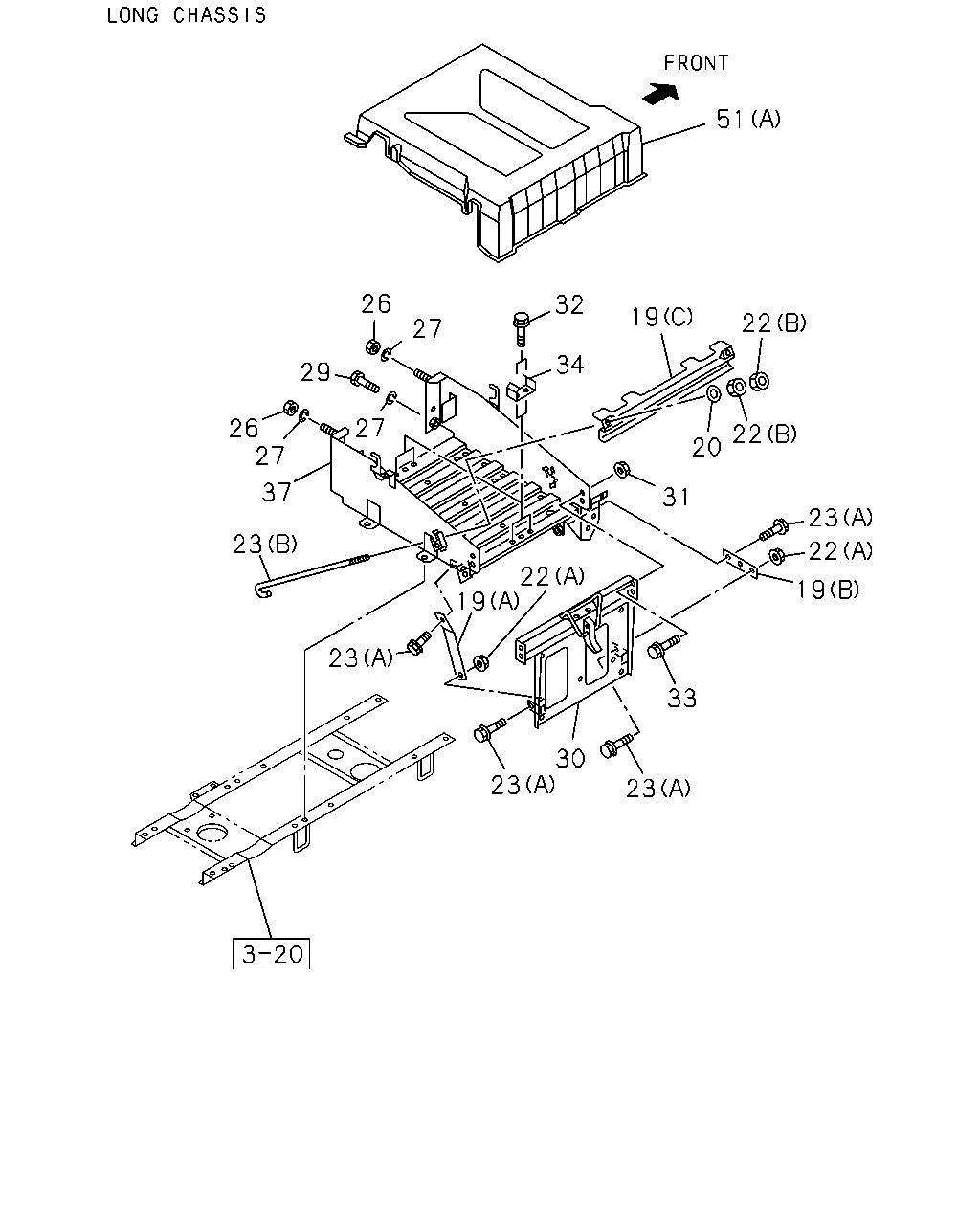

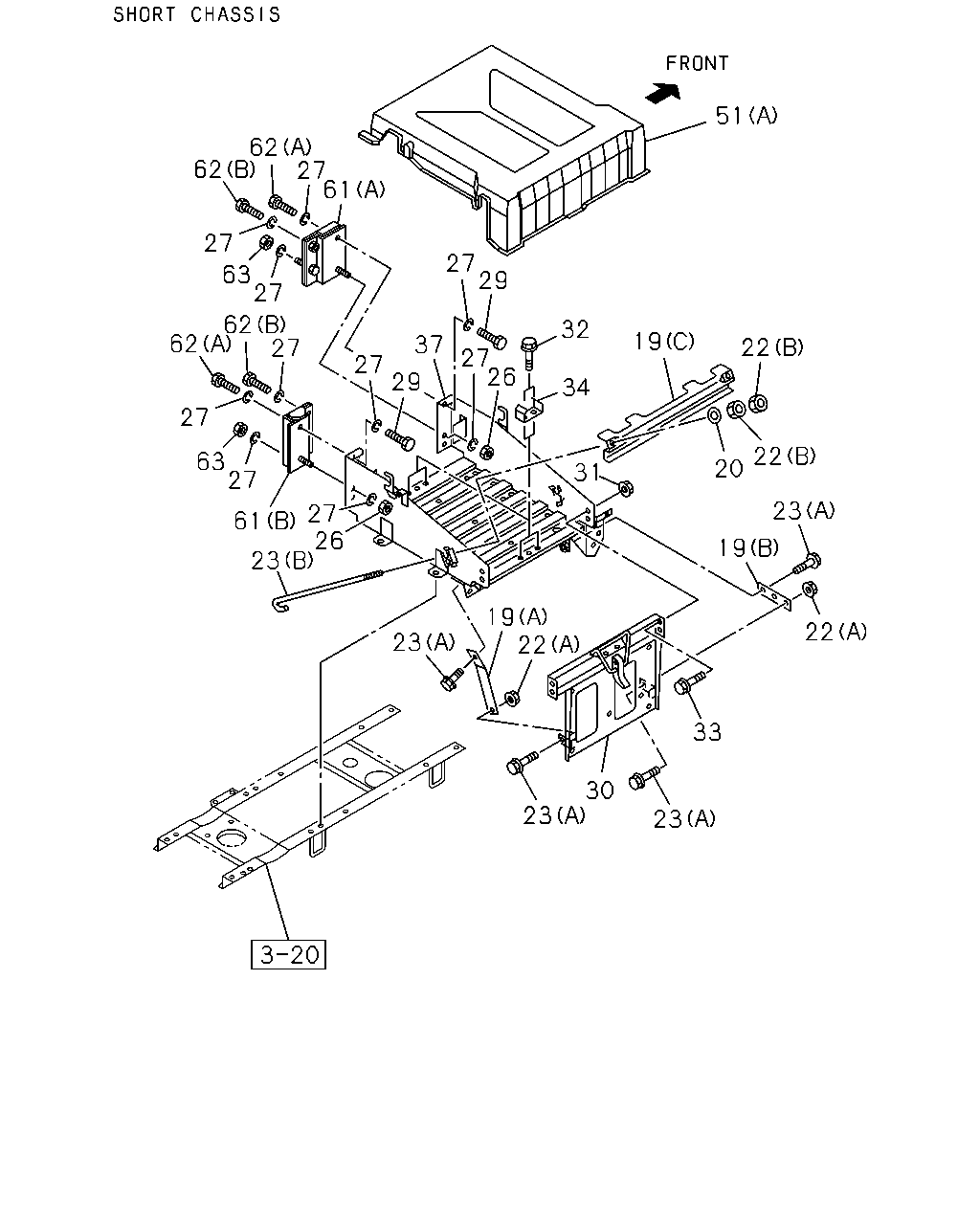

51 19 22 22 20 19 22 23 31 34 32 26 27 29 27 61 27 62 62 27 27 27 37 29 27 62 62 27 27 26 61 27 23 63 23 22 19 23 33 23 30 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1009-1302	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1009-1302	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1009-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1009-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1009-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1009-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1009-1302	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1303-1303	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1303-1303		●
26	NUT; BRKT M14	0-91110-514-0	02	1	1304-1411	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1412-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1412-		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1009-1302		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1303-1303		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1304-1411		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-1302	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1303-1303	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1303-1303		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-1411	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1412-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1009-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1009-1302	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1303-1303	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1304-1411	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1412-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1412-		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1009-1302		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1304-1411		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1412-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1009-1302	●	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1303-	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1009-1302	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1303-1411	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1412-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1009-1302	●	●
34	SPACER; BATTERY BRKT	1-53619-084-0	02	1	1303-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1009-1302	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1303-1303	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	8-98218-501-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1304-1411	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1412-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1412-		●
37	BRACKET; BATTERY	1-53610-161-3	01	1	1009-1302		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	8-98097-706-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98097-706-2	01	1	1304-1411		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1412-		●
51	COVER; BATTERY (A)	1-53612-068-0	01	1	1009-1302	●	●
51	COVER; BATTERY (B)	8-98097-715-3	01	1	1303-	●	●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> (A)	1-53613-489-0	01	1	1009-1302	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1009-1302	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1303-1303	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-53613-505-0	01	1	1303-1303		●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1304-1411	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1412-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-53613-505-0	01	1	1412-		●
61	DISTANCE; BRKT,BATTERY EXC. MIXER TRUCK<RA2> (A)	1-53613-504-0	01	1	1009-1302	●
61	DISTANCE; BRKT,BATTERY (A)	1-53613-504-0	01	1	1303-1303	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53613-504-0	01	1	1303-1303		●
61	DISTANCE; BRKT,BATTERY (A)	1-53613-504-0	01	1	1304-1411	●
61	DISTANCE; BRKT,BATTERY (A)	1-53613-504-0	01	1	1412-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	1-53613-504-0	01	1	1412-		●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1009-1302	●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1303-1303	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M14X45	1-09000-764-0	02	1	1303-1303		●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1304-1411	●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1412-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) M14X45	1-09000-764-0	02	1	1412-		●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1009-1302	●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1303-1303	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M14X60	1-09000-778-0	02	1	1303-1303		●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1304-1411	●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1412-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14X60	1-09000-778-0	02	1	1412-		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1009-1302	●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1303-1303	●
63	NUT; DIST TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	04	1	1303-1303		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1304-1411	●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1412-	●
63	NUT; DIST TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	04	1	1412-		●

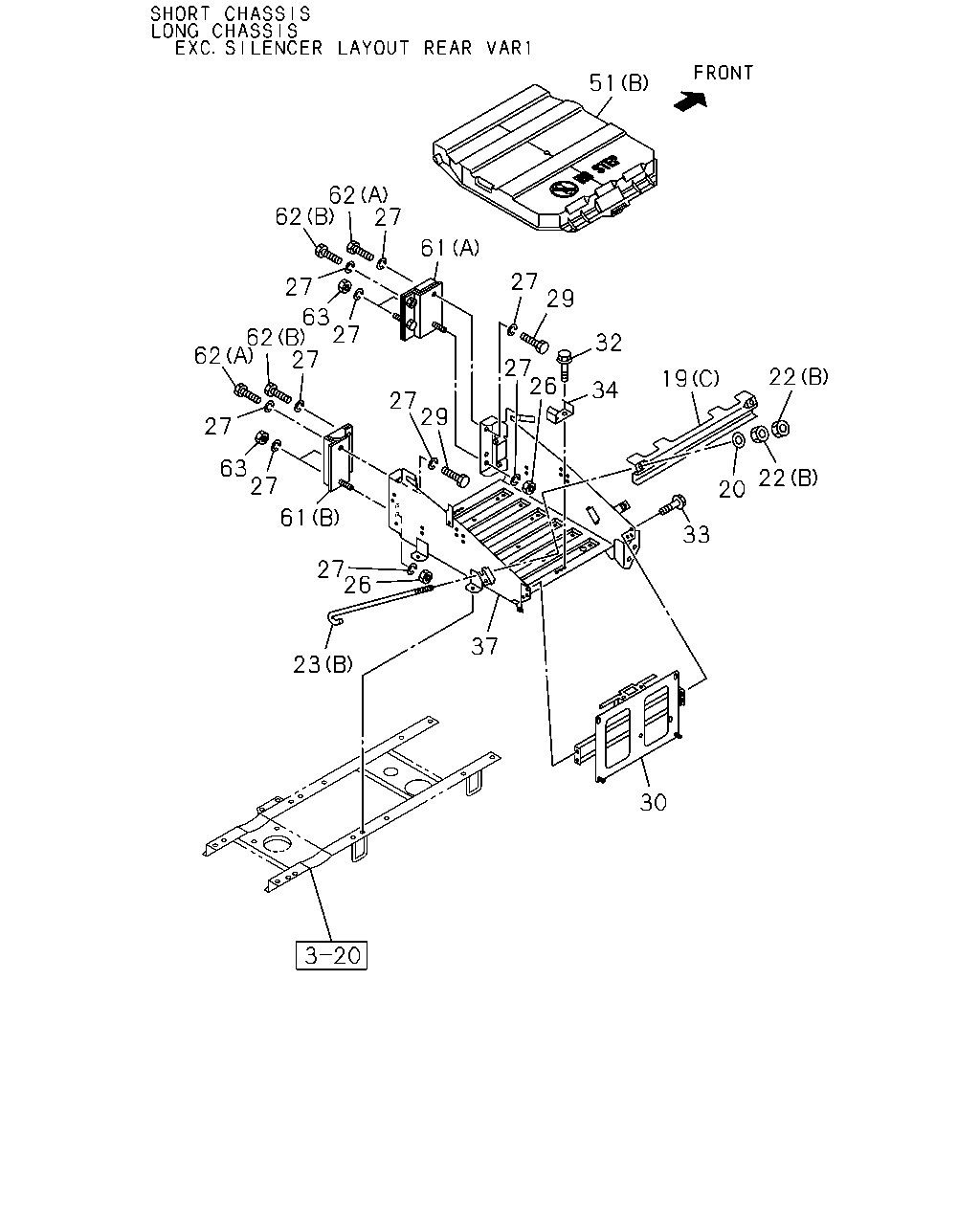

23 30 23 33 19 22 23 31 20 22 22 19 34 32 27 22 19 23 23 37 27 26 29 26 51 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1009-1302	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1009-1302	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1009-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1009-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1009-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1009-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1009-1302	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1303-1303	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1303-1303		●
26	NUT; BRKT M14	0-91110-514-0	02	1	1304-1411	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1412-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1412-		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1009-1302		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1303-1303		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1304-1411		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-1302	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1303-1303	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1303-1303		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-1411	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1412-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1009-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1009-1302	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1303-1303	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1304-1411	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1412-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1412-		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1009-1302		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1304-1411		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1412-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1009-1302	●	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1303-	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1009-1302	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1303-1411	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1412-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1009-1302	●	●
34	SPACER; BATTERY BRKT	1-53619-084-0	02	1	1303-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1009-1302	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1303-1303	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	8-98218-501-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1304-1411	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1412-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1412-		●
37	BRACKET; BATTERY	1-53610-161-3	01	1	1009-1302		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	8-98097-706-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98097-706-2	01	1	1304-1411		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1412-		●
51	COVER; BATTERY (A)	1-53612-068-0	01	1	1009-1302	●	●
51	COVER; BATTERY (B)	8-98097-715-3	01	1	1303-	●	●

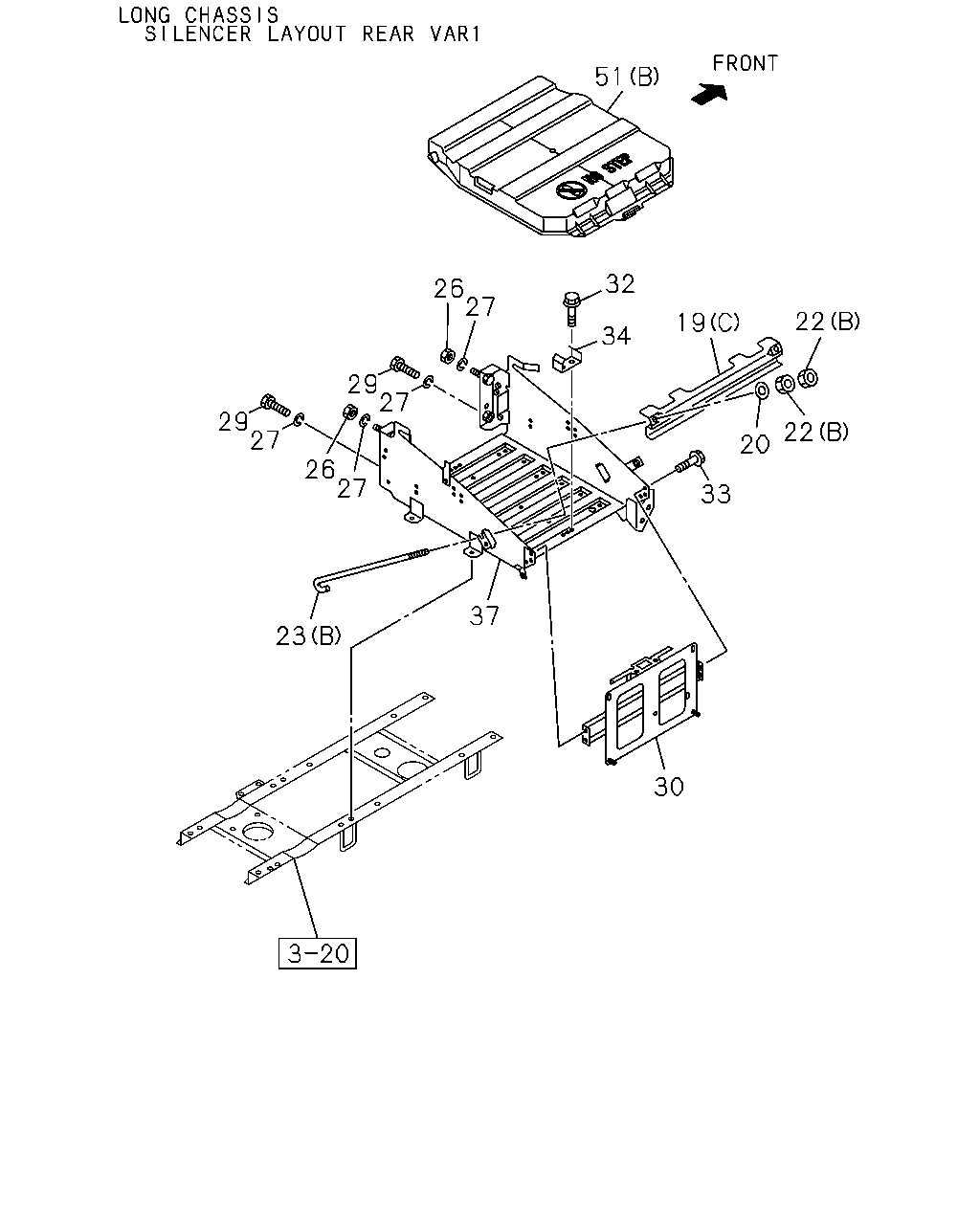

23 27 26 27 29 29 27 37 26 27 51 32 34 19 22 33 20 22 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1009-1302	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1009-1302	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1009-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1009-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1009-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1009-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1009-1302	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1303-1303	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1303-1303		●
26	NUT; BRKT M14	0-91110-514-0	02	1	1304-1411	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1412-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1412-		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1009-1302		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1303-1303		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1304-1411		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-1302	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1303-1303	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1303-1303		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-1411	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1412-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1009-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1009-1302	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1303-1303	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1304-1411	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1412-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1412-		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1009-1302		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1304-1411		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1412-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1009-1302	●	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1303-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1009-1302	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1303-1411	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1412-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1009-1302	●	●
34	SPACER; BATTERY BRKT	1-53619-084-0	02	1	1303-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1009-1302	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1303-1303	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	8-98218-501-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1304-1411	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1412-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1412-		●
37	BRACKET; BATTERY	1-53610-161-3	01	1	1009-1302		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	8-98097-706-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98097-706-2	01	1	1304-1411		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1412-		●
51	COVER; BATTERY (A)	1-53612-068-0	01	1	1009-1302	●	●
51	COVER; BATTERY (B)	8-98097-715-3	01	1	1303-	●	●

30 37 23 26 27 61 27 63 27 62 62 27 27 63 27 62 62 27 61 27 29 27 29 27 26 32 34 19 22 33 20 22 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1009-1302	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1009-1302	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1009-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1009-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1009-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1009-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1009-1302	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1303-1303	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1303-1303		●
26	NUT; BRKT M14	0-91110-514-0	02	1	1304-1411	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1412-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1412-		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1009-1302		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1303-1303		●
26	NUT; BRKT M14	1-09440-072-0	02	1	1304-1411		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-1302	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1303-1303	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1303-1303		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-1411	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1412-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1412-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1009-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1009-1302	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1303-1303	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1304-1411	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1412-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1412-		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1009-1302		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1303-1303		●
29	BOLT; BRKT TO FRAME M14X45	1-09000-764-0	02	1	1304-1411		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1412-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1009-1302	●	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1303-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1009-1302	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1303-1411	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1412-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1009-1302	●	●
34	SPACER; BATTERY BRKT	1-53619-084-0	02	1	1303-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1009-1302	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1303-1303	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	8-98218-501-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1304-1411	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1412-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1412-		●
37	BRACKET; BATTERY	1-53610-161-3	01	1	1009-1302		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	8-98097-706-2	01	1	1303-1303		●
37	BRACKET; BATTERY	8-98097-706-2	01	1	1304-1411		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1412-		●
51	COVER; BATTERY (A)	1-53612-068-0	01	1	1009-1302	●	●
51	COVER; BATTERY (B)	8-98097-715-3	01	1	1303-	●	●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> (A)	1-53613-489-0	01	1	1009-1302	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1009-1302	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1303-1303	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-53613-505-0	01	1	1303-1303		●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1304-1411	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1412-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-53613-505-0	01	1	1412-		●
61	DISTANCE; BRKT,BATTERY EXC. MIXER TRUCK<RA2> (A)	1-53613-504-0	01	1	1009-1302	●
61	DISTANCE; BRKT,BATTERY (A)	1-53613-504-0	01	1	1303-1303	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53613-504-0	01	1	1303-1303		●
61	DISTANCE; BRKT,BATTERY (A)	1-53613-504-0	01	1	1304-1411	●
61	DISTANCE; BRKT,BATTERY (A)	1-53613-504-0	01	1	1412-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	1-53613-504-0	01	1	1412-		●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1009-1302	●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1303-1303	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M14X45	1-09000-764-0	02	1	1303-1303		●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1304-1411	●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1412-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) M14X45	1-09000-764-0	02	1	1412-		●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1009-1302	●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1303-1303	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M14X60	1-09000-778-0	02	1	1303-1303		●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1304-1411	●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1412-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14X60	1-09000-778-0	02	1	1412-		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1009-1302	●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1303-1303	●
63	NUT; DIST TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	04	1	1303-1303		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1304-1411	●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1412-	●
63	NUT; DIST TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	04	1	1412-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
