◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#61492) — 387 parça

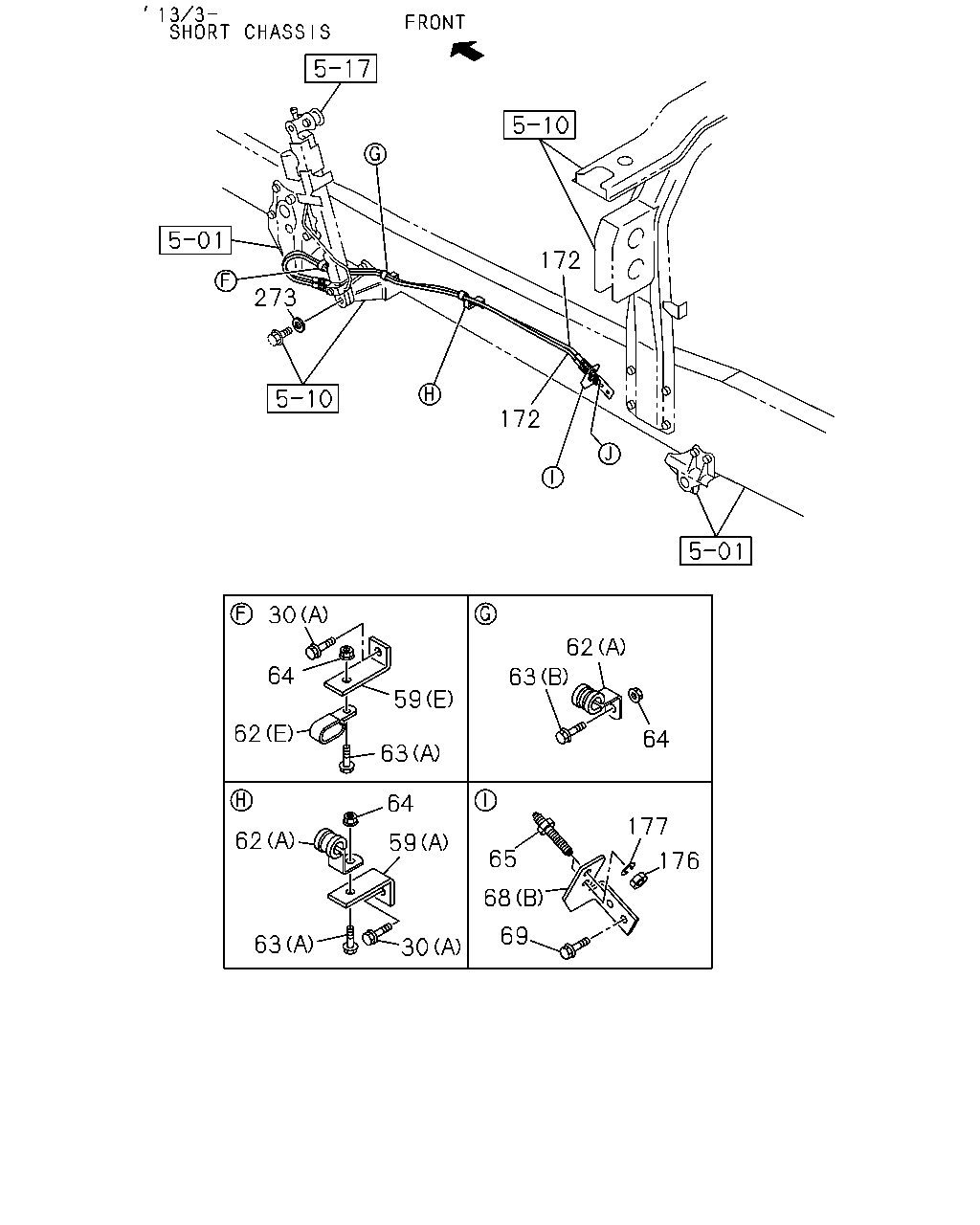

çizim 168475
273 172 172 62 63 64 30 64 62 63 59 64 59 62 63 30 65 68 69 177 176
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1411 ●
30 BOLT; BRKT FIX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1412- ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(E) L=65 		1-47479-064-1 01 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=50 		1-47475-299-2 02 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1303-1411 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) 		8-98082-826-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1303-1411 ●
59 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 02 1 1412- ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1009-1302 ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
WHEEL BASE 4500MM(45W) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1303- ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1009-1302 ●
62 CLIP; OIL PIPE
(B) ID=9X2 L=16 		0-95324-825-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1303- ● ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(E) ID=9X2 L=20 		0-95324-835-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1303- ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302 ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303- ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1009- ● ●
68 BRACKET; UNION
(B) 		8-98226-698-0 01 1 1303-1411 ●
68 BRACKET; UNION
(B) 		8-98226-698-0 01 1 1412- ●
68 BRACKET; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98226-698-0 01 1 1412- ●
68 BRACKET; UNION
(A) 		1-47479-429-0 01 1 1009-1302 ● ●
68 BRACKET; UNION
(A) 		1-47479-429-0 01 1 1303-1411 ●
68 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-429-0 01 1 1412- ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
69 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ●
172 HOSE; FLEX,OIL TILT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1540 		8-98242-446-0 02 1 1412- ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 1009-1302 ● ●
172 HOSE; FLEX,OIL TILT
L=1570 		1-09365-304-0 02 1 1303-1411 ● ●
172 HOSE; FLEX,OIL TILT
L=1570 		1-09365-304-0 02 1 1412- ●
172 HOSE; FLEX,OIL TILT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1570 		1-09365-304-0 02 1 1412- ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1009- ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 1009- ● ●

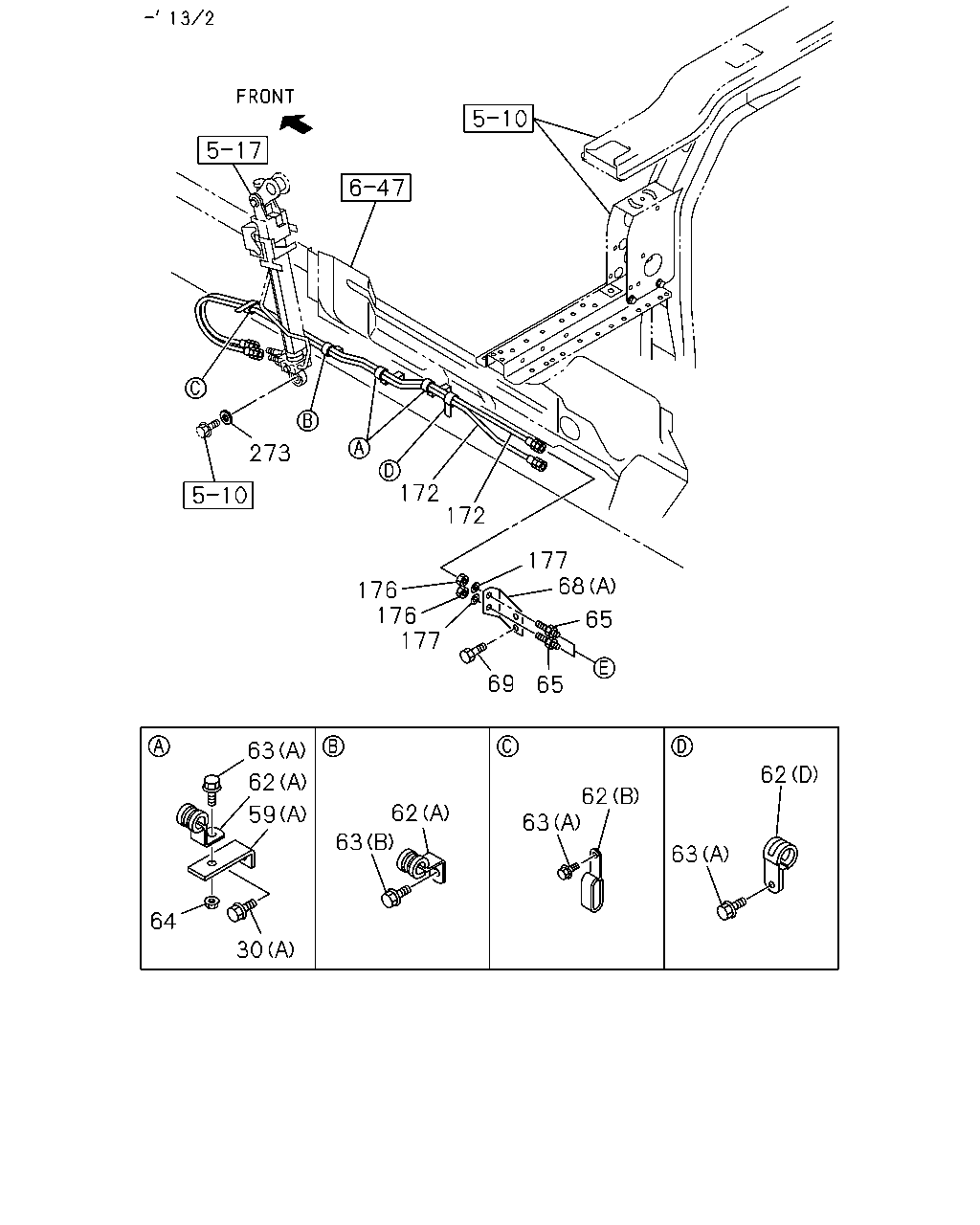

çizim 168482
273 172 172 177 68 65 177 176 176 69 65 63 62 59 64 30 63 62 63 62 63 62
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1411 ●
30 BOLT; BRKT FIX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1412- ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(E) L=65 		1-47479-064-1 01 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=50 		1-47475-299-2 02 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1303-1411 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) 		8-98082-826-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1303-1411 ●
59 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 02 1 1412- ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1009-1302 ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
WHEEL BASE 4500MM(45W) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1303- ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1009-1302 ●
62 CLIP; OIL PIPE
(B) ID=9X2 L=16 		0-95324-825-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1303- ● ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(E) ID=9X2 L=20 		0-95324-835-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1303- ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302 ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303- ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1009- ● ●
68 BRACKET; UNION
(B) 		8-98226-698-0 01 1 1303-1411 ●
68 BRACKET; UNION
(B) 		8-98226-698-0 01 1 1412- ●
68 BRACKET; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98226-698-0 01 1 1412- ●
68 BRACKET; UNION
(A) 		1-47479-429-0 01 1 1009-1302 ● ●
68 BRACKET; UNION
(A) 		1-47479-429-0 01 1 1303-1411 ●
68 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-429-0 01 1 1412- ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
69 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ●
172 HOSE; FLEX,OIL TILT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1540 		8-98242-446-0 02 1 1412- ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 1009-1302 ● ●
172 HOSE; FLEX,OIL TILT
L=1570 		1-09365-304-0 02 1 1303-1411 ● ●
172 HOSE; FLEX,OIL TILT
L=1570 		1-09365-304-0 02 1 1412- ●
172 HOSE; FLEX,OIL TILT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1570 		1-09365-304-0 02 1 1412- ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1009- ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 1009- ● ●

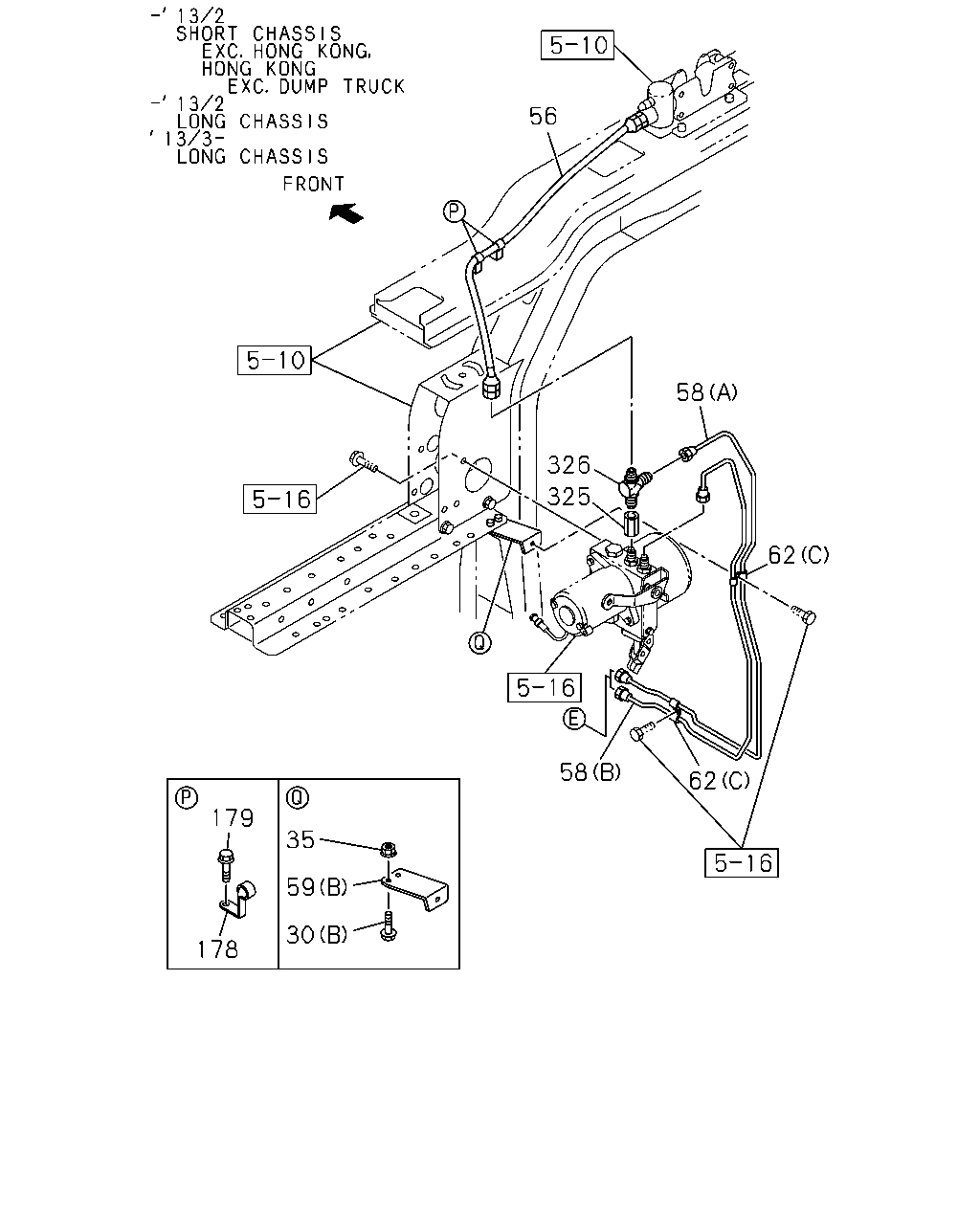

çizim 168550
56 326 325 58 62 58 62 35 179 178 59 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1411 ●
30 BOLT; BRKT FIX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1412- ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
35 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303- ● ●
35 NUT; BRKT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
EXC. HONG KONG EQUIPMENT(PQ1) L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
EXC. DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 1303- ● ●
56 HOSE; FLEX,OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) L=650 		1-09365-053-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4500MM(45W) (A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
(E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4500MM(45W) (B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
(F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(B) L=953 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=953 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(A) L=916 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=916 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(E) L=65 		1-47479-064-1 01 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=50 		1-47475-299-2 02 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1303-1411 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) 		8-98082-826-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1303-1411 ●
59 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 02 1 1412- ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1009-1302 ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
WHEEL BASE 4500MM(45W) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1303- ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1009-1302 ●
62 CLIP; OIL PIPE
(B) ID=9X2 L=16 		0-95324-825-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1303- ● ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(E) ID=9X2 L=20 		0-95324-835-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009- ● ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1009- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1009- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●

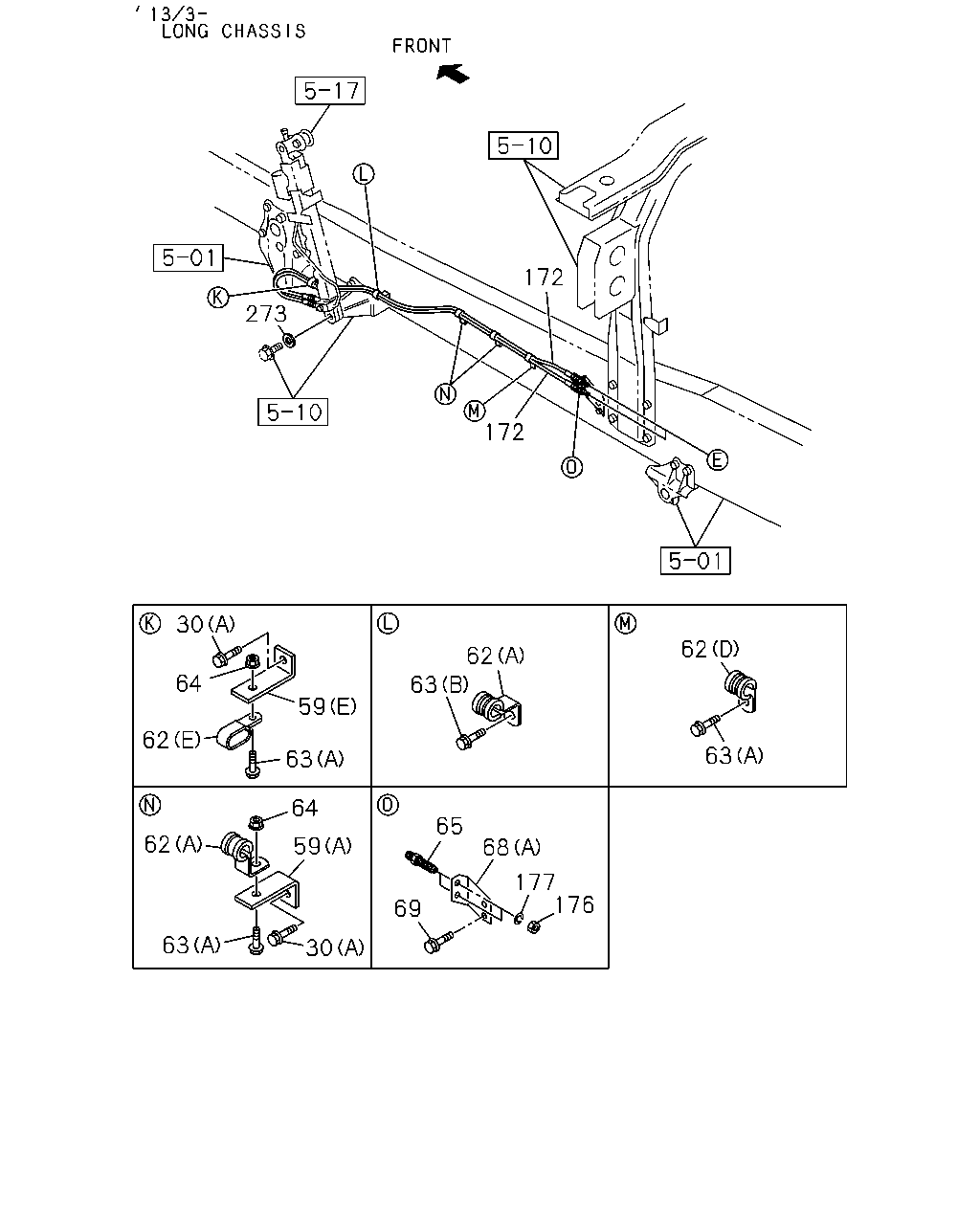

çizim 168564
273 172 172 62 63 63 62 59 64 62 62 64 63 59 30 65 68 177 176 30 63 69
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1411 ●
30 BOLT; BRKT FIX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1412- ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(E) L=65 		1-47479-064-1 01 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=50 		1-47475-299-2 02 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1303-1411 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) 		8-98082-826-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1303-1411 ●
59 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 02 1 1412- ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1009-1302 ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
WHEEL BASE 4500MM(45W) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1303- ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1009-1302 ●
62 CLIP; OIL PIPE
(B) ID=9X2 L=16 		0-95324-825-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1303- ● ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(E) ID=9X2 L=20 		0-95324-835-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1303- ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302 ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303- ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1009- ● ●
68 BRACKET; UNION
(B) 		8-98226-698-0 01 1 1303-1411 ●
68 BRACKET; UNION
(B) 		8-98226-698-0 01 1 1412- ●
68 BRACKET; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98226-698-0 01 1 1412- ●
68 BRACKET; UNION
(A) 		1-47479-429-0 01 1 1009-1302 ● ●
68 BRACKET; UNION
(A) 		1-47479-429-0 01 1 1303-1411 ●
68 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-429-0 01 1 1412- ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
69 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ●
172 HOSE; FLEX,OIL TILT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1540 		8-98242-446-0 02 1 1412- ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 1009-1302 ● ●
172 HOSE; FLEX,OIL TILT
L=1570 		1-09365-304-0 02 1 1303-1411 ● ●
172 HOSE; FLEX,OIL TILT
L=1570 		1-09365-304-0 02 1 1412- ●
172 HOSE; FLEX,OIL TILT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1570 		1-09365-304-0 02 1 1412- ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1009- ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 1009- ● ●

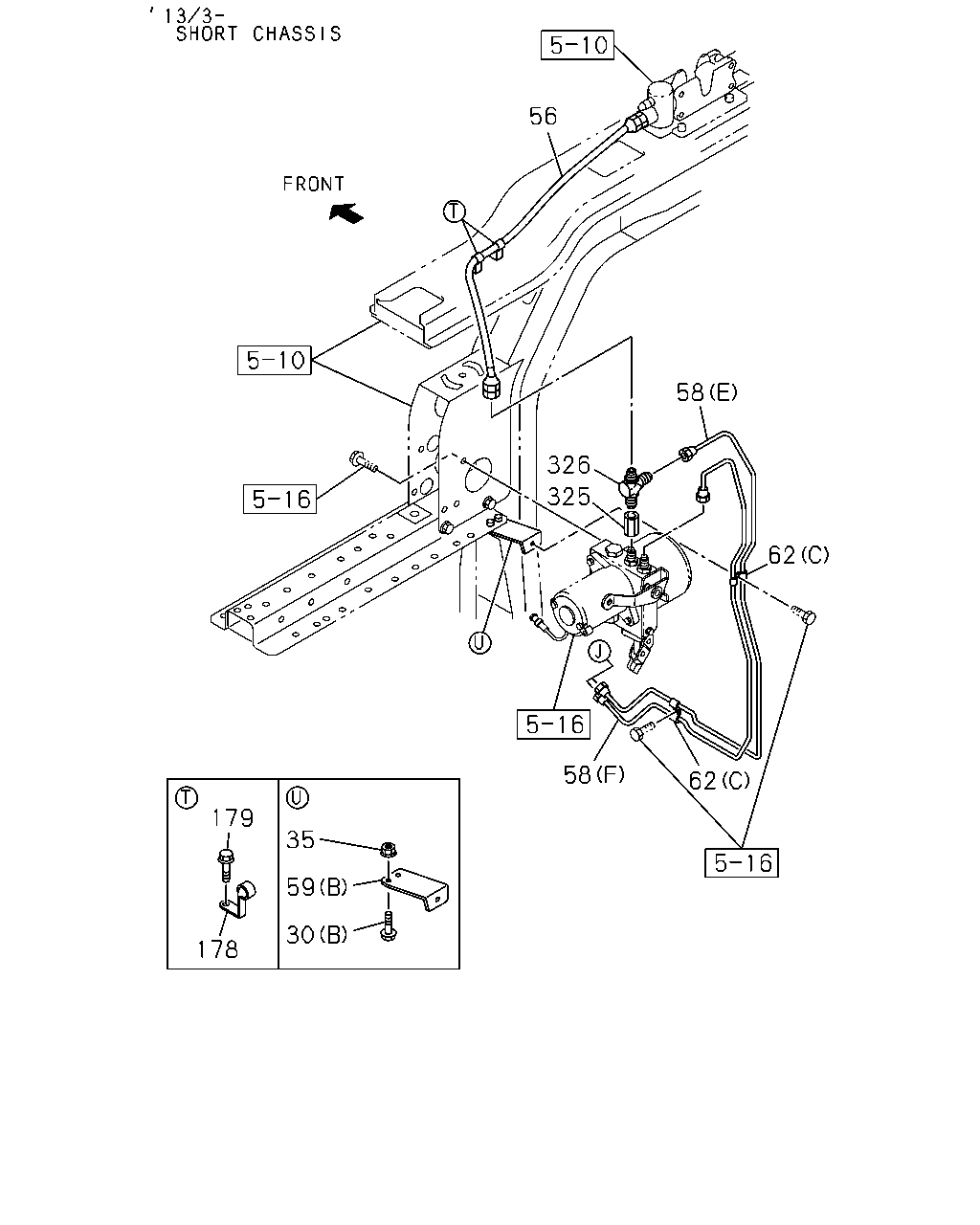

çizim 336499
56 58 326 62 325 62 58 35 59 30 178 179
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1411 ●
30 BOLT; BRKT FIX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1412- ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
35 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303- ● ●
35 NUT; BRKT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
EXC. HONG KONG EQUIPMENT(PQ1) L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
EXC. DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 1303- ● ●
56 HOSE; FLEX,OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) L=650 		1-09365-053-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4500MM(45W) (A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
(E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4500MM(45W) (B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
(F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(B) L=953 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=953 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(A) L=916 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=916 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(E) L=65 		1-47479-064-1 01 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=50 		1-47475-299-2 02 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1303-1411 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) 		8-98082-826-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1303-1411 ●
59 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 02 1 1412- ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1009-1302 ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
WHEEL BASE 4500MM(45W) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1303- ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1009-1302 ●
62 CLIP; OIL PIPE
(B) ID=9X2 L=16 		0-95324-825-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1303- ● ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(E) ID=9X2 L=20 		0-95324-835-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009- ● ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1009- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1009- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●

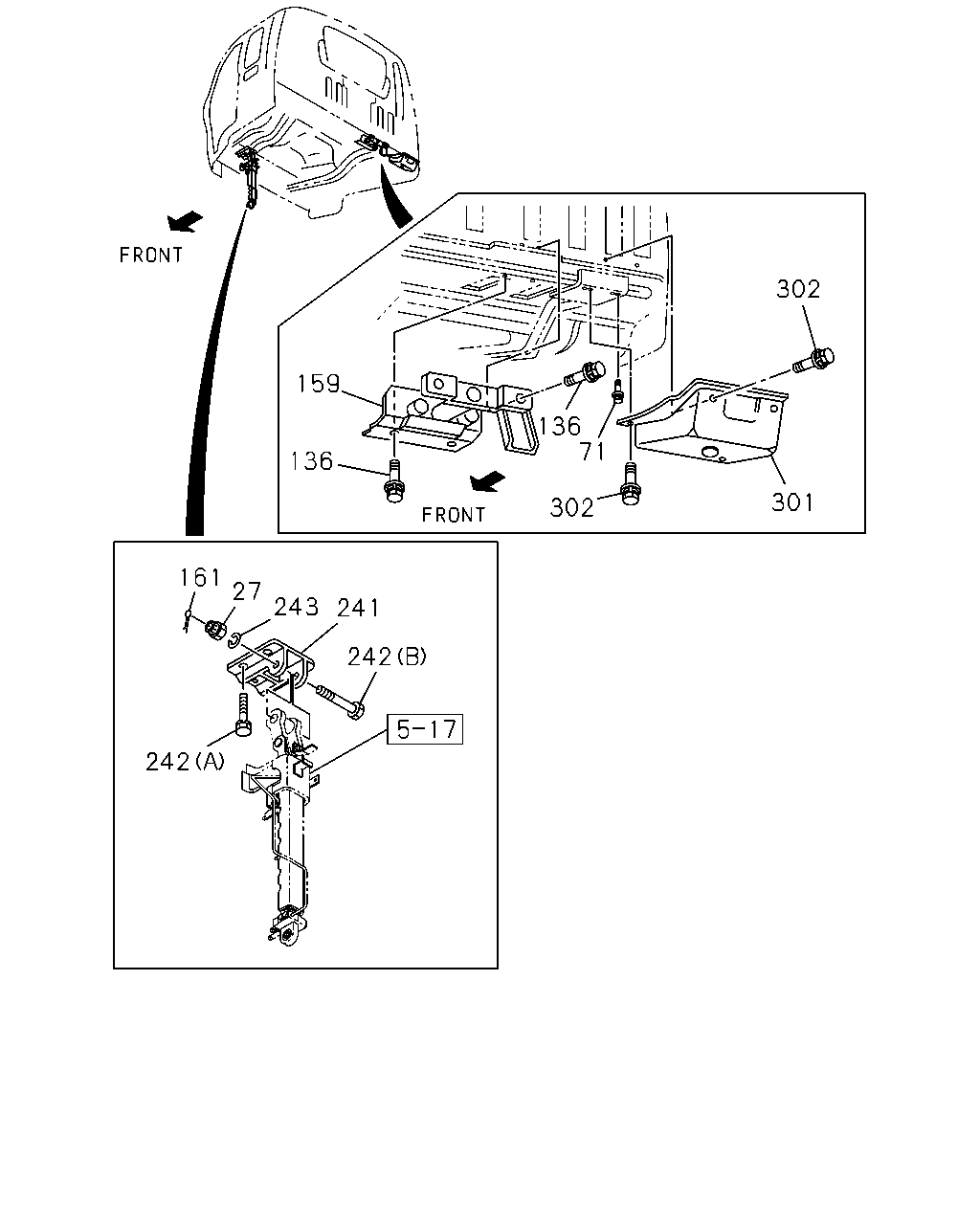

çizim 336500
159 136 302 71 136 301 302 242 241 243 27 161 242
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 1009- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 1009- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 1009- ● ●
159 PIN 1-79717-627-1 01 1 1009- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 1009- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 1009- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 1009- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 1009- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-814-0 01 1 1009- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 1009- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 1009- ● ●

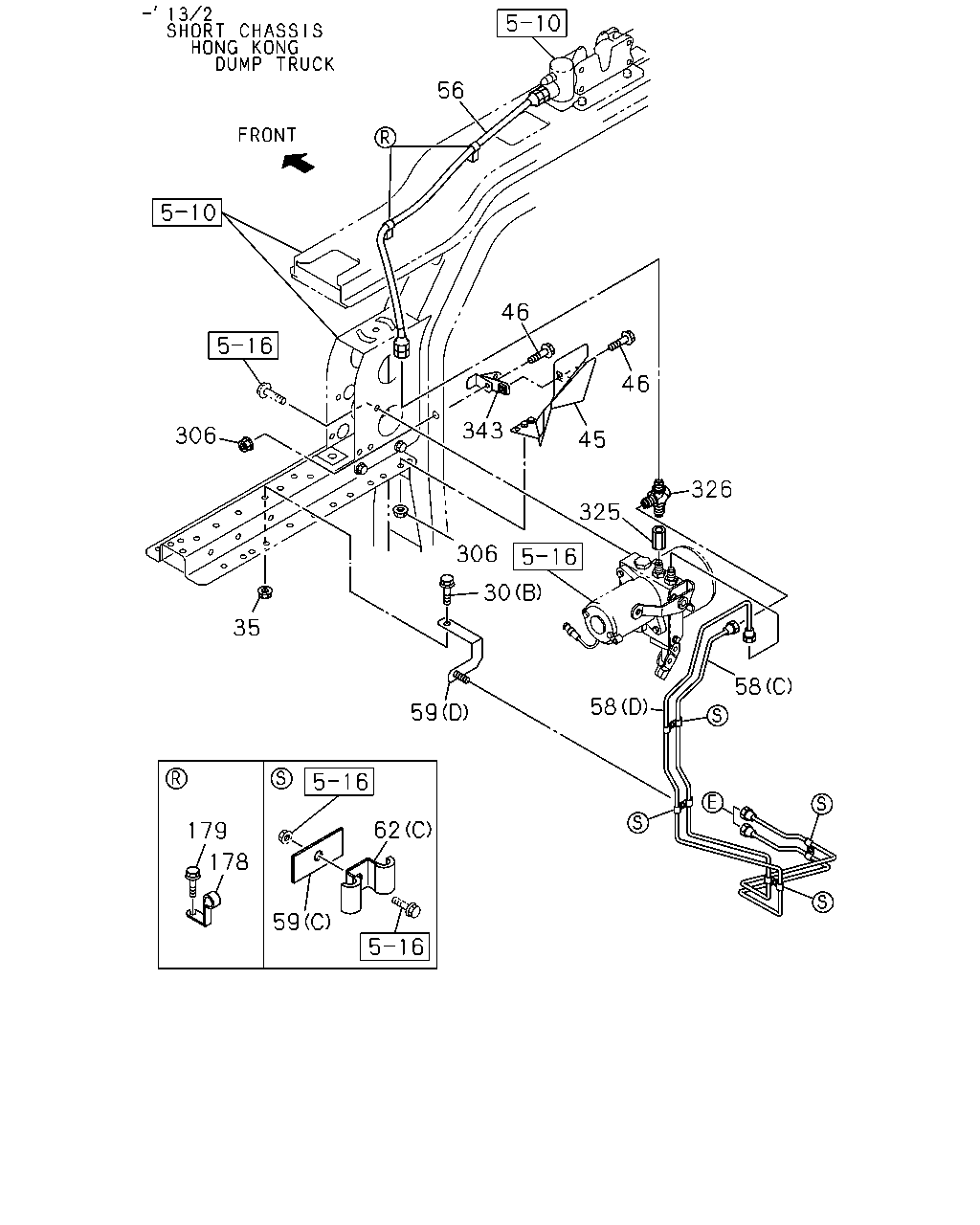

çizim 336508
306 35 179 178 59 62 58 59 30 306 325 58 326 45 46 343 46 56
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1411 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ●
30 BOLT; BRKT FIX
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1411 ●
30 BOLT; BRKT FIX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1412- ●
30 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ● ●
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
35 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303- ● ●
35 NUT; BRKT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
45 PROTECTOR; HEAT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) 		8-98090-525-0 01 1 1009-1302 ●
46 BOLT; HEAT PROTECTOR
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
EXC. HONG KONG EQUIPMENT(PQ1) L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
EXC. DUMP TRUCK<RA1> L=750 		1-09365-058-0 01 1 1009-1302 ●
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 1303- ● ●
56 HOSE; FLEX,OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) L=650 		1-09365-053-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4500MM(45W) (A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(A) L=989 		1-49166-916-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
(E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) L=966 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4500MM(45W) (B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
(F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) L=1011 SERVICED BY L=1100 		1-47428-731-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(B) L=953 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=953 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
58 PIPE; OIL,POWER UNIT
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1009-1302 ●
58 PIPE; OIL,POWER UNIT
(A) L=916 SERVICED BY L=1000 		1-47428-730-0 01 1 1303-1411 ●
58 PIPE; OIL,POWER UNIT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=916 SERVICED BY L=1000 		1-47428-730-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(E) L=65 		1-47479-064-1 01 1 1303- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) L=50 		1-47475-299-2 02 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1303-1411 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 01 1 1412- ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (D) 		8-98082-826-0 01 1 1009-1302 ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1303-1411 ●
59 BRACKET; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=115 B=25 		1-47476-758-0 02 1 1412- ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 1009-1302 ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
WHEEL BASE 4500MM(45W) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1009-1302 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1303- ●
62 CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1009-1302 ●
62 CLIP; OIL PIPE
(B) ID=9X2 L=16 		0-95324-825-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1303- ● ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 01 1 1009-1302 ● ●
62 CLIP; OIL PIPE
(E) ID=9X2 L=20 		0-95324-835-0 01 1 1303- ● ●
62 CLIP; OIL PIPE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009- ● ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1009- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
306 NUT; HEAT PROTECTOR
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 03 1 1009-1302 ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1009- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
343 BRACKET; PROTECTOR
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) 		8-98085-205-0 01 1 1009-1302 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
