Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#61491) — 737 parça

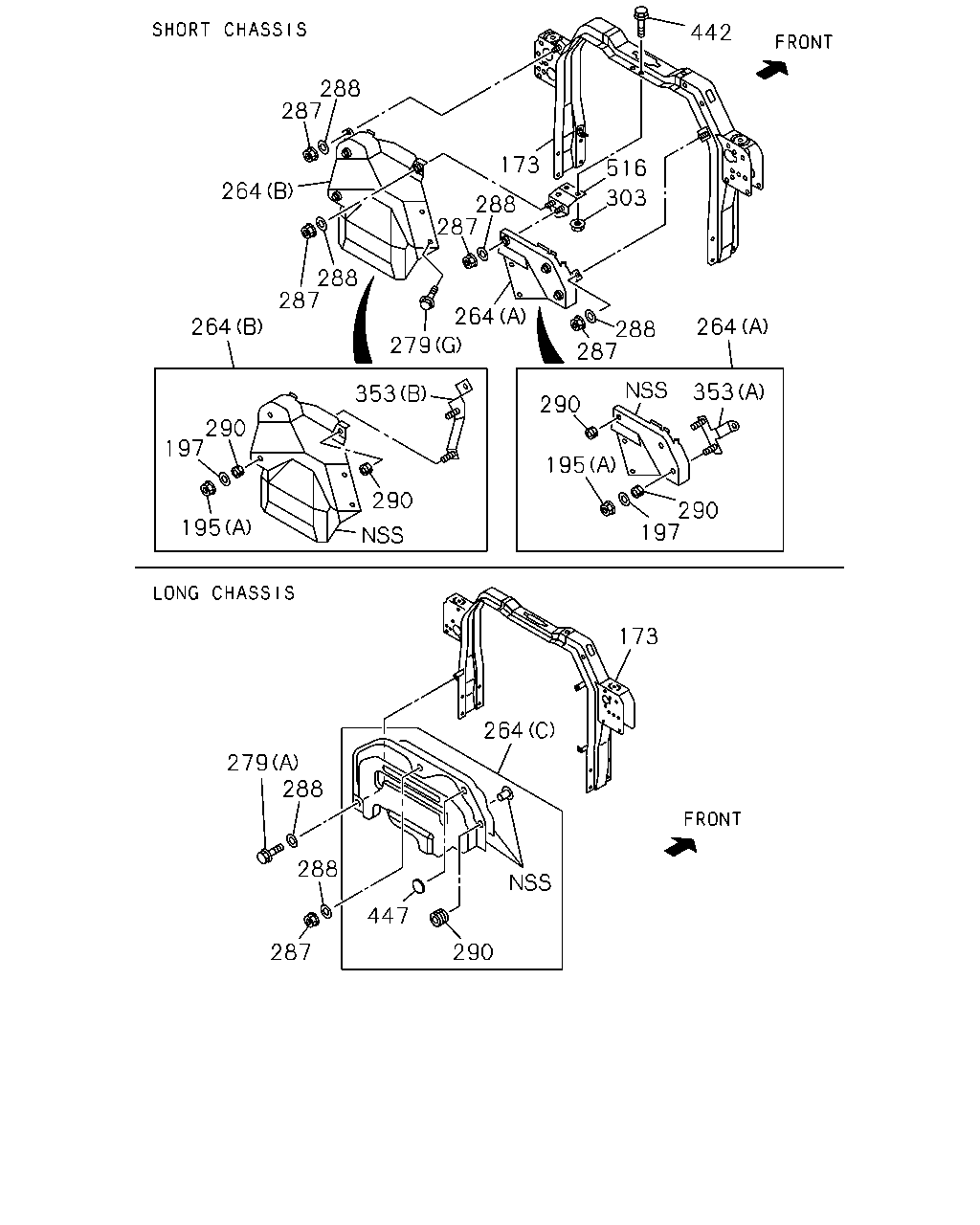

288 287 264 264 287 288 279 264 287 288 173 516 303 442 264 288 287 290 195 197 290 353 353 290 195 197 290 279 288 288 287 447 290 264 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98166-346-0	01	1	1412-1510	●
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1511-	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010		●
173	MEMBER; CAB MTG RR WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010	●
173	MEMBER; CAB MTG RR EXC. DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302		●
173	MEMBER; CAB MTG RR WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302	●
173	MEMBER; CAB MTG RR EXC. DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302	●
173	MEMBER; CAB MTG RR	8-98171-651-0	01	1	1303-1411	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-651-0	01	1	1412-	●
173	MEMBER; CAB MTG RR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	8-98063-227-1	01	1	1009-1010		●
173	MEMBER; CAB MTG RR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	8-98171-655-0	01	1	1011-1302		●
173	MEMBER; CAB MTG RR	8-98166-139-0	01	1	1303-1411		●
173	MEMBER; CAB MTG RR	8-98166-139-1	01	1	1412-		●
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-1	01	1	1412-	●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010		●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302		●
195	NUT; BRKT FIX WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302		●
195	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	04	1	1009-	●	●
197	WASHER; PL WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	04	1	1009-1302		●
264	PANEL; BACK WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (B)	8-98177-383-0	01	1	1009-1302		●
264	PANEL; BACK WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A)	8-98087-927-0	01	1	1009-1302		●
264	PANEL; BACK WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) (C)	8-98063-674-0	01	1	1009-1302		●
264	PANEL; BACK WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (C)	8-98063-674-0	01	1	1009-1302	●
264	PANEL; BACK (C)	8-98063-674-0	01	1	1303-1411	●
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1) (C)	8-98063-674-0	01	1	1412-	●
279	BOLT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (G) M8X22 W/LK&PL WASHER	1-09030-042-0	02	1	1009-1302		●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-		●
279	BOLT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1303-1303	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-1411	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-	●
279	BOLT WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302		●
279	BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
287	NUT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	04	1	1009-1302		●
287	NUT WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
287	NUT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
287	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1411	●
287	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1412-	●
288	WASHER; PL WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	02	1	1009-1302		●
288	WASHER; PL WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	1009-1302		●
288	WASHER; PL WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) ID=8.4 OD=26	0-91614-808-0	03	1	1009-1302	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	1303-1411	●
288	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	1412-	●
290	RUBBER; MTG WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	06	1	1009-1302		●
290	RUBBER; MTG WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	1009-1302		●
290	RUBBER; MTG WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W)	1-53459-702-1	03	1	1009-1302	●
290	RUBBER; MTG	1-53459-702-1	03	1	1303-1411	●
290	RUBBER; MTG HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	1412-	●
303	NUT; BRKT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
353	BRACKET WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A)	8-98087-967-0	01	1	1009-1302		●
353	BRACKET WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (B)	8-98087-968-0	01	1	1009-1302		●
442	BOLT; BRKT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
447	SEAL WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	1009-1302		●
447	SEAL WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) OD=45 BLACK	1-76798-017-0	02	1	1009-1302	●
447	SEAL OD=45 BLACK	1-76798-017-0	02	1	1303-1411	●
447	SEAL HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	1412-	●
516	BRACKET; PANEL WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1)	8-98073-593-0	01	1	1009-1302		●

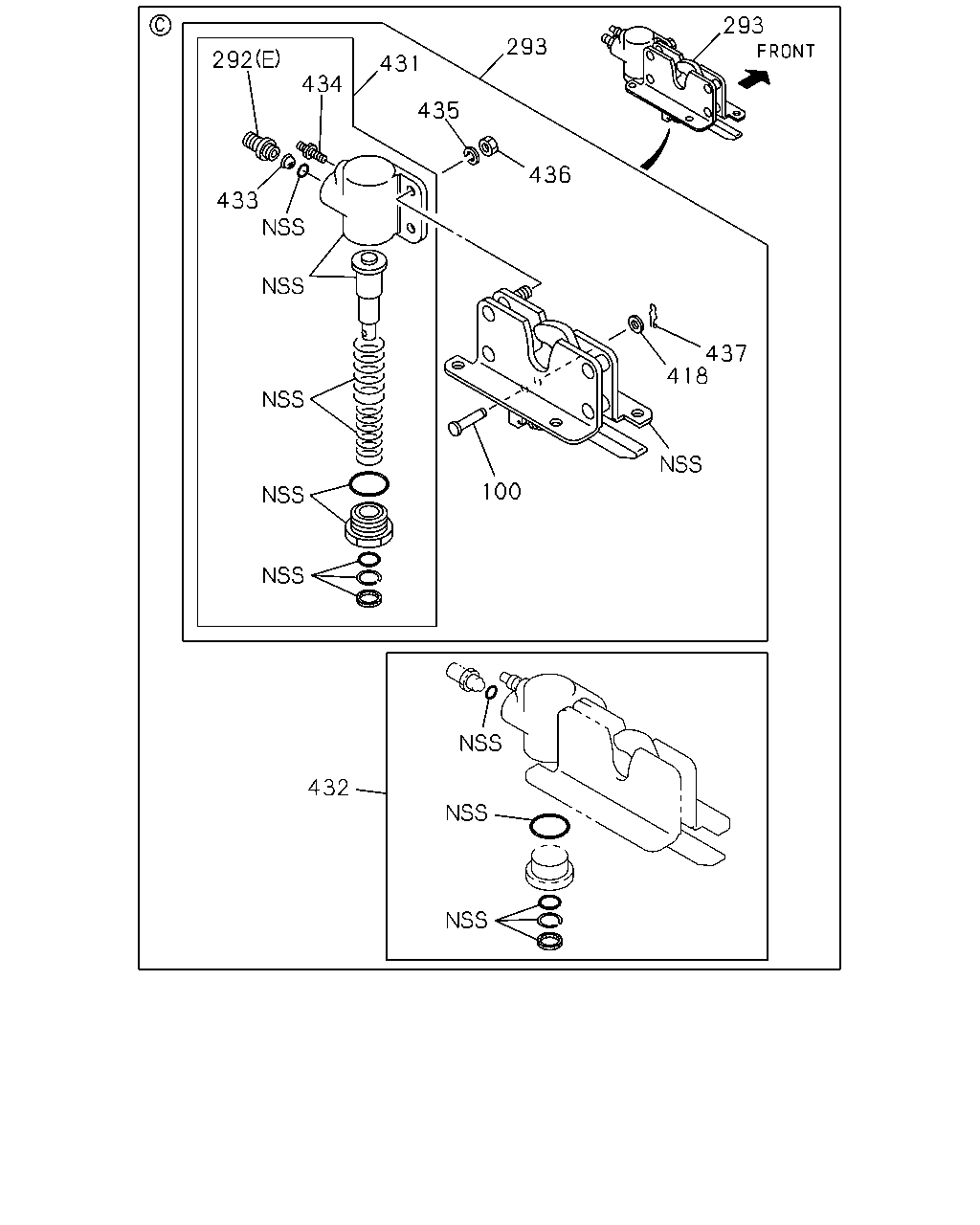

292 433 434 431 435 436 293 293 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-831-0	01	1	1009-	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1411	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-1510		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-1510	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1511-		●
292	CONNECTOR; CAB SUSPENSION EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1511-	●
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-1411	●	●
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-1510		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-1510	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-		●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-	●
292	CONNECTOR; CAB SUSPENSION EXC. CAB SUSPENSION-FULL FLOATING(SMK) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-	●
292	CONNECTOR; CAB SUSPENSION (D) DIN6 & R1/8 & RC1/8 3WAY	1-09661-577-0	01	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-	●	●
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302	●	●
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	1009-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	1009-	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	1009-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	1009-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	1009-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	1009-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	1009-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	1009-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	1009-	●	●

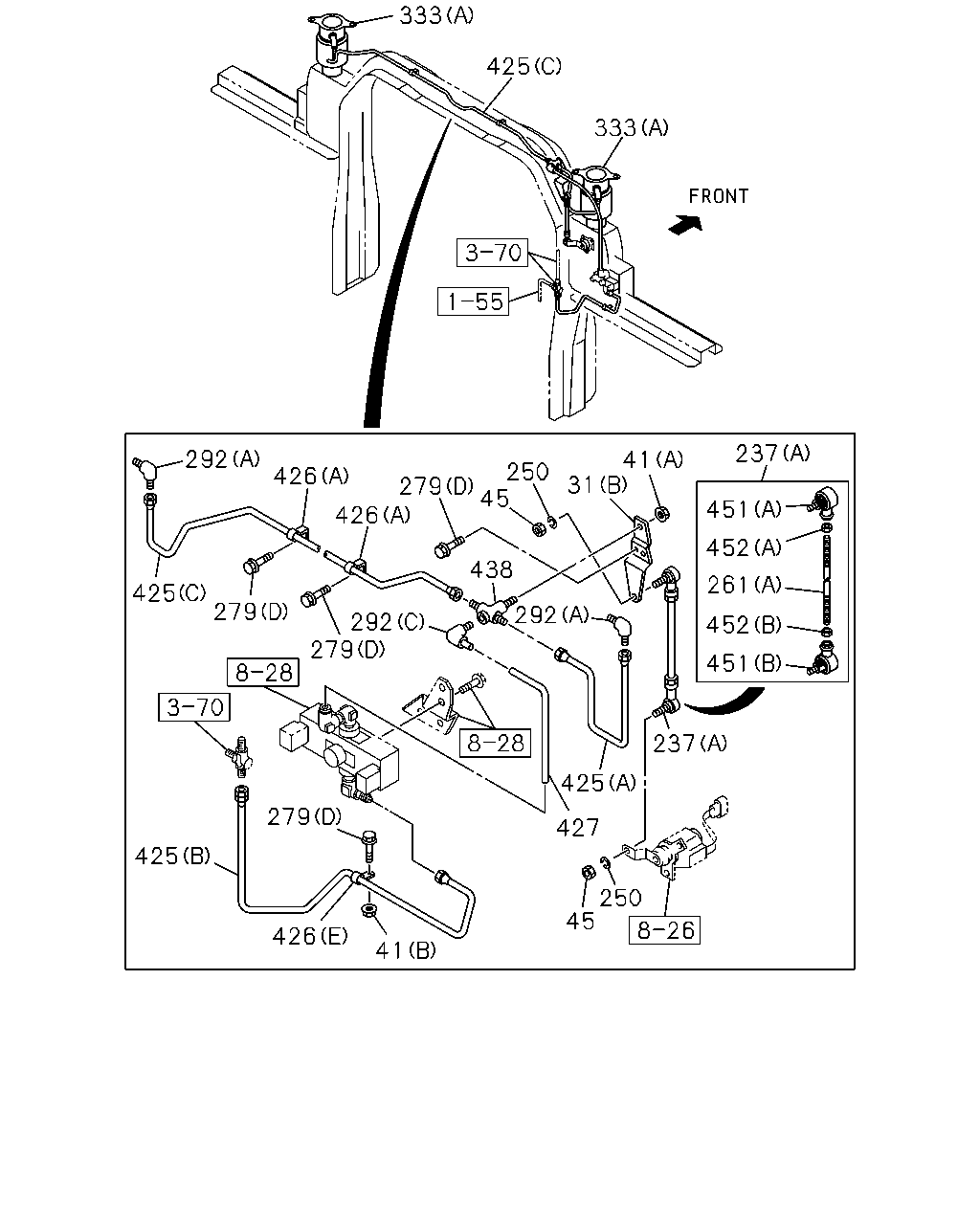

333 425 333 292 426 426 279 45 250 31 41 237 451 452 261 452 451 237 425 427 250 45 279 279 425 279 425 426 41 292 292 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1412-	●
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1412-	●
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302	●	●
31	BRACKET; CAB (E)	8-98131-521-2	01	1	1303-1411	●	●
31	BRACKET; CAB (E)	8-98131-521-2	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (E)	8-98131-521-2	01	1	1412-	●
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411	●	●
31	BRACKET; CAB (D)	1-53453-224-5	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1412-	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411	●	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411	●	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1412-1510		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-1510	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1511-		●
31	BRACKET; CAB EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-374-1	01	1	1511-	●
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1302	●	●
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-1411	●	●
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1412-	●	●
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	1009-1411	●	●
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	1412-		●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	1412-	●
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1009-1411	●	●
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1412-1510		●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	1412-1510	●
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1511-		●
41	NUT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 FLANGE	0-91180-212-0	01	1	1511-	●
45	NUT M5	0-91110-505-0	04	1	1009-1411	●	●
45	NUT M5	0-91110-505-0	04	1	1412-1510		●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1412-1510	●
45	NUT M5	0-91110-505-0	02	1	1511-		●
45	NUT M5	0-91110-505-0	02	1	1511-		●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	1511-	●
45	NUT EXC. CAB SUSPENSION-FULL FLOATING(SMK) M5	0-91110-505-0	02	1	1511-	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1412-1510		●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-1510	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1511-		●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-33670-407-0	01	1	1511-	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411	●	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1412-		●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-	●	●
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1009-1411	●	●
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1412-1510		●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1412-1510	●
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1511-		●
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1511-		●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	1511-	●
250	WASHER; LK EXC. CAB SUSPENSION-FULL FLOATING(SMK) ID=5.1	0-91510-505-0	02	1	1511-	●
261	ROD; LINK (B)	0-84100-506-0	01	1	1009-1411	●	●
261	ROD; LINK (B)	0-84100-506-0	01	1	1412-		●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1412-	●
261	ROD; LINK (A)	9-08410-514-0	01	1	1009-1411	●	●
261	ROD; LINK (A)	9-08410-514-0	01	1	1412-1510		●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1412-1510	●
261	ROD; LINK (A)	9-08410-514-0	01	1	1511-		●
261	ROD; LINK EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	9-08410-514-0	01	1	1511-	●
279	BOLT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (G) M8X22 W/LK&PL WASHER	1-09030-042-0	02	1	1009-1302		●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-		●
279	BOLT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1303-1303	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-1411	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-	●
279	BOLT WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302		●
279	BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1411	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-1510		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-1510	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1511-		●
292	CONNECTOR; CAB SUSPENSION EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1511-	●
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-1411	●	●
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-1510		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-1510	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-		●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-	●
292	CONNECTOR; CAB SUSPENSION EXC. CAB SUSPENSION-FULL FLOATING(SMK) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-	●
292	CONNECTOR; CAB SUSPENSION (D) DIN6 & R1/8 & RC1/8 3WAY	1-09661-577-0	01	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-	●	●
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302	●	●
333	SPRING (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1009-1411	●	●
333	SPRING (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1412-		●
333	SPRING FULL FLOATING CAB(W16) (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1412-	●
333	SPRING (A)	1-52110-143-4	02	1	1009-1411	●	●
333	SPRING (A)	1-52110-143-4	02	1	1412-1510		●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1412-1510	●
333	SPRING (A)	1-52110-143-4	02	1	1511-		●
333	SPRING EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-52110-143-4	02	1	1511-	●
425	PIPE ASM; AIR MIXER TRUCK<RA2> (B) L=367	1-49124-343-0	01	1	1009-1302		●
425	PIPE ASM; AIR (B)	1-49122-659-0	01	1	1303-		●
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1009-1411	●	●
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1510		●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1510	●
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1511-		●
425	PIPE ASM; AIR EXC. CAB SUSPENSION-FULL FLOATING(SMK) (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1511-	●
425	PIPE ASM; AIR (A) L=291	8-98095-656-0	01	1	1009-1411	●	●
425	PIPE ASM; AIR (A) L=291	8-98095-656-0	01	1	1412-1510		●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=291	8-98095-656-0	01	1	1412-1510	●
425	PIPE ASM; AIR (A) L=291	8-98095-656-0	01	1	1511-		●
425	PIPE ASM; AIR EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) L=291	8-98095-656-0	01	1	1511-	●
425	PIPE ASM; AIR EXC. MIXER TRUCK<RA2> (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1009-1302		●
425	PIPE ASM; AIR (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1009-1302	●
425	PIPE ASM; AIR (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1303-1411	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1412-	●
426	CLIP (D) ID=11 L=16	0-95235-025-0	01	1	1303-1303	●	●
426	CLIP (F) ID=5.8 L=8	8-94155-681-0	02	1	1304-		●
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1009-1411	●	●
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1412-		●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1412-	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1009-1411	●	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1412-1510		●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1412-1510	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1511-		●
426	CLIP EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1511-	●
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302	●	●
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1411	●	●
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-		●
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-	●
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1009-1411	●	●
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1412-		●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1412-	●
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1303	●	●
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-1411	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1412-	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1303-1411	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1412-		●
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1412-	●
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1009-1411	●	●
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1412-1510		●
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1412-1510	●
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1511-		●
438	UNION EXC. CAB SUSPENSION-FULL FLOATING(SMK) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1511-	●
451	JOINT; BALL (B)	1-09760-103-2	02	1	1009-1411	●	●
451	JOINT; BALL (B)	1-09760-103-2	02	1	1412-1510		●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1412-1510	●
451	JOINT; BALL (B)	1-09760-103-2	01	1	1511-		●
451	JOINT; BALL (B)	1-09760-103-2	01	1	1511-		●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	1511-	●
451	JOINT; BALL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-09760-103-2	01	1	1511-	●
451	JOINT; BALL (A)	1-09760-104-2	02	1	1009-1411	●	●
451	JOINT; BALL (A)	1-09760-104-2	02	1	1412-1510		●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1412-1510	●
451	JOINT; BALL (A)	1-09760-104-2	01	1	1511-		●
451	JOINT; BALL (A)	1-09760-104-2	01	1	1511-		●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	1511-	●
451	JOINT; BALL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-09760-104-2	01	1	1511-	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1009-1411	●	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1412-1510		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1412-1510	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1511-		●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1511-		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	1511-	●
452	NUT; BALL JOINT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M5	0-91110-505-0	01	1	1511-	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1009-1411	●	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1412-1510		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1412-1510	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1511-		●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1511-		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	1511-	●
452	NUT; BALL JOINT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B) M5 LH THREAD	9-09840-277-0	01	1	1511-	●

203 70 204 65 72 69 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1009-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	1009-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	1009-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1009-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1009-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1009-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1009-	●	●
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1009-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1009-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1009-	●	●

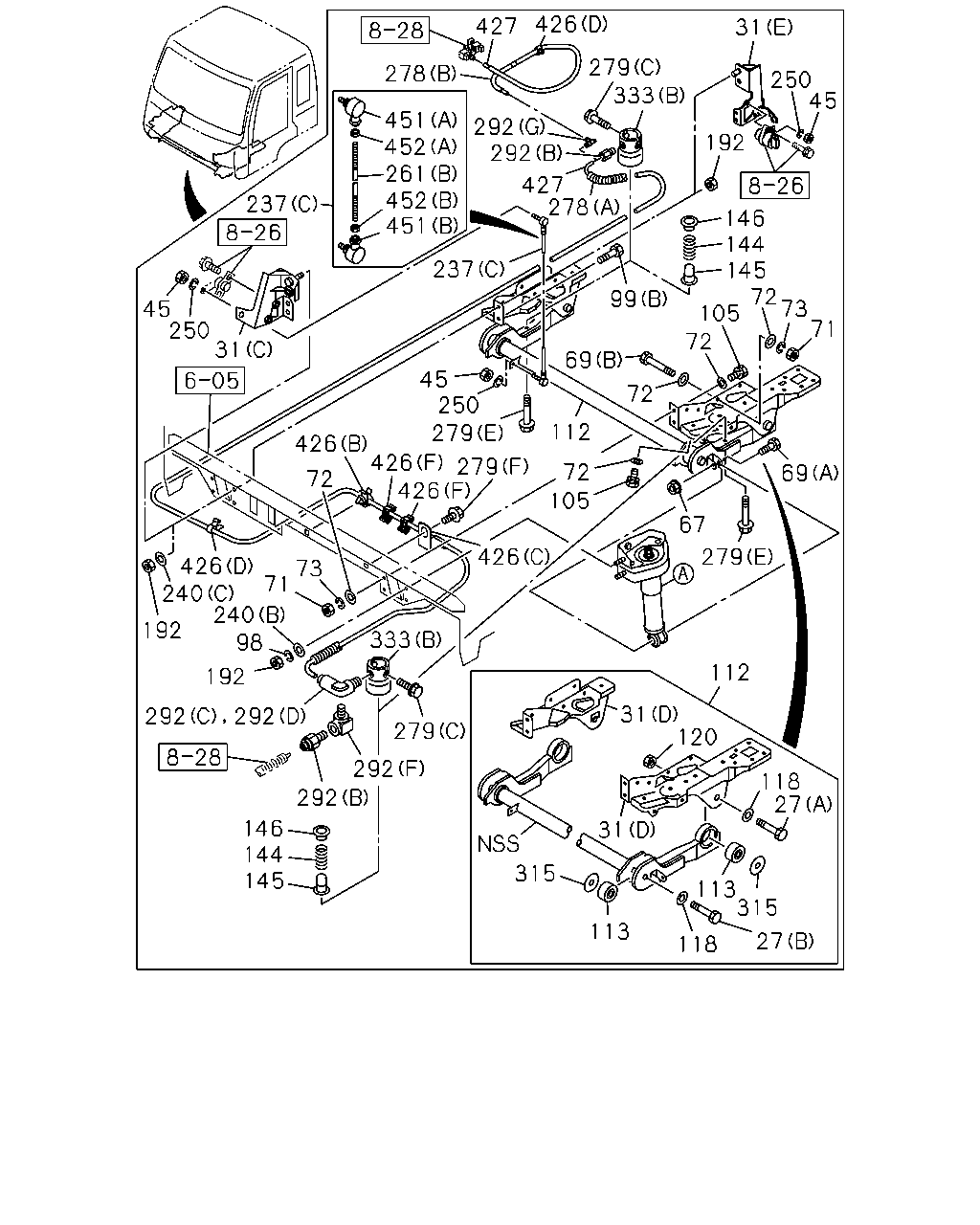

278 451 452 261 237 451 292 279 427 333 426 31 250 192 146 145 69 67 105 72 112 72 69 99 72 72 105 279 112 31 120 118 27 113 315 118 113 315 292 146 144 145 292 279 292 292 192 192 426 240 98 73 71 72 426 45 279 426 426 426 279 237 250 45 31 292 427 278 240 250 452 333 144 27 31 45 73 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1009-	●	●
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1009-	●	●
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1412-	●
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1412-	●
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302	●	●
31	BRACKET; CAB (E)	8-98131-521-2	01	1	1303-1411	●	●
31	BRACKET; CAB (E)	8-98131-521-2	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (E)	8-98131-521-2	01	1	1412-	●
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411	●	●
31	BRACKET; CAB (D)	1-53453-224-5	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1412-	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411	●	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411	●	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1412-1510		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-1510	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1511-		●
31	BRACKET; CAB EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-374-1	01	1	1511-	●
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1302	●	●
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-1411	●	●
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1412-	●	●
45	NUT M5	0-91110-505-0	04	1	1009-1411	●	●
45	NUT M5	0-91110-505-0	04	1	1412-1510		●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1412-1510	●
45	NUT M5	0-91110-505-0	02	1	1511-		●
45	NUT M5	0-91110-505-0	02	1	1511-		●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	1511-	●
45	NUT EXC. CAB SUSPENSION-FULL FLOATING(SMK) M5	0-91110-505-0	02	1	1511-	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	1009-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	1009-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	1009-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	1009-	●	●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-	●	●
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	1009-	●	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING(SMK)	1-53450-565-8	01	1	1412-	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98077-409-1	01	1	1009-1302	●	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98127-505-1	01	1	1303-1411	●	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98127-505-2	01	1	1412-		●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	8-98127-505-2	01	1	1412-	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	1009-	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	1009-	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	1009-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-537-0	02	1	1412-1510	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	1511-	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-139-0	02	1	1412-1510	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	1511-	●
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-138-0	02	1	1412-1510	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	1511-	●
192	NUT; BRKT FIX M10	1-09984-142-0	01	1	1009-1302	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	05	1	1303-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	1009-1302	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1412-1510		●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-1510	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1511-		●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-33670-407-0	01	1	1511-	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411	●	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1412-		●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-	●	●
240	WASHER; PL,BRKT (C) ID=10.5 OD=18	1-09985-173-0	01	1	1303-1410	●	●
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-	●	●
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1009-1411	●	●
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1412-1510		●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1412-1510	●
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1511-		●
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1511-		●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	1511-	●
250	WASHER; LK EXC. CAB SUSPENSION-FULL FLOATING(SMK) ID=5.1	0-91510-505-0	02	1	1511-	●
261	ROD; LINK (B)	0-84100-506-0	01	1	1009-1411	●	●
261	ROD; LINK (B)	0-84100-506-0	01	1	1412-		●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1412-	●
261	ROD; LINK (A)	9-08410-514-0	01	1	1009-1411	●	●
261	ROD; LINK (A)	9-08410-514-0	01	1	1412-1510		●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1412-1510	●
261	ROD; LINK (A)	9-08410-514-0	01	1	1511-		●
261	ROD; LINK EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	9-08410-514-0	01	1	1511-	●
278	COVER (A) L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1304-		●
278	COVER (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-1411	●	●
278	COVER (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1412-		●
278	COVER FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1412-	●
278	COVER (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1303	●	●
278	COVER (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1304-1411	●
278	COVER FULL FLOATING CAB(W16) (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1412-	●
279	BOLT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (G) M8X22 W/LK&PL WASHER	1-09030-042-0	02	1	1009-1302		●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-		●
279	BOLT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1303-1303	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-1411	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-	●
279	BOLT WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302		●
279	BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1411	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-1510		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1412-1510	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1511-		●
292	CONNECTOR; CAB SUSPENSION EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1511-	●
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-1411	●	●
292	CONNECTOR; CAB SUSPENSION (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1412-	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-1510		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-1510	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-		●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-	●
292	CONNECTOR; CAB SUSPENSION EXC. CAB SUSPENSION-FULL FLOATING(SMK) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1511-	●
292	CONNECTOR; CAB SUSPENSION (D) DIN6 & R1/8 & RC1/8 3WAY	1-09661-577-0	01	1	1009-1302	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-	●	●
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	1009-	●	●
333	SPRING (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1009-1411	●	●
333	SPRING (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1412-		●
333	SPRING FULL FLOATING CAB(W16) (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1412-	●
333	SPRING (A)	1-52110-143-4	02	1	1009-1411	●	●
333	SPRING (A)	1-52110-143-4	02	1	1412-1510		●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1412-1510	●
333	SPRING (A)	1-52110-143-4	02	1	1511-		●
333	SPRING EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-52110-143-4	02	1	1511-	●
426	CLIP (D) ID=11 L=16	0-95235-025-0	01	1	1303-1303	●	●
426	CLIP (F) ID=5.8 L=8	8-94155-681-0	02	1	1304-		●
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1009-1411	●	●
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1412-		●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1412-	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1009-1411	●	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1412-1510		●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1412-1510	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1511-		●
426	CLIP EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1511-	●
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302	●	●
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1411	●	●
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-		●
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-	●
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1009-1411	●	●
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1412-		●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1412-	●
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1303	●	●
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-1411	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1412-	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1303-1411	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1412-		●
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1412-	●
451	JOINT; BALL (B)	1-09760-103-2	02	1	1009-1411	●	●
451	JOINT; BALL (B)	1-09760-103-2	02	1	1412-1510		●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1412-1510	●
451	JOINT; BALL (B)	1-09760-103-2	01	1	1511-		●
451	JOINT; BALL (B)	1-09760-103-2	01	1	1511-		●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	1511-	●
451	JOINT; BALL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-09760-103-2	01	1	1511-	●
451	JOINT; BALL (A)	1-09760-104-2	02	1	1009-1411	●	●
451	JOINT; BALL (A)	1-09760-104-2	02	1	1412-1510		●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1412-1510	●
451	JOINT; BALL (A)	1-09760-104-2	01	1	1511-		●
451	JOINT; BALL (A)	1-09760-104-2	01	1	1511-		●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	1511-	●
451	JOINT; BALL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-09760-104-2	01	1	1511-	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1009-1411	●	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1412-1510		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1412-1510	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1511-		●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1511-		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	1511-	●
452	NUT; BALL JOINT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M5	0-91110-505-0	01	1	1511-	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1009-1411	●	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1412-1510		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1412-1510	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1511-		●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1511-		●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	1511-	●
452	NUT; BALL JOINT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B) M5 LH THREAD	9-09840-277-0	01	1	1511-	●

298 297 244 243 240 294 237 301 174 189 449 188 188 321 309 173 295 188 291 99 300 299 299 55 55 333 274 296 325 220 191 183 175 191 66 211 213 212 174 195 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1009-	●	●
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204	●	●
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-	●	●
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-	●	●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98166-346-0	01	1	1412-1510	●
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1511-	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010		●
173	MEMBER; CAB MTG RR WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010	●
173	MEMBER; CAB MTG RR EXC. DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302		●
173	MEMBER; CAB MTG RR WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302	●
173	MEMBER; CAB MTG RR EXC. DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302	●
173	MEMBER; CAB MTG RR	8-98171-651-0	01	1	1303-1411	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-651-0	01	1	1412-	●
173	MEMBER; CAB MTG RR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	8-98063-227-1	01	1	1009-1010		●
173	MEMBER; CAB MTG RR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	8-98171-655-0	01	1	1011-1302		●
173	MEMBER; CAB MTG RR	8-98166-139-0	01	1	1303-1411		●
173	MEMBER; CAB MTG RR	8-98166-139-1	01	1	1412-		●
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-1	01	1	1412-	●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010		●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302		●
174	OUTRIGGER	1-53456-418-3	01	1	1009-	●	●
174	OUTRIGGER	8-98158-646-0	01	1	1009-	●	●
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1009-	●	●
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1009-	●	●
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1009-	●	●
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1009-	●	●
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1009-	●	●
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	1009-	●	●
195	NUT; BRKT FIX WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (A) M8 FLANGE	0-91180-108-0	04	1	1009-1302		●
195	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	04	1	1009-	●	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-128-0	02	1	1412-1510	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	1511-	●
212	SPRING; COIL CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-515-0	02	1	1412-1510	●
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	1511-	●
213	SEAT; SPR,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-132-1	02	1	1412-1510	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	1511-	●
220	GUIDE; SPR	1-53458-648-1	02	1	1009-1411	●	●
220	GUIDE; SPR	1-53458-648-1	02	1	1412-1510		●
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	1412-1510	●
220	GUIDE; SPR	1-53458-648-1	02	1	1511-		●
220	GUIDE; SPR EXC. CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-648-1	02	1	1511-	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1411	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1412-1510		●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1412-1510	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1511-		●
237	ROD ASM; LATERAL EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-33670-407-0	01	1	1511-	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1411	●	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1412-		●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1412-	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-	●	●
240	WASHER; PL,BRKT (C) ID=10.5 OD=18	1-09985-173-0	01	1	1303-1410	●	●
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1009-	●	●
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1009-	●	●
274	PIN	1-53458-996-0	01	1	1009-	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1009-	●	●
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1412-1510	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	1511-	●
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1411	●	●
294	MEMBER; FLOATING	1-53454-949-2	01	1	1412-1510		●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1412-1510	●
294	MEMBER; FLOATING	1-53454-949-2	01	1	1511-		●
294	MEMBER; FLOATING EXC. CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-949-2	01	1	1511-	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●
296	STOPPER; UPR	1-53458-973-1	01	1	1009-	●	●
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1009-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1009-	●	●
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1009-	●	●
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1412-1510	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1511-	●
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411	●	●
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1412-1510		●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	1412-1510	●
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-		●
300	BOLT; MTG RUBBER EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1009-1411	●	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1412-1510		●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1412-1510	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1511-		●
300	BOLT; MTG RUBBER EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1511-	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1009-	●	●
309	NUT M10 FLANGE	0-91180-210-0	04	1	1009-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1009-	●	●
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	1009-1411	●	●
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	1412-1510		●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510	●
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
325	BOLT; GUIDE NUT EXC. CAB SUSPENSION-FULL FLOATING(SMK) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●
333	SPRING (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1009-1411	●	●
333	SPRING (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1412-		●
333	SPRING FULL FLOATING CAB(W16) (B) PT1/8 PT1/8 2WAY	1-52110-142-4	02	1	1412-	●
333	SPRING (A)	1-52110-143-4	02	1	1009-1411	●	●
333	SPRING (A)	1-52110-143-4	02	1	1412-1510		●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1412-1510	●
333	SPRING (A)	1-52110-143-4	02	1	1511-		●
333	SPRING EXC. CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-52110-143-4	02	1	1511-	●
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1009-	●	●

294 202 202 203 204 205 204 203 201 203 204 205 66 174 205 204 203 202 202 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204	●	●
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-	●	●
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98166-346-0	01	1	1412-1510	●
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) CAB SUSPENSION-FULL FLOATING(SMK)	8-98166-346-0	01	1	1511-	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010		●
173	MEMBER; CAB MTG RR WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010	●
173	MEMBER; CAB MTG RR EXC. DUMP TRUCK<RA1>	1-53450-675-1	01	1	1009-1010	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) EXC. DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302		●
173	MEMBER; CAB MTG RR WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302	●
173	MEMBER; CAB MTG RR EXC. DUMP TRUCK<RA1>	8-98171-651-0	01	1	1011-1302	●
173	MEMBER; CAB MTG RR	8-98171-651-0	01	1	1303-1411	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-98171-651-0	01	1	1412-	●
173	MEMBER; CAB MTG RR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	8-98063-227-1	01	1	1009-1010		●
173	MEMBER; CAB MTG RR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	8-98171-655-0	01	1	1011-1302		●
173	MEMBER; CAB MTG RR	8-98166-139-0	01	1	1303-1411		●
173	MEMBER; CAB MTG RR	8-98166-139-1	01	1	1412-		●
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98166-139-1	01	1	1412-	●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1009-1010		●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-657-0	01	1	1011-1302		●
174	OUTRIGGER	1-53456-418-3	01	1	1009-	●	●
174	OUTRIGGER	8-98158-646-0	01	1	1009-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	1009-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1009-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1009-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1009-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1009-	●	●
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1009-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1009-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1009-	●	●
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1412-1510	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	1511-	●
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1411	●	●
294	MEMBER; FLOATING	1-53454-949-2	01	1	1412-1510		●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1412-1510	●
294	MEMBER; FLOATING	1-53454-949-2	01	1	1511-		●
294	MEMBER; FLOATING EXC. CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-949-2	01	1	1511-	●

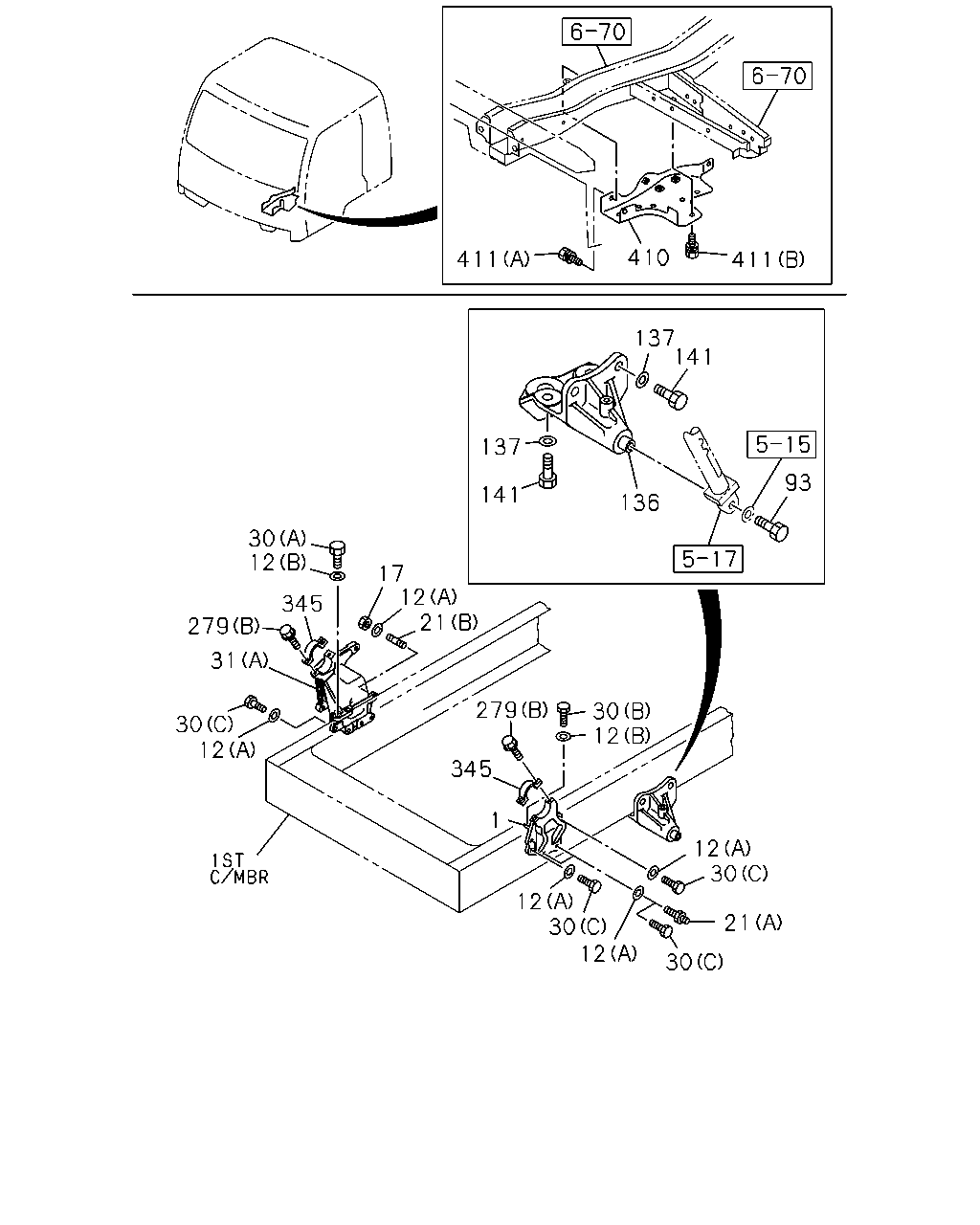

ï¿½ï¿½ 411 410 411 141 136 93 137 30 12 12 30 21 12 30 279 345 12 30 12 30 279 31 12 12 21 17 345 30 141 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	8-98094-536-0	01	1	1009-1302	●	●
1	BRACKET; CAB MTG	8-98120-797-0	01	1	1303-	●	●
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	11	1	1009-	●	●
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1009-	●	●
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	1009-	●	●
21	STUD; BRKT,CAB TILT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M16X55 L=79	8-98200-993-0	01	1	1412-	●
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	1009-1302	●	●
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	1009-1302	●	●
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	1303-1411	●	●
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	1412-		●
21	STUD; BRKT,CAB TILT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M16X50 L=74	1-09300-117-0	01	1	1412-	●
30	BOLT; CAB FRT FOOT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X60	0-20951-660-0	05	1	1412-	●
30	BOLT; CAB FRT FOOT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X60	0-20951-660-0	05	1	1412-	●
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1009-	●	●
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	02	1	1009-1302	●	●
30	BOLT; CAB FRT FOOT (B) M14X50	0-20951-450-0	02	1	1303-	●	●
30	BOLT; CAB FRT FOOT (C) M16X45	9-92061-645-0	08	1	1009-1302	●	●
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1303-1411	●	●
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1303-1411	●	●
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1412-1510		●
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1412-1510		●
30	BOLT; CAB FRT FOOT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X50	0-20951-650-0	05	1	1412-1510	●
30	BOLT; CAB FRT FOOT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X50	0-20951-650-0	05	1	1412-1510	●
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1511-	●	●
30	BOLT; CAB FRT FOOT (C) M16X50	0-20951-650-0	05	1	1511-		●
30	BOLT; CAB FRT FOOT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X50	0-20951-650-0	05	1	1511-	●
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1412-	●
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1412-	●
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302	●	●
31	BRACKET; CAB (E)	8-98131-521-2	01	1	1303-1411	●	●
31	BRACKET; CAB (E)	8-98131-521-2	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (E)	8-98131-521-2	01	1	1412-	●
31	BRACKET; CAB (D)	1-53453-224-4	01	1	1009-1411	●	●
31	BRACKET; CAB (D)	1-53453-224-5	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1412-	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1411	●	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1412-		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1412-	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1411	●	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1412-1510		●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1412-1510	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1511-		●
31	BRACKET; CAB EXC. CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-374-1	01	1	1511-	●
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1302	●	●
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-1411	●	●
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1412-	●	●
93	BOLT; PIN M10X30	1-09000-283-0	01	1	1009-	●	●
136	BRACKET; OIL CYL	1-53458-829-0	01	1	1009-	●	●
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1009-	●	●
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1009-	●	●
279	BOLT WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (G) M8X22 W/LK&PL WASHER	1-09030-042-0	02	1	1009-1302		●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1411	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1412-	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1411	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-		●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1412-	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	02	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1303-1411	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510		●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	03	1	1412-1510	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-		●
279	BOLT EXC. CAB SUSPENSION-FULL FLOATING(SMK) (D) M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1303-1303	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-1411	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1412-	●
279	BOLT WHEEL BASE 4500MM(45W) HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302		●
279	BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
345	CAP; CAB	1-53458-336-3	02	1	1009-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1009-	●	●
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1009-	●	●
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
