5-01 — FRAME AND OTHER PARTS (#61490) — 199 parça

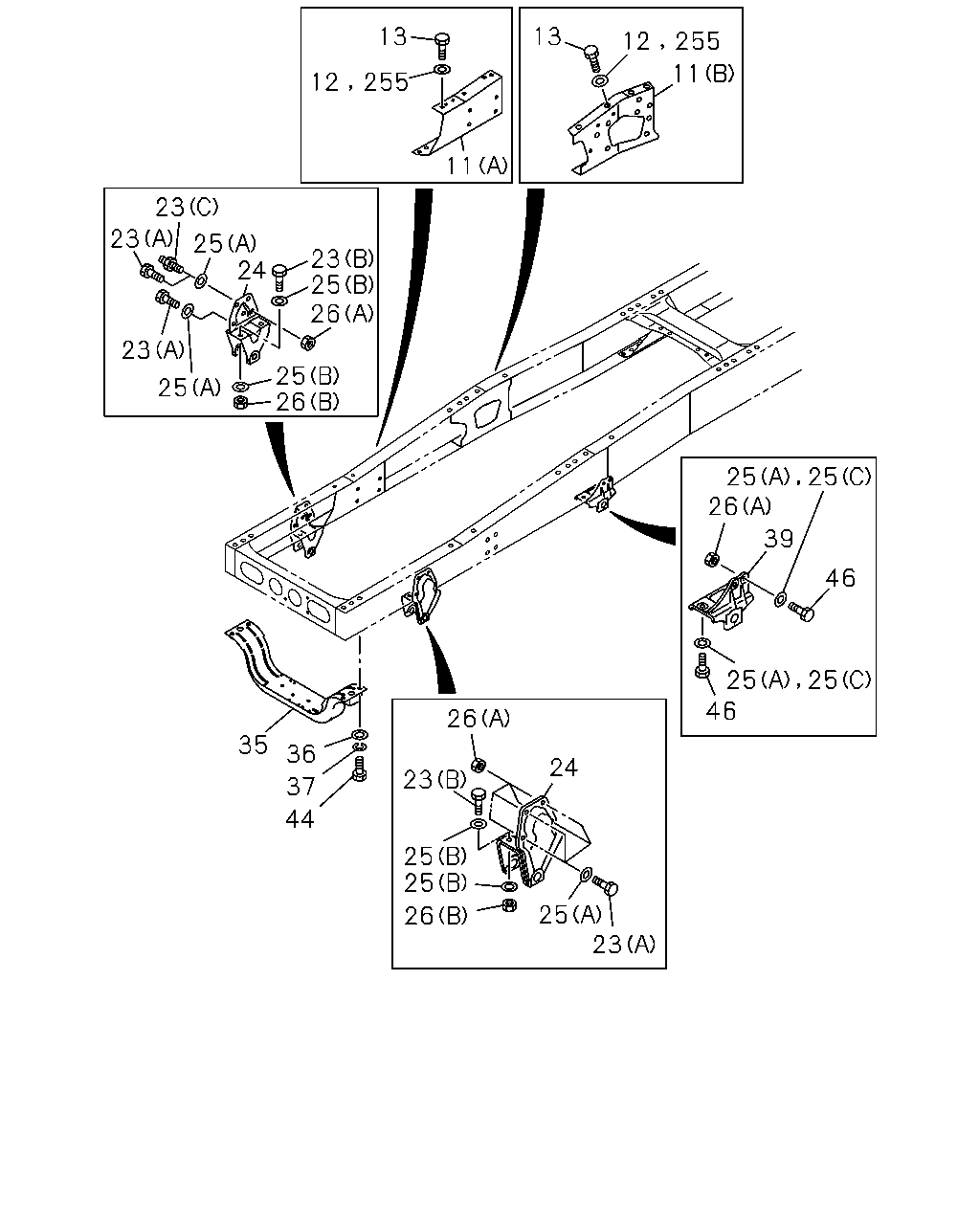

23 23 23 25 23 24 26 25 25 25 26 12 13 255 13 12 255 11 11 35 36 37 44 26 23 25 25 26 24 25 23 25 26 25 46 25 46 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1009-1302	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1009-1302	●
11	BRACKET; ENG MTG (B)	1-53239-139-1	01	1	1009-1302	●
11	BRACKET; ENG MTG (B)	8-97618-424-1	01	1	1009-1302	●
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	1009-1302		●	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	1303-		●		●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	1009-1302		●	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	1303-		●		●	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	1009-1302		●	●	●	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	1303-		●		●	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	1009-1302		●	●	●	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	1303-		●		●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1009-1302	●	●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1303-				●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1303-				●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1009-1302	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1303-		●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	04	1	1009-1302	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	02	1	1009-1302	●
23	BOLT; BRKT,SPR (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	1009-1302	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1009-1302	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1303-		●		●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	07	1	1009-1302		●	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	08	1	1303-		●		●	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	01	1	1009-1302		●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1009-1302	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1303-		●		●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1009-1302	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1303-		●		●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1009-1302	●	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1303-		●		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1009-1201	●	●		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1202-1302	●	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1303-		●		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1009-1201			●
25	WASHER; PL,BRKT (C) ID=15	9-09651-069-0	08	1	1009-1201			●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	1009-1302	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	1303-		●		●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1009-1302	●	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1303-		●		●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	1009-1302		●	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1009-1302	●	●	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1303-		●		●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	1009-1302	●	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1303-		●		●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1009-1302	●	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1303-		●		●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1009-1302	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1303-		●		●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1009-1302	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1303-		●		●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1009-1302	●	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1303-		●		●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1009-1302	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	04	1	1303-		●		●	●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	04	1	1009-1302		●	●	●	●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	04	1	1303-		●		●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	04	1	1009-1302		●	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1009-1302	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1303-		●

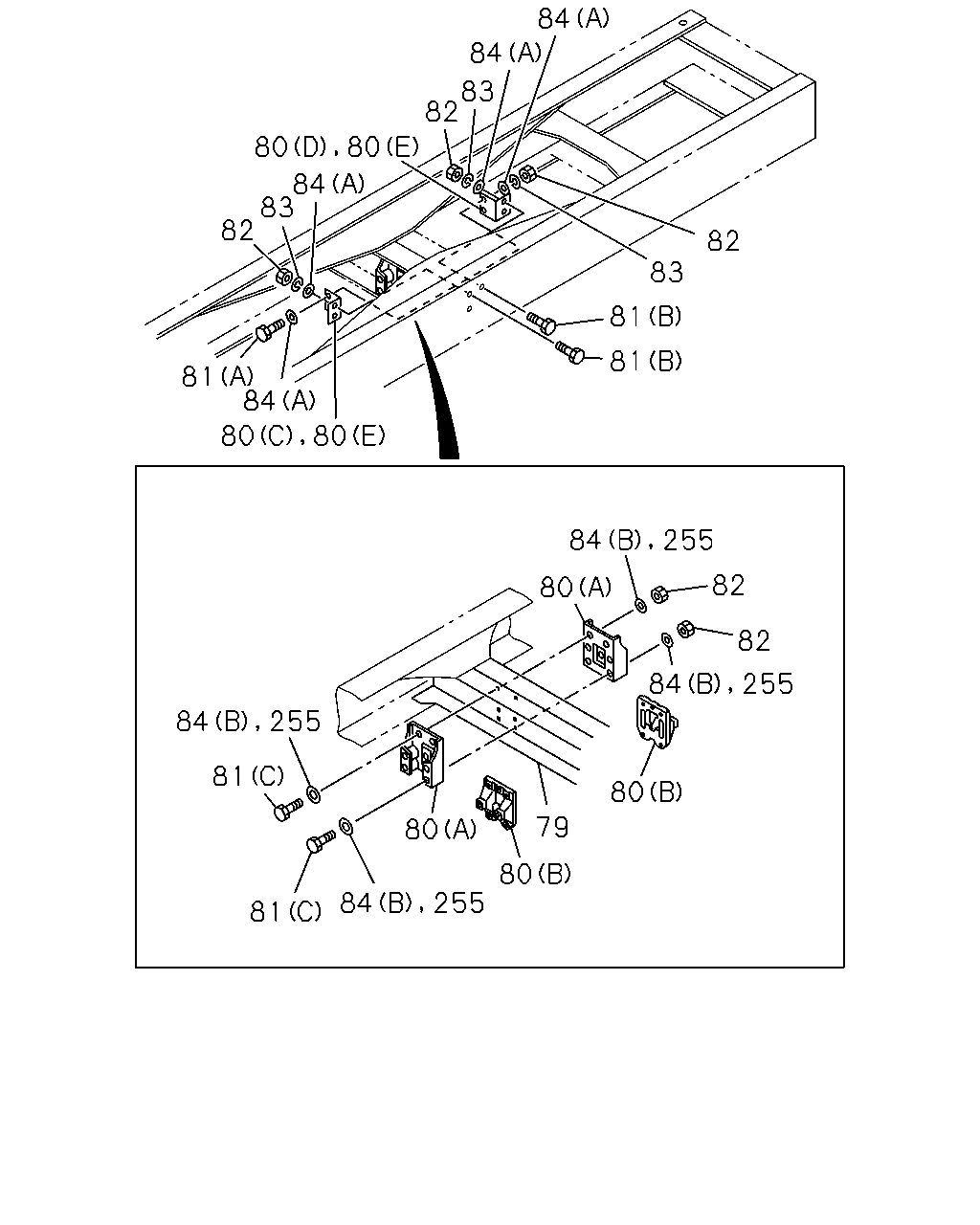

84 84 82 83 81 81 83 82 80 80 83 82 81 80 80 84 84 84 81 255 81 80 84 84 255 82 82 84 80 255 79 80 255 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1009-1302	●			●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98100-625-1	01	1	1303-				●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1009-1302		●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1303-		●
80	BRACKET; C/MBR (E)	1-53167-288-1	04	1	1511-				●	●
80	BRACKET; C/MBR (E)	1-53167-288-1	04	1	1009-1302	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1009-1302	●	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1303-		●		●
80	BRACKET; C/MBR (C)	1-53167-665-1	02	1	1009-1302		●	●
80	BRACKET; C/MBR (D)	1-53167-666-1	02	1	1009-1302		●	●
80	BRACKET; C/MBR (B)	1-53363-076-0	02	1	1009-					●
81	BOLT; BRKT (B) M14X45	0-20951-445-0	08	1	1511-				●	●
81	BOLT; BRKT (A) M14X60	0-20951-460-0	04	1	1511-				●	●
81	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M14X55	9-91066-455-0	04	1	1009-1302	●	●	●	●	●
81	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M14X45	9-92061-445-0	08	1	1009-1302	●	●	●	●	●
81	BOLT; BRKT (C) M14X50	0-20951-450-0	02	1	1303-		●		●
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	1303-		●		●
81	BOLT; BRKT (C) M14X100	0-10956-400-0	04	1	1009-					●
81	BOLT; BRKT (C) M14X50	0-20951-450-0	02	1	1009-1302	●	●	●	●
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	1009-1302	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1511-				●	●
82	NUT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M14	0-91110-514-0	12	1	1009-1302	●	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1303-		●		●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1009-1302	●	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	1511-				●	●
83	WASHER; LK,BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ID=14.2	0-91510-614-0	12	1	1009-1302	●	●	●	●	●
84	WASHER; PL,BRKT (A) ID=15 OD=26	0-91614-514-0	16	1	1511-				●	●
84	WASHER; PL,BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) ID=15 OD=26	9-09164-514-0	16	1	1009-1104	●	●	●	●	●
84	WASHER; PL,BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) ID=15 OD=26	0-91614-514-0	16	1	1105-1302	●	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1009-1302		●	●	●	●
84	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1303-		●		●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1009-1302	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1303-		●

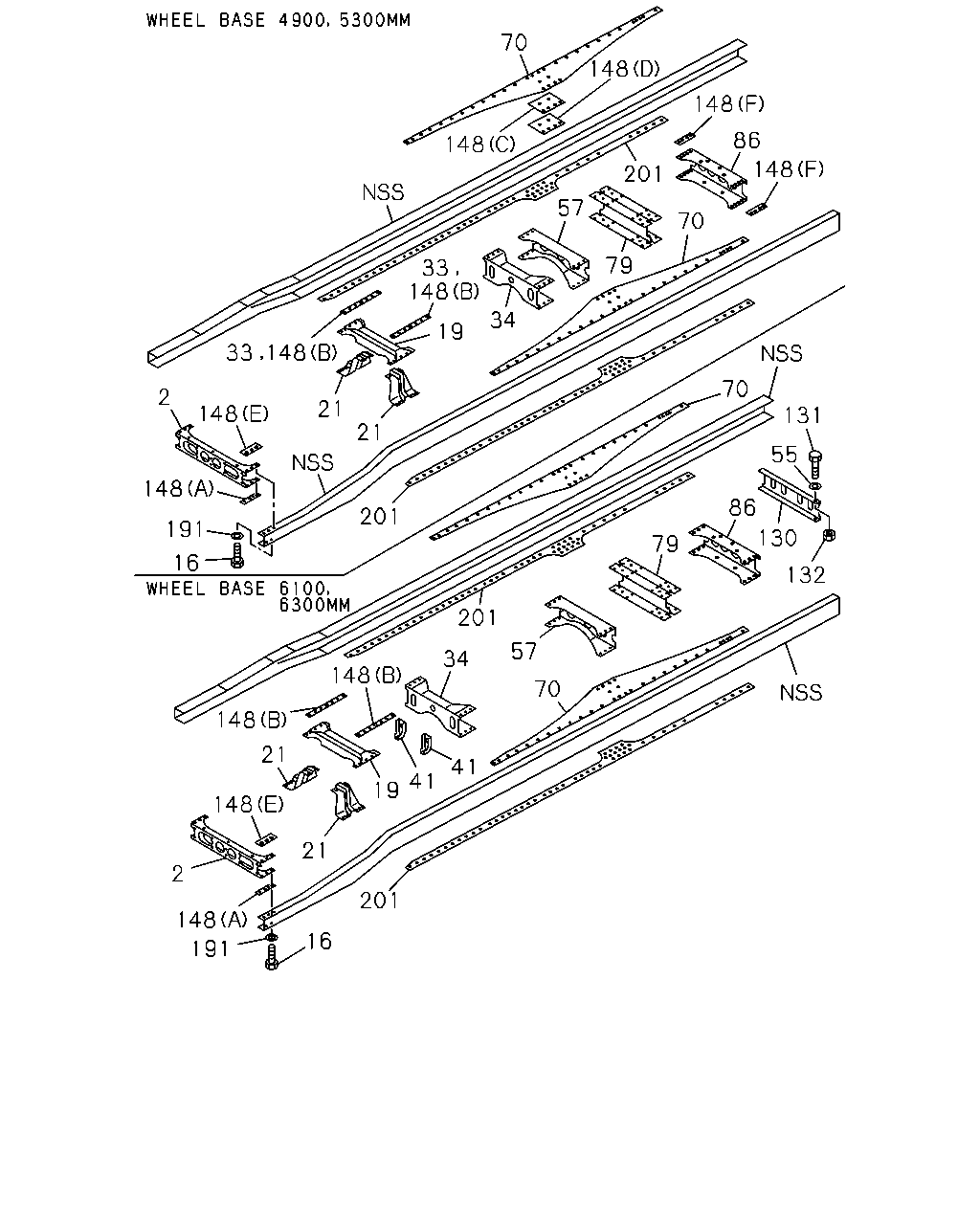

70 148 148 33 148 19 34 57 201 148 86 148 70 79 21 21 148 33 148 148 16 191 201 201 34 148 19 41 41 57 70 79 86 55 131 70 130 132 148 21 148 21 201 16 191 148 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	1-53181-975-6	01	1	1009-1009	●
2	MEMBER; CROSS,1ST	8-97604-959-2	01	1	1009-1009		●	●	●	●
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	1010-1302	●	●	●	●	●
2	MEMBER; CROSS,1ST	8-98232-274-1	01	1	1303-		●		●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1009-1302	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1009-1302				●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1303-		●		●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1302	●	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1303-		●		●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	1009-1302	●
21	GUSSET; 2ND CROSS	8-98098-309-0	02	1	1303-		●		●	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1302		●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1303-		●
34	MEMBER; CROSS,3RD	1-53182-072-1	01	1	1009-1302			●
34	MEMBER; CROSS,3RD	8-98164-825-0	01	1	1009-				●
34	MEMBER; CROSS,3RD	1-53181-639-3	01	1	1009-1302					●
34	MEMBER; CROSS,3RD	8-98105-872-0	01	1	1303-					●
41	BRACKET; CENTER BRG,FRAME SIDE	1-53271-390-0	02	1	1009-1302				●
41	BRACKET; CENTER BRG,FRAME SIDE	8-98120-236-0	02	1	1303-				●
41	BRACKET; CENTER BRG,FRAME SIDE	1-53271-377-0	02	1	1009-1302					●
41	BRACKET; CENTER BRG,FRAME SIDE	8-98120-238-0	02	1	1303-					●
55	WASHER; PL ID=15	8-98010-627-1	04	1	1009-				●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1009-1302	●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1303-		●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1302		●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1303-				●	●
70	GUSSET; TRUNNION,UPR	1-53161-894-0	02	1	1009-1302		●
70	GUSSET; TRUNNION,UPR	8-98226-957-0	02	1	1303-		●
70	GUSSET; TRUNNION,UPR	8-98157-791-0	02	1	1009-1302			●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1302				●	●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1303-				●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1009-1302	●			●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98100-625-1	01	1	1303-				●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1009-1302		●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1303-		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1009-1302	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-609-3	01	1	1009-1302		●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	1009-1302				●	●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1303-		●		●	●
130	MEMBER; CROSS,END	1-53181-537-2	01	1	1009-1302				●	●
130	MEMBER; CROSS,END	8-98103-326-1	01	1	1303-				●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-				●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-				●	●
148	SPACER; C/MBR (G) T=8.0	1-53168-508-0	02	1	1009-1302	●
148	SPACER; C/MBR (B)	8-98098-110-0	02	1	1303-				●	●
148	SPACER; C/MBR (D) T=7.0	1-53168-486-0	02	1	1009-1302	●	●	●
148	SPACER; C/MBR (C) T=7.5	1-53168-487-0	02	1	1009-1302		●	●
148	SPACER; C/MBR (C)	8-97623-189-0	02	1	1303-		●
148	SPACER; C/MBR (F)	1-53168-489-0	02	1	1009-1302		●	●
148	SPACER; C/MBR (E)	1-53168-400-1	02	1	1009-1302		●	●	●	●
148	SPACER; C/MBR (E)	8-98118-884-2	02	1	1303-		●		●	●
148	SPACER; C/MBR (A)	1-53168-403-1	02	1	1009-1302		●	●	●	●
148	SPACER; C/MBR (A)	8-98118-885-0	02	1	1303-		●		●	●
148	SPACER; C/MBR (B)	1-53168-443-0	02	1	1009-1302		●	●	●	●
148	SPACER; C/MBR (E)	8-98118-884-2	02	1	1302-		●
148	SPACER; C/MBR (A)	8-98118-885-0	02	1	1302-		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1009-1302	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1009-1302				●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-		●		●	●
201	GUSSET; C/MBR	1-53161-890-1	02	1	1009-1302		●
201	GUSSET; C/MBR	8-98226-965-0	02	1	1303-		●
201	GUSSET; C/MBR	1-53161-933-1	02	1	1009-1302			●
201	GUSSET; C/MBR	1-53161-892-1	02	1	1009-1302				●
201	GUSSET; C/MBR	8-98226-961-0	02	1	1303-				●
201	GUSSET; C/MBR	1-53161-893-0	02	1	1009-1302					●
201	GUSSET; C/MBR	8-98226-962-0	02	1	1303-					●

148 86 79 57 21 19 148 21 16 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	1-53181-975-6	01	1	1009-1009	●
2	MEMBER; CROSS,1ST	8-97604-959-2	01	1	1009-1009		●	●	●	●
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	1010-1302	●	●	●	●	●
2	MEMBER; CROSS,1ST	8-98232-274-1	01	1	1303-		●		●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1009-1302	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1009-1302				●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1303-		●		●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1302	●	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1303-		●		●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	1009-1302	●
21	GUSSET; 2ND CROSS	8-98098-309-0	02	1	1303-		●		●	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1302		●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1009-1302	●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1303-		●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1302		●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1303-				●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1009-1302	●			●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98100-625-1	01	1	1303-				●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1009-1302		●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1303-		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1009-1302	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-609-3	01	1	1009-1302		●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	1009-1302				●	●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1303-		●		●	●
148	SPACER; C/MBR (G) T=8.0	1-53168-508-0	02	1	1009-1302	●
148	SPACER; C/MBR (B)	8-98098-110-0	02	1	1303-				●	●
148	SPACER; C/MBR (D) T=7.0	1-53168-486-0	02	1	1009-1302	●	●	●
148	SPACER; C/MBR (C) T=7.5	1-53168-487-0	02	1	1009-1302		●	●
148	SPACER; C/MBR (C)	8-97623-189-0	02	1	1303-		●
148	SPACER; C/MBR (F)	1-53168-489-0	02	1	1009-1302		●	●
148	SPACER; C/MBR (E)	1-53168-400-1	02	1	1009-1302		●	●	●	●
148	SPACER; C/MBR (E)	8-98118-884-2	02	1	1303-		●		●	●
148	SPACER; C/MBR (A)	1-53168-403-1	02	1	1009-1302		●	●	●	●
148	SPACER; C/MBR (A)	8-98118-885-0	02	1	1303-		●		●	●
148	SPACER; C/MBR (B)	1-53168-443-0	02	1	1009-1302		●	●	●	●
148	SPACER; C/MBR (E)	8-98118-884-2	02	1	1302-		●
148	SPACER; C/MBR (A)	8-98118-885-0	02	1	1302-		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1009-1302	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1009-1302				●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-		●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
