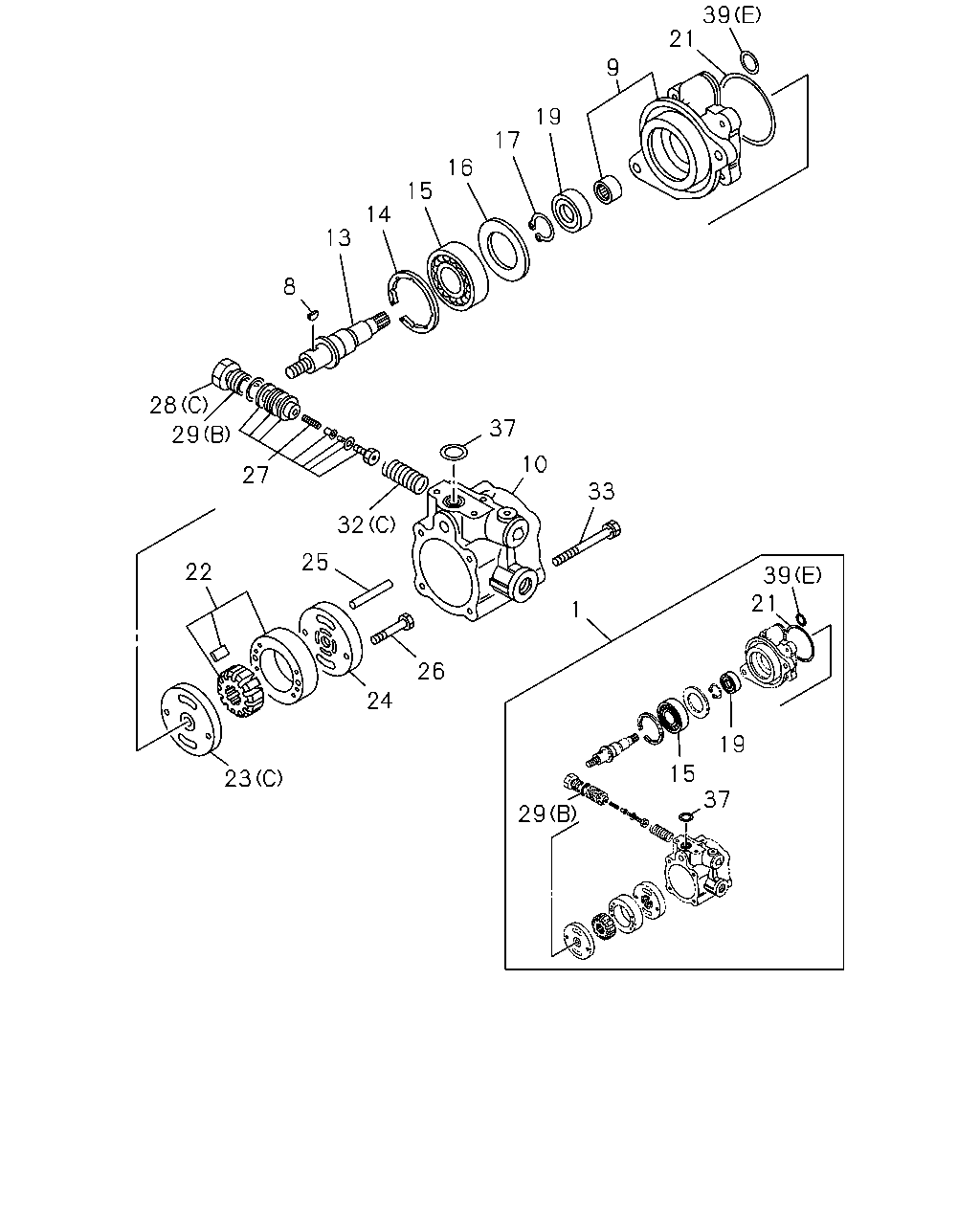

4-42 — POWER STEERING OIL PUMP (#6149) — 111 parça

39 21 9 19 17 16 15 14 13 8 28 37 29 10 27 33 32 25 22 39 21 1 26 24 19 15 37 23 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-85574-049-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-85574-082-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2, C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-345-7	1-19511-130-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-130-0	01	1	0105-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-166-0	01	1	-0104
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-601-2	1-19511-189-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-608-1, E = 1-19500-616-3	1-19511-196-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-345-7	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-131-0	01	1	-0104
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-601-2	1-19511-191-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-193-0	01	1	0105-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-608-1, E = 1-19500-616-3	1-19511-198-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19521-041-1	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-361-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19515-016-1	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-360-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-367-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-563-2	1-19519-311-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-345-7	1-19519-325-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-601-2	1-19519-357-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-608-1	1-19519-373-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-616-3	1-19519-374-0	01	1	-
23	PLATE; SIDE,OIL PUMP (C) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-363-0	01	1	-
23	PLATE; SIDE,OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-372-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-312-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-371-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-359-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-345-7	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-563-2	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-345-7	1-19519-106-0	02	1	-
26	SCREW; PLATE ASM PART: B = 1-19500-563-2	1-19519-142-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP (C) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-368-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-369-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	9-44519-087-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2, C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-370-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-345-7	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-563-2	1-19519-245-0	04	1	-
33	BOLT; COVER ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-346-0	06	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2, C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-364-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-365-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-366-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	8-94240-926-0	04	1	-

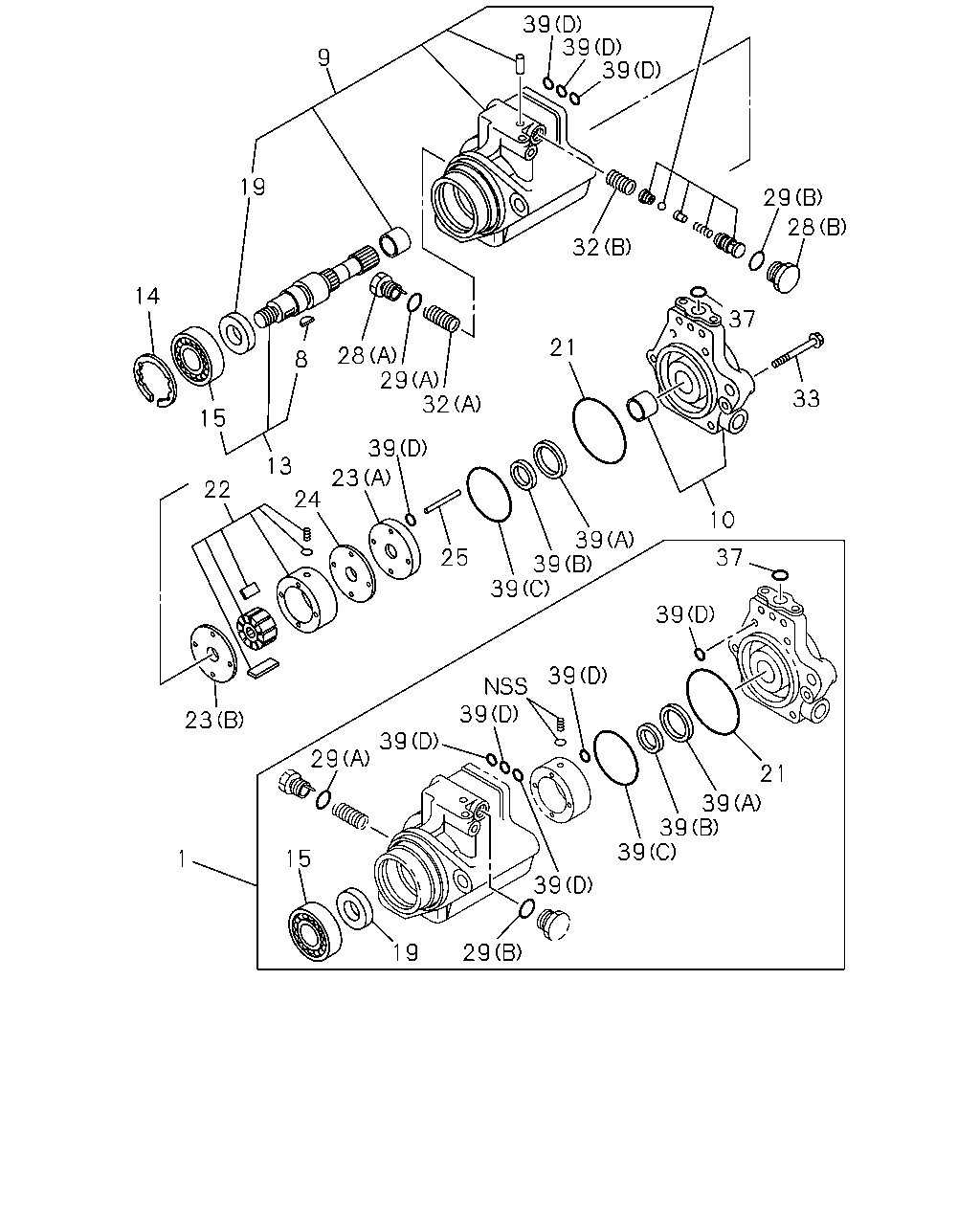

39 39 39 9 19 29 28 32 14 37 21 28 29 32 8 33 15 39 13 23 24 22 10 39 39 39 25 37 39 39 39 23 39 29 21 39 39 39 15 1 39 29 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-85574-049-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-85574-082-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2, C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-345-7	1-19511-130-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-130-0	01	1	0105-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-166-0	01	1	-0104
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-601-2	1-19511-189-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-608-1, E = 1-19500-616-3	1-19511-196-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-345-7	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-131-0	01	1	-0104
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-601-2	1-19511-191-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-563-2	1-19511-193-0	01	1	0105-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-608-1, E = 1-19500-616-3	1-19511-198-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19521-041-1	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-361-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19515-016-1	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-360-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-367-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-563-2	1-19519-311-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-345-7	1-19519-325-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-601-2	1-19519-357-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-608-1	1-19519-373-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-616-3	1-19519-374-0	01	1	-
23	PLATE; SIDE,OIL PUMP (C) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-363-0	01	1	-
23	PLATE; SIDE,OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-372-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-312-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-371-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-359-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-345-7	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-563-2	9-88510-421-0	02	1	-
28	PLUG; DRAIN,OIL PUMP (C) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-368-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-369-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	9-44519-087-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2, C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-370-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-345-7	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-563-2	1-19519-245-0	04	1	-
33	BOLT; COVER ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-346-0	06	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-345-7, B = 1-19500-563-2, C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: A = 1-19500-345-7, B = 1-19500-563-2	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-364-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-365-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	1-19519-366-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: C = 1-19500-601-2, D = 1-19500-608-1, E = 1-19500-616-3	8-94240-926-0	04	1	-
