4-65 — REAR LEAF SPRING (#61488) — 165 parça

35 10 9 8 7 36 5 4 6 34 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-240-0	01	1	-1109
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-934-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-988-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-621-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-081-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-311-0	01	1	1110-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-241-0	01	1	-1109
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-935-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-989-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-622-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-082-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-312-0	01	1	1110-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-242-0	01	1	-1109
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-936-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-990-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-623-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-083-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-313-0	01	1	1110-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-243-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98145-654-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-937-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-991-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-084-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-244-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98145-655-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-938-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-992-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-085-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51416-294-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-939-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-086-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51417-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-940-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-087-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51418-294-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-941-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-088-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51419-294-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-942-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-089-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=205 ASM PART: A = 1-51410-294-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51356-364-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=215 ASM PART: D = 8-98138-268-0	1-51356-369-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=215 ASM PART: E = 8-98140-159-0, F = 8-98157-786-0	8-98148-955-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: G = 8-98159-622-0	8-98156-981-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: A = 1-51410-294-0, E = 8-98140-159-0, F = 8-98157-786-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1, D = 8-98138-268-0, G = 8-98159-622-0	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-294-0, E = 8-98140-159-0, F = 8-98157-786-0	1-09000-326-0	01	1	-

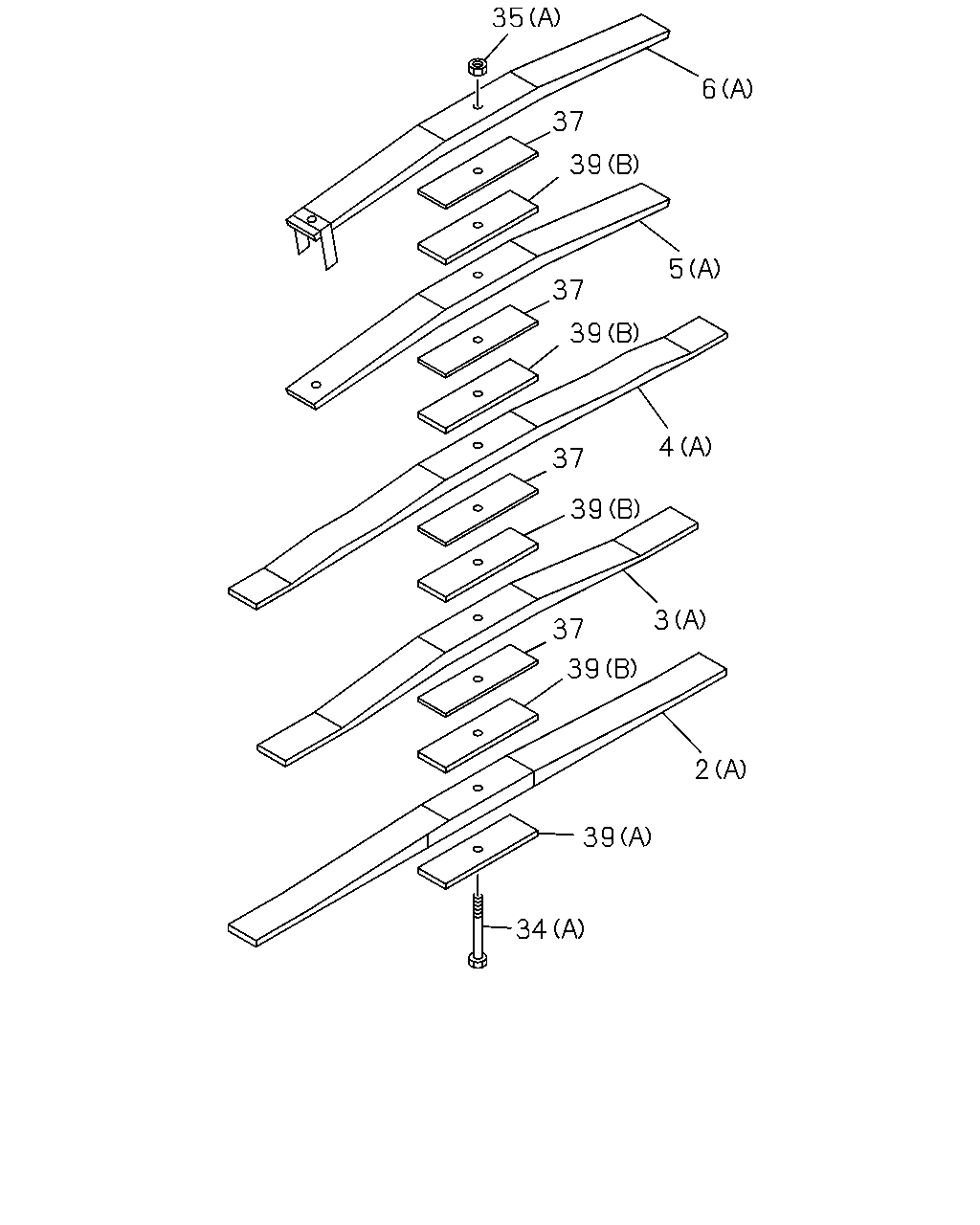

35 6 37 37 39 5 39 37 4 39 3 37 39 2 34 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-240-0	01	1	-1109
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-934-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-988-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-621-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-081-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-311-0	01	1	1110-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-241-0	01	1	-1109
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-935-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-989-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-622-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-082-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-312-0	01	1	1110-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-242-0	01	1	-1109
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-936-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-990-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-623-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-083-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-313-0	01	1	1110-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-243-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98145-654-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-937-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-991-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-084-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-244-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98145-655-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-938-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-992-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-085-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=205 ASM PART: A = 1-51410-294-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51356-364-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=215 ASM PART: D = 8-98138-268-0	1-51356-369-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=215 ASM PART: E = 8-98140-159-0, F = 8-98157-786-0	8-98148-955-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: G = 8-98159-622-0	8-98156-981-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: A = 1-51410-294-0, E = 8-98140-159-0, F = 8-98157-786-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1, D = 8-98138-268-0, G = 8-98159-622-0	1-09400-061-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1.2 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1, D = 8-98138-268-0, G = 8-98159-622-0	1-51359-037-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1, D = 8-98138-268-0, G = 8-98159-622-0	1-51377-399-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=3.2 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1, D = 8-98138-268-0, G = 8-98159-622-0	8-97615-292-0	01	1	-

35 11 10 9 8 36 7 6 5 4 3 2 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-240-0	01	1	-1109
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-934-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-988-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-621-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-081-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-311-0	01	1	1110-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-241-0	01	1	-1109
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-935-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-989-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-622-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-082-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-312-0	01	1	1110-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-242-0	01	1	-1109
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-936-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-990-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98161-623-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-083-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98199-313-0	01	1	1110-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-243-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98145-654-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-937-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-991-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-084-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: A = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: B = 8-98101-101-1	8-98105-244-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: G = 8-98159-622-0	8-98145-655-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: E = 8-98140-159-0	8-98148-938-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: D = 8-98138-268-0	8-98156-992-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (C) ASM PART: F = 8-98157-786-0	8-98162-085-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51416-294-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-939-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-086-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51417-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-940-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-087-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51418-294-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-941-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-088-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (A) ASM PART: A = 1-51410-294-0	1-51419-294-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (A) ASM PART: E = 8-98140-159-0	8-98148-942-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN (B) ASM PART: F = 8-98157-786-0	8-98162-089-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: F = 8-98157-786-0	8-98162-090-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=205 ASM PART: A = 1-51410-294-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51356-364-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=215 ASM PART: D = 8-98138-268-0	1-51356-369-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=215 ASM PART: E = 8-98140-159-0, F = 8-98157-786-0	8-98148-955-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: G = 8-98159-622-0	8-98156-981-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: A = 1-51410-294-0, E = 8-98140-159-0, F = 8-98157-786-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1, D = 8-98138-268-0, G = 8-98159-622-0	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-294-0, E = 8-98140-159-0, F = 8-98157-786-0	1-09000-326-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
