◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#61487) — 92 parça

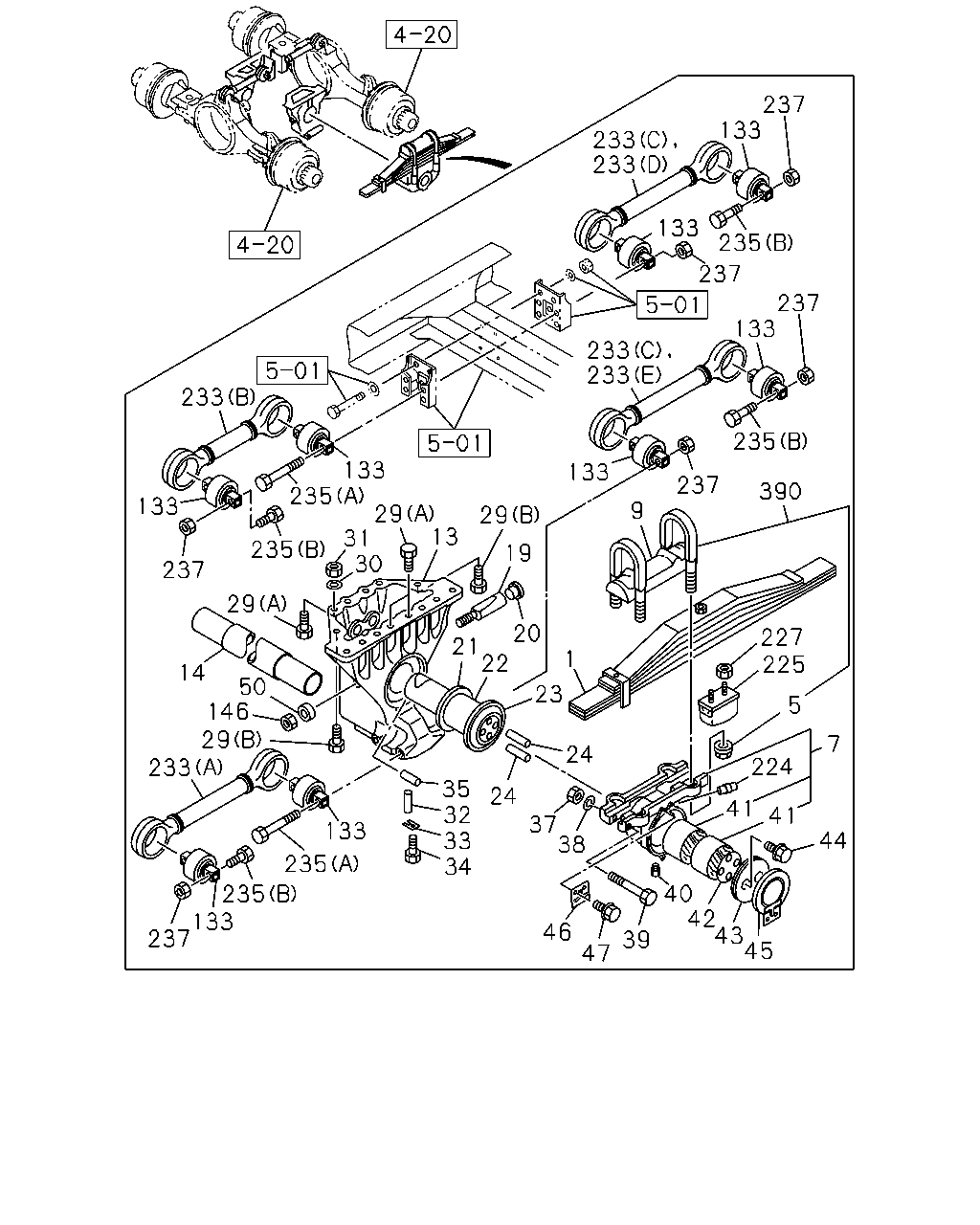

çizim 168496
233 233 133 237 133 235 237 237 133 235 390 227 225 5 7 224 41 41 44 40 42 43 45 39 47 46 38 37 24 24 23 20 22 21 133 235 235 133 237 233 29 146 50 19 9 237 133 29 13 29 31 30 235 29 237 235 133 233 133 233 233 14 35 32 33 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSP RR<SAS> 9-LEAF 		1-51410-294-0 02 1 1412- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CRANE TRUCK<RA4> TAPER LEAF SUSP RR<SAT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98138-268-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. HONG KONG EQUIPMENT(PQ1),DUMP TRUCK<RA1>, CRANE TRUCK<RA4>,FULL TRACTOR TRUCK<RD6> 5-LEAF 		8-98138-268-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. DUMP TRUCK<RA1> 10-LEAF 		8-98157-786-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> 9-LEAF 		1-51410-294-0 02 1 1009-1302 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98102-211-1 02 1 1303- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98101-101-1 02 1 1009-1302 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98101-101-1 02 1 1303-1411 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98101-101-1 02 1 1412-1510 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1> 5-LEAF 		8-98101-101-1 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 1009- ● ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1009- ●
7 SEAT; SPR,LWR
MJT7S M/T(Y3E) 		8-97614-049-2 02 1 1009- ●
7 SEAT; SPR,LWR
MJX12P M/T SMOOTHER-G(Y4S) 		8-97613-609-2 02 1 1009- ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 1009-1010 ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1011- ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1009- ●
13 BRACKET; TRUNNION SHAFT
MJT7S M/T(Y3E) 		1-53361-079-0 02 1 1009- ●
13 BRACKET; TRUNNION SHAFT
MJX12P M/T SMOOTHER-G(Y4S) 		1-53361-080-0 02 1 1009- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1009- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1009- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1009- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1009- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1009- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1009- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1009- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1009- ●
29 BOLT; BRKT TO FRAME
MJT7S M/T(Y3E) (A) M18X75 		8-98012-872-0 24 1 1009- ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1009-1510 ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		0-20951-855-0 04 1 1511- ● ●
29 BOLT; BRKT TO FRAME
MJX12P M/T SMOOTHER-G(Y4S) (A) M18X75 		8-98012-872-0 20 1 1009- ●
29 BOLT; BRKT TO FRAME
MJX12P M/T SMOOTHER-G(Y4S) (B) M18X62.5 		8-98012-873-0 04 1 1009- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1009- ● ●
31 NUT; TRUNNION BRKT
MJX12P M/T SMOOTHER-G(Y4S) M18 		0-91110-518-0 24 1 1511- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1009-1510 ● ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1511- ●
31 NUT; TRUNNION BRKT
MJT7S M/T(Y3E) M18 		0-91110-518-0 28 1 1511- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1009- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1009- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1009- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1009- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1009- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1009- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1009- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1009- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1009- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1009- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1009- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1009- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1009- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1009- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1009- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1009- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1009- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1009- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1009- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 08 1 1009- ● ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1009- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-045-1 02 1 1303- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-046-1 02 1 1303- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-072-2 02 1 1009-1302 ●
225 RUBBER; CUSHION,RR SPR
MJT7S M/T(Y3E) FORWARD LH,REARWARD RH 		1-53366-072-2 02 1 1009-1302 ●
225 RUBBER; CUSHION,RR SPR
MJT7S M/T(Y3E) FORWARD LH,REARWARD RH 		1-53366-072-2 02 1 1303- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-2 02 1 1009-1302 ●
225 RUBBER; CUSHION,RR SPR
MJT7S M/T(Y3E) FORWARD RH,REARWARD LH 		1-53366-073-2 02 1 1009-1302 ●
225 RUBBER; CUSHION,RR SPR
MJT7S M/T(Y3E) FORWARD RH,REARWARD LH 		1-53366-073-2 02 1 1303- ●
225 RUBBER; CUSHION,RR SPR
MJX12P M/T SMOOTHER-G(Y4S) FORWARD LH,REARWARD RH 		8-98127-349-0 02 1 1009- ●
225 RUBBER; CUSHION,RR SPR
MJX12P M/T SMOOTHER-G(Y4S) FORWARD RH,REARWARD LH 		8-98127-350-0 02 1 1009- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1009- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=515 		1-51511-655-0 02 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 01 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
MJT7S M/T(Y3E) (B) L=525 		1-51511-656-0 01 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
MJT7S M/T(Y3E) (C) L=550 		1-51511-659-0 03 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 02 1 1009-1302 ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 02 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
MJX12P M/T SMOOTHER-G(Y4S) (D) L=535 		1-51511-657-0 01 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
MJX12P M/T SMOOTHER-G(Y4S) (E) L=560 		1-51511-669-0 02 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
MJX12P M/T SMOOTHER-G(Y4S) (B) L=540 		1-51511-674-0 01 1 1009- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1009- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1009- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1009- ● ●
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
CRANE TRUCK<RA4> TAPER LEAF SUSP RR<SAT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 1009-1510 ● ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 1511- ●
390 U-BOLT SET; RR SPRING
EXC. TAPER LEAF SUSP RR<SAT> L=350 		1-87870-392-1 04 1 1511- ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1> L=350 		1-87870-392-1 04 1 1511- ●
