4-55 — FRONT LEAF SPRING (#61486) — 99 parça

16 20 19 17 18 18 15 19 19 19 19 19 19 17 1 2 3 18 4 5 6 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: C = 8-98140-088-0	1-51131-849-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-906-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-664-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-610-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: F = 8-98229-520-0	8-98232-150-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: C = 8-98140-088-0	1-51132-849-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-907-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-665-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-611-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: F = 8-98229-520-0	8-98232-151-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: C = 8-98140-088-0	1-51133-893-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-908-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-826-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-666-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-612-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: F = 8-98229-520-0	8-98232-152-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: F = 8-98229-520-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: C = 8-98140-088-0	1-51134-893-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-909-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-827-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-667-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-613-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98140-089-0	8-98131-828-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98140-089-0	8-98131-829-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 8-98140-089-0	8-98131-830-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 8-98140-089-0	8-98131-831-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=125 ASM PART: F = 8-98229-520-0	1-51156-291-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=165 ASM PART: D = 8-98140-089-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: E = 8-98157-779-0	1-51156-414-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0	1-51156-419-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: D = 8-98140-089-0, F = 8-98229-520-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: D = 8-98140-089-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: F = 8-98229-520-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: F = 8-98229-520-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X102 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0	1-09000-759-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-98140-089-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-98140-089-0	8-97615-895-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: E = 8-98157-779-0	8-98161-627-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: F = 8-98229-520-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: D = 8-98140-089-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: D = 8-98140-089-0, F = 8-98229-520-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=9 ASM PART: A = 8-97618-758-0	1-51377-401-0	02	1	-
20	SEAT; LEAF SPR,FRT (E), T=10 ASM PART: E = 8-98157-779-0	1-51377-402-0	02	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: E = 8-98157-779-0	8-98161-626-0	01	1	-

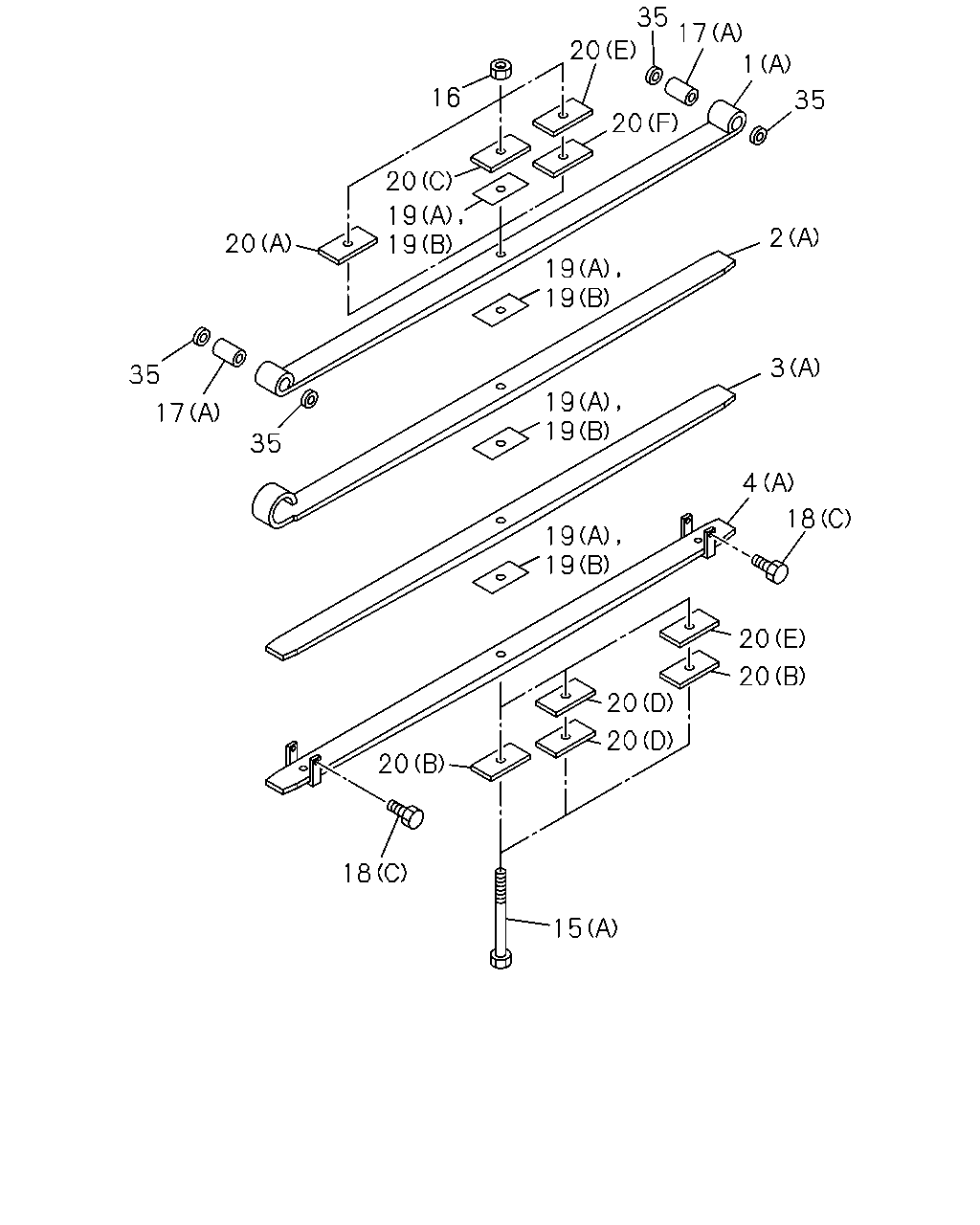

20 35 17 35 20 19 19 16 20 18 15 20 20 20 20 18 4 19 19 19 19 19 19 3 2 35 20 20 35 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: C = 8-98140-088-0	1-51131-849-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-906-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-664-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-610-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: F = 8-98229-520-0	8-98232-150-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: C = 8-98140-088-0	1-51132-849-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-907-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-665-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-611-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: F = 8-98229-520-0	8-98232-151-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: C = 8-98140-088-0	1-51133-893-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-908-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-826-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-666-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-612-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: F = 8-98229-520-0	8-98232-152-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: F = 8-98229-520-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: C = 8-98140-088-0	1-51134-893-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-97618-758-0	8-98071-909-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-98140-089-0	8-98131-827-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98140-087-0	8-98145-667-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: E = 8-98157-779-0	8-98161-613-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=125 ASM PART: F = 8-98229-520-0	1-51156-291-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=165 ASM PART: D = 8-98140-089-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: E = 8-98157-779-0	1-51156-414-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0	1-51156-419-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: D = 8-98140-089-0, F = 8-98229-520-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: D = 8-98140-089-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: F = 8-98229-520-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: F = 8-98229-520-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X102 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0	1-09000-759-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-98140-089-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-98140-089-0	8-97615-895-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: E = 8-98157-779-0	8-98161-627-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: F = 8-98229-520-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: D = 8-98140-089-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: D = 8-98140-089-0, F = 8-98229-520-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=9 ASM PART: A = 8-97618-758-0	1-51377-401-0	02	1	-
20	SEAT; LEAF SPR,FRT (E), T=10 ASM PART: E = 8-98157-779-0	1-51377-402-0	02	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: E = 8-98157-779-0	8-98161-626-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-97618-758-0, B = 8-98140-087-0, C = 8-98140-088-0, E = 8-98157-779-0, F = 8-98229-520-0	1-51177-321-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
