◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#61485) — 75 parça

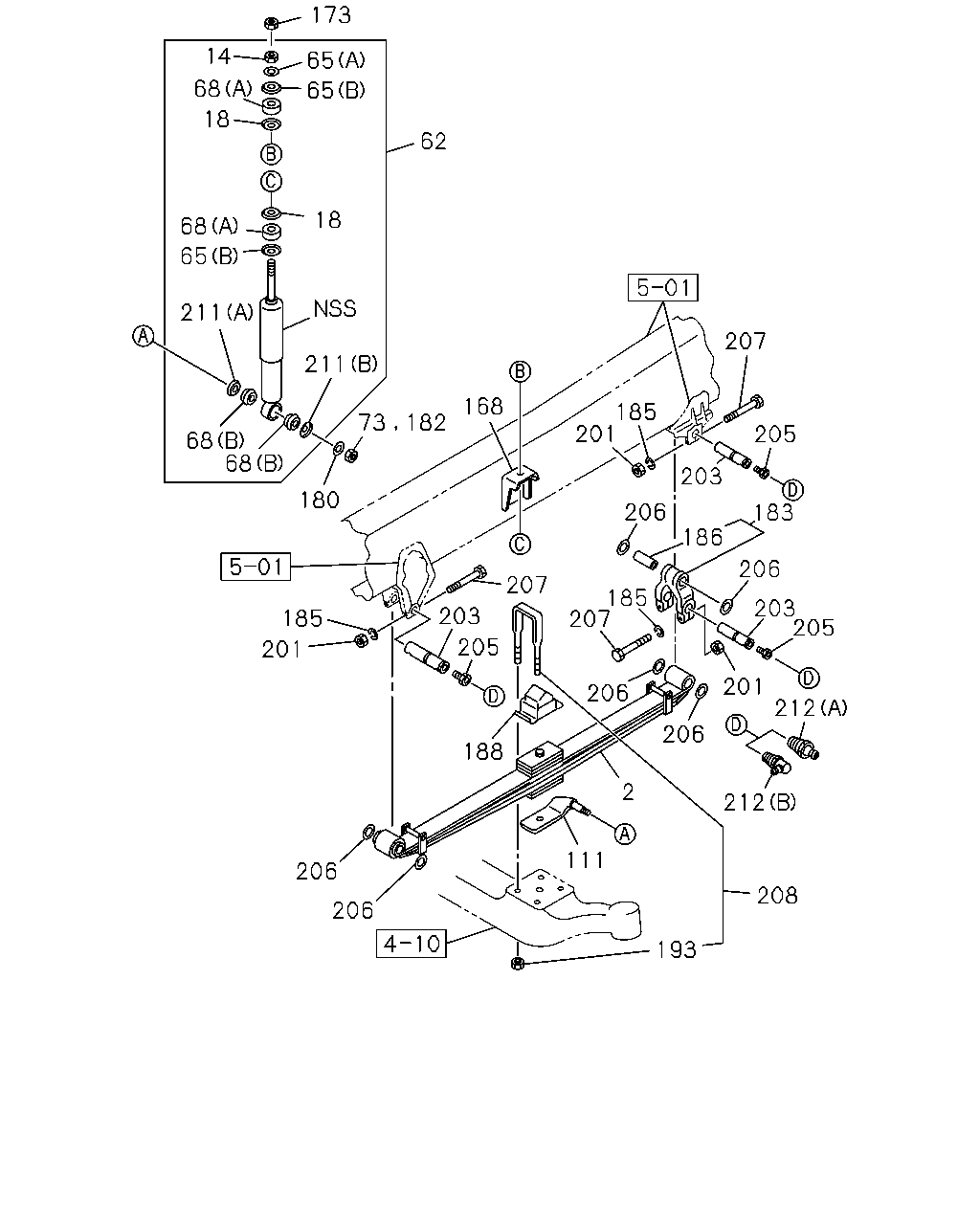

çizim 168518
173 14 68 65 18 65 62 18 68 211 65 211 68 180 68 73 182 168 207 185 201 203 205 206 207 185 201 203 205 206 206 188 2 111 193 206 207 186 201 206 212 208 212 205 203 206 183 185
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> SINGAPORE EQUIPMENT(WQ3) 4-LEAF 		8-98157-779-0 02 1 1412- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) EXC. DUMP TRUCK<RA1> 4-LEAF 		8-98229-520-0 02 1 1412- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98140-089-0 02 1 1009-1302 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF 		8-97618-758-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98140-088-0 02 1 1009-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) 4-LEAF 		8-98140-088-0 02 1 1303-1411 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) 4-LEAF 		8-98140-088-0 02 1 1412- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJX12P M/T SMOOTHER-G(Y4S) FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98140-087-0 02 1 1009-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJX12P M/T SMOOTHER-G(Y4S) 4-LEAF 		8-98140-087-0 02 1 1303-1411 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) 4-LEAF 		8-98140-087-0 02 1 1412- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1009- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1009- ● ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1> SINGAPORE EQUIPMENT(WQ3) 		1-51630-836-0 02 1 1412- ●
62 ABSORBER ASM; SHOCK,FRT
SINGAPORE EQUIPMENT(WQ3) EXC. DUMP TRUCK<RA1> 		1-51630-837-0 02 1 1412- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1009-1302 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 1303- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-433-1 02 1 1009-1302 ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) 		1-51630-433-1 02 1 1303-1411 ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) 		1-51630-433-1 02 1 1412- ●
62 ABSORBER ASM; SHOCK,FRT
MJX12P M/T SMOOTHER-G(Y4S) FRT TAPER LEAF SUSPENSION<SAR> 		8-97617-352-0 02 1 1009-1302 ●
62 ABSORBER ASM; SHOCK,FRT
MJX12P M/T SMOOTHER-G(Y4S) 		8-97617-352-0 02 1 1303-1411 ●
62 ABSORBER ASM; SHOCK,FRT
MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) 		8-97617-352-0 02 1 1412- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1009- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1009- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1009- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1009- ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1009-1405 ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1406- ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1009-1405 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1009-1405 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1406- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1009- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1009- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1009- ● ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1406- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1009- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1009- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1009- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-108-2 02 1 1009-1302 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51172-108-2 02 1 1009-1302 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MJX12P M/T SMOOTHER-G(Y4S) FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-108-2 02 1 1009-1302 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MJX12P M/T SMOOTHER-G(Y4S) 		1-51172-108-2 02 1 1303-1411 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) 		1-51172-108-2 02 1 1412- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MJT7S M/T(Y3E) FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-085-2 02 1 1009-1302 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1303-1411 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MJT7S M/T(Y3E) 		1-51172-085-2 02 1 1303-1411 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1412- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) 		1-51172-085-2 02 1 1412- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SINGAPORE EQUIPMENT(WQ3) 		1-51172-085-2 02 1 1412- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1009-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1009- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1009- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1009- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1009- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1009- ● ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> SINGAPORE EQUIPMENT(WQ3) L=230 		1-87870-493-0 04 1 1412- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1009-1302 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 1303-1411 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 1412- ●
208 U-BOLT SET; FRT SPRING
SINGAPORE EQUIPMENT(WQ3) EXC. DUMP TRUCK<RA1> L=210 		1-87870-380-2 04 1 1412- ●
208 U-BOLT SET; FRT SPRING
HONG KONG EQUIPMENT(PQ1) L=210 		1-87870-380-2 04 1 1412- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-380-1 04 1 1009-1206 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1207-1302 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1009- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1009- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1009- ● ●

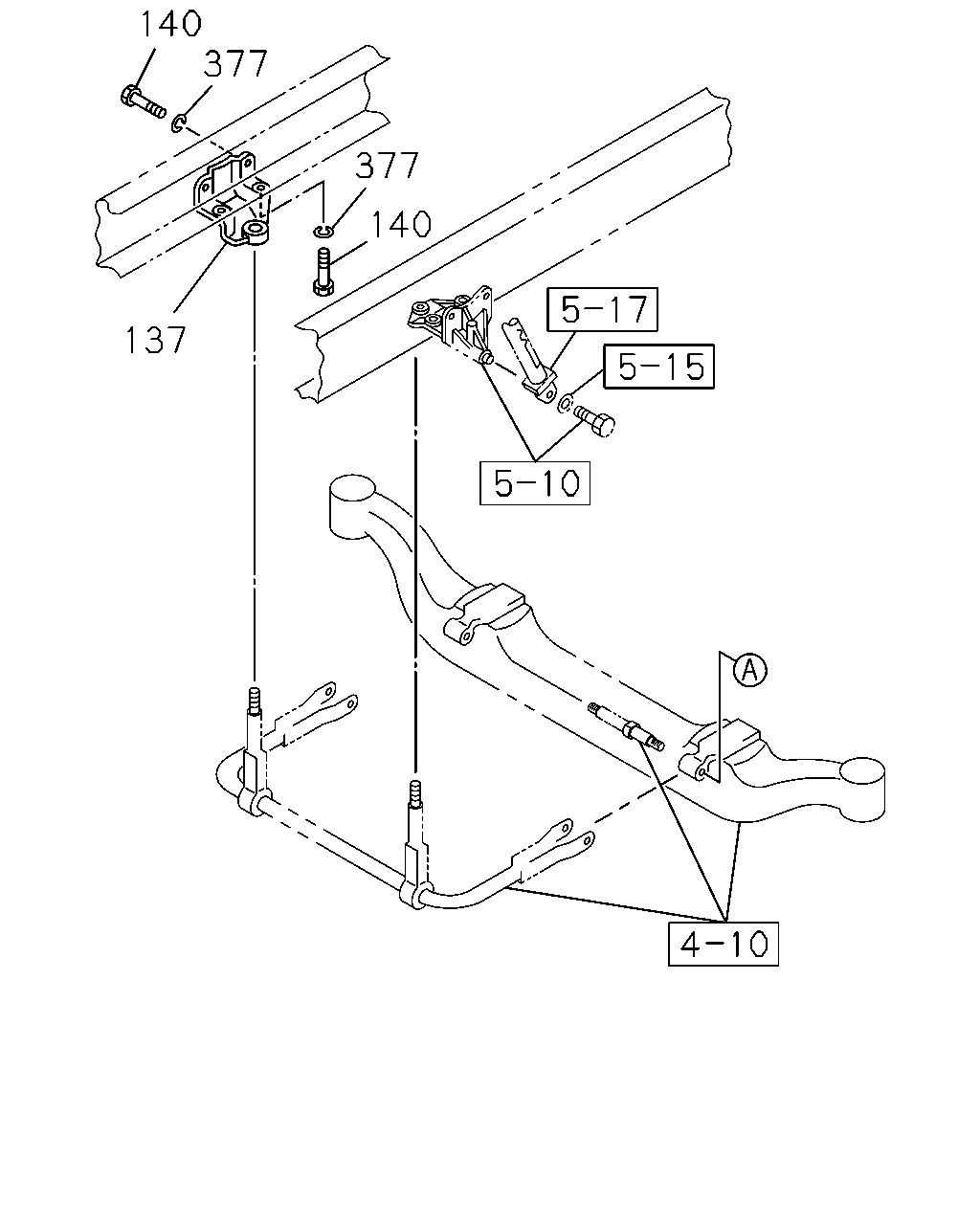

çizim 337097
140 377 377 137 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1303- ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1303- ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1303- ●
