4-40 — STEERING UNIT (#61483) — 54 parça

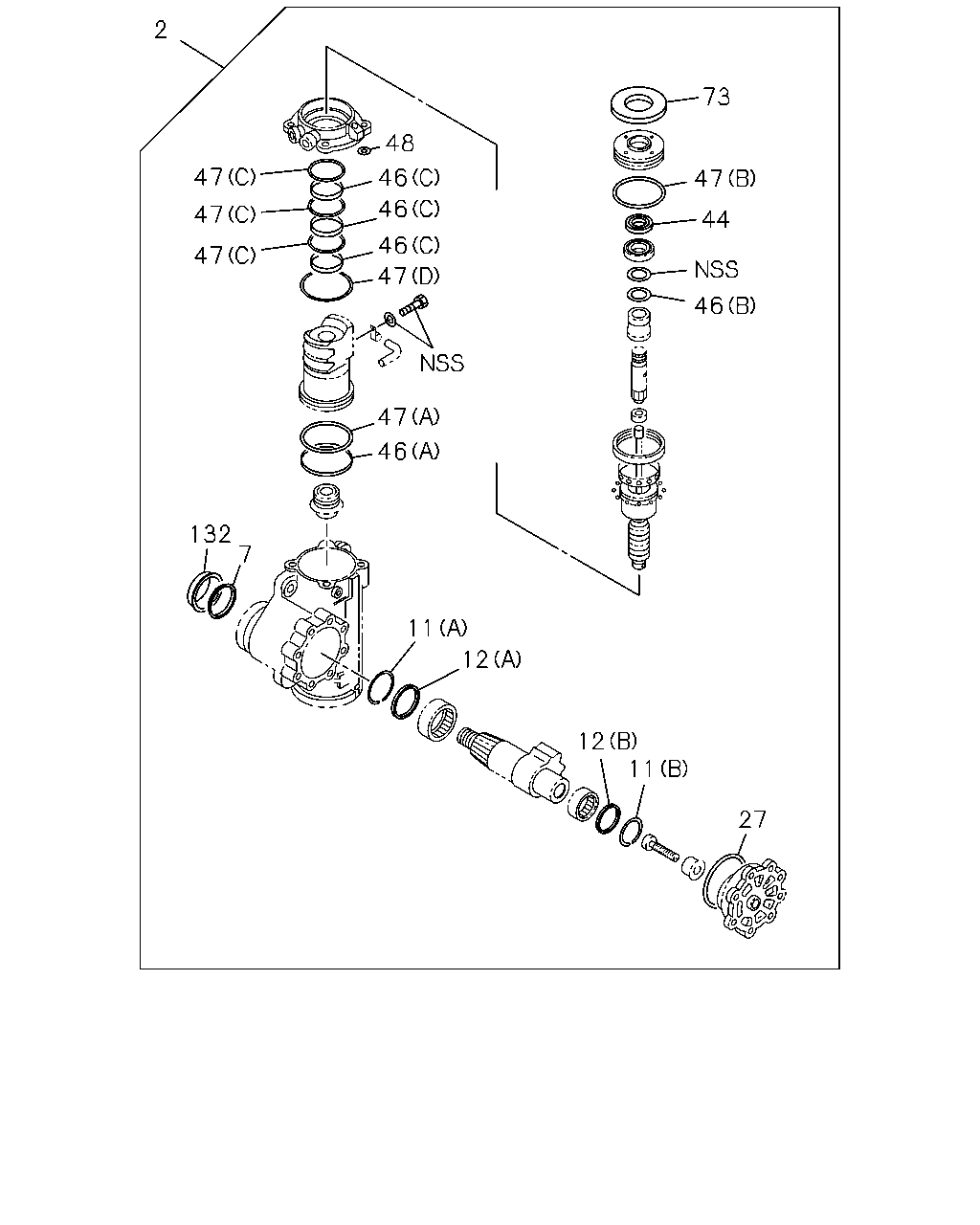

çizim 168487
47 47 47 47 47 47 48 46 46 46 73 44 46 11 12 12 11 27 132 7 2 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-942-2 		8-98166-304-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-942-2 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-942-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-942-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-942-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-942-2 		8-98166-307-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44519-227-0 01 1 -

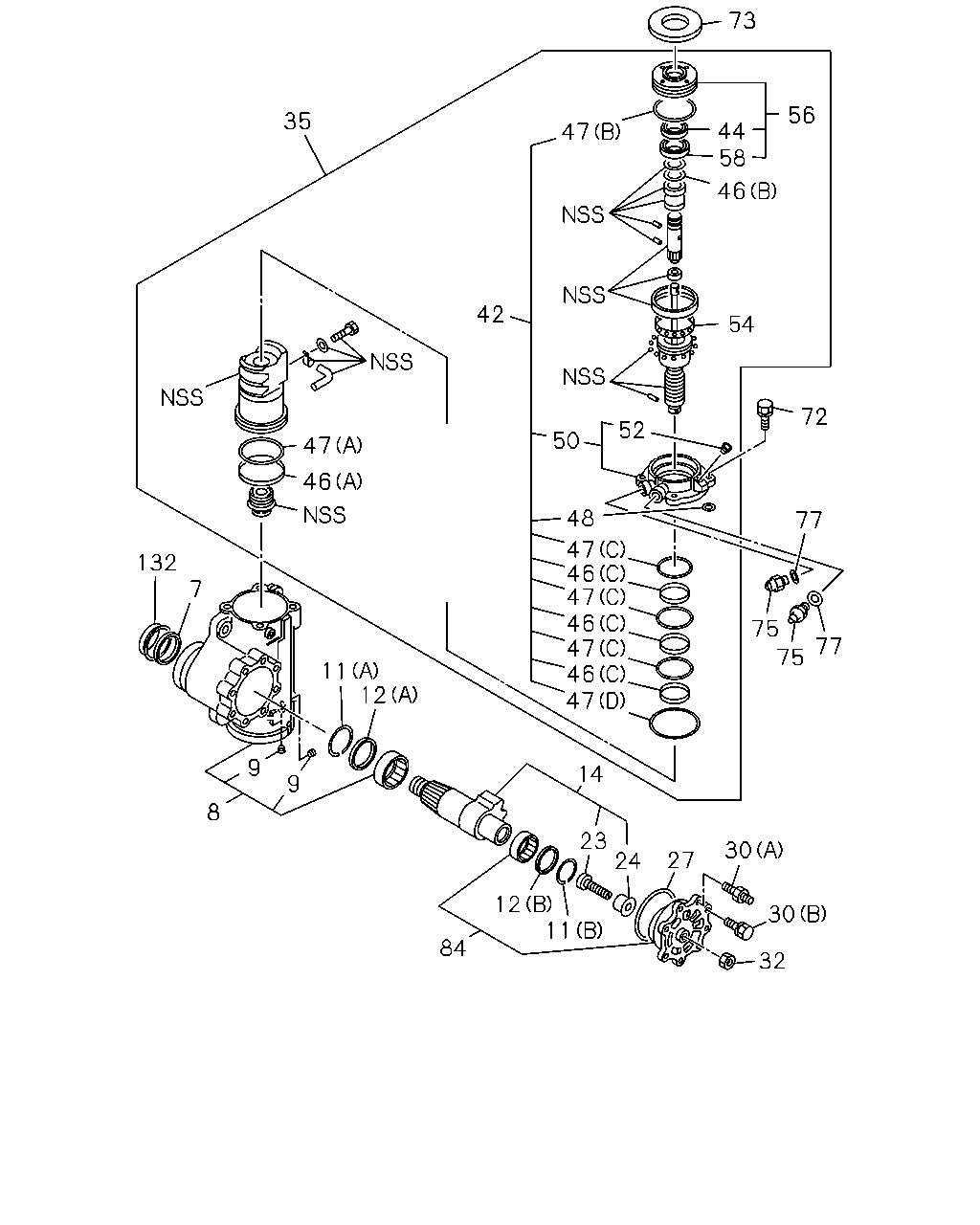

çizim 168529
132 35 42 47 52 50 54 46 77 75 77 75 46 58 44 56 73 47 48 47 46 47 46 47 46 47 14 23 24 27 30 30 32 11 12 84 12 11 9 9 8 7 72
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-942-2 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44320-016-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44150-128-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-942-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-942-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-942-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-942-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-942-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44560-076-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-942-2 		8-98166-307-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-942-2 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-942-2 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-942-2 		1-44519-227-0 01 1 -
