Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#61481) — 247 parça

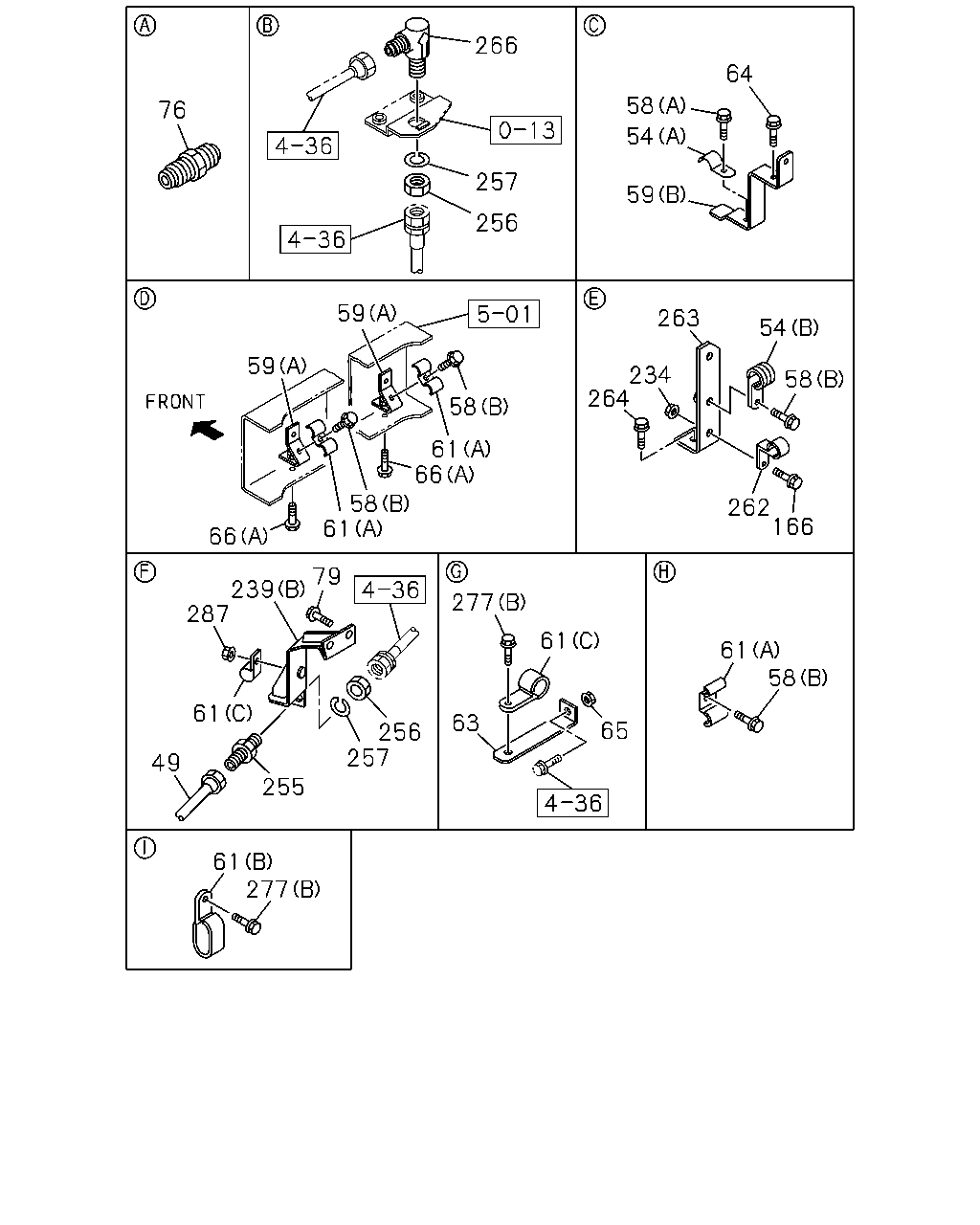

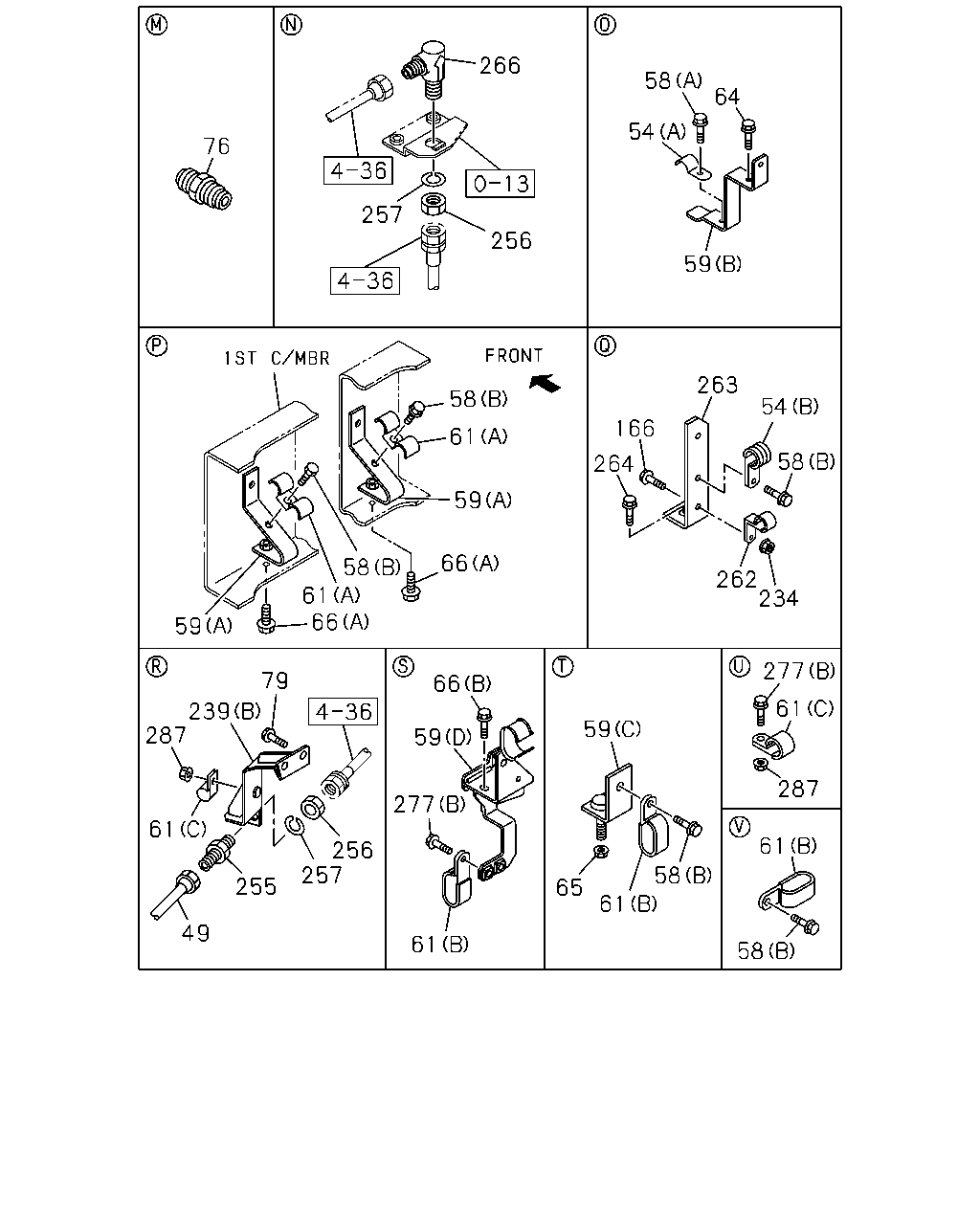

76 266 257 256 58 64 54 59 263 54 234 264 58 262 277 166 61 58 65 61 63 257 255 61 277 256 61 49 287 79 239 66 64 66 61 58 59 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-	●	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1009-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-	●	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-183-0	01	1	1009-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1009-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-1411	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1412-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1009-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1302	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-1411	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1412-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1009-1302	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-	●	●
63	BRACKET; CLIP,P/S L=112	1-47475-694-1	01	1	1009-1302	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1009-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1302	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1009-	●	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1009-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-	●	●

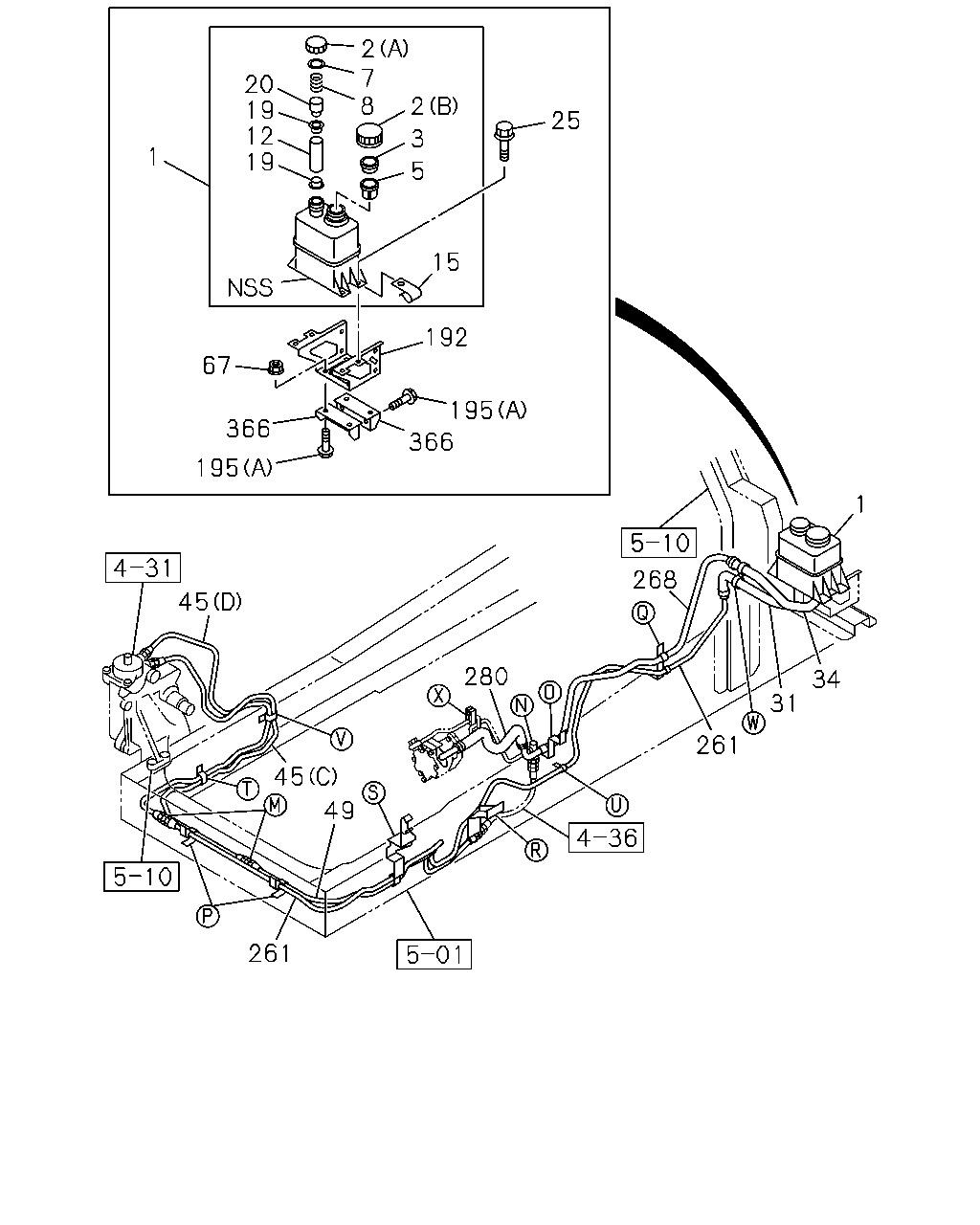

49 45 45 280 195 366 67 366 195 268 261 31 34 192 67 15 1 19 12 19 20 2 7 8 2 3 5 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-	●	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-512-0	01	1	1412-		●
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-514-0	01	1	1412-		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98240-513-0	01	1	1303-1411	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98240-513-0	01	1	1412-	●
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-513-0	01	1	1412-		●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302	●	●
45	PIPE; OIL,P/S UNIT TO UNION (D)	8-98240-515-0	01	1	1303-1411	●	●
45	PIPE; OIL,P/S UNIT TO UNION (D)	8-98240-515-0	01	1	1412-	●
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-515-0	01	1	1412-		●
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1303-	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1009-1302	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1303-		●
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302	●	●
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302	●	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1009-	●	●

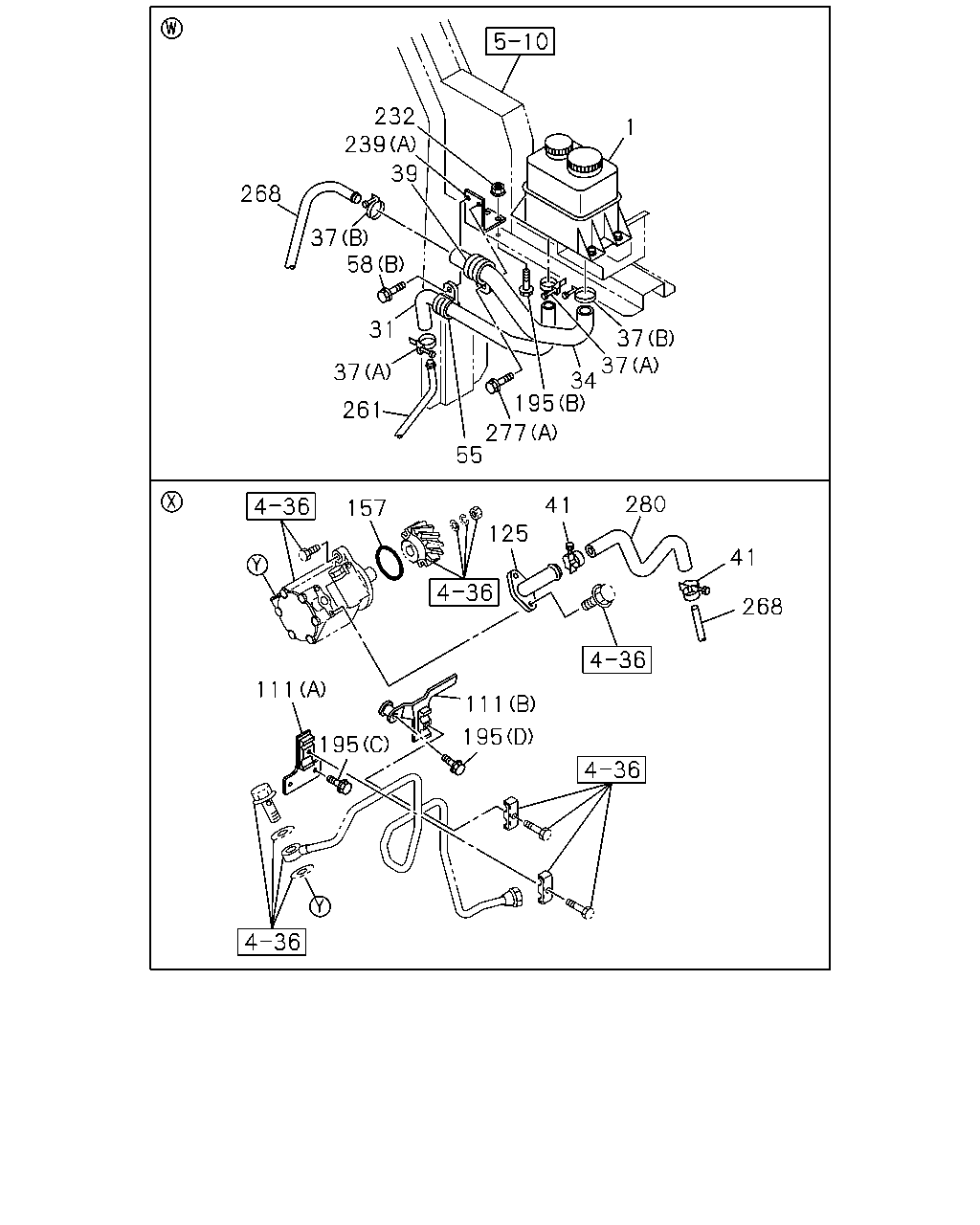

277 39 58 55 37 268 261 37 239 195 232 31 34 37 37 1 157 111 125 41 280 41 268 111 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-	●	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1009-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1009-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1009-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1009-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-	●	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1009-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1009-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1009-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1009-	●	●
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302	●	●
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302	●	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-	●	●

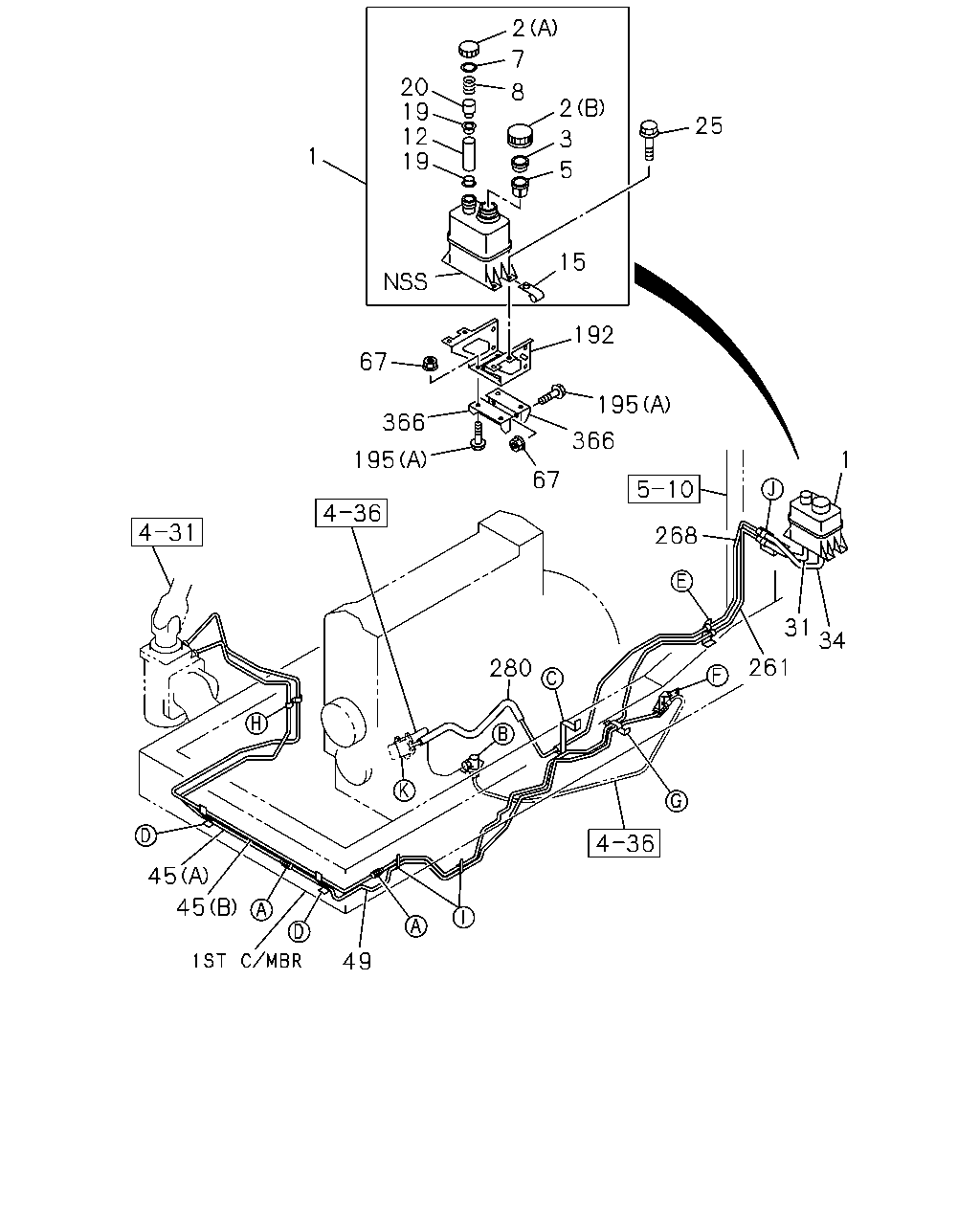

45 45 261 49 280 261 31 34 268 366 195 192 195 366 67 15 25 19 5 3 2 8 7 2 20 19 12 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-	●	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-512-0	01	1	1412-		●
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-514-0	01	1	1412-		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98240-513-0	01	1	1303-1411	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98240-513-0	01	1	1412-	●
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-513-0	01	1	1412-		●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302	●	●
45	PIPE; OIL,P/S UNIT TO UNION (D)	8-98240-515-0	01	1	1303-1411	●	●
45	PIPE; OIL,P/S UNIT TO UNION (D)	8-98240-515-0	01	1	1412-	●
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-515-0	01	1	1412-		●
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1303-	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1009-1302	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1303-		●
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302	●	●
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302	●	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1009-	●	●

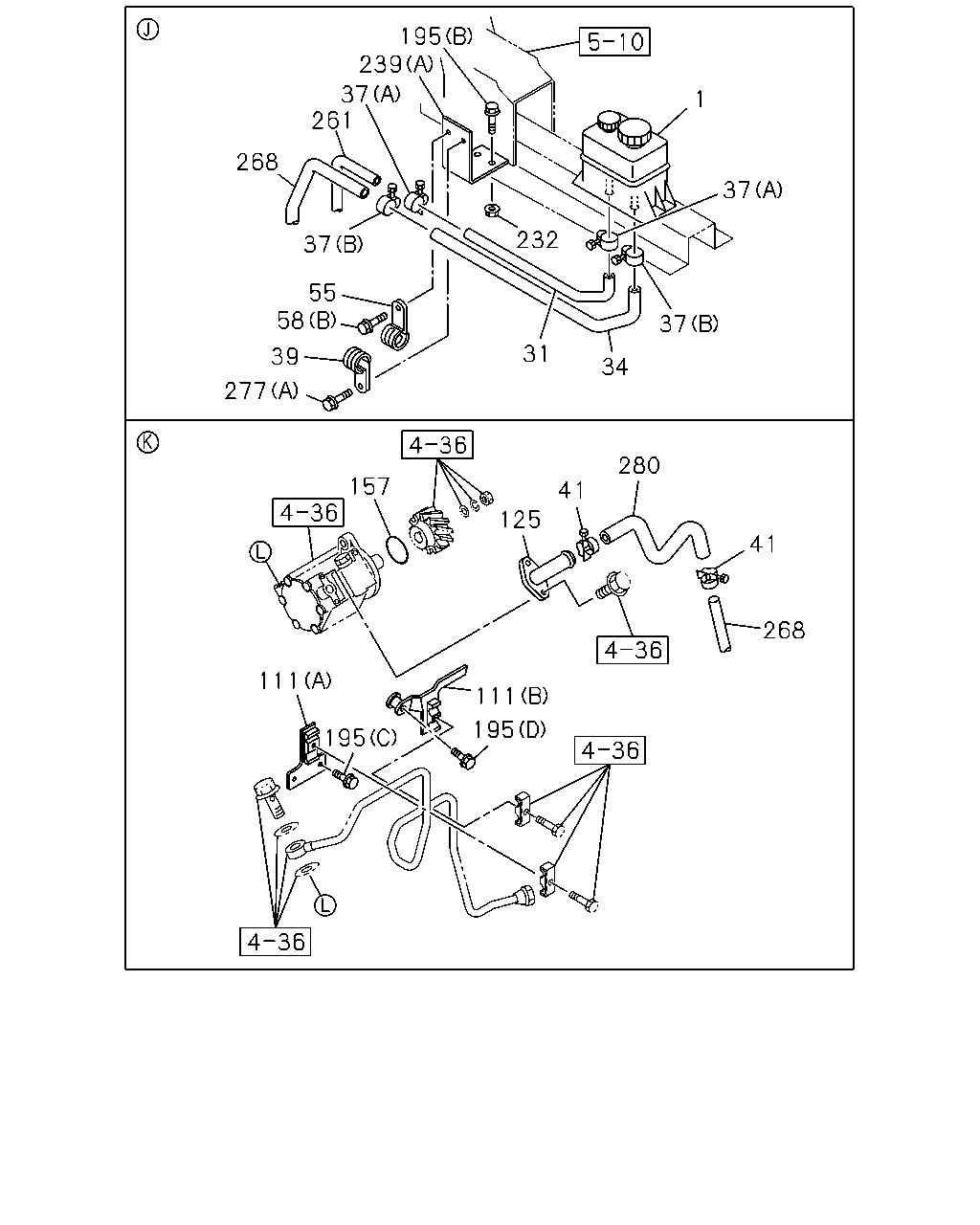

232 239 39 268 37 58 31 37 261 55 277 195 34 37 37 157 125 41 280 41 268 111 195 195 111 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-	●	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1009-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1009-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1009-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1009-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-	●	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1009-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1009-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1009-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1009-	●	●
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302	●	●
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302	●	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-	●	●

266 257 256 58 54 59 64 263 166 264 54 58 262 234 76 58 61 59 66 58 61 66 59 239 79 287 61 255 49 257 256 66 59 277 61 59 65 61 58 277 61 287 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-	●	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1009-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-	●	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-183-0	01	1	1009-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1009-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-1411	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1412-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1009-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1302	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-1411	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1412-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1009-1302	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1009-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1302	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1009-	●	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1009-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
