◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#61478) — 60 parça

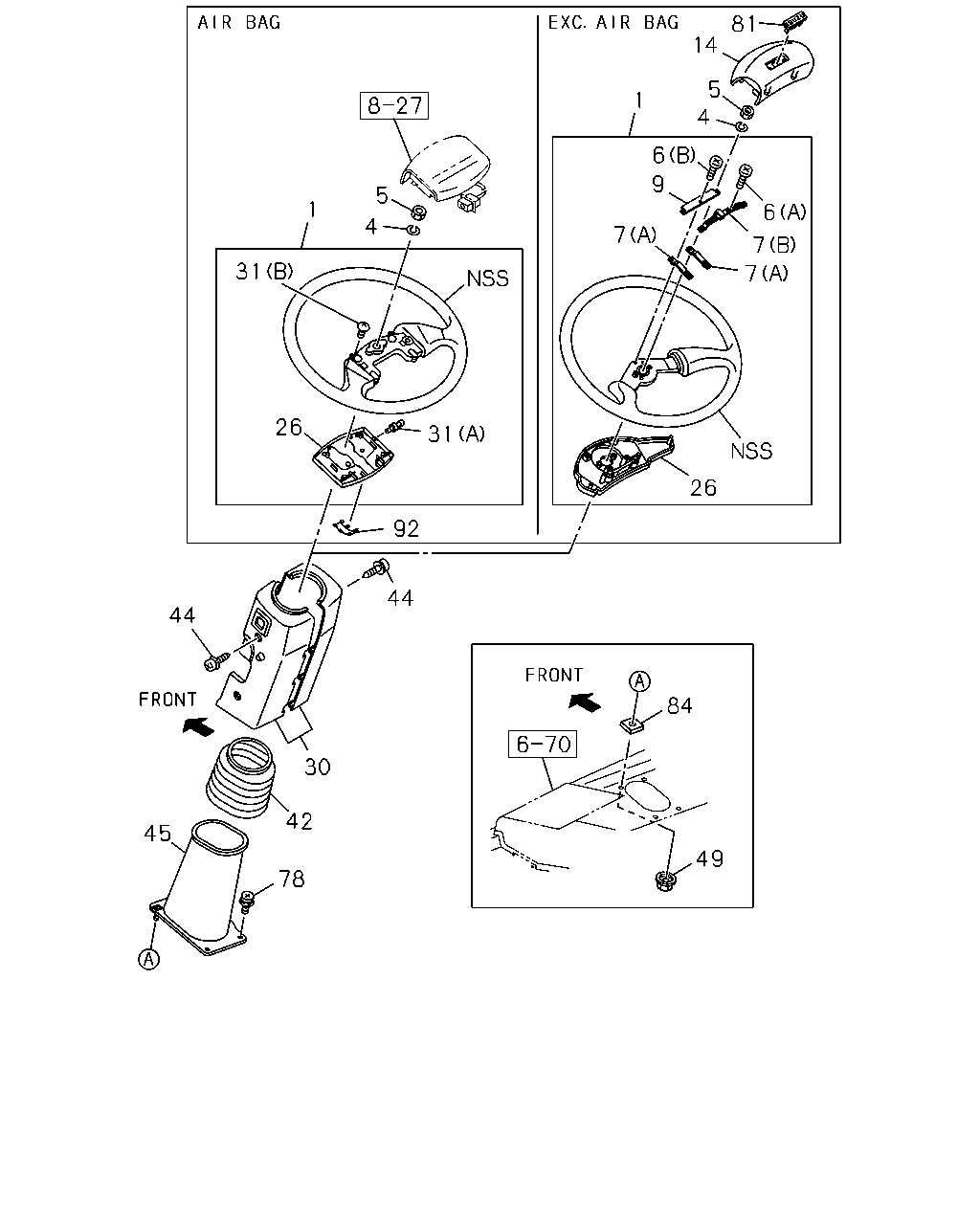

çizim 168560
31 1 5 4 31 92 44 44 30 42 78 45 84 49 26 7 7 6 7 1 14 81 5 4 6 9 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
EXC. AIR BAG(TFQ) 		1-44110-146-1 01 1 1412- ●
1 WHEEL; STRG
AIR BAG(TFQ) 		1-44110-166-2 01 1 1009-1302 ●
1 WHEEL; STRG 1-44110-166-2 01 1 1009-1302 ●
1 WHEEL; STRG 1-44110-166-2 01 1 1303-1411 ●
1 WHEEL; STRG
AIR BAG(TFQ) 		1-44110-166-2 01 1 1412- ●
1 WHEEL; STRG
EXC. AIR BAG(TFQ) 		1-44110-146-1 01 1 1009-1302 ●
1 WHEEL; STRG 1-44110-167-2 01 1 1303- ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 1009- ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 1009- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (B) M4X10 		1-44129-034-0 01 1 1303- ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (A) M4X16 		1-44129-036-0 04 1 1303- ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (B) M4X10 		1-44129-034-0 01 1 1009-1302 ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (A) M4X16 		1-44129-036-0 04 1 1009-1302 ●
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (A) 		1-44129-033-0 02 1 1303- ●
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (B) 		1-44129-037-0 01 1 1303- ●
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (A) 		1-44129-033-0 02 1 1009-1302 ●
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (B) 		1-44129-037-0 01 1 1009-1302 ●
9 PLATE; HORN CONTACT
EXC. AIR BAG(TFQ) 		1-44129-038-0 01 1 1412- ●
9 PLATE; HORN CONTACT
EXC. AIR BAG(TFQ) 		1-44129-038-0 01 1 1009-1302 ●
14 BUTTON; HORN,STRG WHEEL
EXC. AIR BAG(TFQ) 		1-44120-045-2 01 1 1412- ●
14 BUTTON; HORN,STRG WHEEL
EXC. AIR BAG(TFQ) 		1-44120-045-2 01 1 1009-1302 ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG(TFQ) 		1-44129-039-1 01 1 1412- ●
26 COVER; STRG WHEEL,LWR
AIR BAG(TFQ) 		1-44129-057-1 01 1 1009-1302 ●
26 COVER; STRG WHEEL,LWR 1-44129-057-1 01 1 1009-1302 ●
26 COVER; STRG WHEEL,LWR 1-44129-057-1 01 1 1303-1411 ● ●
26 COVER; STRG WHEEL,LWR 1-44129-057-1 01 1 1412- ●
26 COVER; STRG WHEEL,LWR
AIR BAG(TFQ) 		1-44129-057-1 01 1 1412- ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG(TFQ) 		1-44129-039-1 01 1 1009-1302 ●
30 COWL; STEERING
EXC. AIR BAG(TFQ) 		1-79997-342-3 01 1 1412- ●
30 COWL; STEERING 1-79907-142-2 01 1 1304- ●
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-070-0 01 1 1009-1302 ●
30 COWL; STEERING 1-79907-070-0 01 1 1009-1302 ●
30 COWL; STEERING 1-79907-070-0 01 1 1303-1303 ● ●
30 COWL; STEERING 1-79907-070-0 01 1 1304-1411 ●
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-070-0 01 1 1412- ●
30 COWL; STEERING
EXC. AIR BAG(TFQ) 		1-79997-342-3 01 1 1009-1302 ●
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (A) 		1-09169-005-0 02 1 1009-1302 ●
31 SCREW; BOSS TO COVER
(A) 		1-09169-005-0 02 1 1009-1302 ●
31 SCREW; BOSS TO COVER
(A) 		1-09169-005-0 02 1 1303-1411 ● ●
31 SCREW; BOSS TO COVER
(A) 		1-09169-005-0 02 1 1412- ●
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (A) 		1-09169-005-0 02 1 1412- ●
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (B) M4X14 TAPPING 		9-07066-414-0 04 1 1009-1302 ●
31 SCREW; BOSS TO COVER
(B) M4X14 TAPPING 		9-07066-414-0 04 1 1009-1302 ●
31 SCREW; BOSS TO COVER
(B) M4X14 TAPPING 		9-07066-414-0 04 1 1303-1411 ● ●
31 SCREW; BOSS TO COVER
(B) M4X14 TAPPING 		9-07066-414-0 04 1 1412- ●
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (B) M4X14 TAPPING 		9-07066-414-0 04 1 1412- ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 1009- ● ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 1009- ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 1009- ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 1009-1205 ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206- ● ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1009- ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG(TFQ) 		1-76210-638-1 01 1 1412- ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG(TFQ) 		1-76210-638-1 01 1 1009-1302 ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 1009-1205 ● ●
92 LID; WHEEL COVER
AIR BAG(TFQ) 		1-44119-001-1 01 1 1009-1302 ●
92 LID; WHEEL COVER 1-44119-001-1 01 1 1009-1302 ●
92 LID; WHEEL COVER 1-44119-001-1 01 1 1303-1411 ● ●
92 LID; WHEEL COVER 1-44119-001-1 01 1 1412- ●
92 LID; WHEEL COVER
AIR BAG(TFQ) 		1-44119-001-1 01 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
