◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#61477) — 2613 parça

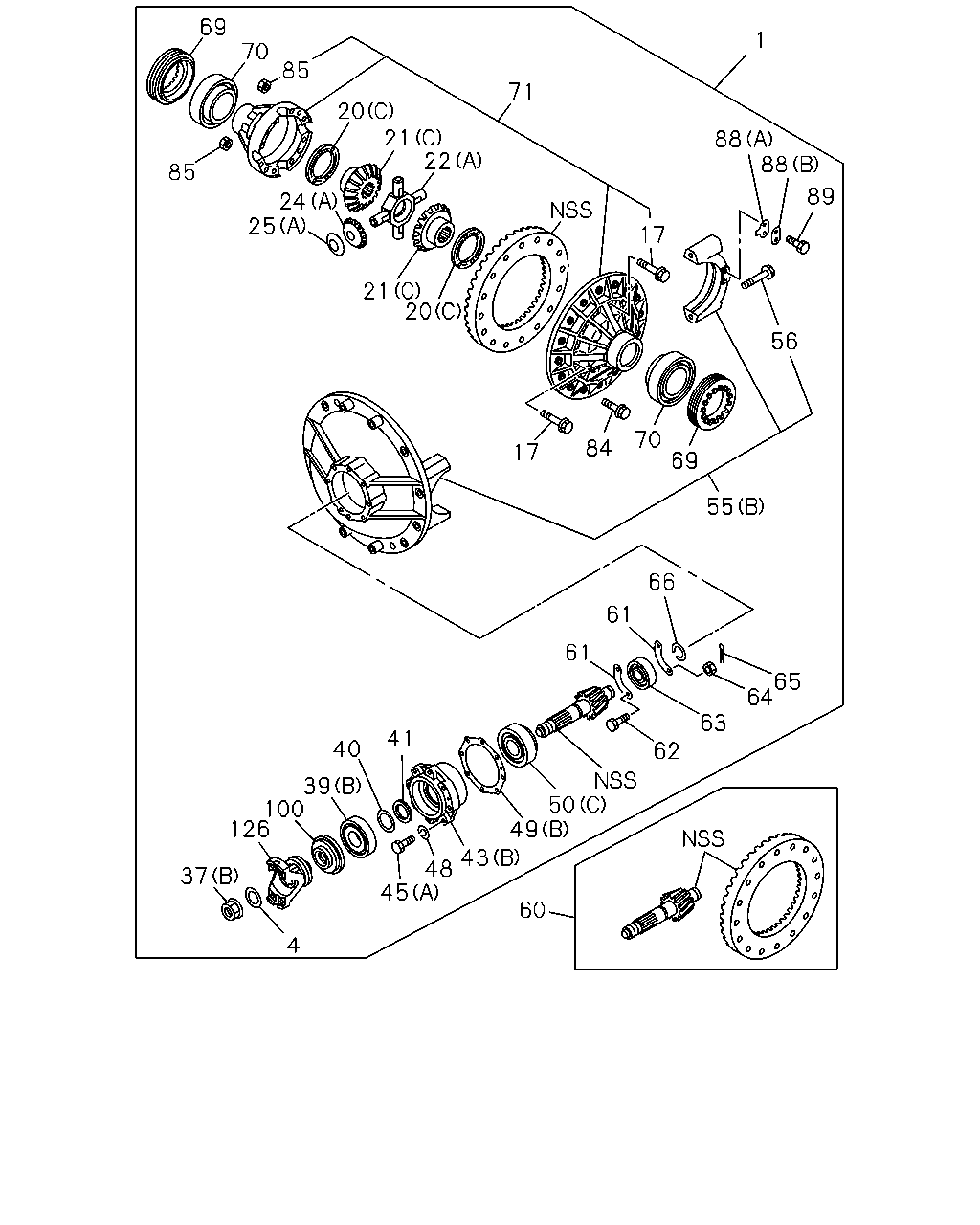

çizim 168448
37 4 45 48 60 43 49 50 62 63 64 65 66 61 61 41 40 39 100 126 55 84 17 70 69 56 89 88 88 1 71 69 85 24 25 20 85 21 22 21 20 17 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-729-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41002-429-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41002-431-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-727-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-728-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-110-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-114-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41001-710-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-445-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-445-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41002-112-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-112-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41002-120-0 01 1 1009- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1009-1302 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
4 GASKET; FLANGE,FINAL PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1412- ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1412- ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-120-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-121-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-122-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-123-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-124-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-125-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-126-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.7 		1-41562-127-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-128-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-129-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-130-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-131-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-132-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-133-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-134-0 AR 1 1009- ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-156-0 01 1 1009- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-157-0 01 1 1009- ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(B) 		1-41521-050-2 01 1 1009- ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-049-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 1009- ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1009-1302 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1411 ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1412- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1009-1302 ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ●
37 NUT; DRIVING PINION
(B) M39 FLANGE 		1-09449-056-2 01 1 1009- ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-086-0 01 1 1009- ●
39 BEARING; FINAL PINION
(B) NTN 		9-00093-072-1 01 1 1009- ●
39 BEARING; FINAL PINION
(B) JTEKT 		9-00093-206-2 01 1 1009- ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-218-0 01 1 1009- ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 1009- ●

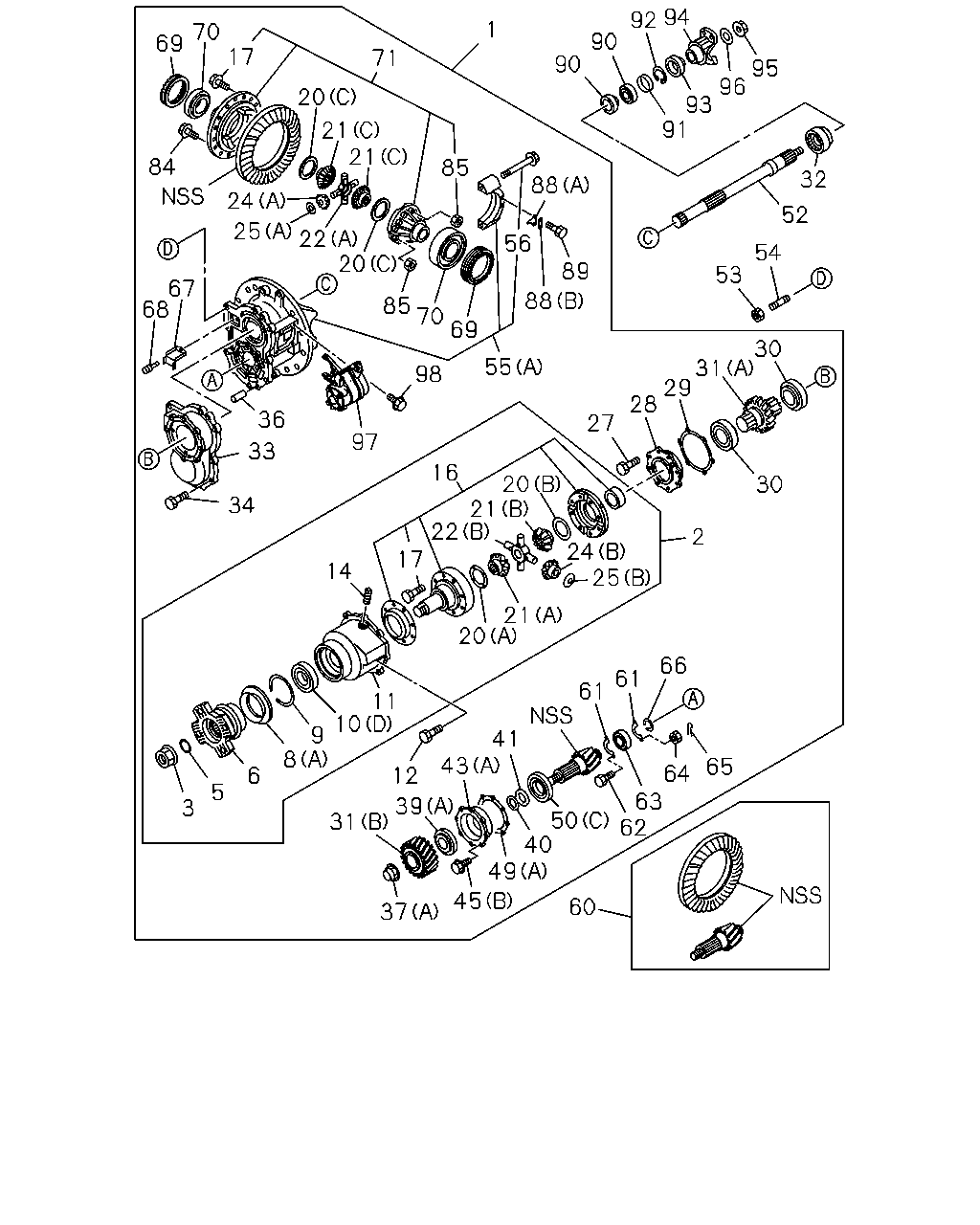

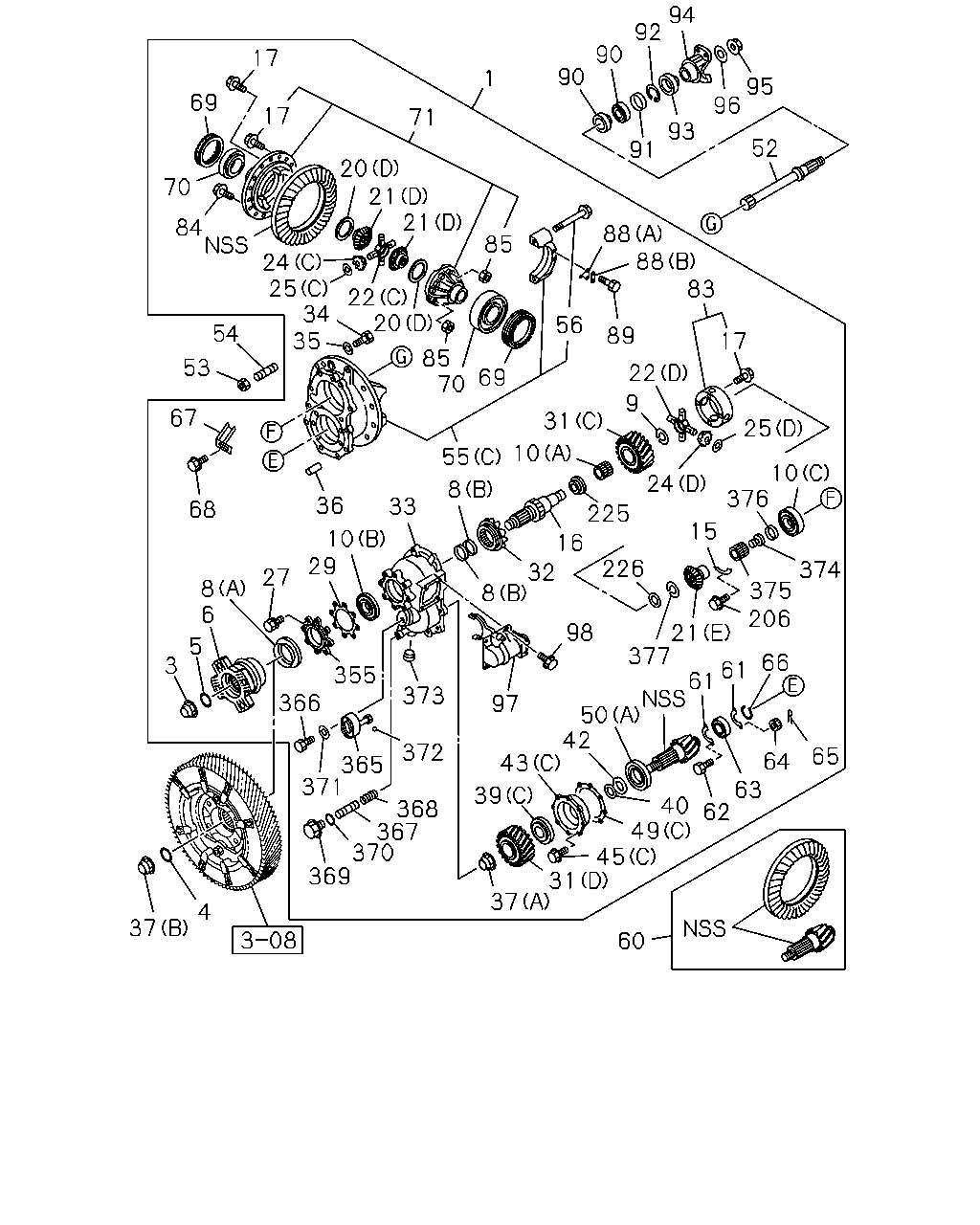

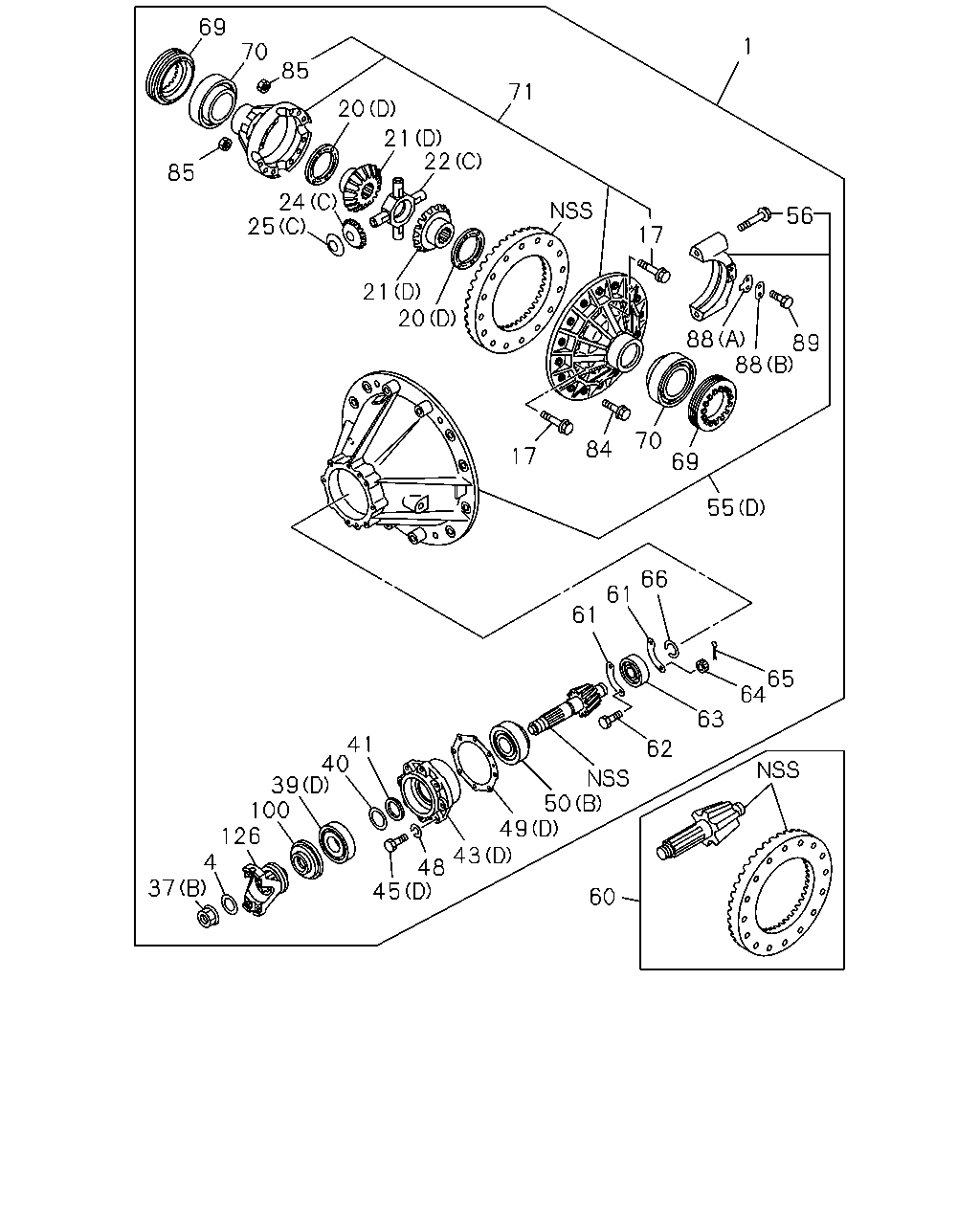

41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 1009- ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(B) T=75 		1-41151-005-0 01 1 1009- ●
43 CAGE; FINAL PINION
(A) 		1-41151-062-0 01 1 1009- ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1009- ●
45 BOLT; FINAL PINION CAGE
(B) M14X40 FLANGE 		0-28751-440-0 08 1 1009- ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1009-1302 ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1303-1411 ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1412- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 1009- ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.000 		1-41154-009-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.500 		1-41154-010-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.300 		1-41154-104-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.400 		1-41154-105-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-081-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-082-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-083-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-084-0 AR 1 1009- ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-120-1 01 1 1009- ●
55 CARRIER; DIFF
(A) 		1-41310-052-0 01 1 1009- ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/11 		1-41210-623-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/11 		1-41210-624-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-610-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-449-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/9 		1-41210-608-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/9 		1-41210-479-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/9 		1-41210-544-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/9 		1-41210-609-0 01 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1009-1302 ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1303-1411 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1412- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 1009- ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1009-1302 ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1303-1411 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1412- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-396-0 01 1 1009- ●

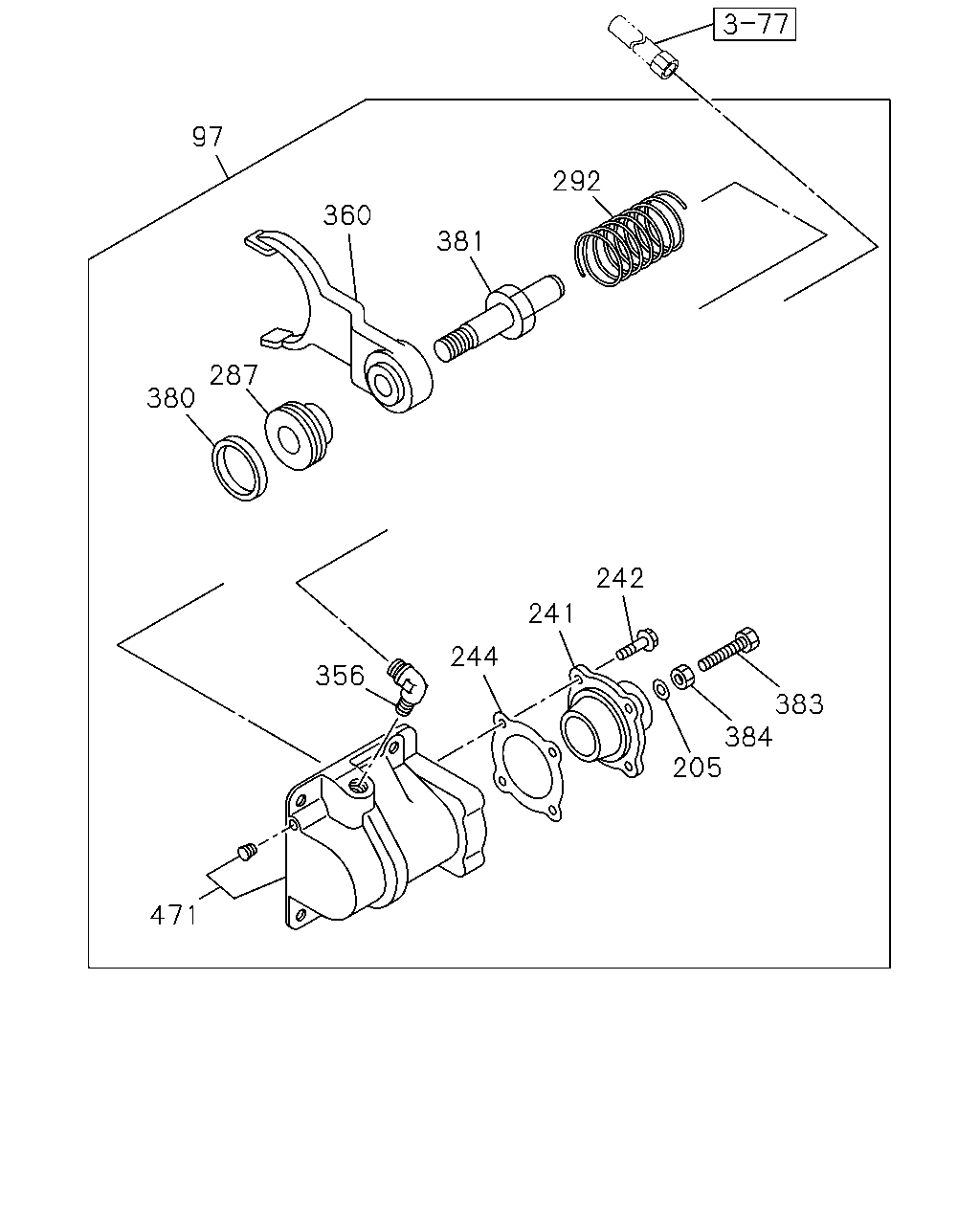

çizim 168458
292 381 360 287 380 97 356 244 242 241 384 205 383 471
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1009-1302 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1411 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1412- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-059-1 01 1 1009- ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1009-1302 ● ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1303-1411 ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1412- ● ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1009-1302 ● ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1303-1411 ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1412- ● ● ● ●
241 COVER; SHIFT HSG 1-48266-011-0 01 1 1009- ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1009-1302 ● ● ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1303-1411 ● ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1412- ● ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1009-1302 ● ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1303-1411 ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1412- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1009-1302 ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1303-1411 ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1412- ● ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1009-1302 ● ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1303-1411 ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1412- ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1302 ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1303-1411 ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1412- ● ● ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1009-1302 ● ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1303-1411 ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1412- ● ● ● ●
360 FORK; SHIFT 1-48269-063-0 01 1 1009- ●
380 GASKET; PISTON 1-48269-064-0 01 1 1009-1302 ● ● ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1303-1411 ● ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1412- ● ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1009-1302 ● ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1303-1411 ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1412- ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1009-1302 ● ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1303-1411 ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1412- ● ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1009-1302 ● ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1303-1411 ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1412- ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1009-1302 ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1303-1411 ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1412- ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-224-0 01 1 1009- ●
çizim 168478
94 92 90 90 1 71 17 17 69 70 84 25 24 21 20 21 22 35 34 54 53 67 68 8 5 3 6 27 29 10 36 33 8 55 10 31 56 88 91 93 96 95 52 88 89 83 22 9 17 25 24 225 376 10 374 375 206 66 61 61 21 377 15 226 16 32 98 8 97 42 43 39 50 40 49 45 31 37 62 64 63 65 372 373 368 367 370 369 365 355 366 371 37 4 60 85 85 70 69 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-729-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41002-429-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41002-431-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-727-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-728-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-110-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-114-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41001-710-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-445-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-445-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41002-112-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-112-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41002-120-0 01 1 1009- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1009-1302 ● ● ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ●
3 NUT; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1412- ● ●
3 NUT; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1009-1302 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
4 GASKET; FLANGE,FINAL PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1412- ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1412- ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1009- ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1009-1302 ● ● ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1303-1411 ●
5 GASKET; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1412- ● ●
5 GASKET; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1412- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1009-1302 ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1303-1411 ●
6 FLANGE ASM; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-37245-343-0 01 1 1303-1411 ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1412- ● ●
6 FLANGE ASM; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-37245-343-0 01 1 1412- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1009-1302 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1303-1411 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1412- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1009-1302 ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1303-1411 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1412- ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1009-1302 ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1303-1411 ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1412- ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09587-058-0 01 1 1009- ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(D) NSK 		1-09800-173-0 01 1 1009- ●
15 CATCHER; OIL 1-41129-007-0 01 1 1009-1302 ● ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1303-1411 ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1412- ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1009-1302 ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1303-1411 ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1412- ● ● ● ●
16 SHAFT ASM; INPUT 1-41340-063-0 01 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-120-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-121-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-122-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-123-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-124-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-125-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-126-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.7 		1-41562-127-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-128-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-129-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-130-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-131-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-132-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-133-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-134-0 AR 1 1009- ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-156-0 01 1 1009- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-157-0 01 1 1009- ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(B) 		1-41521-050-2 01 1 1009- ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-049-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 1009- ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1009-1302 ● ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1303-1411 ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1412- ● ● ● ●
27 BOLT; BRG RET
M10X25 FLANGE 		0-28751-025-0 08 1 1009- ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41355-039-0 AR 1 1009- ●
29 SHIM; BRG RET
T=0.40 		1-41355-040-0 AR 1 1009- ●
29 SHIM; BRG RET
T=0.50 		1-41355-041-0 AR 1 1009- ●
29 SHIM; BRG RET
T=1.00 		1-41355-042-0 AR 1 1009- ●
31 GEAR; DRIVEN,HELICAL
(C) Z=16 		1-41351-044-0 01 1 1009-1302 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) Z=16 		1-41351-044-0 01 1 1303-1411 ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) Z=16 		1-41351-044-0 01 1 1412- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(D) Z=31 		1-41352-029-0 01 1 1009-1302 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(D) Z=31 		1-41352-029-0 01 1 1303-1411 ● ● ●
31 GEAR; DRIVEN,HELICAL
(D) Z=31 		1-41352-029-0 01 1 1412- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=31 		1-41351-034-0 01 1 1009- ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-034-0 01 1 1009- ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1009-1302 ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1303-1411 ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1412- ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41356-002-0 01 1 1009- ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1009-1302 ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1303-1411 ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1412- ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-026-1 01 1 1009- ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1009-1302 ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1303-1411 ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1412- ● ● ● ●
34 BOLT; CASE TO CARRIER
M12X35 FLANGE 		0-28751-235-0 11 1 1009- ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1009-1302 ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1303-1411 ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1412- ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1009-1302 ● ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1303-1411 ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1412- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1009-1302 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1411 ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1412- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1009-1302 ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ●
37 NUT; DRIVING PINION
(B) M39 FLANGE 		1-09449-056-2 01 1 1009- ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-086-0 01 1 1009- ●
39 BEARING; FINAL PINION
(B) NTN 		9-00093-072-1 01 1 1009- ●
39 BEARING; FINAL PINION
(B) JTEKT 		9-00093-206-2 01 1 1009- ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-218-0 01 1 1009- ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1412- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1009-1302 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1303-1411 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(B) T=75 		1-41151-005-0 01 1 1009- ●
43 CAGE; FINAL PINION
(A) 		1-41151-062-0 01 1 1009- ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1009- ●
45 BOLT; FINAL PINION CAGE
(B) M14X40 FLANGE 		0-28751-440-0 08 1 1009- ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.000 		1-41154-009-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.500 		1-41154-010-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.300 		1-41154-104-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.400 		1-41154-105-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-081-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-082-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-083-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-084-0 AR 1 1009- ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1009-1302 ● ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1303-1411 ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1412- ● ● ● ●
52 SHAFT; OUTPUT 1-41343-023-0 01 1 1009- ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1009-1302 ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1303-1411 ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1412- ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 02 1 1009- ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1009-1302 ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1303-1411 ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1412- ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 02 1 1009- ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-120-1 01 1 1009- ●
55 CARRIER; DIFF
(A) 		1-41310-052-0 01 1 1009- ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/11 		1-41210-623-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/11 		1-41210-624-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-610-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-449-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/9 		1-41210-608-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/9 		1-41210-479-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/9 		1-41210-544-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/9 		1-41210-609-0 01 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1009-1302 ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1303-1411 ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1412- ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-010-0 01 1 1009- ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1009-1302 ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1411 ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1009-1302 ● ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1303-1411 ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1009-1302 ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1303-1411 ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1412- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1009-1302 ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1303-1411 ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1412- ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1009-1302 ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1303-1411 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1412- ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1009-1302 ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1303-1411 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1412- ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1009-1302 ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1303-1411 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1412- ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1009-1302 ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1303-1411 ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1412- ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1009-1302 ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1303-1411 ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1412- ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1009-1302 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1411 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1412- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-059-1 01 1 1009- ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1009-1302 ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1303-1411 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1412- ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1009-1302 ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1303-1411 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1412- ● ● ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1009-1302 ● ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1411 ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1412- ● ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1412- ● ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1009-1302 ● ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1303-1411 ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1412- ● ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1009-1302 ● ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1303-1411 ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1412- ● ● ● ●
355 RETAINER; BRG
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-41227-014-1 01 1 1303- ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1009-1302 ● ● ● ●
355 RETAINER; BRG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-41227-016-0 01 1 1303-1411 ● ● ●
355 RETAINER; BRG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-41227-016-0 01 1 1412- ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1412- ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1009-1302 ● ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1303-1411 ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1412- ● ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1009-1302 ● ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1303-1411 ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1412- ● ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1009-1302 ● ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1303-1411 ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1412- ● ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1009-1302 ● ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1303-1411 ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1412- ● ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1009-1302 ● ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1303-1411 ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1412- ● ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1009-1302 ● ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1303-1411 ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1412- ● ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1009-1302 ● ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1303-1411 ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1412- ● ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1009-1302 ● ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1303-1411 ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1412- ● ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1009-1302 ● ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1303-1411 ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1412- ● ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1009-1302 ● ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1303-1411 ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1412- ● ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1009-1302 ● ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1303-1411 ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1412- ● ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1009-1302 ● ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1303-1411 ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1412- ● ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1009-1302 ● ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1303-1411 ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1412- ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1009-1302 ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1303-1411 ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1412- ● ● ● ●
çizim 168494
97 287 380 360 381 292 244 241 242 471 356
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1009-1302 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1411 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1412- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-059-1 01 1 1009- ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1009-1302 ● ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1303-1411 ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1412- ● ● ● ●
241 COVER; SHIFT HSG 1-48266-011-0 01 1 1009- ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1009-1302 ● ● ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1303-1411 ● ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1412- ● ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1009-1302 ● ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1303-1411 ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1412- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1009-1302 ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1303-1411 ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1412- ● ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1009-1302 ● ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1303-1411 ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1412- ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1302 ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1303-1411 ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1412- ● ● ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1009-1302 ● ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1303-1411 ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1412- ● ● ● ●
360 FORK; SHIFT 1-48269-063-0 01 1 1009- ●
380 GASKET; PISTON 1-48269-064-0 01 1 1009-1302 ● ● ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1303-1411 ● ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1412- ● ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1009-1302 ● ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1303-1411 ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1412- ● ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1009-1302 ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1303-1411 ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1412- ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-224-0 01 1 1009- ●
çizim 168501
69 70 84 68 67 36 33 34 97 98 69 70 85 20 22 25 24 20 17 71 21 85 21 1 88 56 88 90 90 92 94 91 93 96 95 32 54 52 53 30 29 31 28 27 30 2 25 24 20 21 21 20 17 16 14 11 66 61 61 41 43 12 31 65 64 63 62 50 40 39 10 9 8 6 5 3 37 60 45 89 55 49 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-729-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41002-429-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41002-431-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-727-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-728-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-110-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-114-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41001-710-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-445-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-445-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41002-112-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-112-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41002-120-0 01 1 1009- ●
2 DIFF ASM; INTER,FINAL 1-41320-027-0 01 1 1009- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1009-1302 ● ● ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ●
3 NUT; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1412- ● ●
3 NUT; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1009-1302 ● ● ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1303-1411 ●
5 GASKET; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1412- ● ●
5 GASKET; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1412- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1009-1302 ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1303-1411 ●
6 FLANGE ASM; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-37245-343-0 01 1 1303-1411 ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1412- ● ●
6 FLANGE ASM; INPUT SHAFT
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-37245-343-0 01 1 1412- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1009-1302 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1303-1411 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1412- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1009-1302 ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1303-1411 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1412- ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1009-1302 ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1303-1411 ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1412- ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09587-058-0 01 1 1009- ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1009-1302 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1303-1411 ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1412- ● ● ● ●
10 BEARING; INPUT SHAFT
(D) NSK 		1-09800-173-0 01 1 1009- ●
11 COVER; INTER AXLE DIFF 1-41323-023-0 01 1 1009- ●
12 BOLT; COVER TO CASE
M12X35 FLANGE 		0-28751-235-0 08 1 1009- ●
14 PLUG; FILLER
PT1/2 		9-09204-521-0 01 1 1009- ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1009-1302 ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1303-1411 ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1412- ● ● ● ●
16 SHAFT ASM; INPUT 1-41340-063-0 01 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-120-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-121-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-122-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-123-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-124-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-125-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-126-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.7 		1-41562-127-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-128-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-129-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-130-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-131-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-132-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-133-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-134-0 AR 1 1009- ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-156-0 01 1 1009- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-157-0 01 1 1009- ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(B) 		1-41521-050-2 01 1 1009- ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-049-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 1009- ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1009-1302 ● ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1303-1411 ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1412- ● ● ● ●
27 BOLT; BRG RET
M10X25 FLANGE 		0-28751-025-0 08 1 1009- ●
28 RETAINER; BRG,DRIVE GEAR 1-41353-015-0 01 1 1009- ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1009-1302 ● ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1303-1411 ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1412- ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41355-039-0 AR 1 1009- ●
29 SHIM; BRG RET
T=0.40 		1-41355-040-0 AR 1 1009- ●
29 SHIM; BRG RET
T=0.50 		1-41355-041-0 AR 1 1009- ●
29 SHIM; BRG RET
T=1.00 		1-41355-042-0 AR 1 1009- ●
30 BEARING; TAPER ROLLER
JTEKT 		1-09812-215-0 02 1 1009- ●
30 BEARING; TAPER ROLLER
NSK 		1-09812-216-0 02 1 1009- ●
31 GEAR; DRIVEN,HELICAL
(C) Z=16 		1-41351-044-0 01 1 1009-1302 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) Z=16 		1-41351-044-0 01 1 1303-1411 ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) Z=16 		1-41351-044-0 01 1 1412- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(D) Z=31 		1-41352-029-0 01 1 1009-1302 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(D) Z=31 		1-41352-029-0 01 1 1303-1411 ● ● ●
31 GEAR; DRIVEN,HELICAL
(D) Z=31 		1-41352-029-0 01 1 1412- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=31 		1-41351-034-0 01 1 1009- ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-034-0 01 1 1009- ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1009-1302 ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1303-1411 ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1412- ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41356-002-0 01 1 1009- ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1009-1302 ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1303-1411 ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1412- ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-026-1 01 1 1009- ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1009-1302 ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1303-1411 ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1412- ● ● ● ●
34 BOLT; CASE TO CARRIER
M12X35 FLANGE 		0-28751-235-0 11 1 1009- ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1009-1302 ● ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1303-1411 ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1412- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1009-1302 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1411 ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1412- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1009-1302 ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ●
37 NUT; DRIVING PINION
(B) M39 FLANGE 		1-09449-056-2 01 1 1009- ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-086-0 01 1 1009- ●
39 BEARING; FINAL PINION
(B) NTN 		9-00093-072-1 01 1 1009- ●
39 BEARING; FINAL PINION
(B) JTEKT 		9-00093-206-2 01 1 1009- ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-218-0 01 1 1009- ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 1009- ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(B) T=75 		1-41151-005-0 01 1 1009- ●
43 CAGE; FINAL PINION
(A) 		1-41151-062-0 01 1 1009- ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1009- ●
45 BOLT; FINAL PINION CAGE
(B) M14X40 FLANGE 		0-28751-440-0 08 1 1009- ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.000 		1-41154-009-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.500 		1-41154-010-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.300 		1-41154-104-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.400 		1-41154-105-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-081-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-082-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-083-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-084-0 AR 1 1009- ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1009-1302 ● ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1303-1411 ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1412- ● ● ● ●
52 SHAFT; OUTPUT 1-41343-023-0 01 1 1009- ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1009-1302 ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1303-1411 ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1412- ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 02 1 1009- ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1009-1302 ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1303-1411 ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1412- ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 02 1 1009- ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-120-1 01 1 1009- ●
55 CARRIER; DIFF
(A) 		1-41310-052-0 01 1 1009- ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/11 		1-41210-623-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/11 		1-41210-624-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-610-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-449-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/9 		1-41210-608-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/9 		1-41210-479-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/9 		1-41210-544-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/9 		1-41210-609-0 01 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1009-1302 ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1303-1411 ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1412- ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-010-0 01 1 1009- ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1009-1302 ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1411 ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1009-1302 ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1303-1411 ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1412- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1009-1302 ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1303-1411 ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1412- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1009-1302 ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1303-1411 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1412- ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1009-1302 ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1303-1411 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1412- ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1009-1302 ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1303-1411 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1412- ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1009-1302 ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1303-1411 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1412- ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1009-1302 ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1303-1411 ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1412- ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1009-1302 ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1303-1411 ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1412- ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1009-1302 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1411 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1412- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-059-1 01 1 1009- ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1009-1302 ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1303-1411 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1412- ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1009-1302 ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1303-1411 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1412- ● ● ● ● ●
çizim 168545
37 100 126 4 41 40 39 69 85 85 70 71 1 20 24 21 25 22 21 20 17 84 70 55 69 88 88 89 56 17 66 61 61 65 64 63 62 50 49 43 48 45 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 1412- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-729-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41002-429-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41002-431-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-727-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-728-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-110-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10 		1-41002-114-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41001-710-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-445-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/9 		1-41002-445-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/9 		1-41002-112-0 01 1 1009-1302 ●
1 DRIVE ASM; FINAL,RR
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9 		1-41002-112-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/9 		1-41002-120-0 01 1 1009- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1009-1302 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
4 GASKET; FLANGE,FINAL PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1303-1411 ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1412- ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57 		1-09623-386-0 01 1 1412- ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1009-1302 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1303-1411 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 1412- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1009- ●
17 BOLT; DIFF CAGE SETTING
M14X75 FLANGE 		1-09070-008-0 08 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.8 		1-41562-112-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=2.9 		1-41562-113-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.0 		1-41562-114-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.1 		1-41562-115-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.2 		1-41562-116-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.3 		1-41562-117-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1009-1302 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1303-1411 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(D) T=3.4 		1-41562-118-0 AR 1 1412- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.80 		1-41562-169-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.90 		1-41562-170-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.00 		1-41562-171-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.10 		1-41562-172-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.20 		1-41562-173-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.30 		1-41562-174-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.40 		1-41562-175-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.8 		1-41562-120-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.9 		1-41562-121-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.0 		1-41562-122-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.1 		1-41562-123-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.2 		1-41562-124-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.3 		1-41562-125-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.4 		1-41562-126-1 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.7 		1-41562-127-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-128-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-129-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-130-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-131-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-132-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-133-0 AR 1 1009- ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-134-0 AR 1 1009- ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(D) Z=16 		1-41561-151-0 02 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1009-1302 ● ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1303-1411 ● ● ●
21 GEAR; SIDE,DIFF
(E) Z=16 		1-41561-169-0 01 1 1412- ● ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-162-0 02 1 1009- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-156-0 01 1 1009- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-157-0 01 1 1009- ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-037-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1009-1302 ● ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1303-1411 ● ● ●
22 SPIDER; DIFF PINION
(D) 		1-41521-049-2 01 1 1412- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1009- ●
22 SPIDER; DIFF PINION
(B) 		1-41521-050-2 01 1 1009- ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-053-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1009-1302 ● ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1303-1411 ● ● ●
24 GEAR; PINION,DIFF
(D) Z=10 		1-41551-055-0 04 1 1412- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1009- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-049-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-017-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1009-1302 ● ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1303-1411 ● ● ●
25 WASHER; THRUST,PINION
(D) T=1.6 		1-41552-023-0 04 1 1412- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1009- ●
25 WASHER; THRUST,PINION
(B) ID=29 OD=60 		1-41562-119-0 04 1 1009- ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1009-1302 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1411 ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1412- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1009-1302 ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1303-1411 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ● ●
37 NUT; DRIVING PINION
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M46 FLANGE 		1-09449-071-0 01 1 1412- ● ● ●
37 NUT; DRIVING PINION
(B) M39 FLANGE 		1-09449-056-2 01 1 1009- ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(C) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
39 BEARING; FINAL PINION
(D) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-086-0 01 1 1009- ●
39 BEARING; FINAL PINION
(B) NTN 		9-00093-072-1 01 1 1009- ●
39 BEARING; FINAL PINION
(B) JTEKT 		9-00093-206-2 01 1 1009- ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-218-0 01 1 1009- ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1009-1302 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1411 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1412- ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1009-1302 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1303-1411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1412- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 1009- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 1009- ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1009-1302 ● ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1303-1411 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 1412- ● ● ● ●
43 CAGE; FINAL PINION
(B) T=75 		1-41151-005-0 01 1 1009- ●
43 CAGE; FINAL PINION
(A) 		1-41151-062-0 01 1 1009- ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(C) M16X40 		1-09070-107-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1009-1302 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1303-1411 ● ● ●
45 BOLT; FINAL PINION CAGE
(D) M16X55 		0-16806-655-0 08 1 1412- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1009- ●
45 BOLT; FINAL PINION CAGE
(B) M14X40 FLANGE 		0-28751-440-0 08 1 1009- ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1009-1302 ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1303-1411 ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1412- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 1009- ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-071-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-072-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-073-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-074-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.50 		1-41154-024-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=1.00 		1-41154-025-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.30 		1-41154-057-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1009-1302 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1303-1411 ● ● ●
49 SHIM; FINAL PINION CAGE
(D) T=0.40 		1-41154-058-0 AR 1 1412- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.000 		1-41154-009-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.500 		1-41154-010-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.300 		1-41154-104-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(B) T=0.400 		1-41154-105-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-081-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-082-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-083-0 AR 1 1009- ●
49 SHIM; FINAL PINION CAGE
(A) T=1.00 		1-41154-084-0 AR 1 1009- ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1009-1302 ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1411 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1412- ● ● ● ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) NTN 		1-09812-013-0 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
50 BEARING; FINAL PINION
(C) JTEKT 		1-09812-070-1 01 1 1009- ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(C) 		1-41310-050-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1009-1302 ● ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1303-1411 ● ● ●
55 CARRIER; DIFF
(D) 		1-41110-109-0 01 1 1412- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-120-1 01 1 1009- ●
55 CARRIER; DIFF
(A) 		1-41310-052-0 01 1 1009- ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1009-1302 ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1411 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1412- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 1412- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/11 		1-41210-623-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/11 		1-41210-624-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-610-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-449-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1009-1302 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/9 		1-41210-608-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/9 		1-41210-479-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/9 		1-41210-544-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/9 		1-41210-609-0 01 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1009-1302 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1411 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1412- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 1009- ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1009-1302 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1411 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1412- ● ● ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1009-1302 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1411 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1412- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1009- ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1009-1302 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1411 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1009-1302 ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1411 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1412- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1009-1302 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1411 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1412- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1009- ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1009-1302 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1411 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1009-1302 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1411 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1412- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1412- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1009-1302 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1303- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1009-1302 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1411 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1412- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1009- ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1009-1302 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1411 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1412- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1009- ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1009-1302 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1411 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1009-1302 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1411 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1412- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1009-1302 ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1303-1411 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1412- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 1009- ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1009-1302 ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1303-1411 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1412- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-396-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
