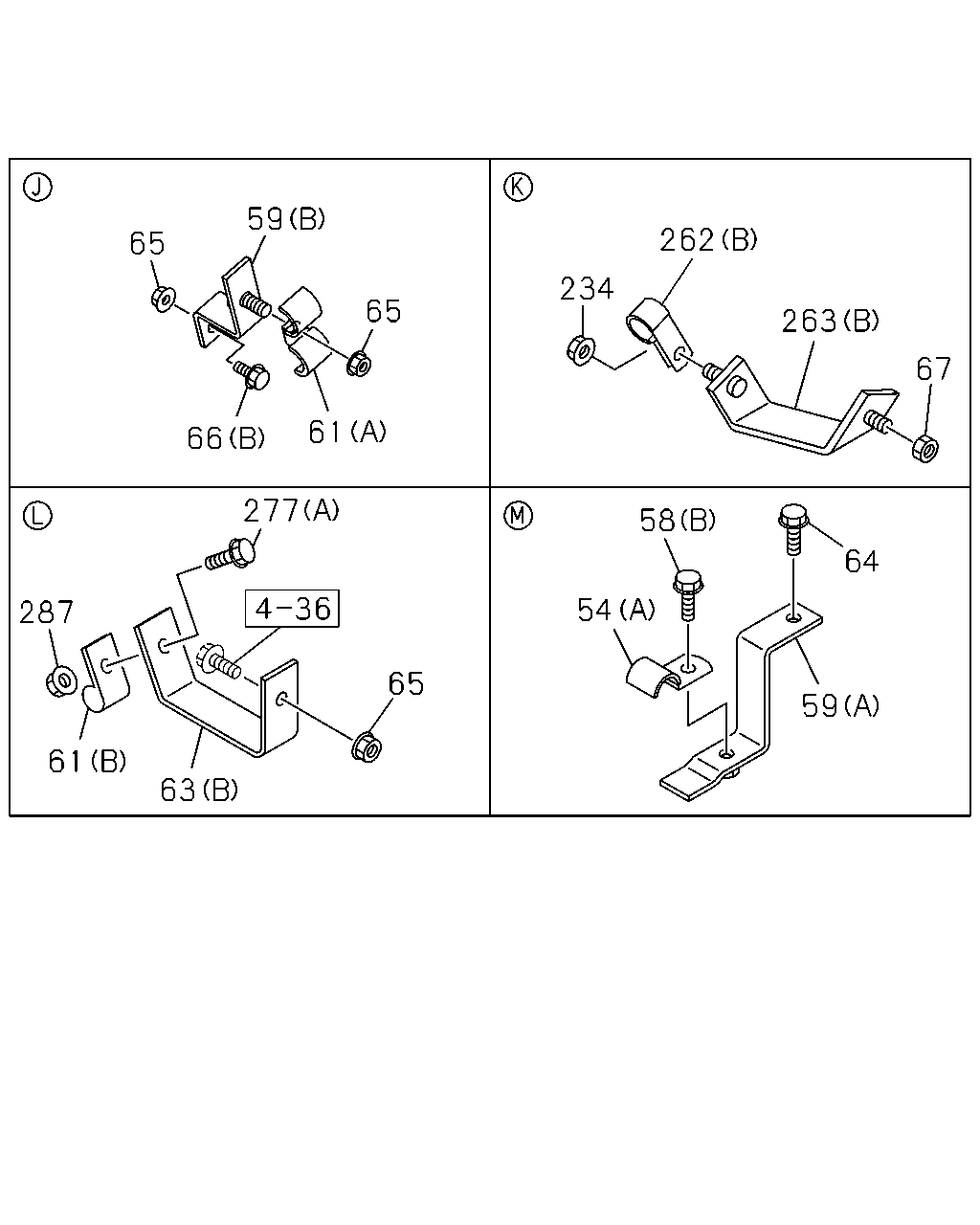

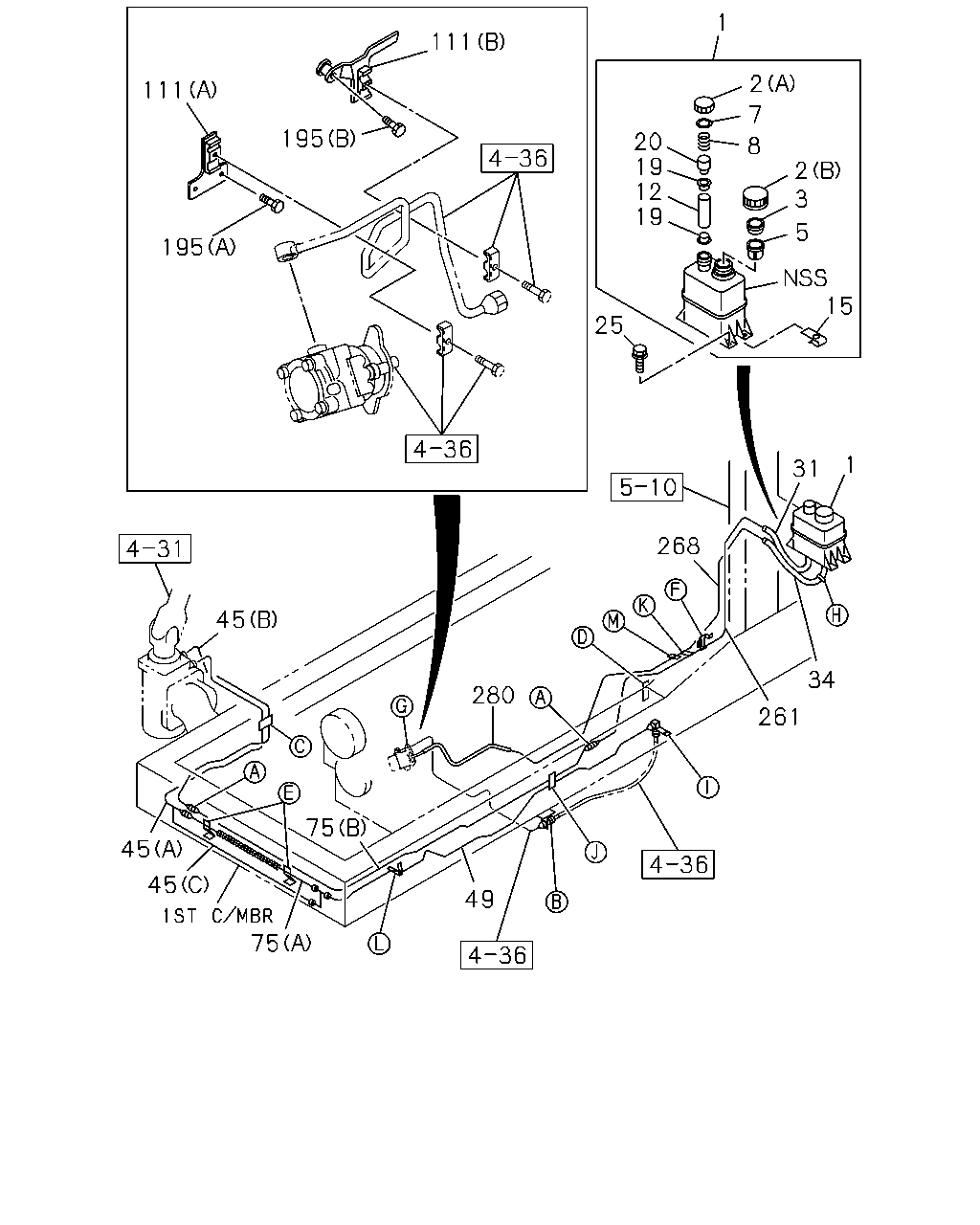

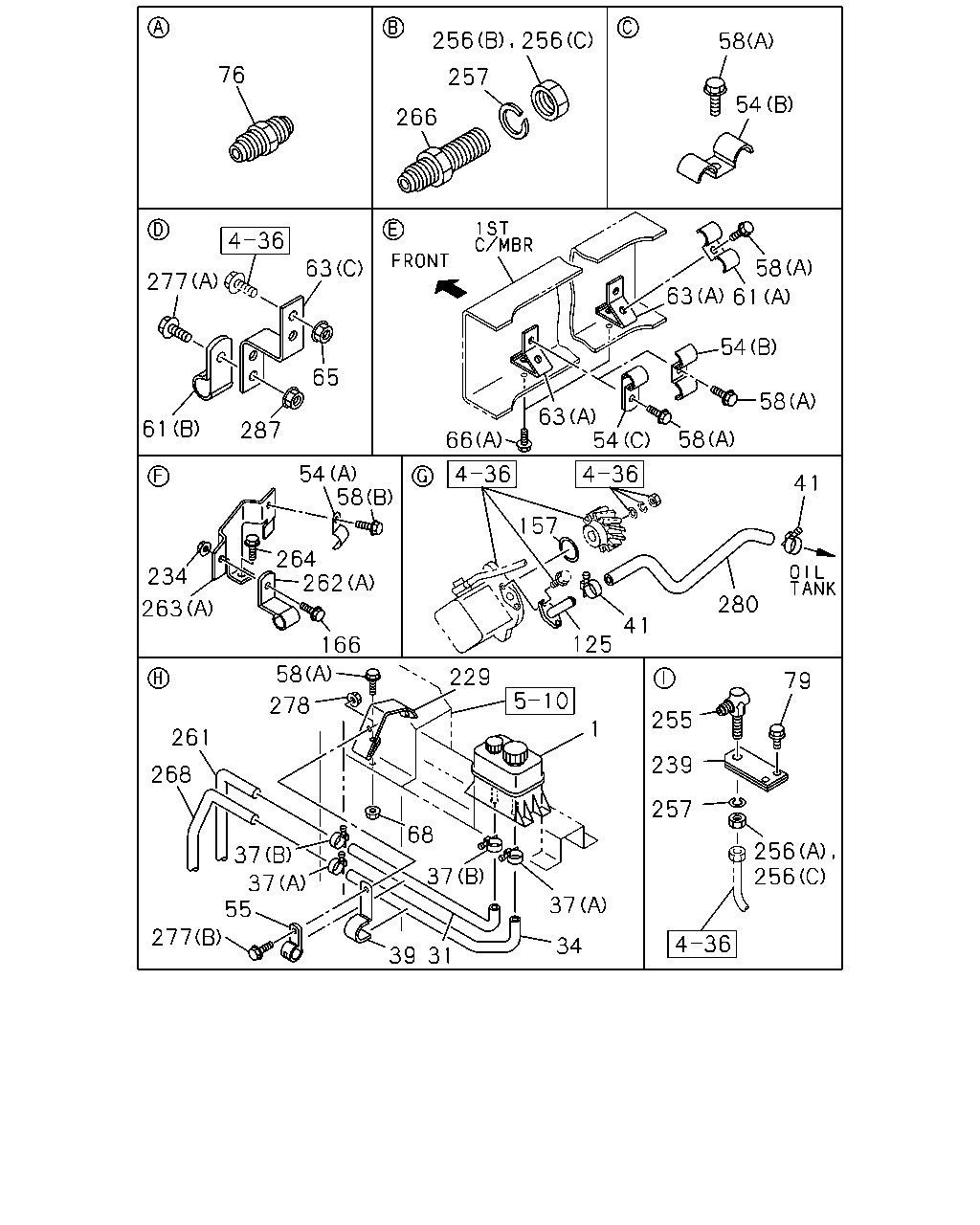

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#6146) — 202 parça

1 111 2 111 7 195 20 19 12 19 8 2 3 5 195 15 25 1 31 268 45 34 280 261 75 45 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9905-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	9905-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	9905-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9905-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9905-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9905-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9905-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9905-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9905-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9905-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9905-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9905-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9905-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9905-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1234	1-21116-238-0	01	1	9905-9905
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING HEAVY DUTY VAR 2<N41> (B) L=1234	1-21116-238-0	01	1	9906-0002
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9905-9905
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING HEAVY DUTY VAR 2<N41> (A) L=1106	1-21116-239-0	01	1	9906-0002
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1239	1-21116-471-0	01	1	0202-0602
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1671	1-21117-842-0	01	1	0603-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1661	1-21116-850-0	01	1	0202-0602
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1249	1-21117-843-0	01	1	0603-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING HEAVY DUTY VAR 2<N41> (B) L=1239	1-21116-471-0	01	1	9906-0002
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1239	1-21116-471-0	01	1	0003-0201
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING HEAVY DUTY VAR 2<N41> (A) L=1111	1-21116-472-0	01	1	9906-0002
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1111	1-21116-472-0	01	1	0003-0006
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1661	1-21116-850-0	01	1	0007-0201
49	PIPE; OIL,FLEX HOSE TO UNION L=1663	1-21116-235-0	01	1	9905-0108
49	PIPE; OIL,FLEX HOSE TO UNION L=1672	1-21117-137-0	01	1	0109-0211
49	PIPE; OIL,FLEX HOSE TO UNION L=1662	1-21117-337-0	01	1	0212-0404
49	PIPE; OIL,FLEX HOSE TO UNION L=1701	1-21117-568-0	01	1	0405-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9905-0006
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1807	1-21116-404-0	01	1	9905-0106
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1815	1-21117-076-0	01	1	0107-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	9905-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	9905-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9905-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9905-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9905-0104
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1305	1-21115-948-0	01	1	9905-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0007-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9905-0305
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0306-0603
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0604-0604
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0605-

59 262 65 234 65 263 67 61 66 277 58 64 54 287 65 59 61 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	9905-
54	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
54	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-0104
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0301
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0302-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-0301
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	9905-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-235-0	01	1	9905-0106
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-669-1	01	1	0107-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	04	1	9905-0404
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	05	1	0405-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	05	1	0607-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	9905-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	9905-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9905-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0104-0512
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0302-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9905-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9905-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	9905-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	9905-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0404
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0405-0512
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-0512
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9905-0404
287	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0405-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-

58 76 257 54 266 58 63 63 54 65 58 63 54 61 287 58 66 54 41 157 264 262 234 280 263 41 125 166 58 229 79 278 255 1 261 239 268 257 68 256 256 37 37 37 55 37 277 34 39 31 256 256 277 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9905-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9905-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9905-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	9905-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	9905-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9905-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	9905-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	9905-
54	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
54	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-0104
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	9905-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0301
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0302-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-0301
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	9905-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	04	1	9905-0404
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	05	1	0405-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	05	1	0607-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	9905-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	9905-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9905-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0302-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9905-0301
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9905-0301
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0302-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	9905-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING HEAVY DUTY VAR 2<N41> ID=79.6	1-09623-421-0	01	1	9905-0002
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0003-0104
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING HEAVY DUTY VAR 2<N41> ID=79.6	1-09623-421-0	01	1	0105-0204
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). STRG VARIABLE CONTROL<TFY> ID=79.6	1-09623-421-0	01	1	9905-0002
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). STRG VARIABLE CONTROL<TFY> ID=79.6	1-09623-421-0	01	1	0105-0204
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0205-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9905-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	9905-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9905-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	9905-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	9905-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9905-0512
256	NUT; UNION (B) M22	9-09111-522-0	01	1	9905-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9905-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9905-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9905-0104
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9905-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	9905-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	9905-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	9905-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1305	1-21115-948-0	01	1	9905-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0007-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0404
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0405-0512
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-0512
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	9905-0602
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9905-0305
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0306-0603
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0604-0604
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0605-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9905-0404
287	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0405-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
