3-20 — AIR TANK (#61458) — 105 parça
çizim 163566

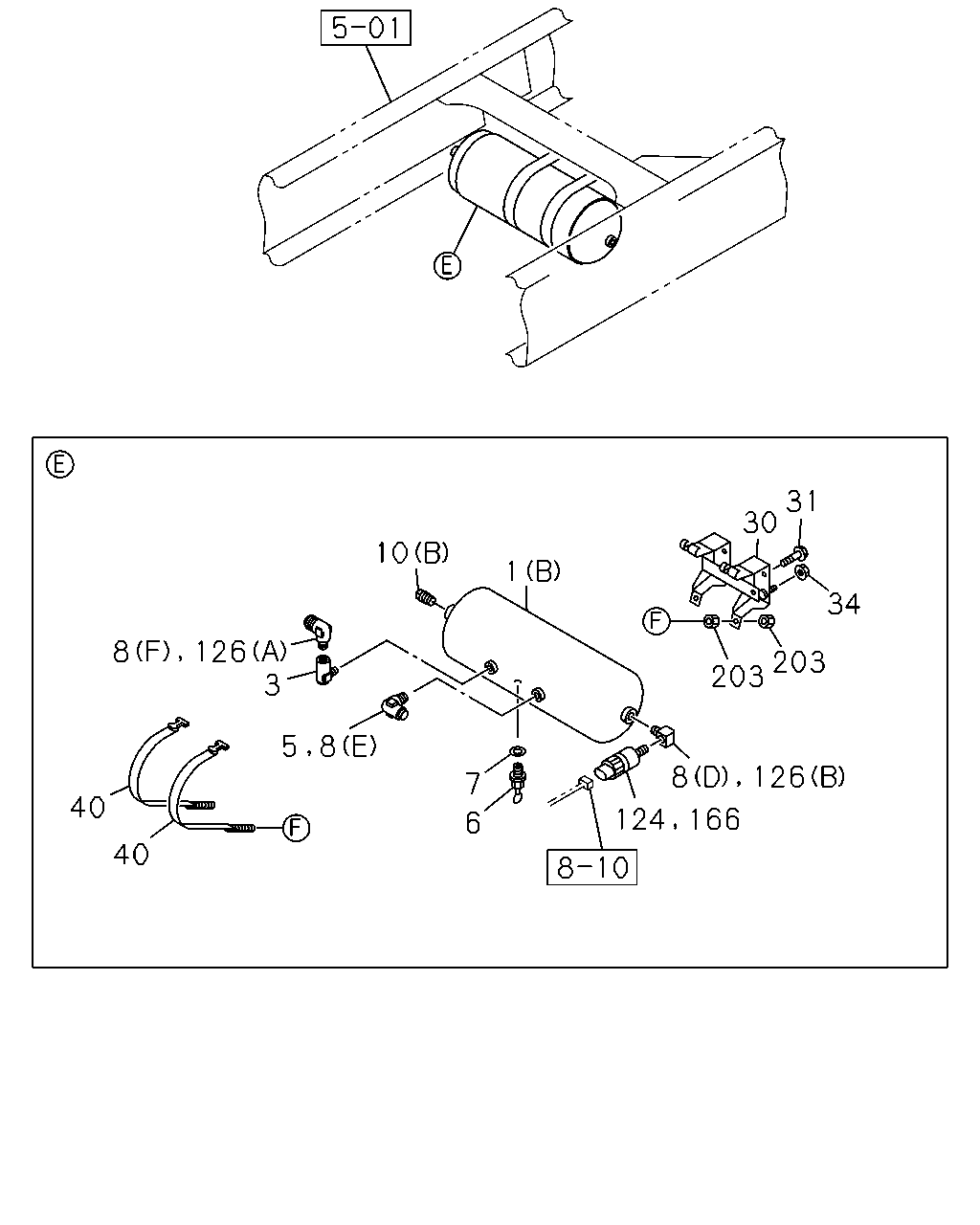

31 30 10 1 34 8 126 3 203 203 8 126 7 40 124 166 6 40 5 8
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 0906-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48370-659-0 01 1 0906-1101
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1102-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-031-1 01 1 0906-
5 UNION; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0906-1101
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0906-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 0906-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0906-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 0906-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1102-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1102-
8 CONNECTOR; AIR TANK
(C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0906-
8 CONNECTOR; AIR TANK
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0906-
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 0906-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0906-1101
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8 		9-09204-517-0 01 1 1102-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1102-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4 		9-09204-526-0 01 1 0906-1101
30 BRACKET; AIR TANK,SUB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-894-1 01 1 0906-
31 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0906-
34 NUT; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0906-
40 BAND ASM; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-893-1 02 1 0906-
124 SWITCH; AIR PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1102-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0906-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-1101
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-1101
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1102-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0906-1101
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 0906-1101
203 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 04 1 0906-
çizim 163572

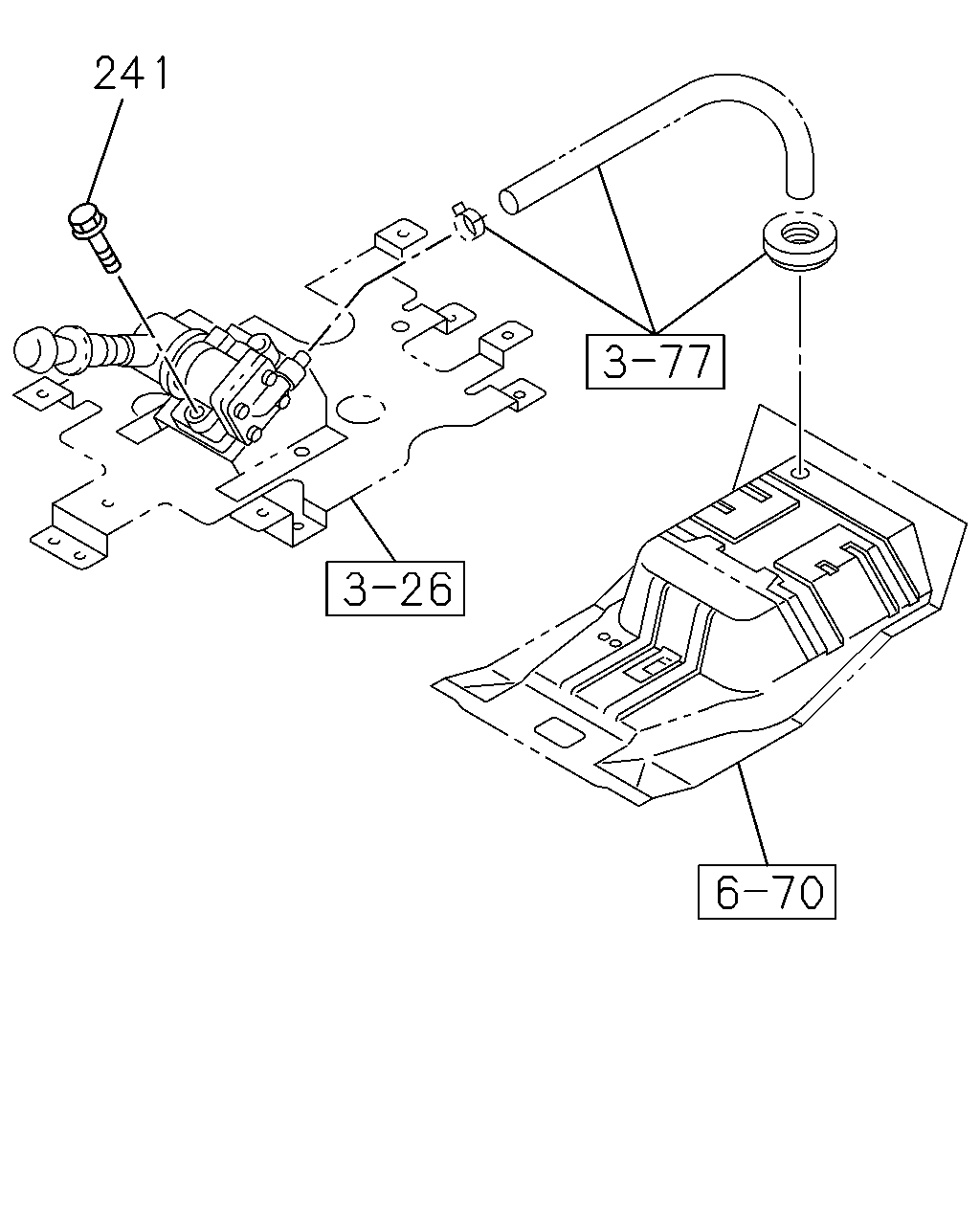

241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE 		0-28050-870-0 02 1 0906-
çizim 163578

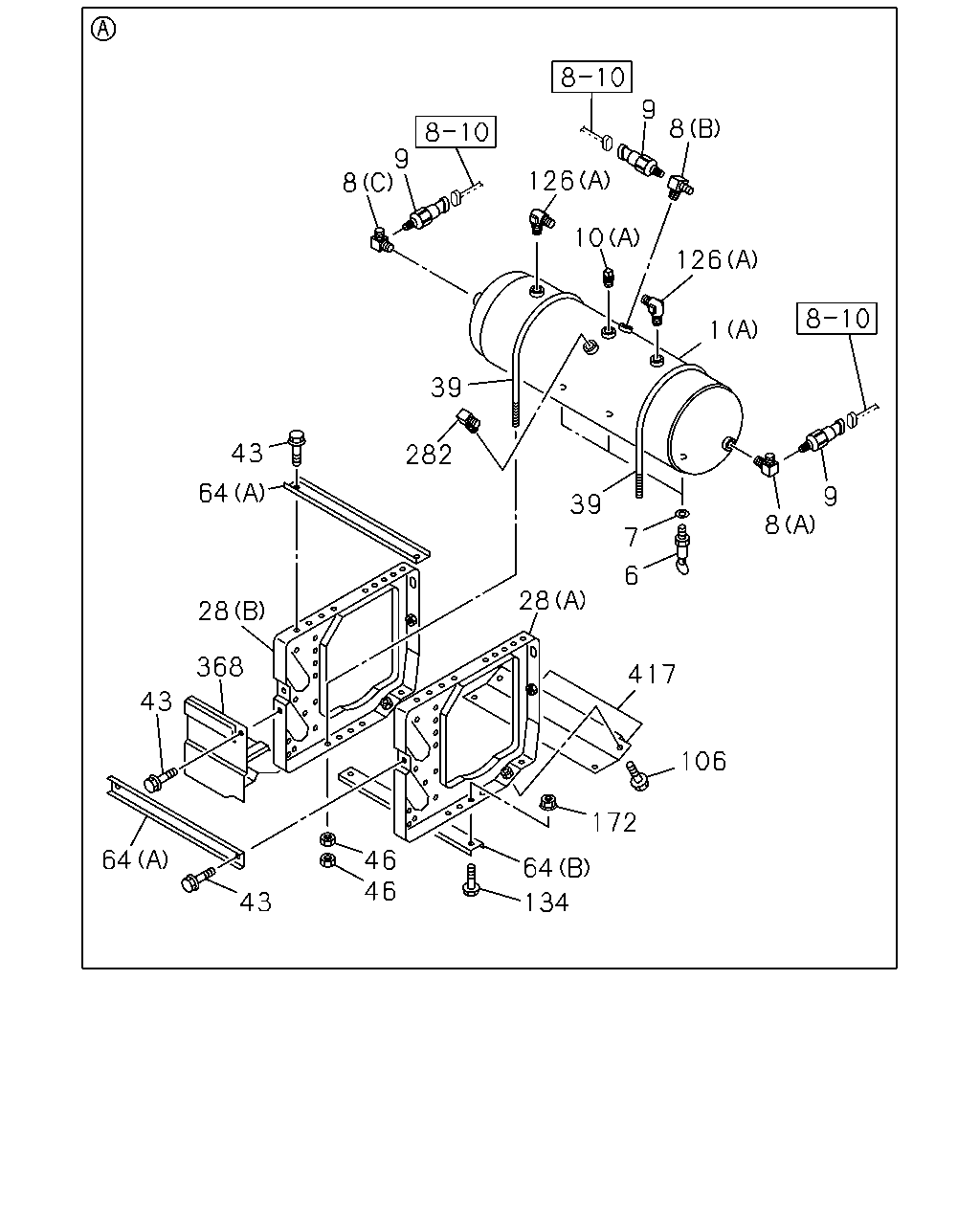

9 8 9 8 126 10 126 1 39 43 282 64 9 39 8 7 6 28 28 368 417 43 106 172 64 46 46 64 43 134
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 0906-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48370-659-0 01 1 0906-1101
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1102-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0906-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 0906-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0906-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 0906-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1102-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1102-
8 CONNECTOR; AIR TANK
(C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0906-
8 CONNECTOR; AIR TANK
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0906-
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 0906-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 03 1 0906-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0906-1101
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8 		9-09204-517-0 01 1 1102-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1102-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4 		9-09204-526-0 01 1 0906-1101
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 0906-
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 0906-
39 U-BOLT; AIR TANK 8-98022-041-0 02 1 0906-
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 0906-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0906-
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 0906-
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 0906-
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 0906-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0906-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-1101
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-1101
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1102-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0906-1101
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0906-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0906-
282 UNION; 2 WAY
M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 0906-
368 COVER; AIR TANK 8-98061-625-3 01 1 0906-
417 COVER; HARNESS 8-98111-401-0 01 1 0906-
çizim 163581

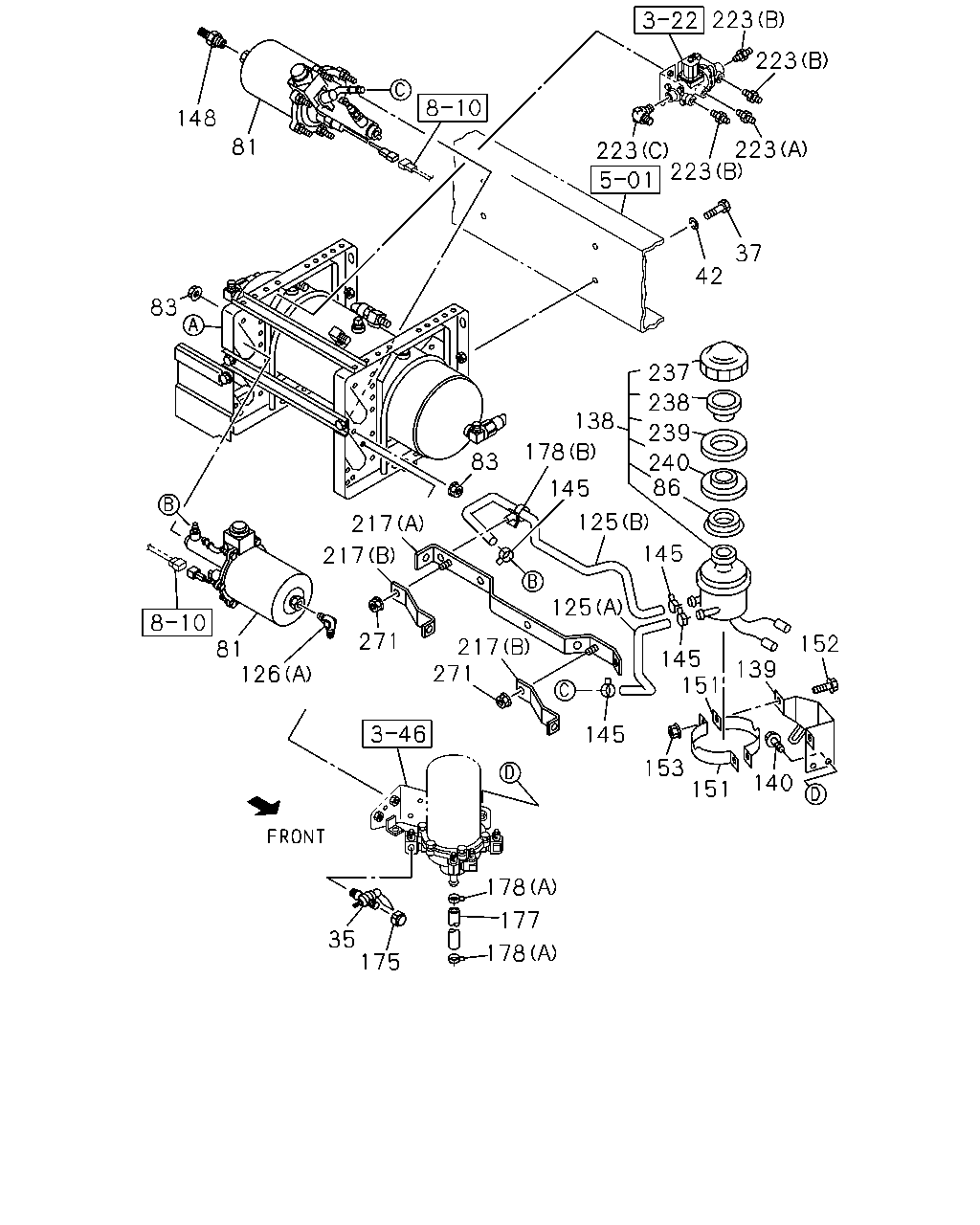

223 223 148 81 223 223 223 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 217 271 271 152 81 126 145 151 139 145 153 151 140 178 177 35 175 178
BalonParca AdiParca NoAdetTipApplied Date
35 COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0906-
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 0906-
42 WASHER; PL
ID=12.5 OD=32 		0-91614-712-0 04 1 0906-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-777-0 02 1 0906-0906
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 0906-
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 0906-
86 SEAL; DUST 1-47529-019-0 01 1 0906-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 0906-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 0906-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0906-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-1101
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-1101
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1102-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0906-1101
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0906-
139 BRACKET; OIL TANK 8-98051-105-0 01 1 0906-
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0906-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0906-
148 CONNECTOR; AIR MASTER
M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0906-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0906-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0906-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0906-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0906-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 0906-
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 0906-
178 CLIP; HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21 		8-94242-034-0 02 1 0906-
178 CLIP; HOSE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21 		8-94242-034-0 01 1 0906-
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 0906-
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 0906-
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0906-
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 0906-
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0906-
237 CAP; OIL TANK 1-47525-030-0 01 1 0906-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0906-
239 FILTER; DUST 1-47529-017-0 01 1 0906-
240 HOLDER; FILTER 1-47529-018-0 01 1 0906-
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 0906-
