Sayfa 3-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11232 - FRR RHD EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶

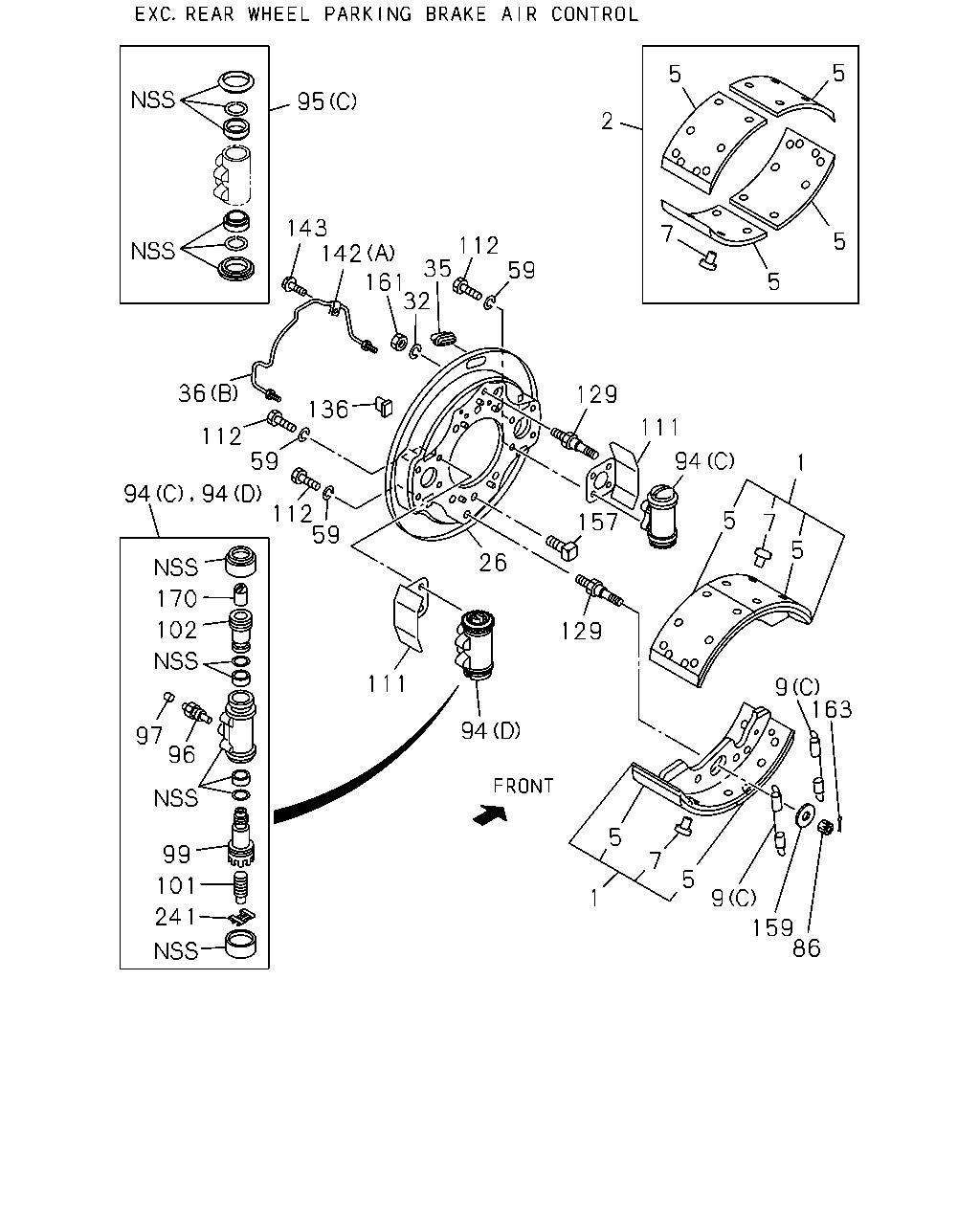

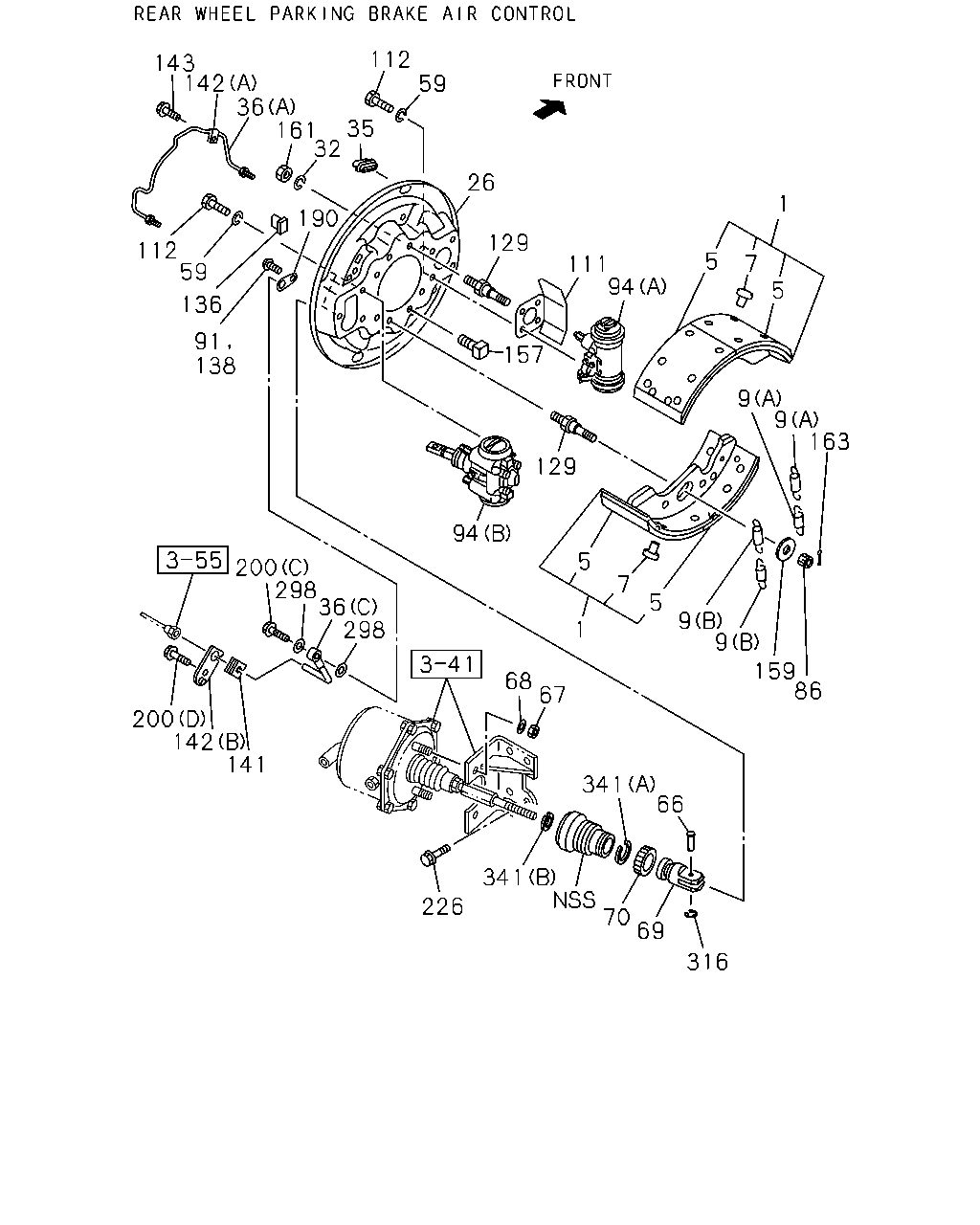

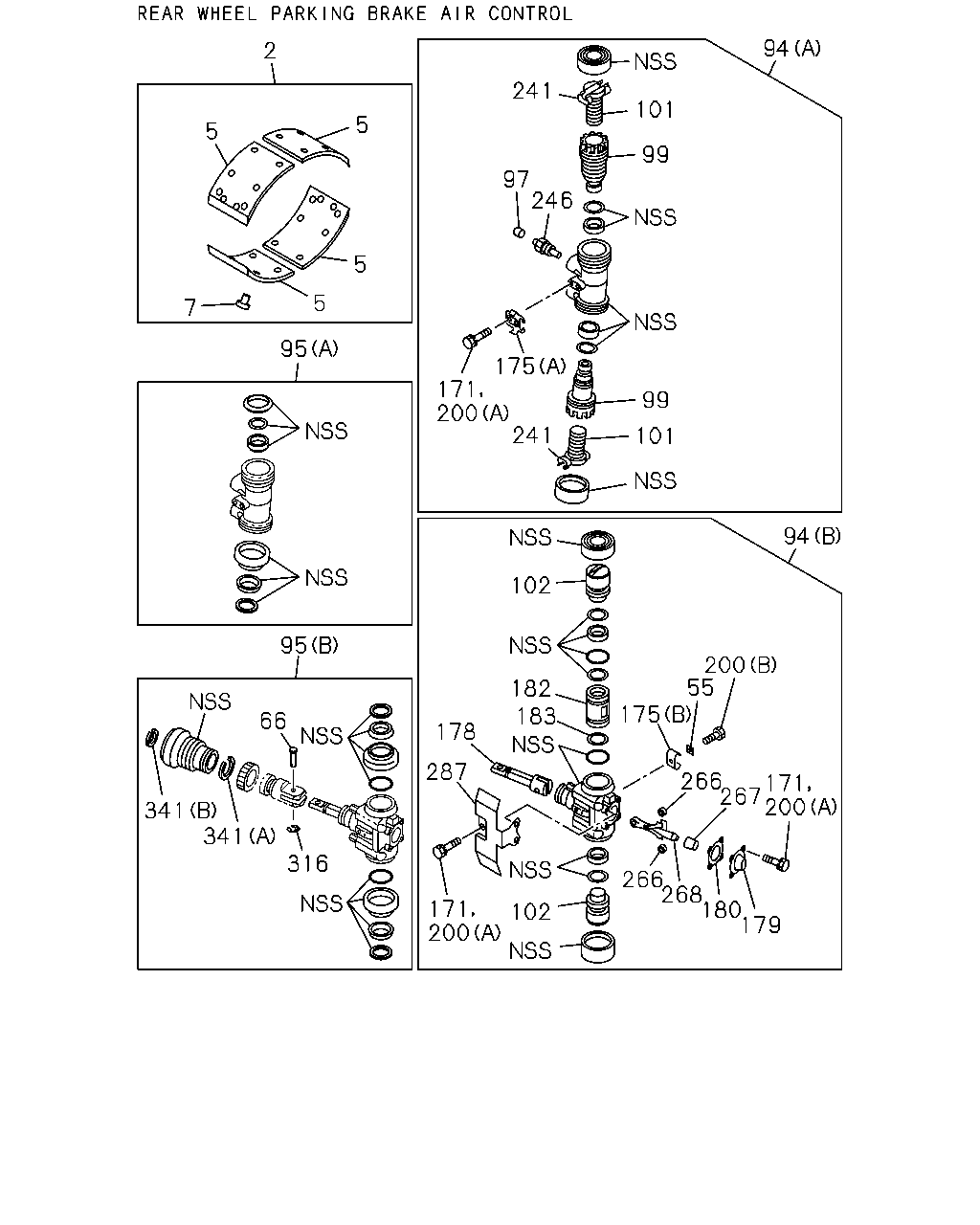

3-05 — REAR WHEEL BRAKE (#61454) — 159 parça

102 171 200 287 183 182 102 94 200 55 175 266 267 200 180 179 171 268 266 316 341 341 66 95 95 5 5 5 2 5 7 101 99 99 101 241 97 175 246 171 241 200 94 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0906-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0906-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	0906-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47601-170-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47601-171-1	01	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0906-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0906-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0906-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0906-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0906-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0906-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0906-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	0906-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	0906-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	0906-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	0906-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	0906-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	0906-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	0906-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0906-
241	HOLDER	1-47619-097-0	04	1	0906-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0906-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	0906-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	0906-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	0906-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	0906-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0906-

143 142 36 161 32 35 112 59 112 59 136 91 138 190 26 129 111 94 157 5 1 7 5 9 9 163 129 94 5 7 5 9 9 159 86 200 298 36 298 200 142 141 68 67 341 66 341 226 70 69 316 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0906-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0906-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0906-
32	WASHER; LK	1-47159-110-0	04	1	0906-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	0906-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	0906-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0906-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0906-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0906-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	0906-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	0906-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	0906-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	0906-
86	NUT; FLANGE	1-09440-101-0	04	1	0906-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47601-170-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47601-171-1	01	1	0906-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0906-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0906-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0906-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0906-
136	GROMMET	1-09333-138-0	04	1	0906-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0906-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	0906-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0906-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0906-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0906-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0906-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0906-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0906-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0906-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0906-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	0906-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	0906-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0906-

95 143 161 142 112 35 32 59 129 94 111 157 26 136 36 112 94 94 112 59 59 111 94 97 102 170 96 99 101 241 129 1 5 7 5 9 163 7 5 1 9 159 5 86 5 7 2 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0906-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0906-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0906-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0906-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0906-
32	WASHER; LK	1-47159-110-0	04	1	0906-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	0906-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	0906-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0906-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0906-
86	NUT; FLANGE	1-09440-101-0	04	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47601-170-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47601-171-1	01	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0906-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0906-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0906-1406
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0906-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0906-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0906-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0906-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0906-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0906-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0906-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0906-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0906-
136	GROMMET	1-09333-138-0	04	1	0906-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0906-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0906-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0906-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0906-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0906-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0906-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0906-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	0906-
241	HOLDER	1-47619-097-0	04	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
