1 |

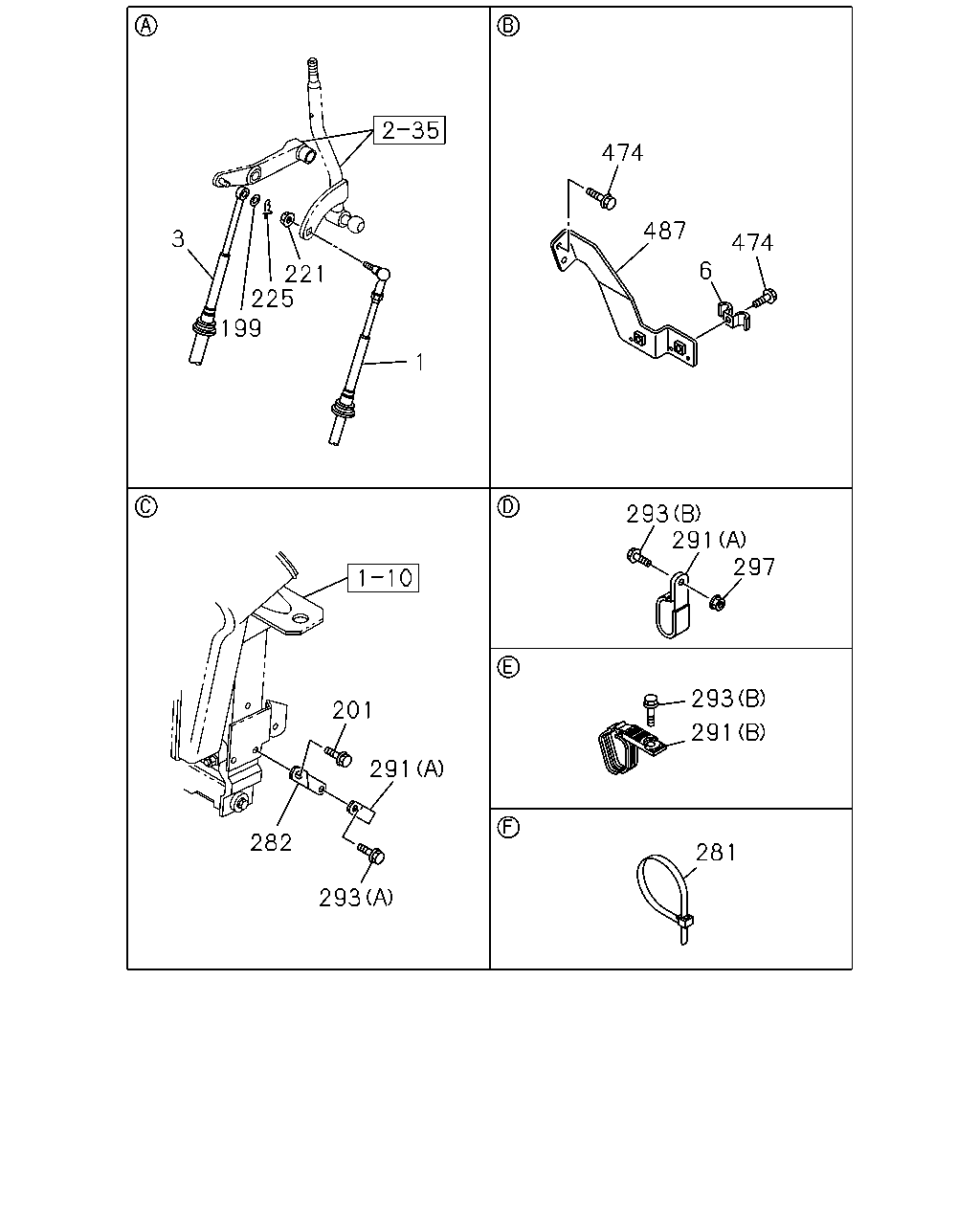

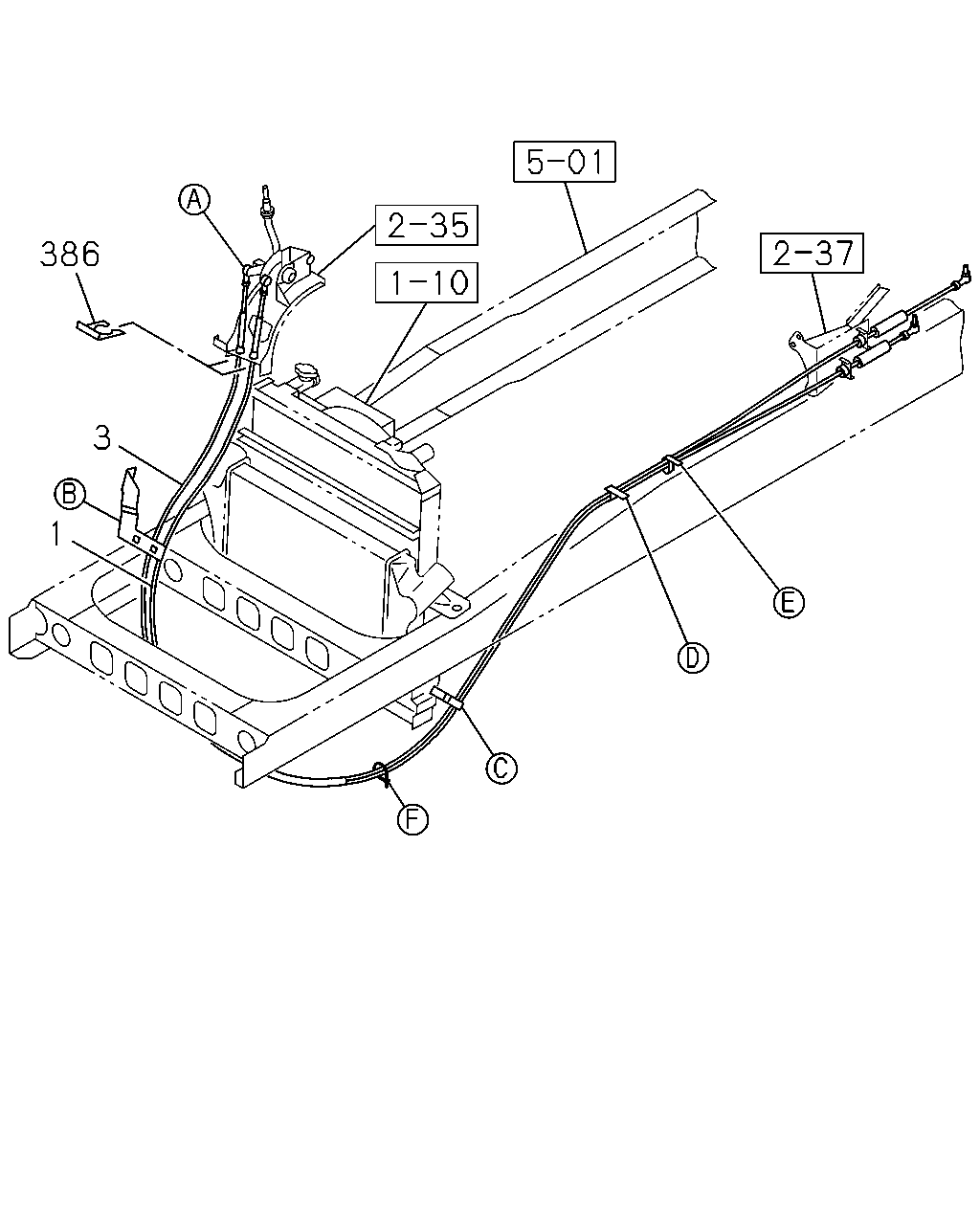

CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W)
ASSISTOR SHIFT CONTROL<WX8>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=3555
|
8-98119-253-3 |
01 |
1 |
0906- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ)
ASSISTOR SHIFT CONTROL<WX8>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=3500
|
8-98071-386-3 |
01 |
1 |
0906- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3530
|
8-98017-489-5 |
01 |
1 |
0906- |
| |
3 |
CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W)
ASSISTOR SHIFT CONTROL<WX8>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=3665
|
8-98119-261-2 |
01 |
1 |
0906- |
| |
3 |
CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ)
ASSISTOR SHIFT CONTROL<WX8>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=3725
|
8-98071-388-2 |
01 |
1 |
0906- |
| |
3 |
CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3725
|
8-98017-510-4 |
01 |
1 |
0906- |
| |
6 |
CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
ID=11 & 11 L=17.5 & 17.5
|
1-09700-739-0 |
01 |
1 |
0906- |
| |
199 |
WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
ID=8.4 OD=16
|
0-91614-508-0 |
01 |
1 |
0906- |
| |
201 |
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0906- |
| |
221 |
NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
1-09440-049-0 |
01 |
1 |
0906-1011 |
| |
221 |
NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
1-09440-062-1 |
01 |
1 |
1012- |
| |
225 |
PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=27.7
|
8-94111-137-0 |
01 |
1 |
0906- |
| |
281 |
CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=300
|
1-09707-001-1 |
01 |
1 |
0906- |
| |
282 |
BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98010-418-0 |
01 |
1 |
0906- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
ID=11X2 L=16
|
0-95325-026-0 |
02 |
1 |
0906- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(B)
ID=13 & 10 & 10 L=35.5
|
8-98023-991-0 |
01 |
1 |
0906- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0906- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(B)
M8X20 FLANGE
|
0-28050-820-0 |
01 |
1 |
0906- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(B)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0906- |
| |
297 |
NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0906- |
| |
474 |
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8X25 W/WASHER
|
0-51640-825-0 |
02 |
1 |
0906- |
| |
474 |
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 W/WASHER
|
0-51640-825-0 |
02 |
1 |
0906- |
| |
474 |
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8X25 W/WASHER
|
0-51640-825-0 |
01 |
1 |
0906- |
| |
487 |
BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98021-920-2 |
01 |
1 |
0906-1012 |
| |
487 |
BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
8-98021-920-2 |
01 |
1 |
0906-1012 |
| |
487 |
BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98183-009-0 |
01 |
1 |
1101- |
| |
487 |
BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
8-98183-009-0 |
01 |
1 |
1101- |
