Isuzu WW
▶
TRUCKS
▶
FRR
▶
11232 - FRR RHD EURO5 EXC.SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#61442) — 25 parça
Tümü

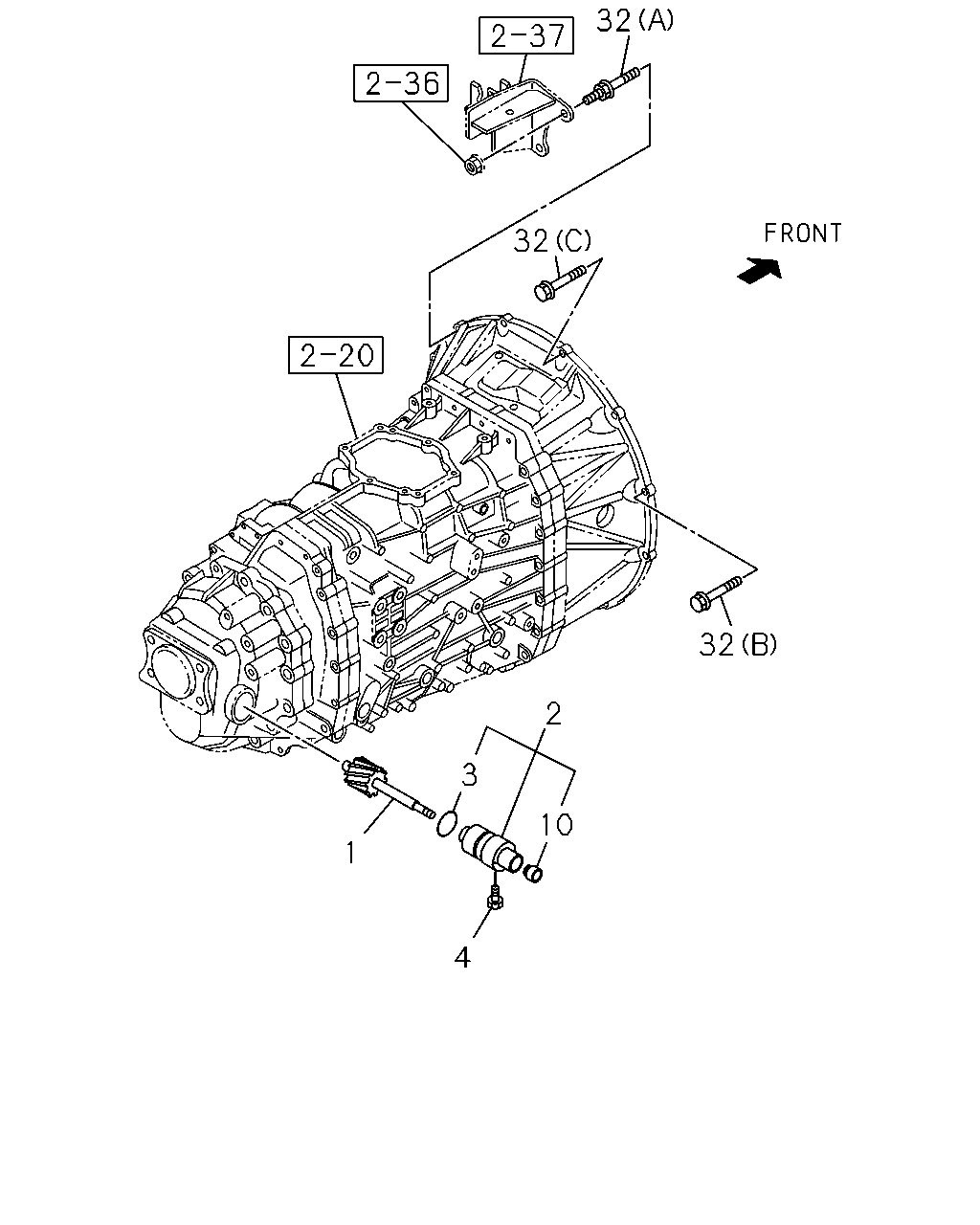

A - MZW6P M/T

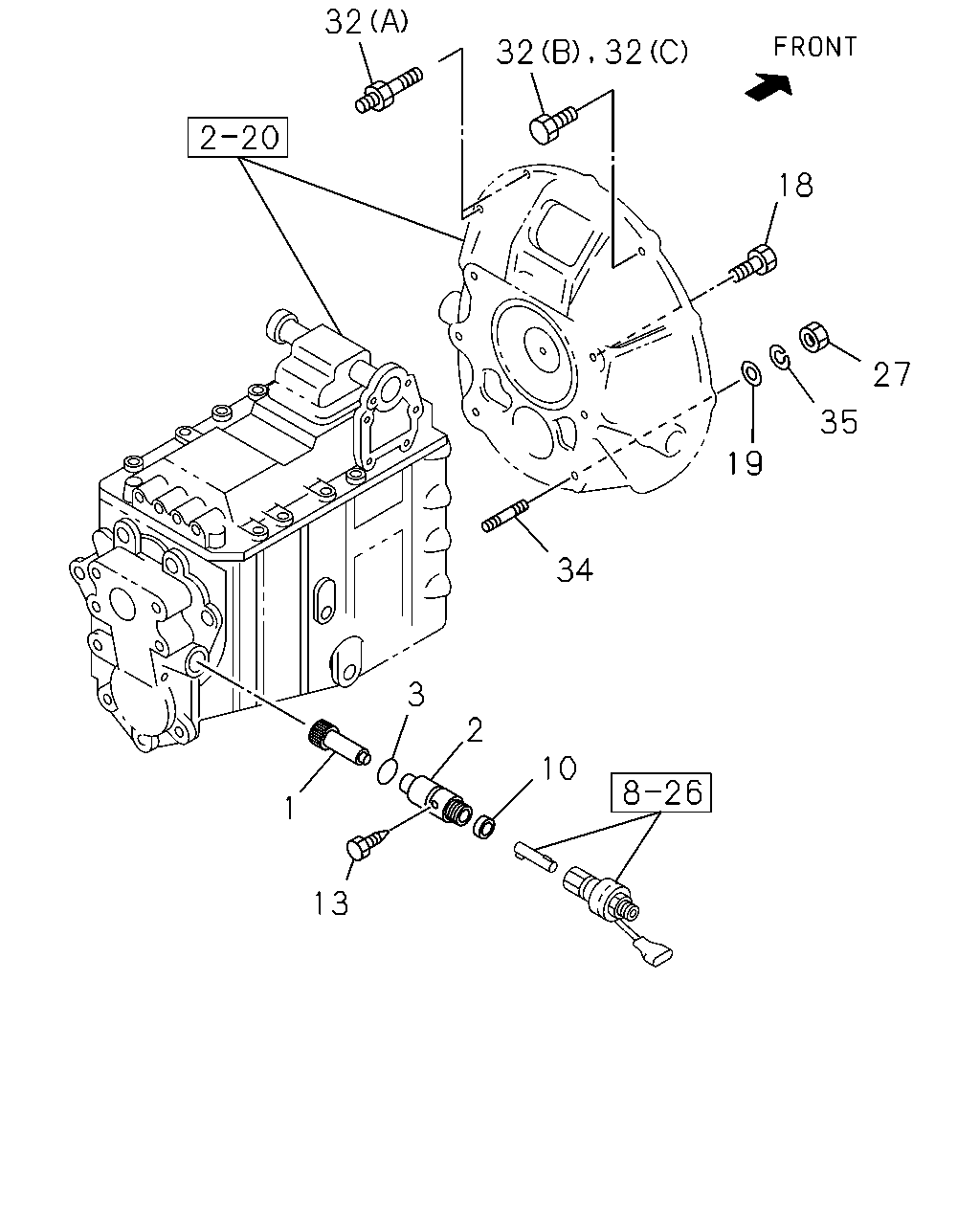

B - MLD6S M/T
◀
[225A] MZW (10 parça)
[225A] MLD (15 parça)
▶
32
32
32
2
3
10
1
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
0906-
●
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-058-3
01
1
0906-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
0906-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0906-
●
●
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0906-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0906-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X30 FLANGE
0-28151-030-0
08
1
0906-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X26 L=56
8-98010-334-0
02
1
0906-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
8-98116-723-0
02
1
0906-1211
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
8-98234-150-0
02
1
1212-
●
●
32
18
27
35
19
34
3
2
10
1
13
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
0906-
●
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-058-3
01
1
0906-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
0906-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0906-
●
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0906-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0906-
●
18
BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER
0-50651-640-0
06
1
0906-
●
19
WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30
0-91610-516-0
02
1
0906-
●
27
NUT; CLU HSG TO TRANS
M16
0-91110-516-0
02
1
0906-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X30 FLANGE
0-28151-030-0
08
1
0906-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X26 L=56
8-98010-334-0
02
1
0906-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
8-98116-723-0
02
1
0906-1211
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
8-98234-150-0
02
1
1212-
●
●
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
0906-
●
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
0-91510-516-0
02
1
0906-
●
