Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#6143) — 58 parça
◀

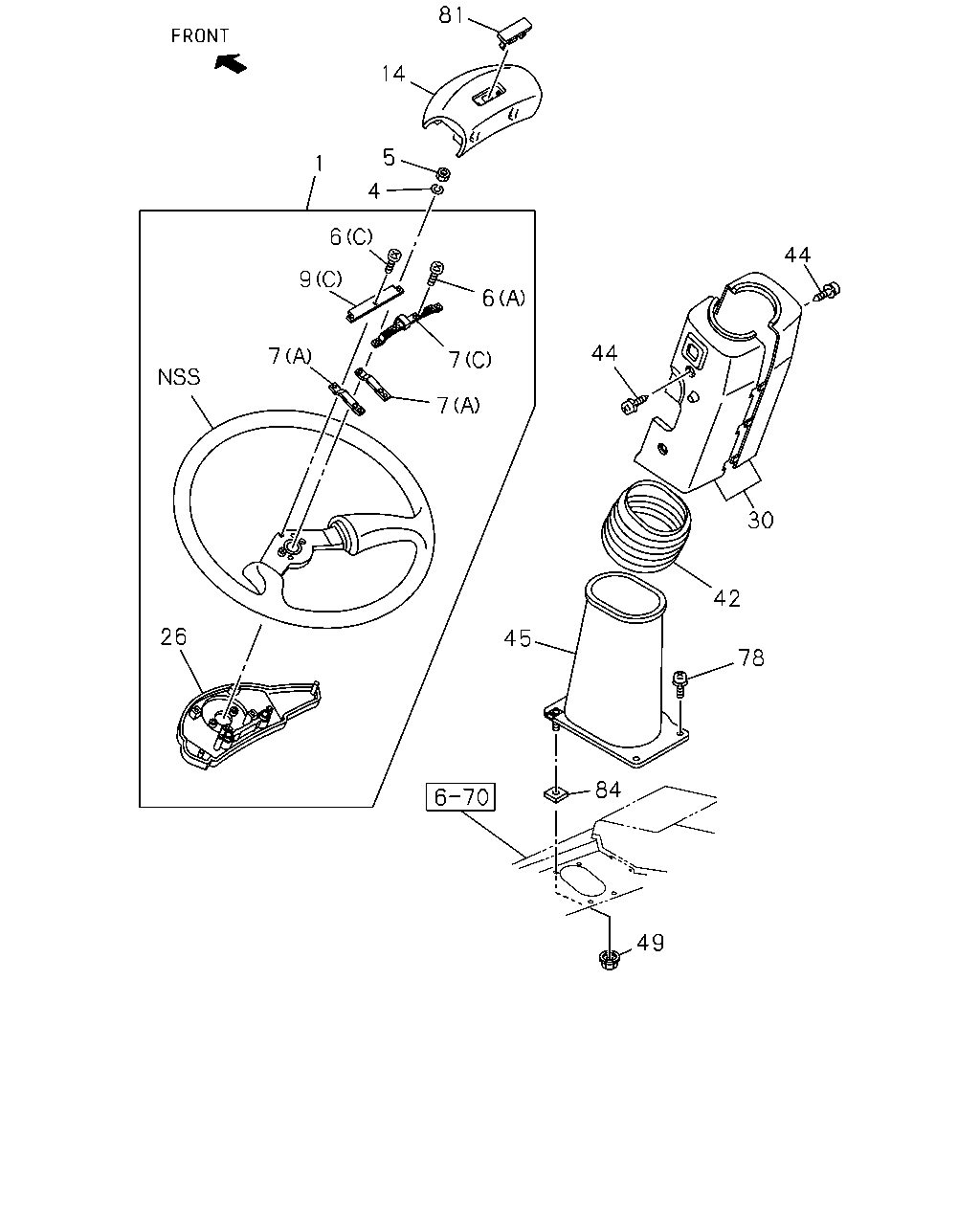

[430A] STRG WHEEL LEATHER WRAPPED (29 parça)

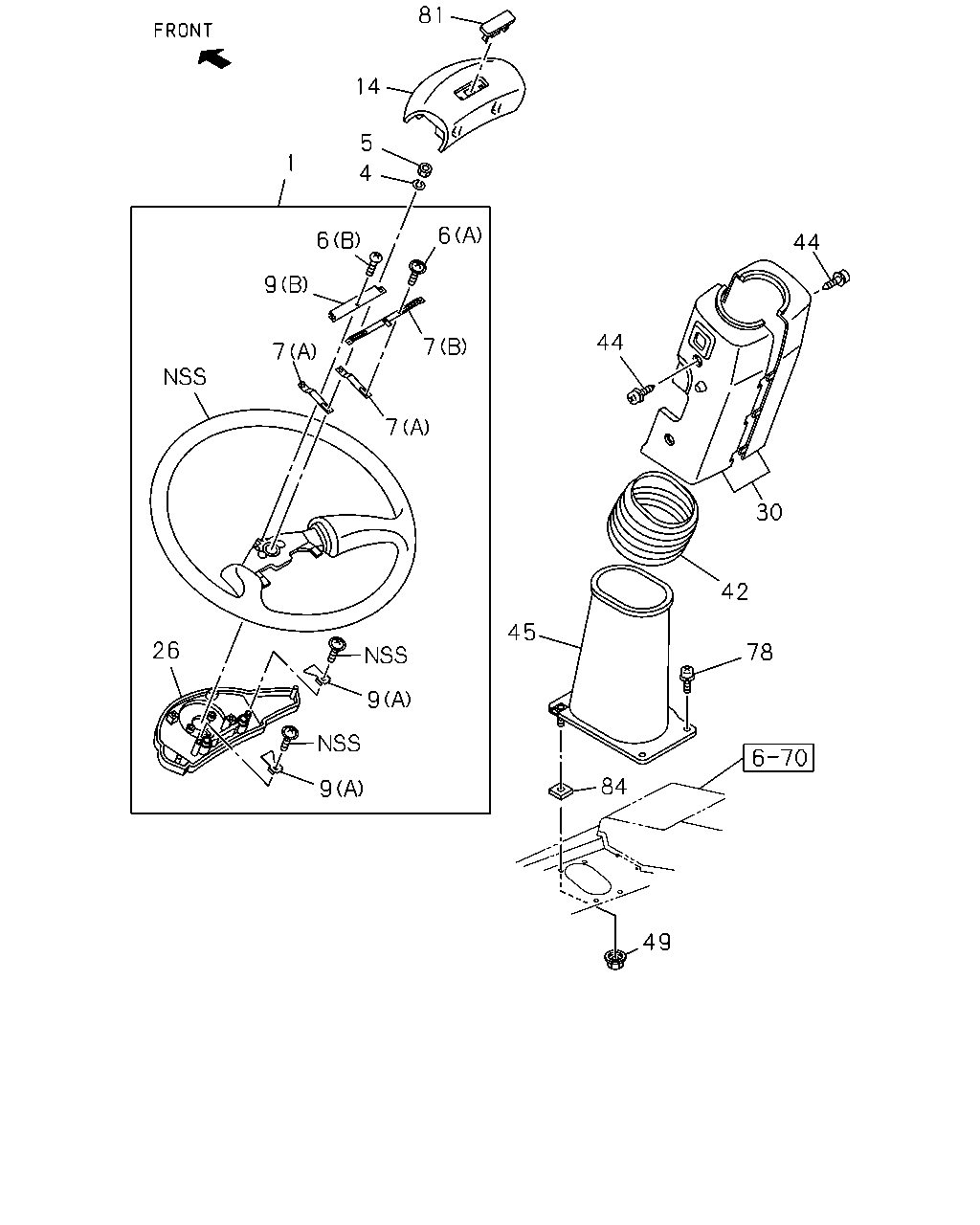

[430A] EXC.STRG WHEEL LEATHER WRAPPED (29 parça)
▶
81
14
5
1
4
6
6
44
9
44
7
7
7
30
42
45
26
78
9
84
9
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5>
1-44110-157-1
01
1
9905-
1
WHEEL; STRG
EXC. STRG WHEEL LEATHER WRAPPED<NP5>
1-44110-146-1
01
1
9905-
4
WASHER; LK,STRG WHEEL
ID=20.2
9-09150-520-0
01
1
9905-0603
4
WASHER; LK,STRG WHEEL
ID=20.2
0-91510-520-0
01
1
0604-
5
NUT; STRG WHEEL TO SHAFT
M20
9-99111-420-0
01
1
9905-0512
5
NUT; STRG WHEEL TO SHAFT
M20
0-91111-520-0
01
1
0601-
6
SCREW; HORN SPR CONTACT
(A) M4X16
1-44129-036-0
04
1
9905-
6
SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) M5X10
1-44129-049-0
01
1
9905-
6
SCREW; HORN SPR CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) M4X10
1-44129-034-0
01
1
9905-
7
SPRING; HORN CONTACT
(A)
1-44129-033-0
02
1
9905-
7
SPRING; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B)
1-44129-060-0
01
1
9905-
7
SPRING; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C)
1-44129-037-0
01
1
9905-
9
PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (A)
1-44129-048-0
02
1
9905-
9
PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B)
1-44129-059-0
01
1
9905-
9
PLATE; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C)
1-44129-038-0
01
1
9905-
14
BUTTON; HORN,STRG WHEEL
1-44120-045-2
01
1
9905-
26
COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5>
1-44129-050-0
01
1
9905-
26
COVER; STRG WHEEL,LWR
EXC. STRG WHEEL LEATHER WRAPPED<NP5>
1-44129-039-1
01
1
9905-
30
COWL; STEERING
1-79998-932-0
01
1
9905-
42
BOOT; STEERING COLUMN
1-79996-385-1
01
1
9905-
44
SCREW; STRG COWL
M6X16
8-94479-534-0
04
1
9905-0302
44
SCREW; STRG COWL
M6X12
8-97094-854-0
04
1
0303-
45
BOOT; STRG SHAFT
1-79998-738-2
01
1
9905-
49
NUT; BOOT,STRG SHAFT
M6 FLANGE
1-09984-141-0
02
1
9905-1205
49
NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1206-
78
BOLT; STRG
M6X20 W/LK&PL WASHER
8-94279-202-0
02
1
9905-9906
78
BOLT; STRG
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
9907-
81
EMBLEM; STRG WHEEL
1-76210-638-1
01
1
9905-
84
SEAL; WATER
25X25
8-94272-533-0
02
1
9905-1205
81
14
5
1
4
6
44
9
6
44
7
7
7
30
42
26
45
78
84
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5>
1-44110-157-1
01
1
9905-
1
WHEEL; STRG
EXC. STRG WHEEL LEATHER WRAPPED<NP5>
1-44110-146-1
01
1
9905-
4
WASHER; LK,STRG WHEEL
ID=20.2
9-09150-520-0
01
1
9905-0603
4
WASHER; LK,STRG WHEEL
ID=20.2
0-91510-520-0
01
1
0604-
5
NUT; STRG WHEEL TO SHAFT
M20
9-99111-420-0
01
1
9905-0512
5
NUT; STRG WHEEL TO SHAFT
M20
0-91111-520-0
01
1
0601-
6
SCREW; HORN SPR CONTACT
(A) M4X16
1-44129-036-0
04
1
9905-
6
SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) M5X10
1-44129-049-0
01
1
9905-
6
SCREW; HORN SPR CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) M4X10
1-44129-034-0
01
1
9905-
7
SPRING; HORN CONTACT
(A)
1-44129-033-0
02
1
9905-
7
SPRING; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B)
1-44129-060-0
01
1
9905-
7
SPRING; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C)
1-44129-037-0
01
1
9905-
9
PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (A)
1-44129-048-0
02
1
9905-
9
PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B)
1-44129-059-0
01
1
9905-
9
PLATE; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C)
1-44129-038-0
01
1
9905-
14
BUTTON; HORN,STRG WHEEL
1-44120-045-2
01
1
9905-
26
COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5>
1-44129-050-0
01
1
9905-
26
COVER; STRG WHEEL,LWR
EXC. STRG WHEEL LEATHER WRAPPED<NP5>
1-44129-039-1
01
1
9905-
30
COWL; STEERING
1-79998-932-0
01
1
9905-
42
BOOT; STEERING COLUMN
1-79996-385-1
01
1
9905-
44
SCREW; STRG COWL
M6X16
8-94479-534-0
04
1
9905-0302
44
SCREW; STRG COWL
M6X12
8-97094-854-0
04
1
0303-
45
BOOT; STRG SHAFT
1-79998-738-2
01
1
9905-
49
NUT; BOOT,STRG SHAFT
M6 FLANGE
1-09984-141-0
02
1
9905-1205
49
NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1206-
78
BOLT; STRG
M6X20 W/LK&PL WASHER
8-94279-202-0
02
1
9905-9906
78
BOLT; STRG
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
9907-
81
EMBLEM; STRG WHEEL
1-76210-638-1
01
1
9905-
84
SEAL; WATER
25X25
8-94272-533-0
02
1
9905-1205
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
