Sayfa 4-25B - Isuzu EPC

4-25B — REAR FINAL DRIVE (#6142) — 254 parça

391 380 287 291 292 390 185 360 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
185	COLLAR; SHIFT FORK	1-41379-004-0	02	1	0105-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	02	1	0105-0301	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	02	1	0302-	●	●	●
291	ROD; PUSH	1-48263-006-0	02	1	0105-0301	●	●	●
291	ROD; PUSH	1-48263-006-0	02	1	0302-	●	●	●
292	SPRING; PISTON	1-48265-008-0	02	1	0105-0301	●	●	●
292	SPRING; PISTON	1-48265-008-0	02	1	0302-	●	●	●
360	FORK; SHIFT (A)	1-41371-008-0	02	1	0105-	●	●	●
360	FORK; SHIFT (B)	1-41519-087-0	01	1	0105-	●	●	●
380	GASKET; PISTON	1-48269-075-0	02	1	0105-0301	●	●	●
380	GASKET; PISTON	1-48269-075-0	02	1	0302-	●	●	●
390	BOLT; CAGING	1-48269-071-0	02	1	0105-0301	●	●	●
390	BOLT; CAGING	1-48269-071-0	02	1	0302-	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	02	1	0105-0301	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	02	1	0302-	●	●	●
434	SWITCH; DIFF LOCK	1-82480-141-0	02	1	0105-	●	●	●

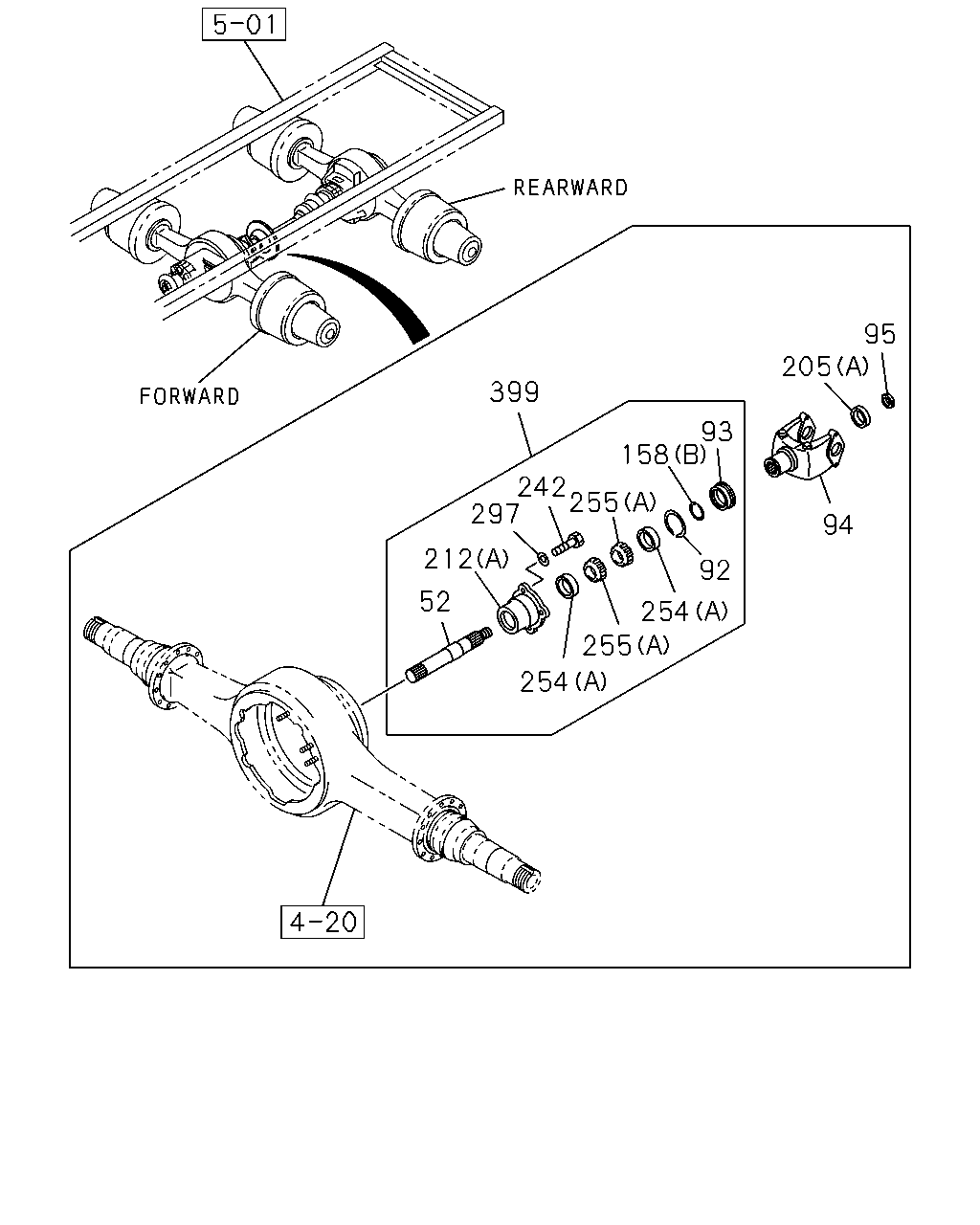

95 205 399 93 158 242 255 297 94 212 92 52 254 255 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	SHAFT; OUTPUT	1-41343-031-0	01	1	0105-	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	0105-0301	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	0302-	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-182-0	01	1	0105-0411	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	0412-	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-362-0	01	1	0105-0301	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-362-0	01	1	0302-	●	●	●
95	NUT; OUTPUT SHAFT	1-41349-040-0	01	1	0105-	●	●	●
158	RING; SNAP (B)	1-41349-162-0	01	1	0105-	●	●	●
158	RING; SNAP (A)	1-41519-085-0	01	1	0105-	●	●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	0105-0301	●	●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	0302-	●	●	●
205	WASHER; PL (A)	1-41219-040-0	01	1	0105-	●	●	●
212	COVER (A)	1-41519-049-0	01	1	0105-0301	●	●	●
212	COVER (A)	1-41519-049-0	01	1	0302-	●	●	●
242	BOLT; COVER	1-41349-175-0	04	1	0105-0301	●	●	●
242	BOLT; COVER	1-41349-175-0	04	1	0302-	●	●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	0105-	●	●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	0105-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	0105-	●	●	●
297	WASHER; COVER	1-41329-037-0	04	1	0412-	●	●	●
297	WASHER; COVER	1-41329-007-0	04	1	0105-0411	●	●	●
399	SHAFT ASM; OUTPUT	1-41343-030-0	01	1	0105-	●	●	●

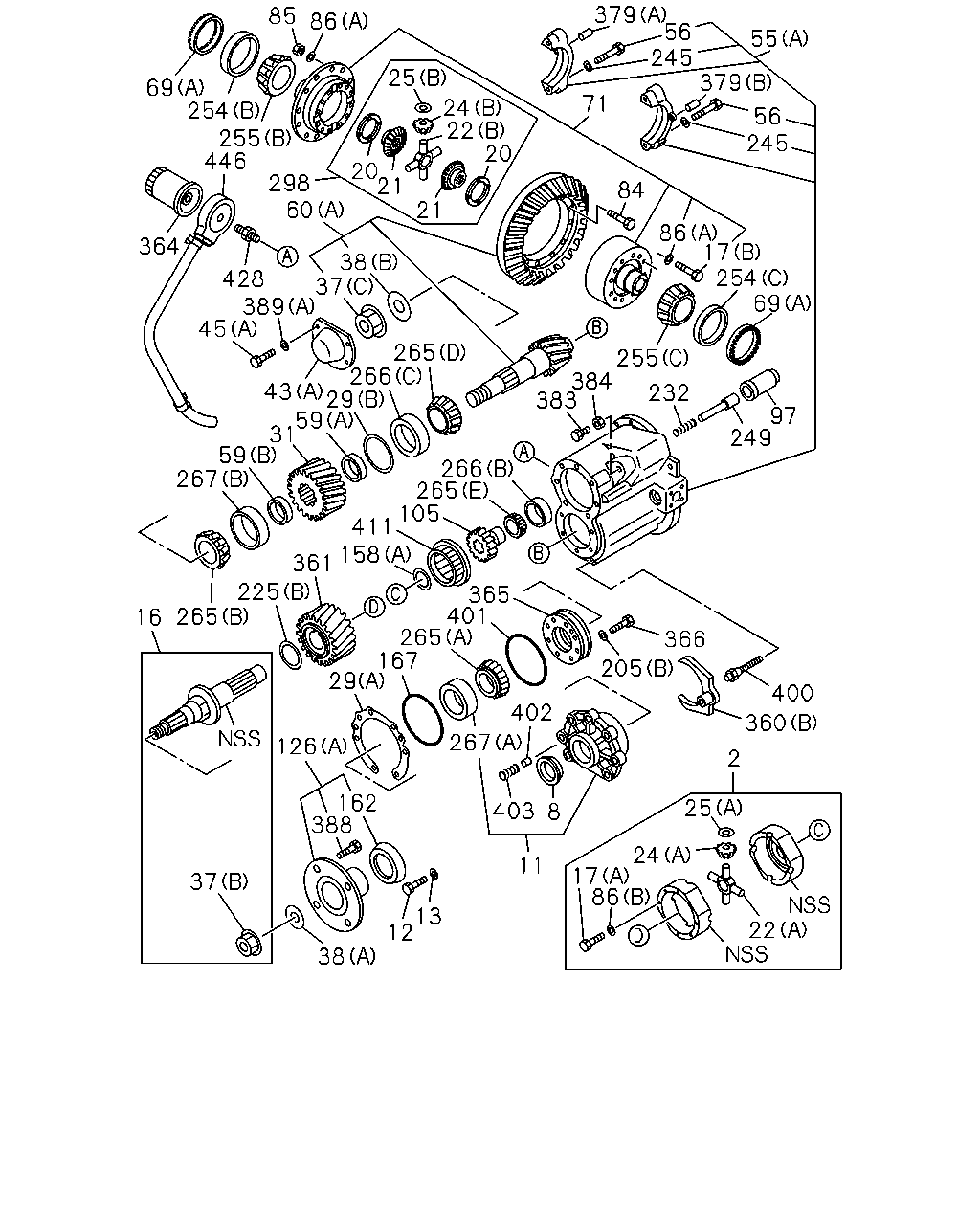

379 56 245 379 85 86 55 25 69 254 255 446 71 24 22 20 56 245 20 21 298 60 84 21 86 17 254 69 364 38 37 428 389 45 265 266 29 59 31 59 267 255 384 383 43 232 97 249 266 265 105 411 158 361 225 265 365 401 265 167 16 366 205 29 400 402 360 267 126 2 162 388 25 403 8 24 17 86 11 37 22 13 12 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DIFF ASM; INTER,FINAL	1-41510-306-0	01	1	0105-	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-183-0	01	1	0105-0411	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	0412-	●	●	●
11	COVER; INTER AXLE DIFF	1-41321-028-0	01	1	0105-	●	●	●
12	BOLT; COVER TO CASE	1-41159-058-0	07	1	0105-	●	●	●
13	WASHER; COVER TO CASE	1-41159-009-0	07	1	0105-	●	●	●
16	SHAFT ASM; INPUT	1-41341-031-0	01	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A)	1-41329-085-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (B)	1-41519-037-0	24	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	0105-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	04	1	0105-	●	●	●
22	SPIDER; DIFF PINION (A)	1-41521-025-0	01	1	0105-	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-054-0	02	1	0105-	●	●	●
24	GEAR; PINION,DIFF (A)	1-41211-238-0	04	1	0105-	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-035-0	08	1	0105-	●	●	●
25	WASHER; THRUST,PINION (B)	1-41552-037-0	08	1	0105-	●	●	●
25	WASHER; THRUST,PINION (A)	1-41552-041-0	04	1	0105-	●	●	●
29	SHIM; BRG RET (A) T=0.076	1-41154-096-0	01	1	0105-0301	●	●	●
29	SHIM; BRG RET (A) T=0.076	1-41154-096-0	01	1	0302-	●	●	●
29	SHIM; BRG RET (A) T=0.127	1-41154-097-0	01	1	0105-0301	●	●	●
29	SHIM; BRG RET (A) T=0.127	1-41154-097-0	01	1	0302-	●	●	●
29	SHIM; BRG RET (A) T=0.254	1-41154-098-0	01	1	0105-0301	●	●	●
29	SHIM; BRG RET (A) T=0.254	1-41154-098-0	01	1	0302-	●	●	●
29	SHIM; BRG RET (B) T=0.076	1-41219-053-0	01	1	0105-0301	●	●	●
29	SHIM; BRG RET (B) T=0.076	1-41219-053-0	01	1	0302-	●	●	●
29	SHIM; BRG RET (B) T=0.127	1-41219-054-0	01	1	0105-0301	●	●	●
29	SHIM; BRG RET (B) T=0.127	1-41219-054-0	01	1	0302-	●	●	●
29	SHIM; BRG RET (B) T=0.254	1-41219-055-0	01	1	0105-0301	●	●	●
29	SHIM; BRG RET (B) T=0.254	1-41219-055-0	01	1	0302-	●	●	●
31	GEAR; DRIVEN,HELICAL	1-41251-426-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-123-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (C)	1-41219-130-0	01	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	02	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-129-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	0105-0301	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	0302-	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-098-0	01	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	0105-0301	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	0302-	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	0105-0301	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	0302-	●	●	●
55	CARRIER; DIFF (B)	1-41110-126-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41310-060-0	01	1	0105-	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	08	1	0105-	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-126-0	01	1	0105-	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-362-0	01	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	1-41210-649-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	1-41210-657-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-656-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-660-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-658-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-661-0	01	1	0105-			●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-040-0	03	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-049-0	01	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	02	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	24	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	0105-0301	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	0302-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-121-0	48	1	0105-0411	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	48	1	0412-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-007-0	08	1	0105-0411	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-037-0	08	1	0412-	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-41329-067-0	01	1	0105-0301	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-41329-067-0	01	1	0302-	●	●	●
105	GEAR; SIDE	1-41561-122-0	01	1	0105-	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	0105-0301	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	0302-	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-375-0	01	1	0105-	●	●	●
158	RING; SNAP (B)	1-41349-162-0	01	1	0105-	●	●	●
158	RING; SNAP (A)	1-41519-085-0	01	1	0105-	●	●	●
162	COVER; DUST,INPUT FLANGE	1-37249-190-0	01	1	0105-0301	●	●	●
162	COVER; DUST,INPUT FLANGE	1-37249-190-0	01	1	0302-	●	●	●
167	GASKET; FINAL PINION CAGE	1-41349-155-0	01	1	0105-0301	●	●	●
167	GASKET; FINAL PINION CAGE	1-41349-155-0	01	1	0302-	●	●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	0105-0301	●	●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	0302-	●	●	●
205	WASHER; PL (A)	1-41219-040-0	01	1	0105-	●	●	●
225	WASHER; THRUST (B)	1-41349-160-0	01	1	0105-0301	●	●	●
225	WASHER; THRUST (B)	1-41349-160-0	01	1	0302-	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	0105-0301	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	0302-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	08	1	0105-	●	●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	0105-0301	●	●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	0302-	●	●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	0105-	●	●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	0105-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	0105-0301	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	0302-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-033-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-124-0	02	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-128-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	0105-0301	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	0302-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-032-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-089-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-127-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41349-050-0	02	1	0105-	●	●	●
298	GEAR KIT; DIFF,RR AXLE	1-41550-032-0	02	1	0105-	●	●	●
360	FORK; SHIFT (A)	1-41371-008-0	02	1	0105-	●	●	●
360	FORK; SHIFT (B)	1-41519-087-0	01	1	0105-	●	●	●
361	GEAR; DRIVE	1-41351-040-0	01	1	0105-	●	●	●
364	FILTER; OIL PUMP	1-41383-004-0	01	1	0105-0301	●	●	●
364	FILTER; OIL PUMP	1-41383-004-0	01	1	0302-	●	●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	0105-0301	●	●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	0302-	●	●	●
366	BOLT; PUMP	1-41389-018-0	06	1	0105-0301	●	●	●
366	BOLT; PUMP	1-41389-018-0	06	1	0302-	●	●	●
379	PIN; SPLIT (A)	1-41129-012-0	01	1	0105-	●	●	●
379	PIN; SPLIT (B)	1-41129-013-0	03	1	0105-	●	●	●
383	BOLT; SET,SHIFT UNIT	1-41329-064-0	01	1	0105-0301	●	●	●
383	BOLT; SET,SHIFT UNIT	1-41329-064-0	01	1	0302-	●	●	●
384	NUT; LK,SHIFT UNIT	1-41329-065-0	01	1	0105-0301	●	●	●
384	NUT; LK,SHIFT UNIT	1-41329-065-0	01	1	0302-	●	●	●
388	BOLT; COUPLING	1-37249-204-0	04	1	0412-	●	●	●
388	BOLT; COUPLING	1-37249-189-0	04	1	0105-0301	●	●	●
388	BOLT; COUPLING	1-37249-189-0	04	1	0302-0411	●	●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-037-0	05	1	0412-	●	●	●
389	WASHER; FINAL PINION CAGE (B)	1-41159-009-0	08	1	0105-	●	●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-007-0	05	1	0105-0411	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	0105-0301	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	0302-	●	●	●
401	GASKET; OIL PUMP	1-41349-155-0	01	1	0105-0301	●	●	●
401	GASKET; OIL PUMP	1-41349-155-0	01	1	0302-	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	0105-0301	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	0302-	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	0105-0301	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	0302-	●	●	●
411	SLEEVE; CLU	1-41519-086-0	01	1	0105-	●	●	●
428	ADAPTER; OIL FILTER	1-41389-020-0	01	1	0105-0301	●	●	●
428	ADAPTER; OIL FILTER	1-41389-020-0	01	1	0302-	●	●	●
446	ADAPTER ASM; OIL RETURN	1-41389-021-0	01	1	0105-	●	●	●

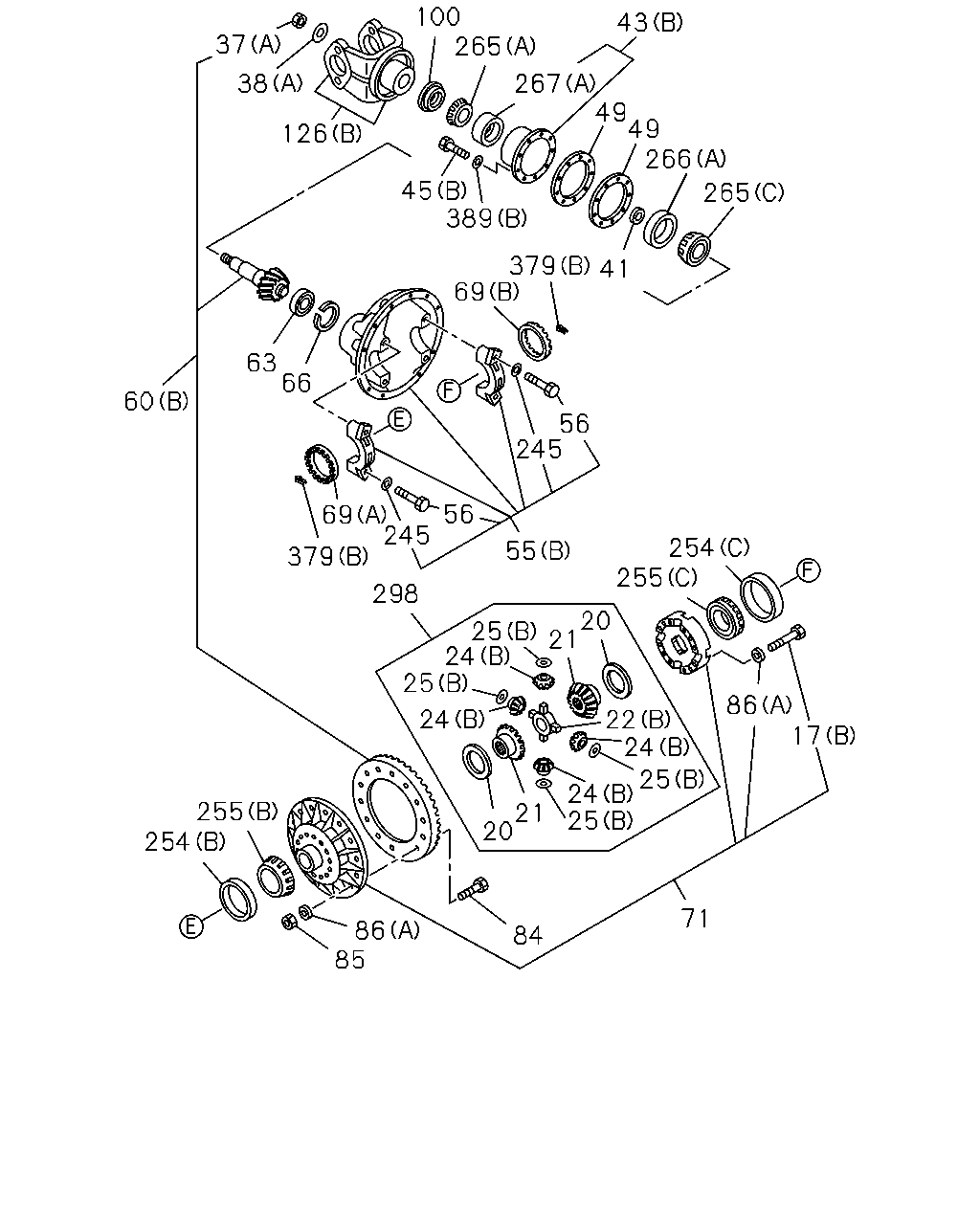

100 265 43 37 38 267 49 49 266 126 45 389 265 379 41 69 63 66 60 56 245 56 69 245 254 255 55 379 298 20 21 25 24 25 86 17 24 22 24 25 24 25 255 254 21 20 71 86 85 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; DIFF CAGE SETTING (A)	1-41329-085-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (B)	1-41519-037-0	24	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	0105-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	04	1	0105-	●	●	●
22	SPIDER; DIFF PINION (A)	1-41521-025-0	01	1	0105-	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-054-0	02	1	0105-	●	●	●
24	GEAR; PINION,DIFF (A)	1-41211-238-0	04	1	0105-	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-035-0	08	1	0105-	●	●	●
25	WASHER; THRUST,PINION (B)	1-41552-037-0	08	1	0105-	●	●	●
25	WASHER; THRUST,PINION (A)	1-41552-041-0	04	1	0105-	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-123-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (C)	1-41219-130-0	01	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	02	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-129-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	0105-0301	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	0302-	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-098-0	01	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	0105-0301	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	0302-	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	0105-0301	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	0302-	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (B)	1-41110-126-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41310-060-0	01	1	0105-	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	08	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	1-41210-649-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	1-41210-657-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-656-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-660-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-658-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-661-0	01	1	0105-			●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-040-0	03	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-049-0	01	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	02	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	24	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	0105-0301	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	0302-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-121-0	48	1	0105-0411	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	48	1	0412-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-007-0	08	1	0105-0411	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-037-0	08	1	0412-	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0105-0411	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-184-0	01	1	0412-	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	0105-0301	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	0302-	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-375-0	01	1	0105-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	08	1	0105-	●	●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	0105-	●	●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	0105-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	0105-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	0105-0301	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	0302-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-033-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-124-0	02	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-128-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	0105-0301	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	0302-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-032-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-089-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-127-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41349-050-0	02	1	0105-	●	●	●
298	GEAR KIT; DIFF,RR AXLE	1-41550-032-0	02	1	0105-	●	●	●
379	PIN; SPLIT (A)	1-41129-012-0	01	1	0105-	●	●	●
379	PIN; SPLIT (B)	1-41129-013-0	03	1	0105-	●	●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-037-0	05	1	0412-	●	●	●
389	WASHER; FINAL PINION CAGE (B)	1-41159-009-0	08	1	0105-	●	●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-007-0	05	1	0105-0411	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
