0-40 — FUEL INJECTION SYSTEM (#61413) — 105 parça

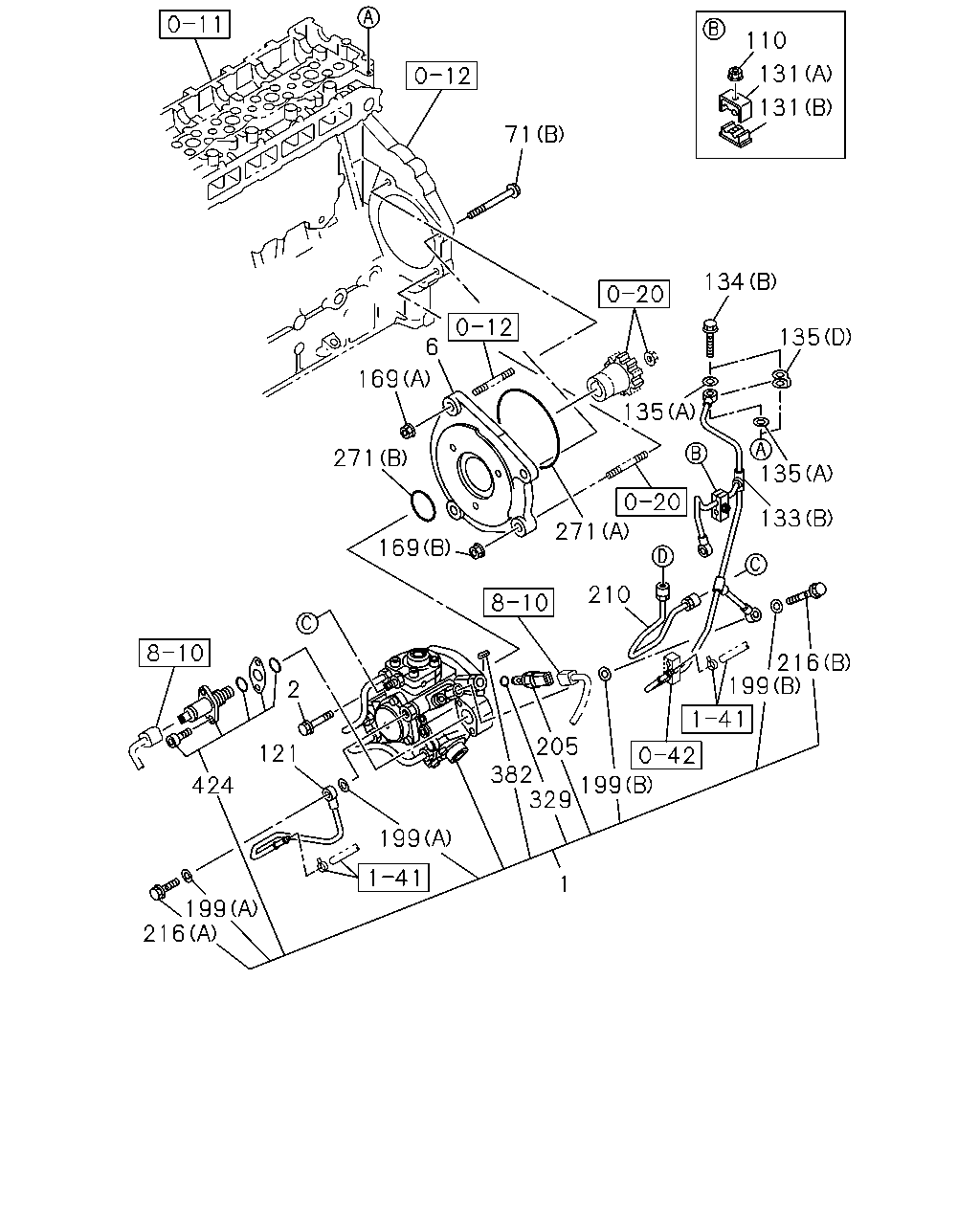

110 131 131 71 134 135 135 133 216 199 199 205 382 329 199 216 199 424 121 2 210 271 135 6 169 271 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97605-946-7	01	1	0906-
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	0906-
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	0906-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	0906-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0906-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	0906-
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	0906-
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	0906-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0906-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-97610-504-0	01	1	0906-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0906-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	0906-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0906-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	0906-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0906-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0909-
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0906-
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	0906-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0906-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0906-
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0906-
210	PIPE; INJ,C/R	8-97608-480-1	01	1	0906-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0906-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0906-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0906-
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	0906-
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	0906-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0906-1201
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	0906-0910
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	0911-
424	OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98143-870-0	01	1	0906-0906
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	0906-

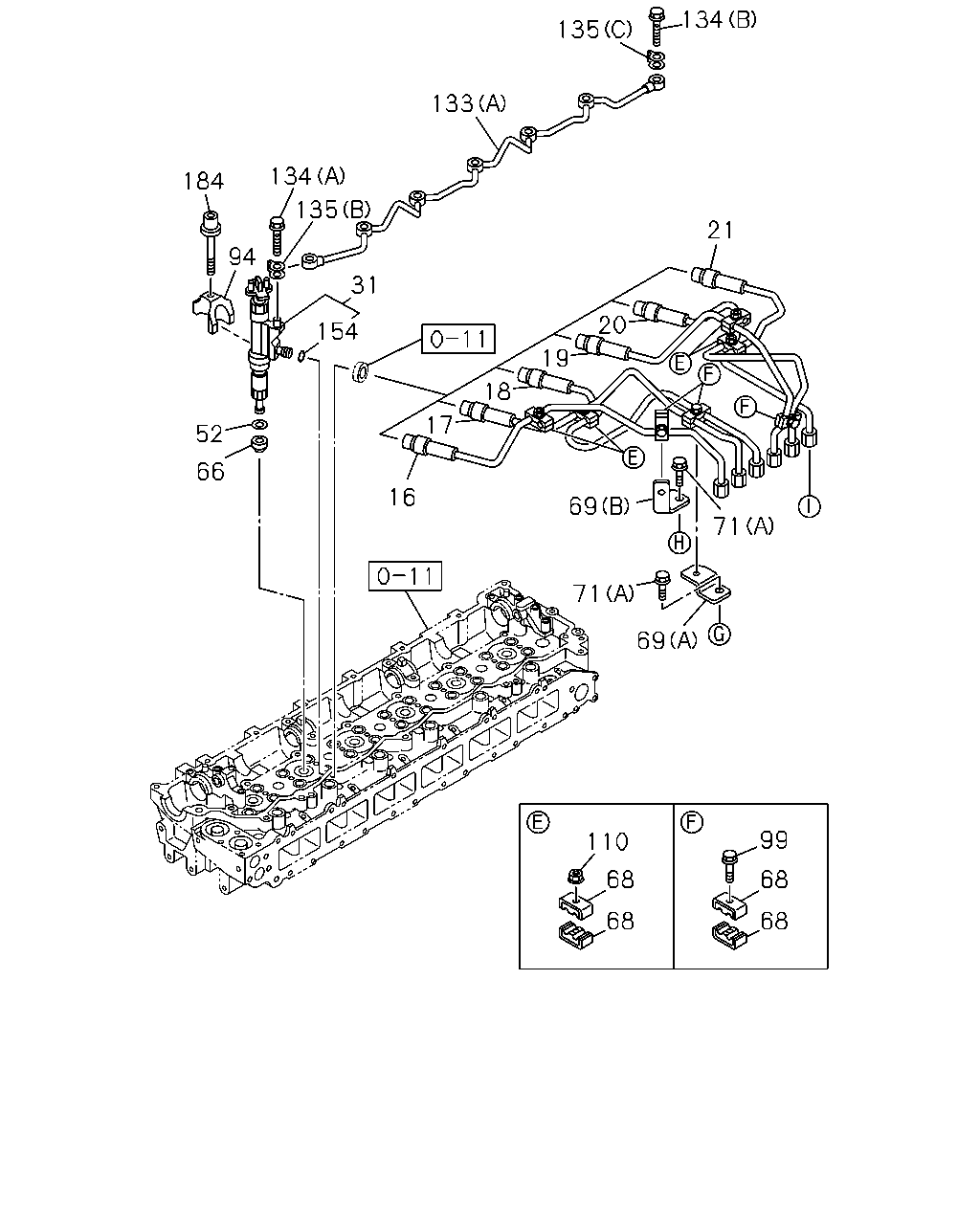

184 134 94 31 154 52 16 69 71 71 69 21 134 135 133 135 110 68 68 99 68 68 66 17 18 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	8-98038-936-0	01	1	0906-1102
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1103-1403
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-
17	PIPE; INJ NO.2	8-98039-770-0	01	1	0906-1102
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1103-1403
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-
18	PIPE; INJ NO.3	8-98038-937-0	01	1	0906-1102
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1103-1403
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-
19	PIPE; INJ NO.4	8-98057-085-0	01	1	0906-1102
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1103-1403
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-
20	PIPE; INJ NO.5	8-98047-662-0	01	1	0906-1102
20	PIPE; INJ NO.5	8-98185-368-0	01	1	1103-1403
20	PIPE; INJ NO.5	8-98272-050-0	01	1	1404-1501
20	PIPE; INJ NO.5	8-98298-616-0	01	1	1502-
21	PIPE; INJ NO.6	8-98039-771-0	01	1	0906-1102
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1103-1403
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-
31	NOZZLE ASM; INJ	8-97609-788-6	06	1	0906-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	0906-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0906-0909
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	14	1	0906-1405
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	14	1	1406-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	0906-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	0906-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	0906-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	0906-
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	0906-
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	0906-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	0906-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0906-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-97610-504-0	01	1	0906-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0906-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	0906-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0906-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	0906-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0906-0908
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0909-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0906-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	0906-

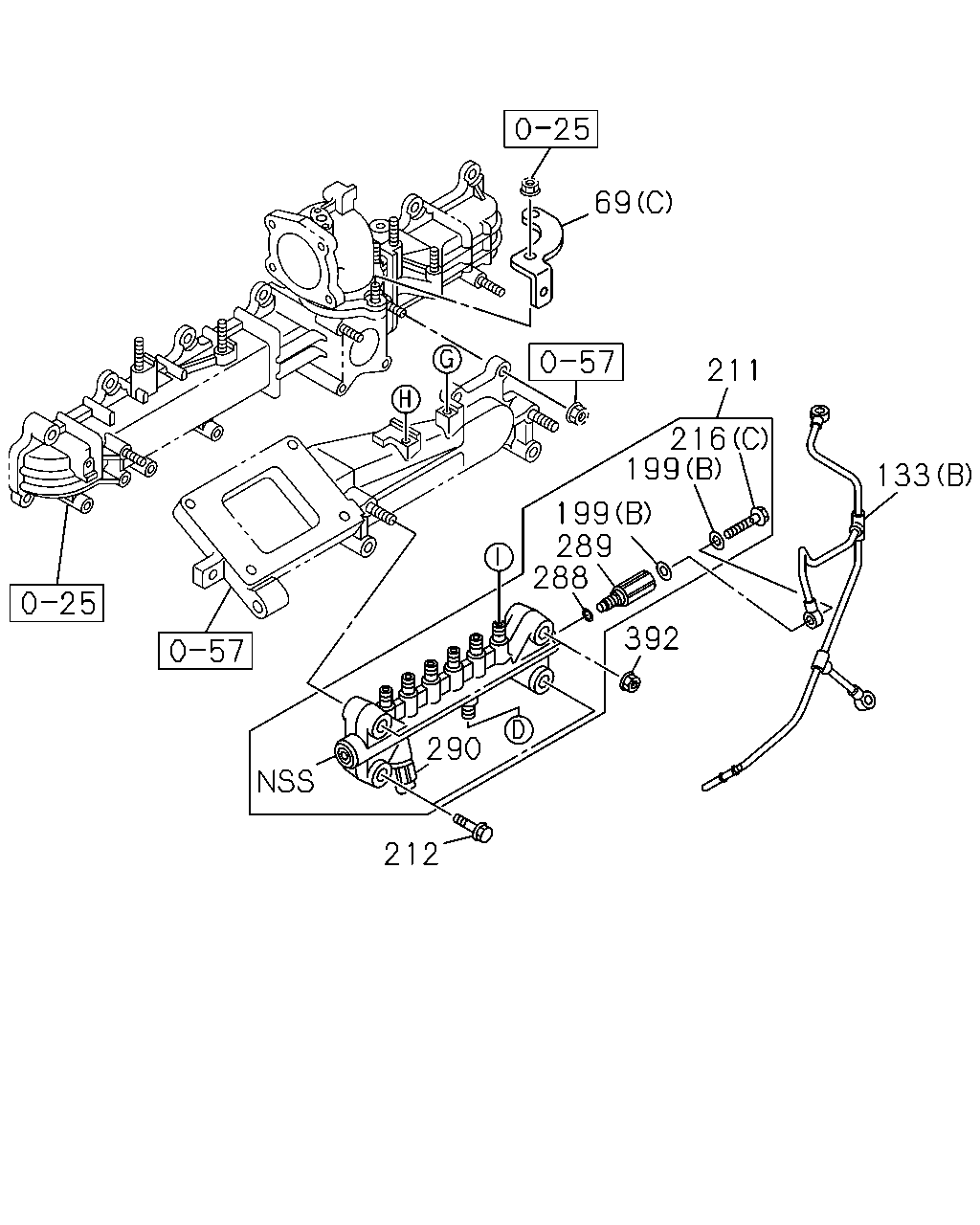

69 211 133 392 290 212 288 199 199 216 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	0906-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	0906-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	0906-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	0906-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-97610-504-0	01	1	0906-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0906-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0906-
211	RAIL ASM; COMMON	8-97609-980-2	01	1	0906-
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	0906-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0906-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0906-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0906-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0906-
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	0906-
290	SENSOR; PRESS	8-98119-790-0	01	1	0906-
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	0906-
