◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25A - REAR FINAL DRIVE ▶
4-25A — REAR FINAL DRIVE (#6141) — 681 parça

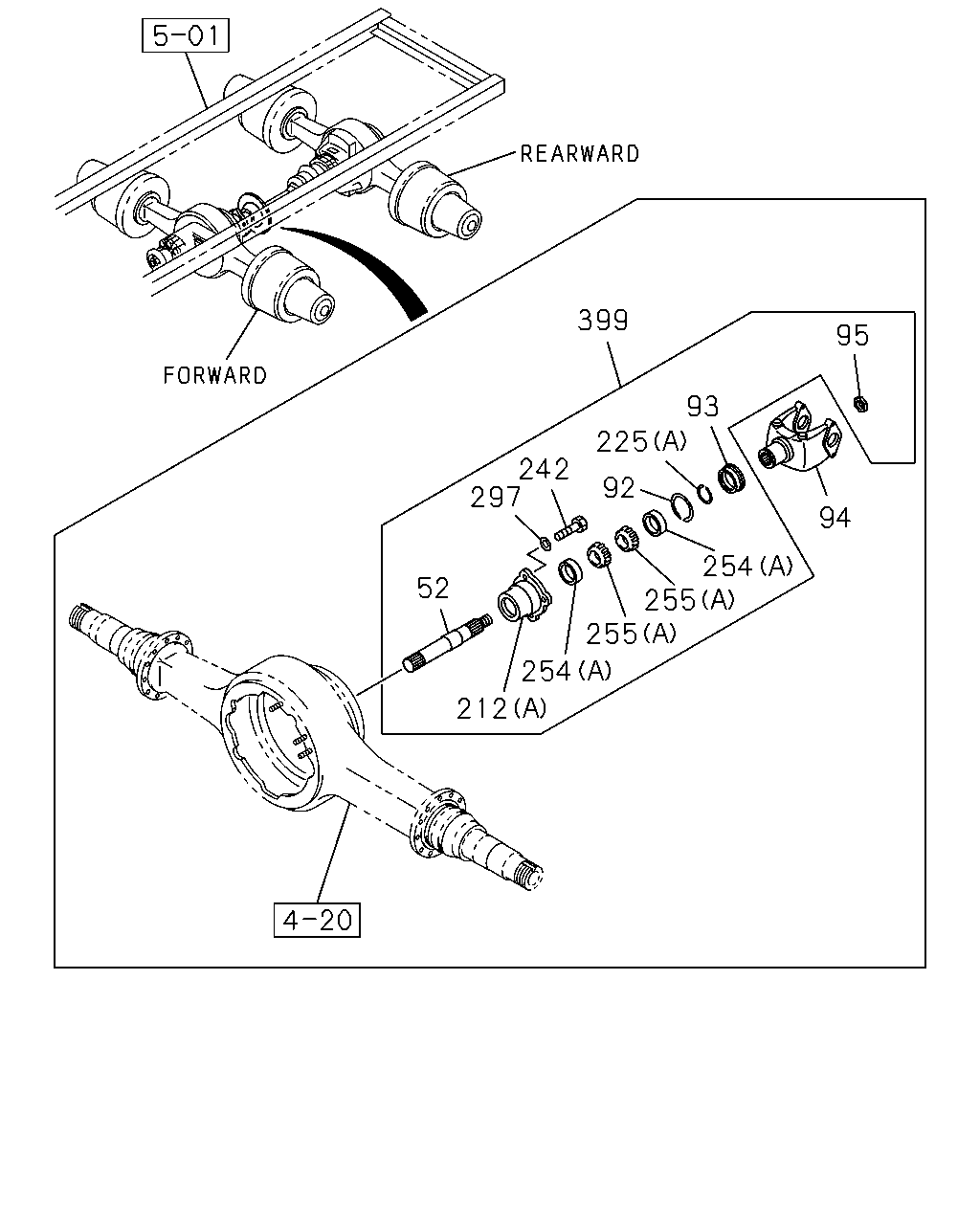

çizim 37917
399 95 93 225 242 297 92 94 254 255 255 52 254 212
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 SHAFT; OUTPUT 1-41343-025-0 01 1 9905-0104 ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0105-0301 ● ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0302- ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 9905-0104 ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0105-0301 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0302- ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-176-0 01 1 9905-0104 ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-176-0 01 1 0105-0301 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-176-0 01 1 0302- ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 9905-0104 ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 0105-0301 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 0302- ● ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 9905-0104 ● ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0105-0301 ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0302- ● ● ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 9905-0104 ● ● ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 0105-0301 ● ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 0302- ● ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 9905-0104 ● ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 0105-0301 ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 0302- ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 9905-0104 ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 0105-0301 ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 0302- ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 9905-0104 ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 0105-0301 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 0302- ● ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 9905-0104 ● ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 0105-0301 ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 02 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 02 1 0302- ● ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 9905-0104 ● ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 0105-0301 ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 0302-0411 ● ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 0412- ● ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 9905-0104 ● ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 0105-0301 ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 0302- ● ● ● ● ●

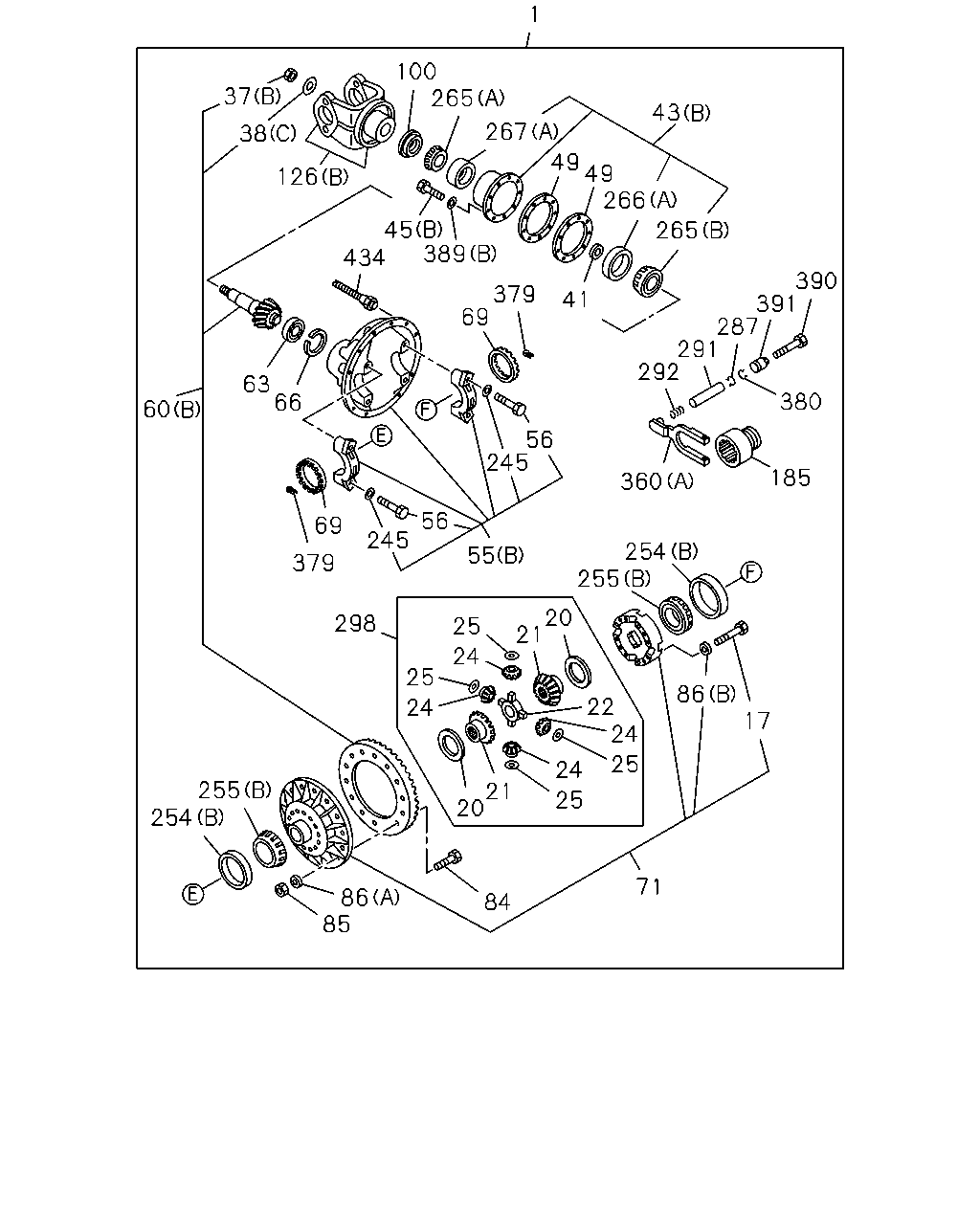

çizim 99963
1 100 265 37 267 38 49 49 266 45 434 389 265 390 391 287 291 292 379 69 41 63 66 380 60 56 245 185 360 56 69 245 254 255 55 379 20 21 298 25 24 25 86 17 22 24 24 25 24 255 254 21 20 25 71 86 85 84 126 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-636-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-641-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-638-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-643-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-635-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-640-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-639-0 01 1 9905-0104 ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-644-0 01 1 9905-0104 ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/8 		1-41002-637-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/8 		1-41002-642-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41002-910-0 01 1 0302- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41002-911-0 01 1 0302- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 9905-0104 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 9905-0104 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0105-0301 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0302- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 9905-0104 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 9905-0104 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0105-0301 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0302- ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 9905-0104 ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 9905-0104 ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 0105-0301 ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 0302- ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 9905-0104 ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 9905-0104 ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 0105-0301 ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 0302- ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 9905-0104 ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 9905-0104 ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 0105-0301 ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 0302- ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 9905-0104 ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 9905-0104 ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 0105-0301 ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 0302- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9905-0104 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0105-0301 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0302- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9905-0104 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0105-0301 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0302- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 9905-0104 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 0105-0301 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 0302- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 9905-0104 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 0105-0301 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 0302- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9905-0104 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0105-0301 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0302- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 9905-0104 ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0105-0301 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0302- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-096-0 01 1 9905-0104 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-096-0 01 1 0105-0301 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-096-0 01 1 0302- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 9905-0104 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0105-0301 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0302- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 9905-0104 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0105-0301 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0302- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 9905-0104 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0105-0301 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0302- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-108-0 01 1 9905-0104 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-108-0 01 1 0105-0301 ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-108-0 01 1 0302- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 9905-0104 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0105-0301 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0302- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-057-0 01 1 9905-0104 ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-057-0 01 1 0105-0301 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-057-0 01 1 0302- ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 9905-0104 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 9905-0104 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0105-0301 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0302- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-589-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-594-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-590-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-595-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-588-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-593-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/7 		1-41210-591-0 01 1 9905-0104 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/7 		1-41210-596-0 01 1 9905-0104 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/8 		1-41210-638-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/8 		1-41210-639-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-674-0 01 1 0302- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-675-0 01 1 0302- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9905-0104 ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0105-0301 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0302- ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9905-0104 ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0105-0301 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0302- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 02 1 0105-0301 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 02 1 0302- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 02 1 0105-0301 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 02 1 0302- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-276-0 01 1 9905-0104 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-276-0 01 1 9905-0104 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-276-0 02 1 0105- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 01 1 9905-0104 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 01 1 9905-0104 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 02 1 0105-0301 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 02 1 0302- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 9905-0104 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 9905-0104 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0105-0301 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0302- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9905-0104 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9905-0104 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0105-0301 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0302- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0105-0301 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0302- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0105-0301 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0302- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9905-0104 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 0105-0301 ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 0302- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-363-0 01 1 9905-0104 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-363-0 01 1 0105-0301 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-363-0 01 1 0302- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 9905-0104 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0105-0301 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0302- ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 9905-0104 ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 9905-0104 ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 0105-0301 ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 0302- ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 9905-0104 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 9905-0104 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0105-0301 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 02 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 02 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0302- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 9905-0104 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0105-0301 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0302- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 9905-0104 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 0105-0301 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 0302- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 9905-0104 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 0105-0301 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 0302- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9905-0104 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0105-0301 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0302- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9905-0104 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0105-0301 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0302- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9905-0104 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0105-0301 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0302- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 9905-0104 ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 9905-0104 ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0105-0301 ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0302- ● ● ● ● ●
291 ROD; PUSH 1-48263-006-0 01 1 9905-0104 ● ● ● ● ●
291 ROD; PUSH 1-48263-006-0 01 1 9905-0104 ● ● ● ● ●
291 ROD; PUSH 1-48263-006-0 02 1 0105-0301 ● ● ● ●
291 ROD; PUSH 1-48263-006-0 02 1 0302- ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 9905-0104 ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 9905-0104 ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0105-0301 ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0302- ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 9905-0104 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 9905-0104 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0105-0301 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0302- ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 9905-0104 ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 9905-0104 ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 0105-0301 ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 0302- ● ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 9905-0104 ● ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 0105-0301 ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 0302- ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 0105-0301 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 0302- ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 02 1 0105-0301 ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 02 1 0302- ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 9905-0104 ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 9905-0104 ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0105-0301 ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0302- ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 9905-0104 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 0105-0301 ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 0302- ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 9905-0104 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0105-0301 ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0302-0411 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0412- ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 9905-0104 ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 9905-0104 ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0105-0301 ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0302- ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 9905-0104 ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 9905-0104 ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0105-0301 ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0302- ● ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 01 1 9905-0104 ● ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 01 1 9905-0104 ● ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 02 1 0105-0301 ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 02 1 0302- ● ● ● ● ●

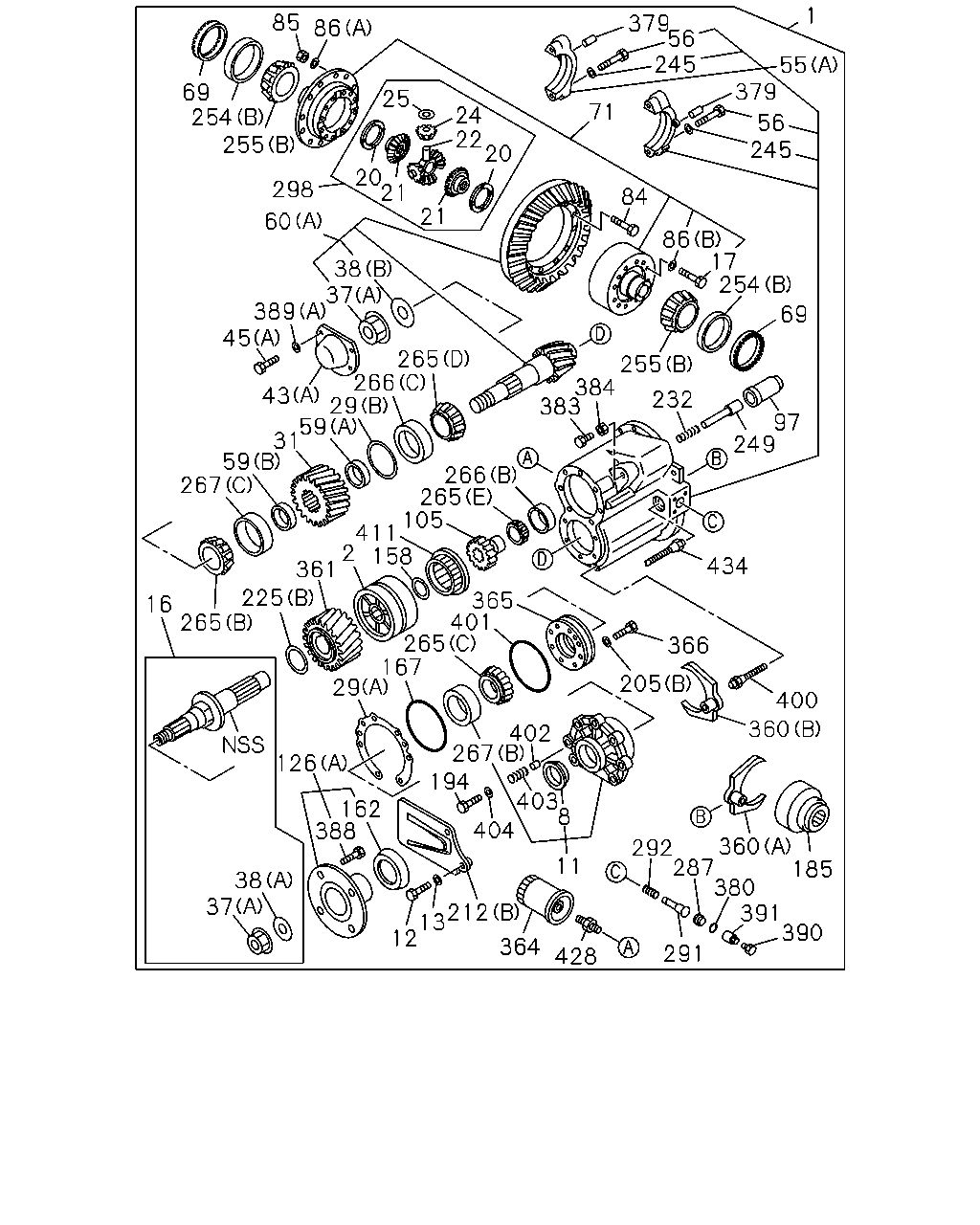

çizim 100024
1 85 379 56 245 86 55 379 69 254 255 25 71 24 22 20 56 245 20 21 298 84 21 60 86 17 254 38 389 45 69 265 266 29 59 31 59 267 255 384 383 43 232 97 249 266 265 105 411 2 158 361 434 225 16 265 365 401 265 167 366 205 29 400 360 402 267 194 403 8 126 162 388 404 292 360 287 380 391 390 185 11 38 37 212 13 12 364 291 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-636-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-641-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-638-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-643-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-635-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-640-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-639-0 01 1 9905-0104 ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-644-0 01 1 9905-0104 ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/8 		1-41002-637-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/8 		1-41002-642-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/11 		1-41002-910-0 01 1 0302- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/11 		1-41002-911-0 01 1 0302- ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 9905-0104 ● ● ● ● ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 0105-0301 ● ● ● ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 0302- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-154-0 01 1 9905-0104 ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-154-0 01 1 0105-0301 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-154-0 01 1 0302- ● ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 9905-0104 ● ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 0105-0301 ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 0302- ● ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 9905-0104 ● ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0105-0301 ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0302- ● ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 9905-0104 ● ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 0105-0301 ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 0302- ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-030-0 01 1 9905-0104 ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-030-0 01 1 0105-0301 ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-030-0 01 1 0302- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 9905-0104 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 9905-0104 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0105-0301 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0302- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 9905-0104 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 9905-0104 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0105-0301 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0302- ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 9905-0104 ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 9905-0104 ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 0105-0301 ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 0302- ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 9905-0104 ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 9905-0104 ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 0105-0301 ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 0302- ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 9905-0104 ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 9905-0104 ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 0105-0301 ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 0302- ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 9905-0104 ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 9905-0104 ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 0105-0301 ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 0302- ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9905-0104 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0105-0301 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0302- ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9905-0104 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0105-0301 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0302- ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9905-0104 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0105-0301 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0302- ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9905-0104 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0105-0301 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0302- ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9905-0104 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0105-0301 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0302- ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9905-0104 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0105-0301 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0302- ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-360-0 01 1 9905-0104 ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-360-0 01 1 0105-0301 ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-360-0 01 1 0302- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9905-0104 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0105-0301 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0302- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9905-0104 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0105-0301 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0302- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 9905-0104 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 0105-0301 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 0302- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 9905-0104 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 0105-0301 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 0302- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9905-0104 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0105-0301 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0302- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-096-0 01 1 9905-0104 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-096-0 01 1 0105-0301 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-096-0 01 1 0302- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 9905-0104 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0105-0301 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0302- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 9905-0104 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0105-0301 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0302- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 9905-0104 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0105-0301 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0302- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 9905-0104 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0105-0301 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0302- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-057-0 01 1 9905-0104 ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-057-0 01 1 0105-0301 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-057-0 01 1 0302- ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 9905-0104 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 9905-0104 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0105-0301 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0302- ● ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 9905-0104 ● ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 0105-0301 ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 0302- ● ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 9905-0104 ● ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 0105-0301 ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 0302- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-589-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-594-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-590-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-595-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-588-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-593-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/7 		1-41210-591-0 01 1 9905-0104 ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/7 		1-41210-596-0 01 1 9905-0104 ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/8 		1-41210-638-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/8 		1-41210-639-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-674-0 01 1 0302- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-675-0 01 1 0302- ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 02 1 0105-0301 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 02 1 0302- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 01 1 9905-0104 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 02 1 0105-0301 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-047-0 02 1 0302- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-276-0 01 1 9905-0104 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-276-0 01 1 9905-0104 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-276-0 02 1 0105- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 01 1 9905-0104 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 01 1 9905-0104 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 02 1 0105-0301 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-275-0 02 1 0302- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 9905-0104 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 9905-0104 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0105-0301 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0302- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9905-0104 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9905-0104 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0105-0301 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0302- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0105-0301 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0302- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 9905-0104 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0105-0301 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0302- ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9905-0104 ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0105-0301 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0302- ● ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 9905-0104 ● ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 0105-0301 ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 0302- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-363-0 01 1 9905-0104 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-363-0 01 1 0105-0301 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-363-0 01 1 0302- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 9905-0104 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0105-0301 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0302- ● ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 9905-0104 ● ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 0105-0301 ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 0302- ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 9905-0104 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 0105-0301 ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 0302- ● ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 9905-0104 ● ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0105-0301 ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0302- ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 9905-0104 ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 9905-0104 ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 0105-0301 ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 0302- ● ● ● ● ●
194 PLUG 1-41329-077-0 01 1 9905-0104 ● ● ● ● ●
194 PLUG 1-41329-077-0 01 1 0105-0301 ● ● ● ●
194 PLUG 1-41329-077-0 01 1 0302- ● ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 9905-0104 ● ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 0105-0301 ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 0302- ● ● ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 9905-0104 ● ● ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 0105-0301 ● ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 0302- ● ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 9905-0104 ● ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 0105-0301 ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 0302- ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 9905-0104 ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 0105-0301 ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 0302- ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 9905-0104 ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 0105-0301 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 0302- ● ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 9905-0104 ● ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0105-0301 ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0302- ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 9905-0104 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 9905-0104 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0105-0301 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0302- ● ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 9905-0104 ● ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0105-0301 ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-050-0 02 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-040-0 02 1 0302- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 01 1 9905-0104 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 02 1 0105-0301 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-074-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-041-0 02 1 0302- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 01 1 9905-0104 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 02 1 0105-0301 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-075-0 02 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 0302- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9905-0104 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0105-0301 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0302- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 9905-0104 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0105-0301 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0302- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 9905-0104 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 0105-0301 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 0302- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 9905-0104 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 0105-0301 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 0302- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9905-0104 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0105-0301 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0302- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9905-0104 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0105-0301 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0302- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9905-0104 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0105-0301 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0302- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 9905-0104 ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 9905-0104 ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0105-0301 ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0302- ● ● ● ● ●
291 ROD; PUSH 1-48263-006-0 01 1 9905-0104 ● ● ● ● ●
291 ROD; PUSH 1-48263-006-0 01 1 9905-0104 ● ● ● ● ●
291 ROD; PUSH 1-48263-006-0 02 1 0105-0301 ● ● ● ●
291 ROD; PUSH 1-48263-006-0 02 1 0302- ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 9905-0104 ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 9905-0104 ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0105-0301 ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0302- ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 9905-0104 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 9905-0104 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0105-0301 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0302- ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 9905-0104 ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 9905-0104 ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 0105-0301 ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 0302- ● ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 9905-0104 ● ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 0105-0301 ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 0302- ● ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 9905-0104 ● ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 0105-0301 ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 0302- ● ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 9905-0104 ● ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0105-0301 ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0302- ● ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 9905-0104 ● ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0105-0301 ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0302- ● ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 9905-0104 ● ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0105-0301 ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0302- ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 0105-0301 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 0302- ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 9905-0104 ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 02 1 0105-0301 ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 02 1 0302- ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 9905-0104 ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 9905-0104 ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0105-0301 ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0302- ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 9905-0104 ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0105-0301 ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0302- ● ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 9905-0104 ● ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0105-0301 ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0302- ● ● ● ● ●
388 BOLT; COUPLING 1-37249-189-0 04 1 9905-0104 ● ● ● ● ●
388 BOLT; COUPLING 1-37249-189-0 04 1 0105-0301 ● ● ● ●
388 BOLT; COUPLING 1-37249-189-0 04 1 0302-0411 ● ● ● ● ●
388 BOLT; COUPLING 1-37249-189-0 04 1 0412- ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 9905-0104 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 0105-0301 ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 0302- ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 9905-0104 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0105-0301 ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0302-0411 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0412- ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 9905-0104 ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 9905-0104 ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0105-0301 ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0302- ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 9905-0104 ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 9905-0104 ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0105-0301 ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0302- ● ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 9905-0104 ● ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0105-0301 ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0302- ● ● ● ● ●
401 GASKET; OIL PUMP 1-41349-155-0 01 1 9905-0104 ● ● ● ● ●
401 GASKET; OIL PUMP 1-41349-155-0 01 1 0105-0301 ● ● ● ●
401 GASKET; OIL PUMP 1-41349-155-0 01 1 0302- ● ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 9905-0104 ● ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0105-0301 ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0302- ● ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 9905-0104 ● ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0105-0301 ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0302- ● ● ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 9905-0104 ● ● ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 0105-0301 ● ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 0302- ● ● ● ● ●
411 SLEEVE; CLU 1-41519-044-0 01 1 9905-0104 ● ● ● ● ●
411 SLEEVE; CLU 1-41519-044-0 01 1 0105-0301 ● ● ● ●
411 SLEEVE; CLU 1-41519-044-0 01 1 0302- ● ● ● ● ●
428 ADAPTER; OIL FILTER 1-41389-020-0 01 1 9905-0104 ● ● ● ● ●
428 ADAPTER; OIL FILTER 1-41389-020-0 01 1 0105-0301 ● ● ● ●
428 ADAPTER; OIL FILTER 1-41389-020-0 01 1 0302- ● ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 01 1 9905-0104 ● ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 01 1 9905-0104 ● ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 02 1 0105-0301 ● ● ● ●
434 SWITCH; DIFF LOCK 1-82480-115-0 02 1 0302- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
