Isuzu WW
▶
TRUCKS
▶
FRR
▶
11232 - FRR RHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#61407) — 59 parça
◀

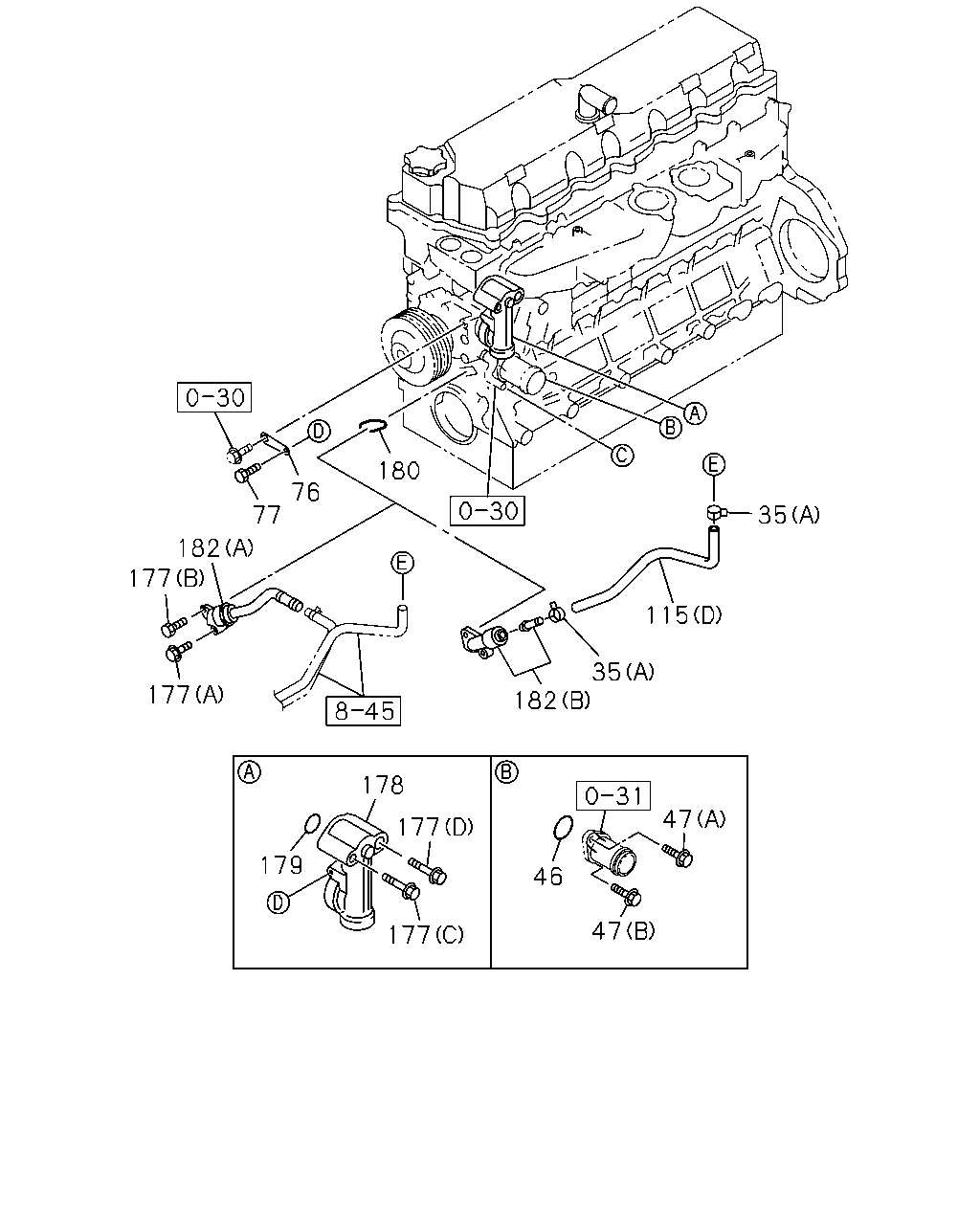

[032A] WATER DUCT (23 parça)

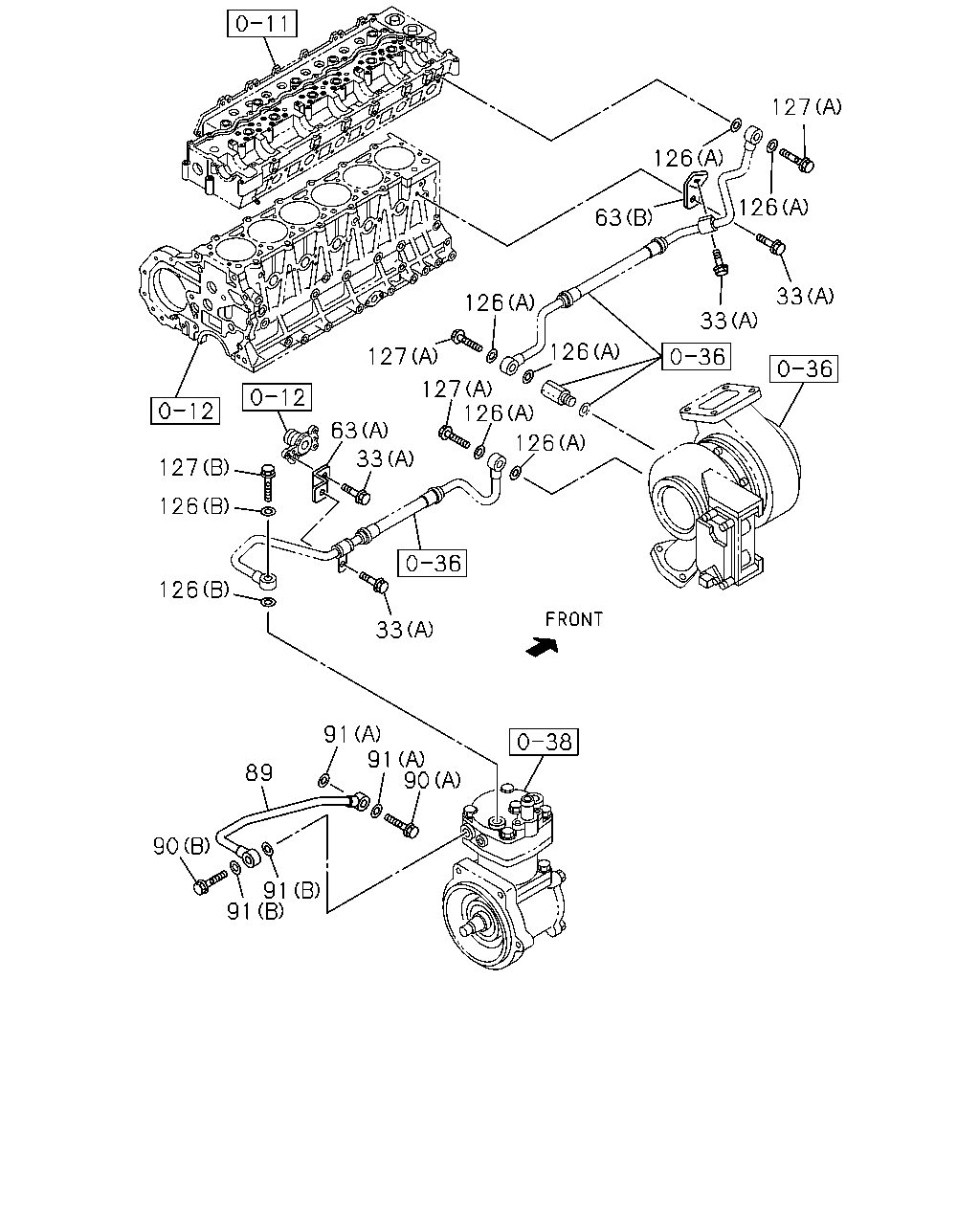

[032A] TURBOCHARGER AND AIR CMPR PIPING (16 parça)

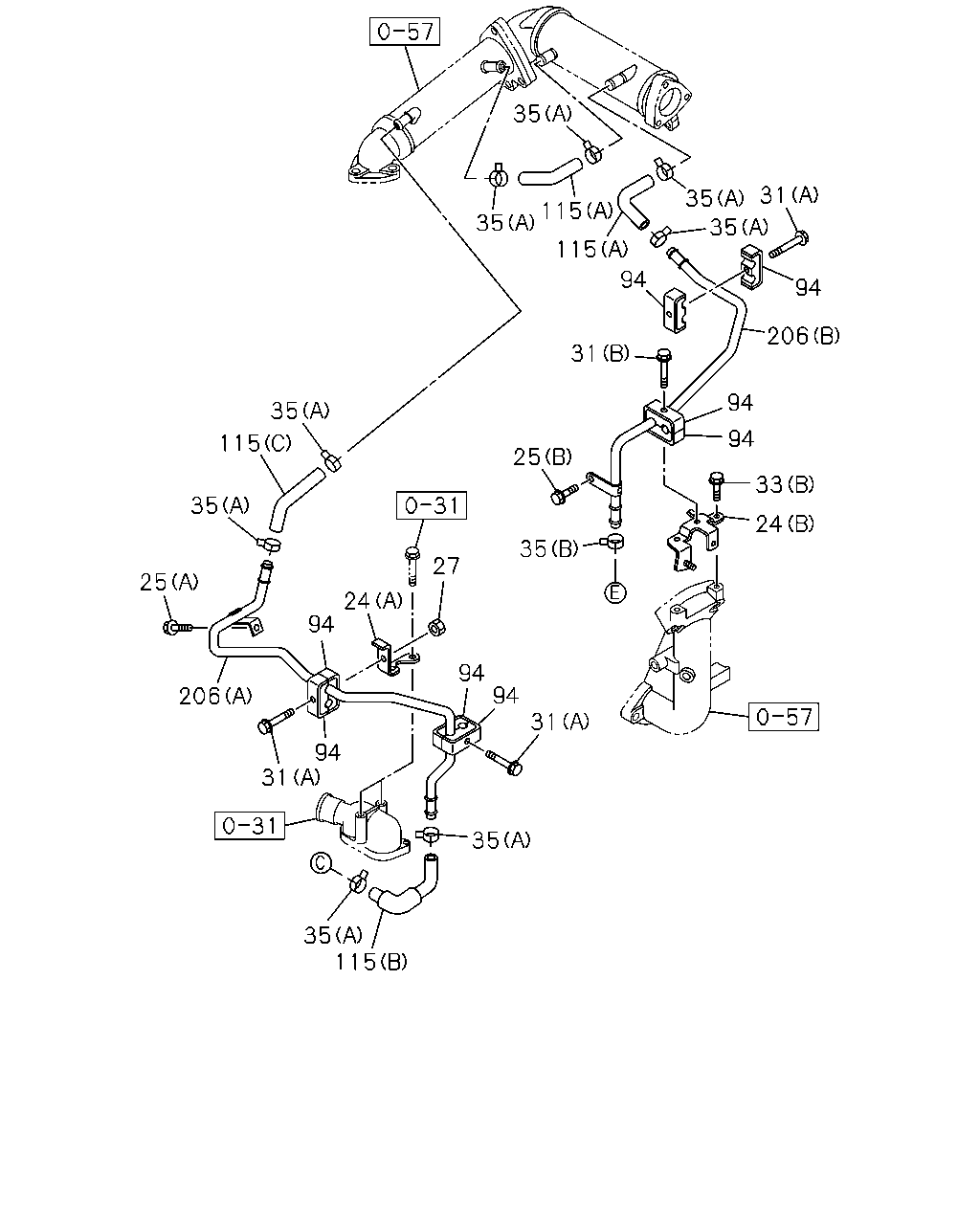

[032A] EGR OIL COOLER SIDE (20 parça)
▶
180
76
77
35
182
177
115
35
182
177
178
47
177
179
46
47
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
CLIP; RUBBER HOSE
(B) ID=20.8
8-94125-862-1
01
1
0906-
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
07
1
0906-1104
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
08
1
1105-
35
CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20
8-98127-648-0
02
1
0906-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0906-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28050-845-0
01
1
0906-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28650-825-0
01
1
0906-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0906-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
0906-
115
HOSE; RUBBER
(B)
8-97606-735-1
01
1
0906-
115
HOSE; RUBBER
(A)
8-97606-749-0
02
1
0906-
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
0906-
115
HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)
8-97618-843-0
01
1
0906-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
0906-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0906-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0906-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0906-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
0906-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0906-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0906-
182
DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
8-94394-348-5
01
1
0906-
182
DUCT; WATER,HTR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
8-94396-727-3
01
1
0906-
127
126
126
63
33
126
33
126
127
127
126
63
126
33
127
126
126
33
91
91
90
89
90
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
0906-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
03
1
0906-
63
BRACKET; WATER PIPE
(A)
8-97615-878-0
01
1
0906-1001
63
BRACKET; WATER PIPE
(A)
8-98153-457-0
01
1
1002-
63
BRACKET; WATER PIPE
(B)
8-98046-784-0
01
1
0906-
89
PIPE; WATER,AIR CMPR,IN
8-97611-095-0
01
1
0906-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
0906-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
0906-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
0906-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
0906-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
06
1
0906-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
06
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
0906-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
0906-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
0906-
35
35
115
115
31
94
206
94
31
35
35
94
94
33
24
25
35
31
35
115
35
31
206
25
95
94
35
115
35
24
27
94
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(A)
8-98000-557-2
01
1
0906-
24
BRACKET; WATER PIPE
(B)
8-98051-626-1
01
1
0906-
25
BOLT; WATER PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
0906-
25
BOLT; WATER PIPE
(B) M8X20 FLANGE
0-28650-820-0
01
1
0906-
27
NUT; PIPE FIX
M6 FLANGE
0-91180-106-0
01
1
0906-
31
BOLT; CLIP
(B) M6X45 FLANGE
0-28050-645-0
01
1
0906-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
03
1
0906-
33
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
0906-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
03
1
0906-
35
CLIP; RUBBER HOSE
(B) ID=20.8
8-94125-862-1
01
1
0906-
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
07
1
0906-1104
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
08
1
1105-
35
CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20
8-98127-648-0
02
1
0906-
94
CLIP; WATER PIPE
8-97605-129-1
08
1
0906-
115
HOSE; RUBBER
(B)
8-97606-735-1
01
1
0906-
115
HOSE; RUBBER
(A)
8-97606-749-0
02
1
0906-
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
0906-
115
HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)
8-97618-843-0
01
1
0906-
206
PIPE; WATER,EGR COOLER
(A)
8-97604-928-2
01
1
0906-
206
PIPE; WATER,EGR COOLER
(B)
8-98000-480-1
01
1
0906-
