0-13 — OIL PAN AND LEVEL GAUGE (#614) — 67 parça

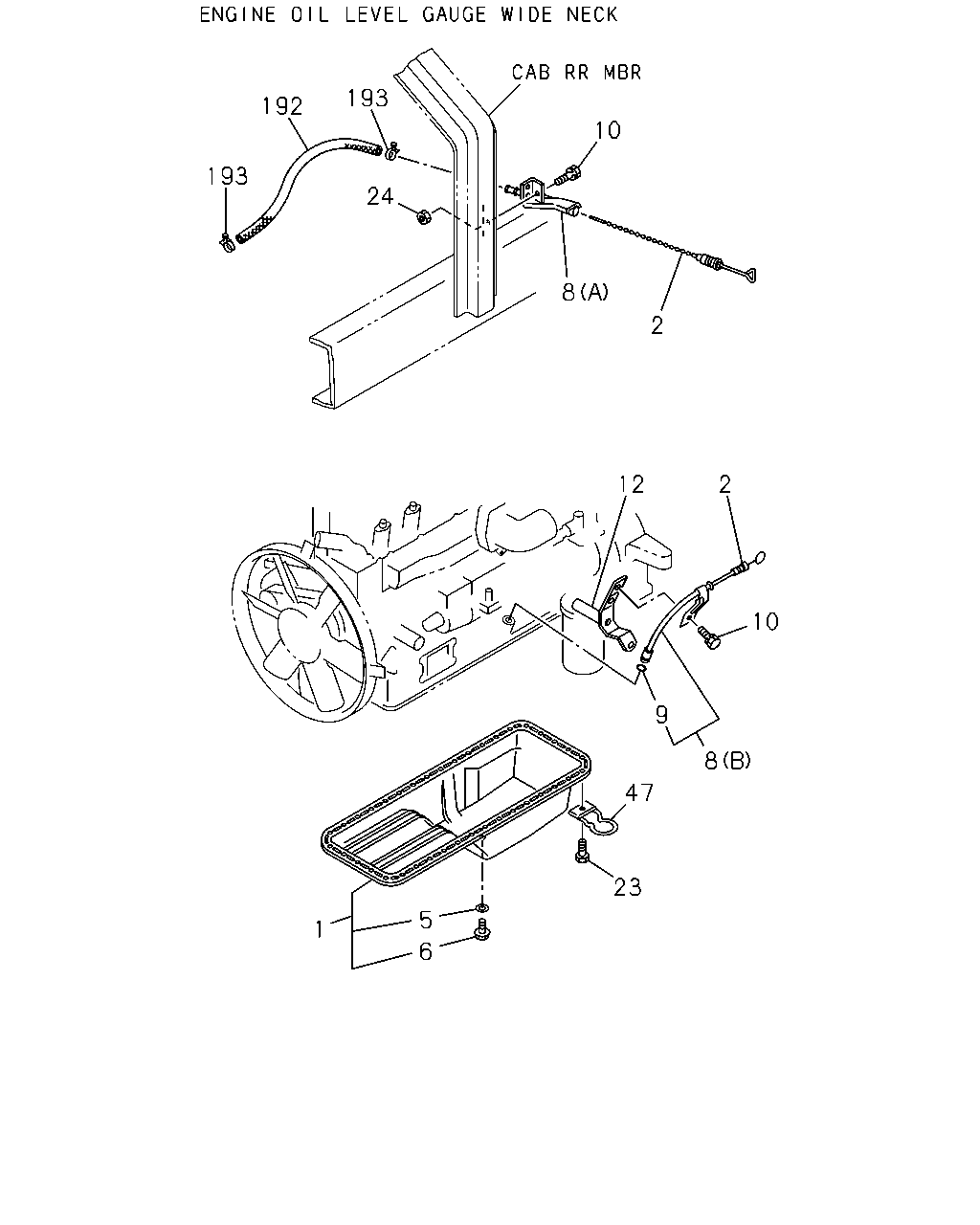

193 192 10 193 24 8 2 12 2 10 9 8 47 23 5 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94396-789-0	01	1	9202-	●
1	PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94393-176-0	01	1	9202-	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-101-0	01	1	9202-9204	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	8-94394-687-0	01	1	9205-	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	8-94394-684-0	01	1	9205-	●	●
2	GAUGE; OIL LEVEL EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-034-0	01	1	9202-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 ID=24.4	1-09623-183-0	01	1	9202-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE STD CAB(FS*M) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-038-0	01	1	9202-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-038-0	01	1	9202-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE DOUBLE CAB(FS*W) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-035-0	01	1	9202-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94393-069-0	01	1	9202-9204	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94394-624-0	01	1	9205-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94393-613-1	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94393-612-0	01	1	9202-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9202-	●	●
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28080-816-0	01	1	9202-	●	●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X140 M10X140 FLANGE	8-94373-016-1	01	1	9204-	●	●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X120	8-94396-689-0	01	1	9204-	●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>	8-94393-088-1	01	1	9204-	●	●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	31	1	9208-9501	●	●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	28	1	9502-	●	●
23	BOLT; OIL PAN AIR CON MANUAL CONTROL(C60) M8X28 FLANGE	0-28080-828-0	02	1	9208-	●	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) M8X18 FLANGE	0-28080-818-0	33	1	9202-9207	●	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) M8X18 FLANGE	0-28080-818-0	02	1	9208-	●	●
24	NUT; OIL PAN M8 FLANGE	8-94328-243-0	01	1	9202-9309	●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	01	1	9310-9501	●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9502-	●	●
47	CLIP; HOSE,AIR BREATHER THAILAND EQUIPMENT(PM9)	1-11369-115-0	01	1	9308-	●	●
192	HOSE; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	0-02311-320-0	01	1	9202-	●	●
193	CLIP; HOSE,GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=17	1-09707-158-0	02	1	9202-	●	●

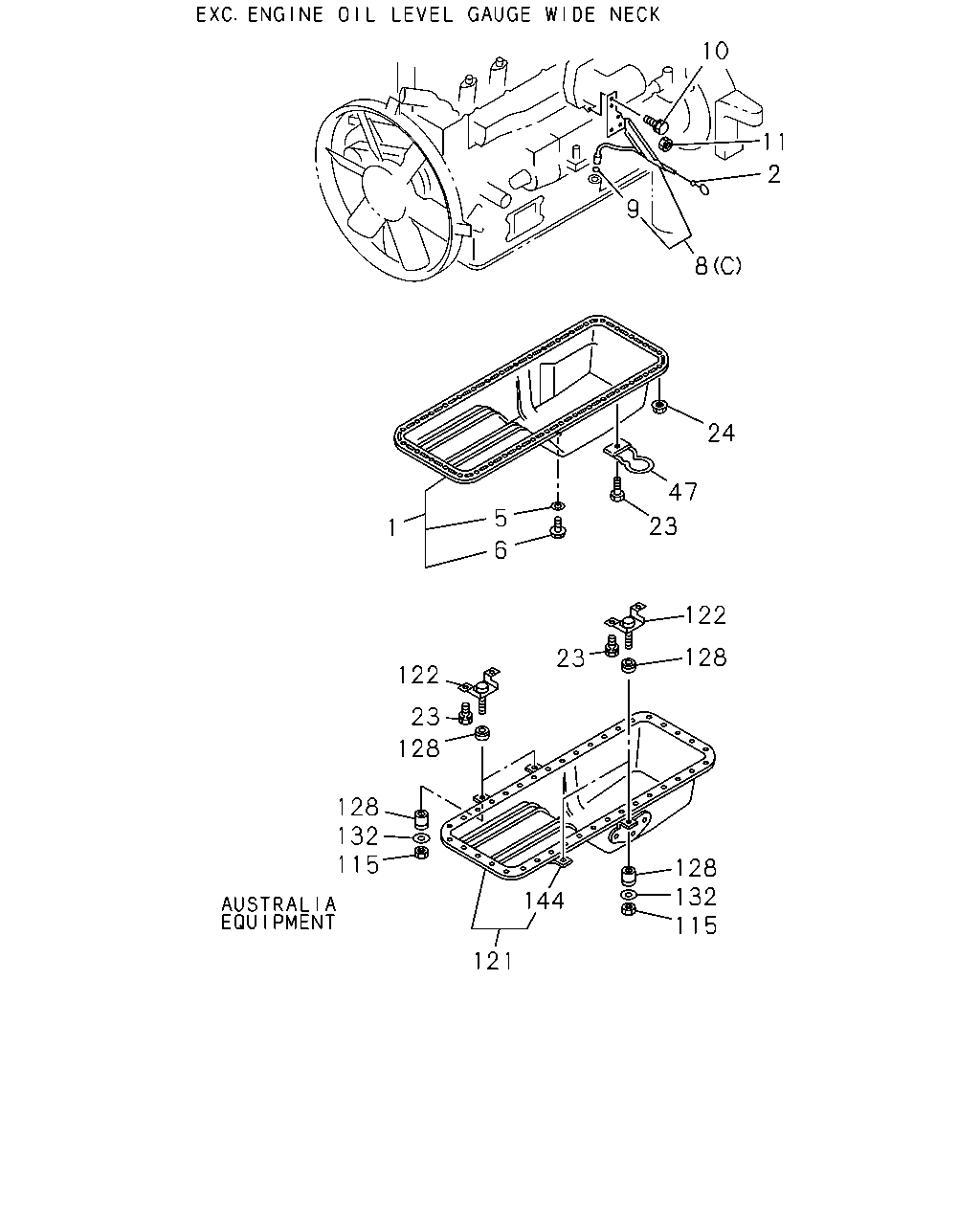

10 11 2 9 8 24 47 5 23 1 6 122 128 23 122 23 128 128 132 115 128 132 115 144 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94396-789-0	01	1	9202-	●
1	PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94393-176-0	01	1	9202-	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-101-0	01	1	9202-9204	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	8-94394-687-0	01	1	9205-	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	8-94394-684-0	01	1	9205-	●	●
2	GAUGE; OIL LEVEL EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-034-0	01	1	9202-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 ID=24.4	1-09623-183-0	01	1	9202-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE STD CAB(FS*M) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-038-0	01	1	9202-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-038-0	01	1	9202-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE DOUBLE CAB(FS*W) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-035-0	01	1	9202-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94393-069-0	01	1	9202-9204	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94394-624-0	01	1	9205-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94393-613-1	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94393-612-0	01	1	9202-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9202-	●	●
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28080-816-0	01	1	9202-	●	●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X140 M10X140 FLANGE	8-94373-016-1	01	1	9204-	●	●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X120	8-94396-689-0	01	1	9204-	●	●
11	NUT; GUIDE,OIL LEVEL GAUGE DOUBLE CAB(FS*W) M8 FLANGE	0-91150-108-0	02	1	9202-	●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	31	1	9208-9501	●	●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	28	1	9502-	●	●
23	BOLT; OIL PAN AIR CON MANUAL CONTROL(C60) M8X28 FLANGE	0-28080-828-0	02	1	9208-	●	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) M8X18 FLANGE	0-28080-818-0	33	1	9202-9207	●	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) M8X18 FLANGE	0-28080-818-0	02	1	9208-	●	●
24	NUT; OIL PAN M8 FLANGE	8-94328-243-0	01	1	9202-9309	●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	01	1	9310-9501	●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9502-	●	●
47	CLIP; HOSE,AIR BREATHER THAILAND EQUIPMENT(PM9)	1-11369-115-0	01	1	9308-	●	●
115	NUT; OIL PAN COVER AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	8-94328-243-0	04	1	9202-9309	●
115	NUT; OIL PAN COVER AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	04	1	9310-	●
121	COVER; OIL PAN AUSTRALIA EQUIPMENT(RR3)	8-94393-492-0	01	1	9202-	●
122	BRACKET; OIL PAN COVER AUSTRALIA EQUIPMENT(RR3)	8-94396-827-0	04	1	9202-	●
128	RUBBER; MTG,OIL PAN AUSTRALIA EQUIPMENT(RR3)	1-09337-024-0	08	1	9202-	●
132	WASHER; PL,OIL PAN COVER AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●
144	INSULATOR; OIL PAN AUSTRALIA EQUIPMENT(RR3)	8-94393-499-0	01	1	9202-	●
