Isuzu WW
▶
TRUCKS
▶
FRR
▶
11232 - FRR RHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#61398) — 43 parça
◀

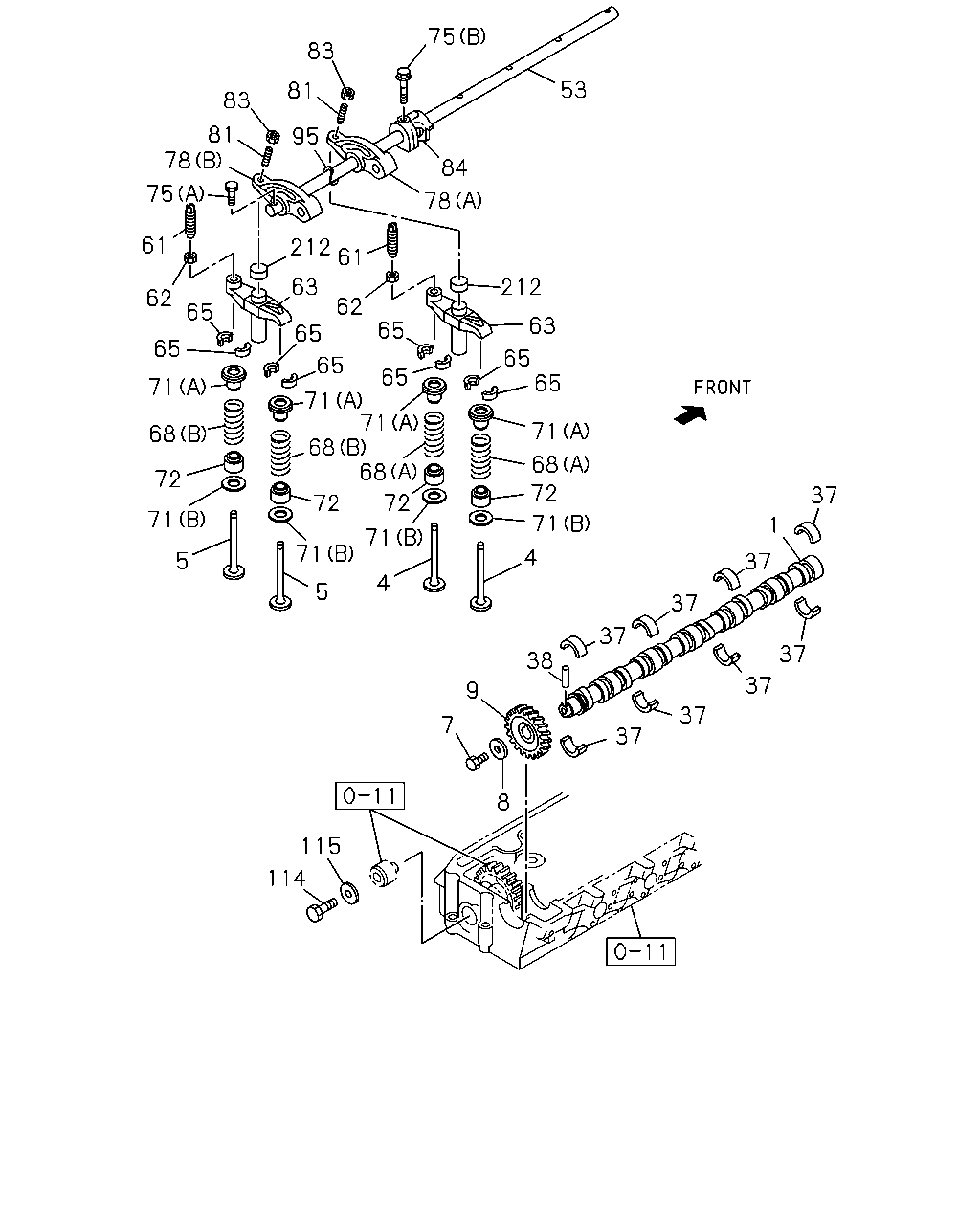

[014A] VALVE AND CAMSHAFT (31 parça)

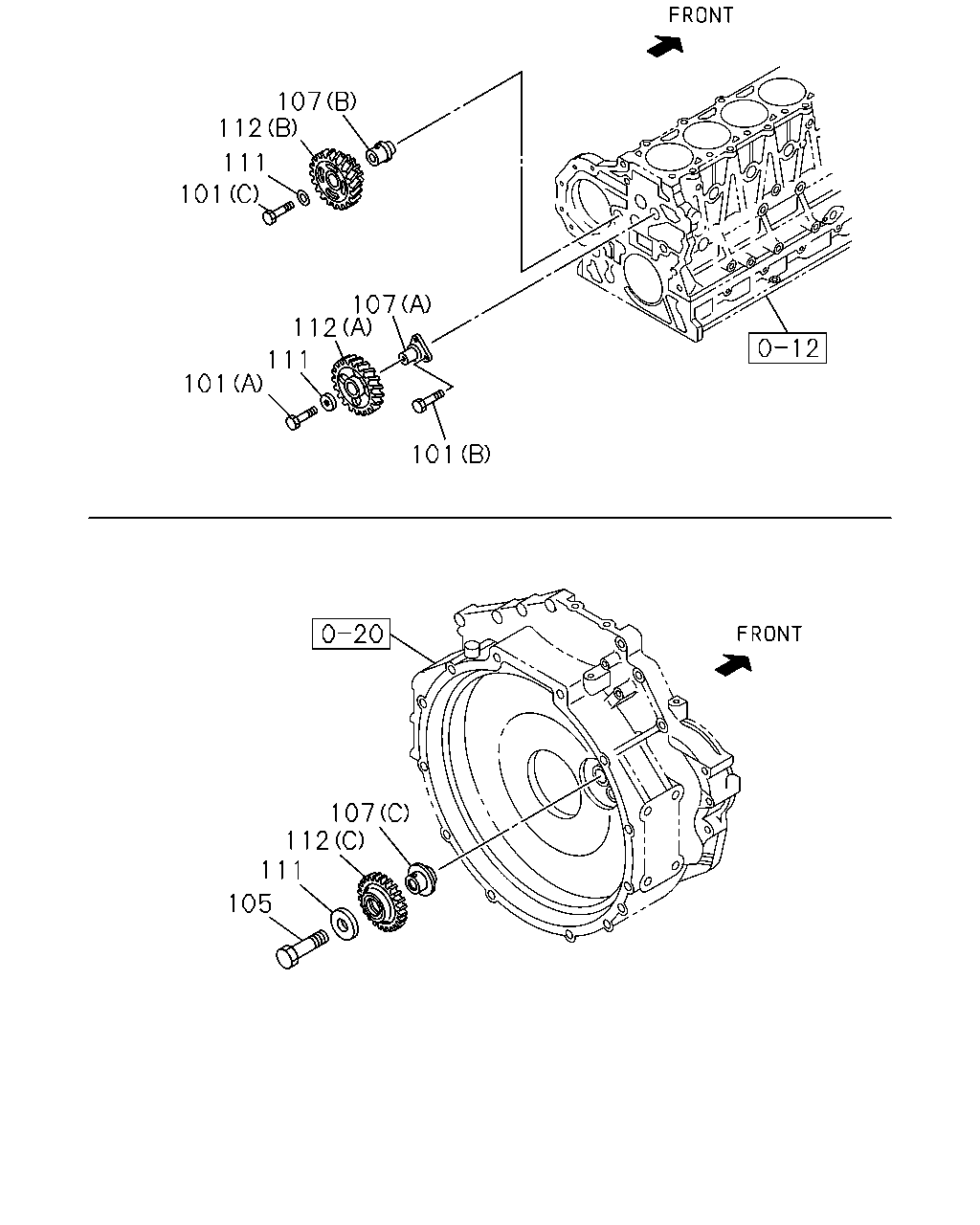

[014A] IDLE GEAR (12 parça)
▶
75
53
84
78
95
81
83
83
81
78
75
61
62
65
65
212
212
61
62
63
65
71
65
65
65
63
65
65
68
71
72
4
71
71
72
68
71
68
72
71
5
5
4
71
72
68
71
115
114
7
8
9
37
38
37
37
37
37
37
37
1
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97601-438-0
01
1
0906-1311
1
CAMSHAFT
8-98227-261-1
01
1
1312-
4
VALVE; INL
8-94395-882-2
12
1
0906-
5
VALVE; EXH
8-97209-876-4
12
1
0906-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
0906-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0906-
9
GEAR; CM/SHF
Z=35
8-98018-934-3
01
1
0906-
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
0906-
37
METAL; CM/SHF
LOWER B=26
8-97602-699-0
04
1
0906-
38
PIN; CAM BRG SET
OD=7 L=7.5
8-94399-487-0
01
1
0906-
53
SHAFT; ROCKER ARM
8-97389-918-0
01
1
0906-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
0906-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
12
1
0906-
63
BRIDGE
8-94392-002-3
12
1
0906-
65
COLLAR; SPLIT
5-12565-004-0
48
1
0906-
68
SPRING; VLV
(B) EXHAUST MARK RED
8-97210-682-0
12
1
0906-
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
12
1
0906-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
24
1
0906-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
24
1
0906-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
0906-
75
BOLT; BRKT
(A) M8X40 FLANGE
0-28050-840-0
02
1
0906-
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
0906-
78
ARM; ROCKER
(A) INLET
8-97306-421-3
06
1
0906-
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
06
1
0906-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
0906-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
0906-
84
BRACKET; ROCKER SHAFT,INTER
8-94395-836-2
05
1
0906-
95
SPRING; ROCKER SHAFT
8-94392-999-0
06
1
0906-
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
0906-
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
0906-
212
CAP; ADJ SCREW
8-94396-015-2
12
1
0906-
107
112
111
101
107
112
111
101
101
107
112
111
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X60
0-16956-460-0
01
1
0906-
101
BOLT; THRUST COLLAR
(A) M14X30
0-23951-430-0
01
1
0906-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
0906-
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
0906-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
0906-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
0906-
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
0906-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
03
1
0906-
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
0906-1402
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1403-
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
0906-
112
GEAR; IDLE
(C) Z=34
8-97606-771-0
01
1
0906-
