4-11 — FRONT HUB AND DRUM OR ROTOR (#6139) — 19 parça

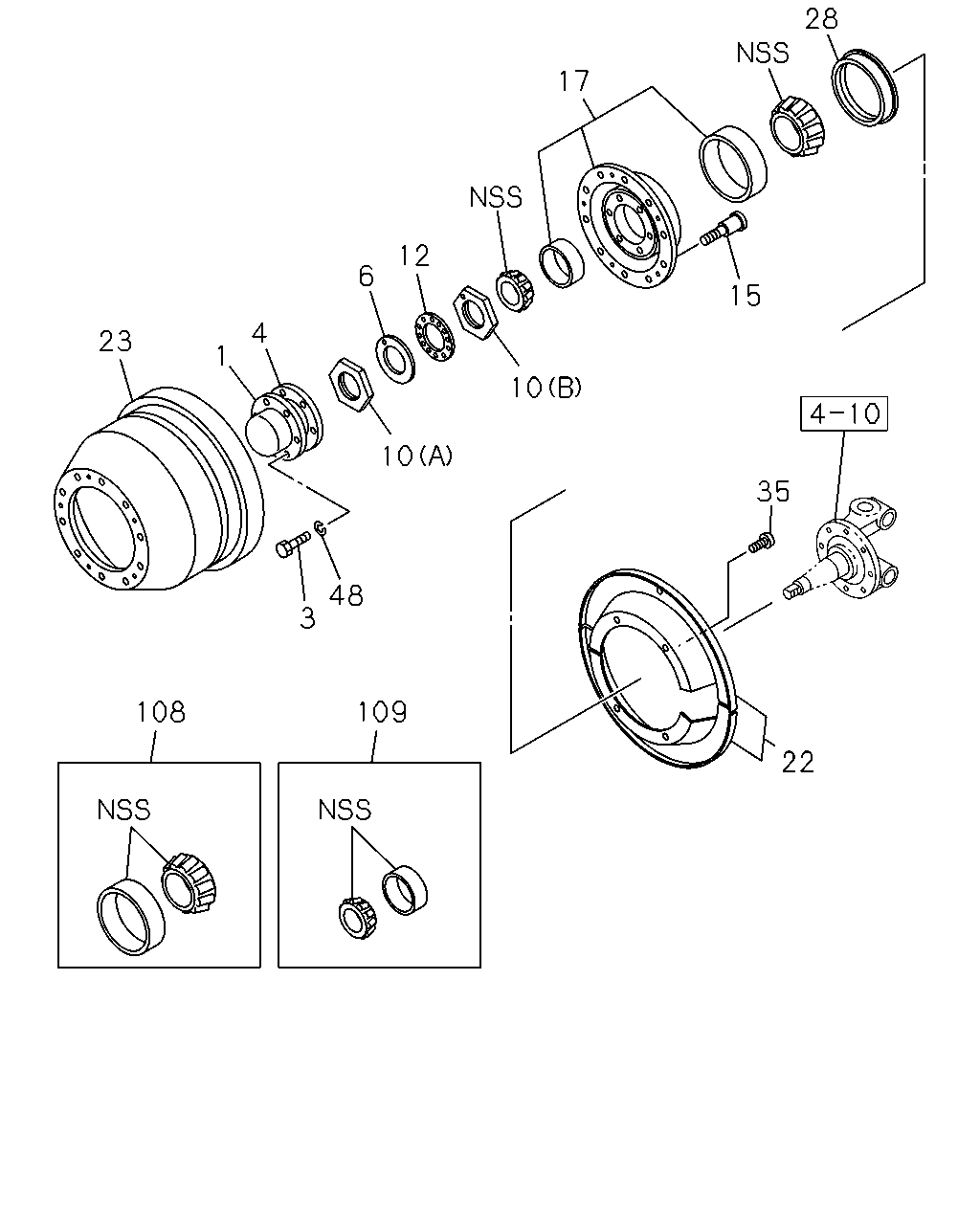

çizim 38239
23 1 4 6 12 17 28 15 10 10 48 3 108 109 22 35
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE 1-42313-024-0 02 1 9905-
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 9905-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 9905-
6 WASHER; LK,FRT HUB 1-42329-007-0 02 1 9905-
10 NUT; FRT HUB BRG
(A) 		1-42329-006-0 02 1 9905-
10 NUT; FRT HUB BRG
(B) 		1-42329-009-0 02 1 9905-
12 WASHER; LK,FRT HUB BRG 1-42329-008-0 02 1 9905-
15 PIN; WHEEL,FRT AXLE 1-42337-057-0 20 1 9905-9912
15 PIN; WHEEL,FRT AXLE 1-42337-061-0 20 1 0001-
17 HUB; FRT AXLE 1-42312-152-0 02 1 9905-9912
17 HUB; FRT AXLE 1-42312-158-0 02 1 0001-
22 COVER SET; FRT BRK DRUM 1-47151-708-0 02 1 9905-
23 DRUM; BRK,FRT 1-42315-369-0 02 1 9905-9912
23 DRUM; BRK,FRT 1-42315-378-0 02 1 0001-
28 SEAL; OIL,FRT HUB 1-09625-636-0 02 1 9905-
35 BOLT; DRUM COVER 1-47159-176-0 12 1 9905-
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 9905-
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 9905-
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 9905-
