◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#6137) — 46 parça
çizim 37888
198 96 9 1 128 198 225 96 9 106
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) REAR L=435.3 		1-37124-894-0 01 1 9905-0104
1 SHAFT; PROP
FINAL GEAR 18.0"<C2X> (B) REAR L=405.3 		1-37124-936-0 01 1 0105-
1 SHAFT; PROP
(A) END L=783.8 		1-37124-895-0 01 1 9905-0205
1 SHAFT; PROP
(C) END L=1105 		1-37125-107-0 01 1 0206-0210
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) END L=1105 		1-37125-107-0 01 1 0211-
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (B) REAR L=435.3 		1-37124-894-0 01 1 0105-
1 SHAFT; PROP
FINAL GEAR 18.0"<C2X> (C) END L=1080 		1-37125-166-0 01 1 0211-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-062-0 AR 1 9905-0205
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 AR 1 9905-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0206-
96 BOLT; PROP SHAFT 1-09088-009-0 08 1 9905-
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 9905-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 9905-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0206-
128 SEAL; SLEEVE
(B) 		1-37247-025-0 01 1 9905-
128 SEAL; SLEEVE
(A) 		1-37247-026-0 01 1 9905-0205
198 PLATE; PROP SHAFT 1-37319-010-0 04 1 9905-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=297 		1-37241-142-0 01 1 9905-
225 YOKE; SLEEVE,PROP SHAFT
(A) 		1-37241-143-0 01 1 9905-0205

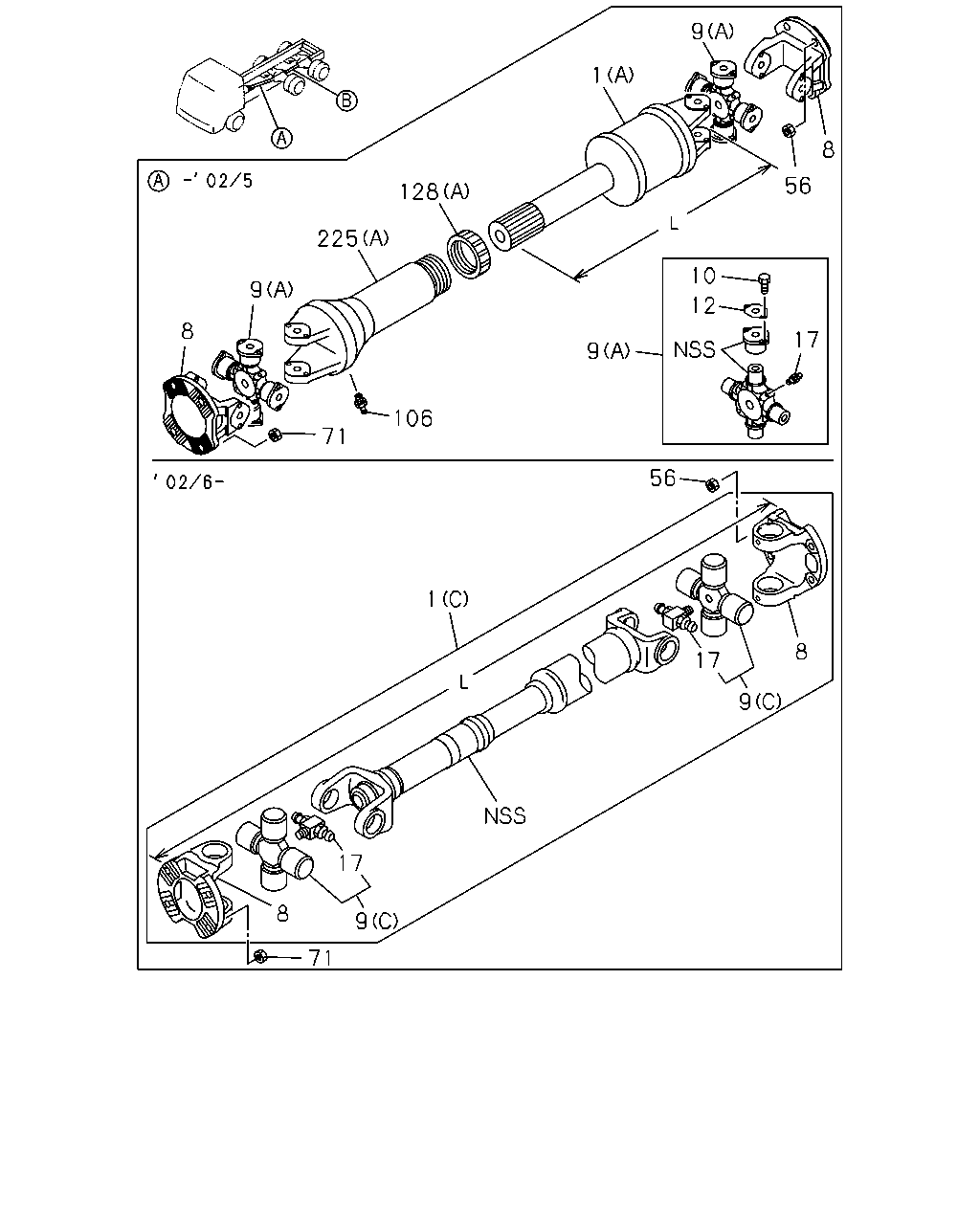

çizim 38234
9 1 8 56 128 225 10 9 12 8 17 9 106 71 56 1 8 17 9 17 8 9 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) REAR L=435.3 		1-37124-894-0 01 1 9905-0104
1 SHAFT; PROP
FINAL GEAR 18.0"<C2X> (B) REAR L=405.3 		1-37124-936-0 01 1 0105-
1 SHAFT; PROP
(A) END L=783.8 		1-37124-895-0 01 1 9905-0205
1 SHAFT; PROP
(C) END L=1105 		1-37125-107-0 01 1 0206-0210
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) END L=1105 		1-37125-107-0 01 1 0211-
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (B) REAR L=435.3 		1-37124-894-0 01 1 0105-
1 SHAFT; PROP
FINAL GEAR 18.0"<C2X> (C) END L=1080 		1-37125-166-0 01 1 0211-
8 YOKE; FLANGE,PROP SHAFT 1-37211-080-0 02 1 9905-0205
8 YOKE; FLANGE,PROP SHAFT 1-37211-083-0 02 1 0206-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-062-0 AR 1 9905-0205
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 AR 1 9905-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0206-
10 BOLT; UJT 1-37359-001-0 AR 1 9905-0205
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-007-0 AR 1 9905-0205
17 NIPPLE; GREASE,PROP SHAFT 1-37319-005-0 AR 1 9905-0205
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0206-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 9905-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 9905-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 9905-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 9905-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0206-
128 SEAL; SLEEVE
(B) 		1-37247-025-0 01 1 9905-
128 SEAL; SLEEVE
(A) 		1-37247-026-0 01 1 9905-0205
225 YOKE; SLEEVE,PROP SHAFT
(B) L=297 		1-37241-142-0 01 1 9905-
225 YOKE; SLEEVE,PROP SHAFT
(A) 		1-37241-143-0 01 1 9905-0205
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
