◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#61364) — 65 parça
çizim 164725
9 1 12 23 13 22 21 20 17 115 29 29 29 230 237
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0906-
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		1-85111-033-1 01 1 0906-1601
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		8-98316-700-0 01 1 1602-
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OD=25 L=480 		1-85116-011-0 01 1 0906-1501
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=247 		1-85117-006-0 01 1 0906-1407
13 WRENCH; MONKEY
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		9-85121-406-0 01 1 0906-
20 WRENCH; 10X12
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 10X12 		0-95902-510-0 01 1 0906-
21 WRENCH; 14X17
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 14X17 		0-95902-514-0 01 1 0906-
22 WRENCH; 19X22
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 19X22 		0-95902-519-0 01 1 0906-
23 WRENCH; 24X27
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 24X27 		0-95902-524-0 01 1 0906-
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (C) <+>,<-> L=160 		8-94242-798-1 01 1 0906-
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) <-> L=275 		8-98061-105-0 01 1 0906-
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) <+> L=190 		9-09595-522-0 01 1 0906-
115 PLIER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		5-85171-002-0 01 1 0906-1410
115 PLIER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		8-98282-845-0 01 1 1411-
230 PUMP; GREASE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-85556-007-5 01 1 0906-
237 BAG; TOOL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		8-97130-902-1 01 1 0906-
çizim 164727
125 126 127 144 143 129 151 153 154 158 163 156
BalonParca AdiParca NoAdetTipApplied Date
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0906-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0906-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0906-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0906-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0906-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0906-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0906-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0906-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0906-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0906-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0906-1002
163 TOOL; SETTING
MZW6P M/T(RSZ) (B) L=195 		1-85221-162-1 01 1 1012-
163 TOOL; SETTING
MZW6P M/T(RSZ) (C) L=150 		1-85221-163-0 01 1 1012-
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1003-

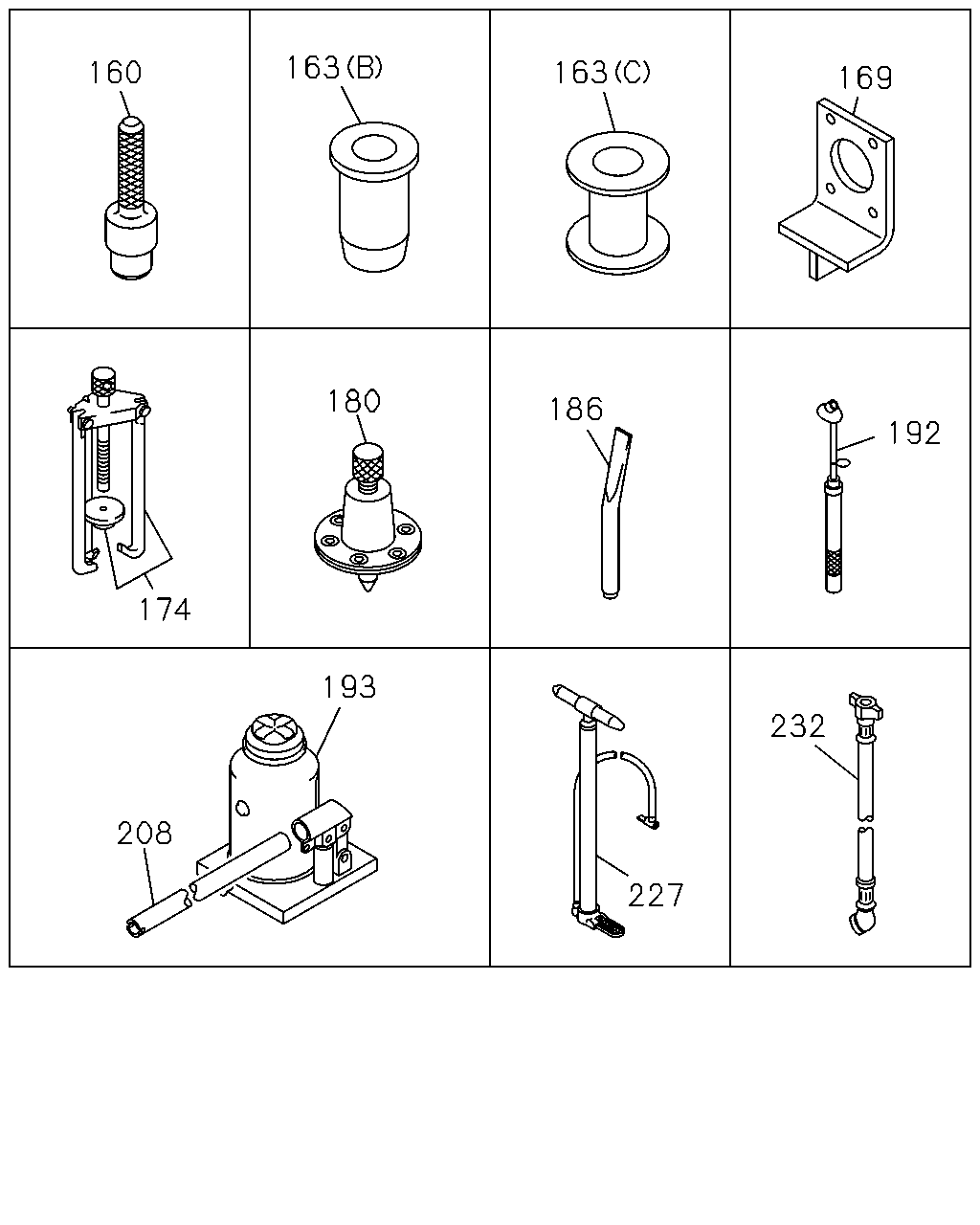

çizim 164729
160 163 163 169 174 180 186 192 208 193 227 232
BalonParca AdiParca NoAdetTipApplied Date
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0906-
163 TOOL; SETTING
MZW6P M/T(RSZ) (B) L=195 		1-85221-162-1 01 1 1012-
163 TOOL; SETTING
MZW6P M/T(RSZ) (C) L=150 		1-85221-163-0 01 1 1012-
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1003-
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-85221-317-0 01 1 0906-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0906-1007
174 PULLER ASM; MAIN CLU SHAFT
ZF9S1110 M/T(Y5E) 		9-85210-148-0 01 1 1008-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0906-1008
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0906-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0906-
193 JACK ASM
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 10TON 		8-97607-599-0 01 1 0906-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0906-1011
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 1012-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0906-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 1005-
çizim 164730
274 271 268 209 311 285 281 283 282 284
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0906-
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0906-1011
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1108
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0906-
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0906-1011
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1108
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 0906-
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 0906-
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 0906-
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0906-
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 0906-
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 0906-
