Sayfa 8-28 - Isuzu EPC

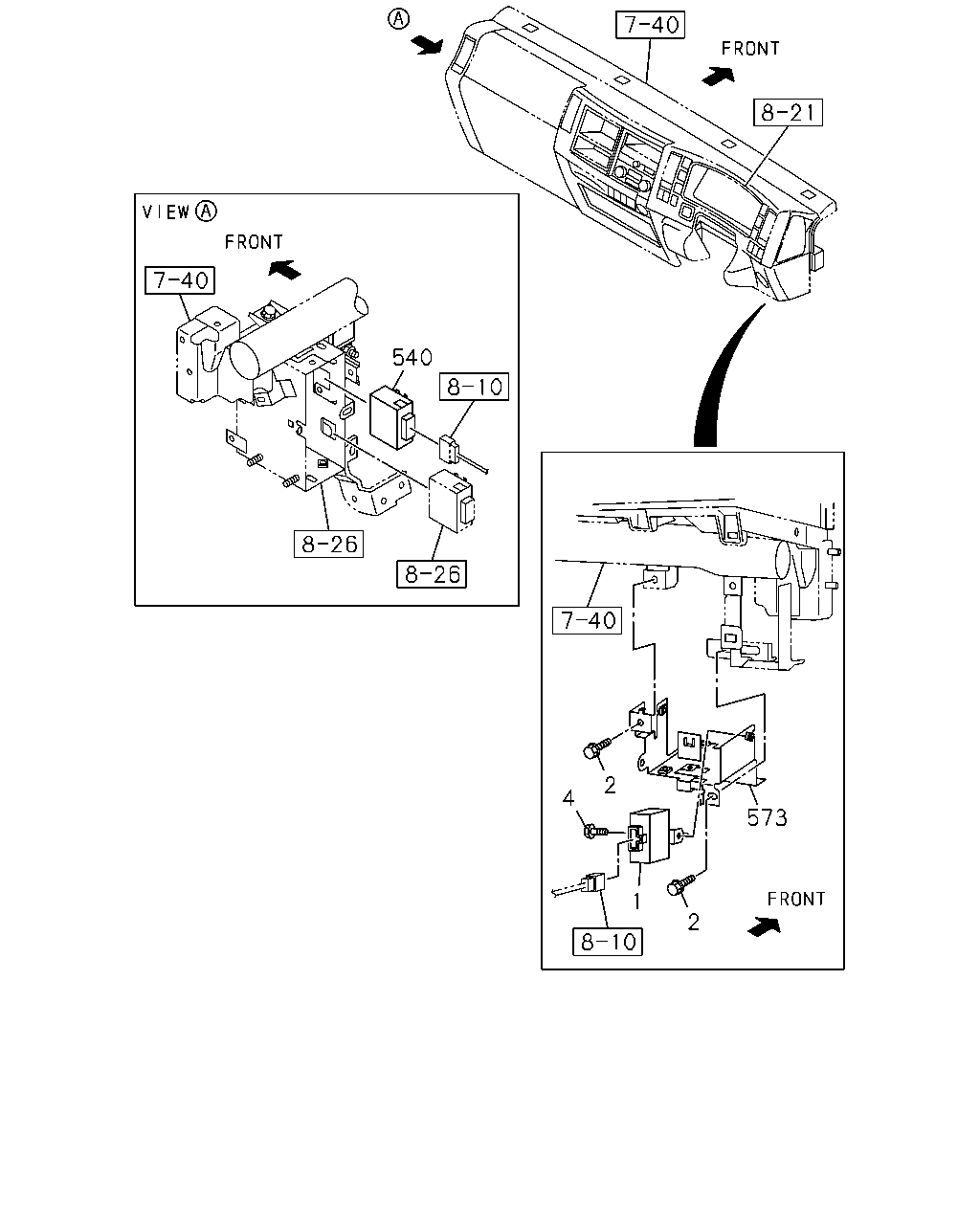

540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	0906-1011
1	UNIT; FLASHER	8-98025-533-1	01	1	1012-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0906-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0906-
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	0906-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0906-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0906-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0906-

584 744 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	SWITCH; OIL PRESS,CLUTCH ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	0906-1011
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1012-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0906-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0906-

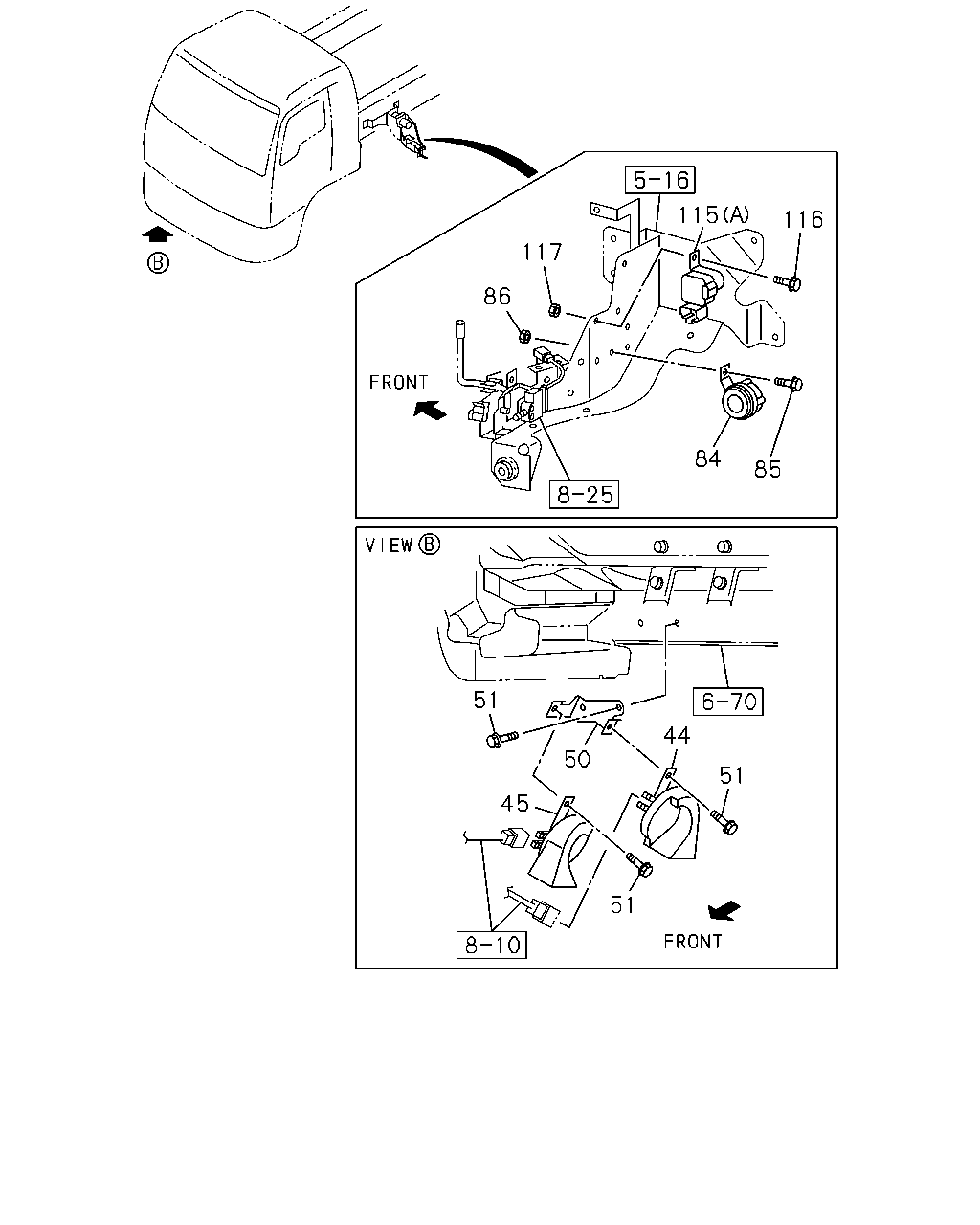

115 116 117 86 84 85 51 44 50 51 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-97611-677-2	01	1	0906-
45	HORN; LOW NOTE	8-97611-676-2	01	1	0906-
50	BRACKET; HORN	8-97613-300-2	01	1	0906-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0906-1008
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1009-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1009-
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> METRO DENSO	8-98069-860-0	01	1	0906-
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	01	1	0906-
86	NUT; BUZZER AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	01	1	0906-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0906-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	0906-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	0906-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0906-

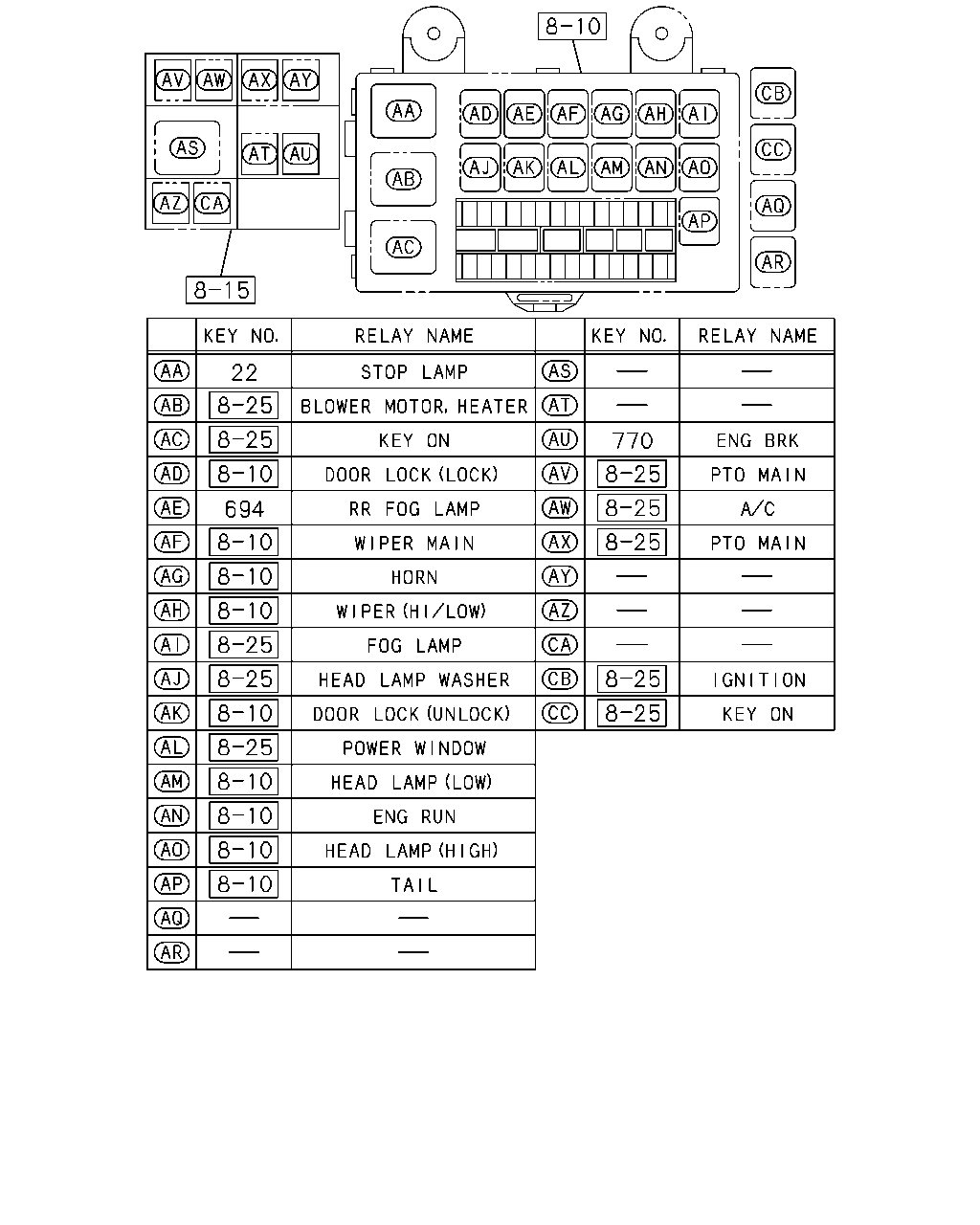

22 694 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0906-
694	RELAY; RR FOG LAMP RR FOG LAMP<T79> 24V 10A PANASONIC	8-97173-035-1	01	1	0906-
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0906-

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0906-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	0906-
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0906-1402
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

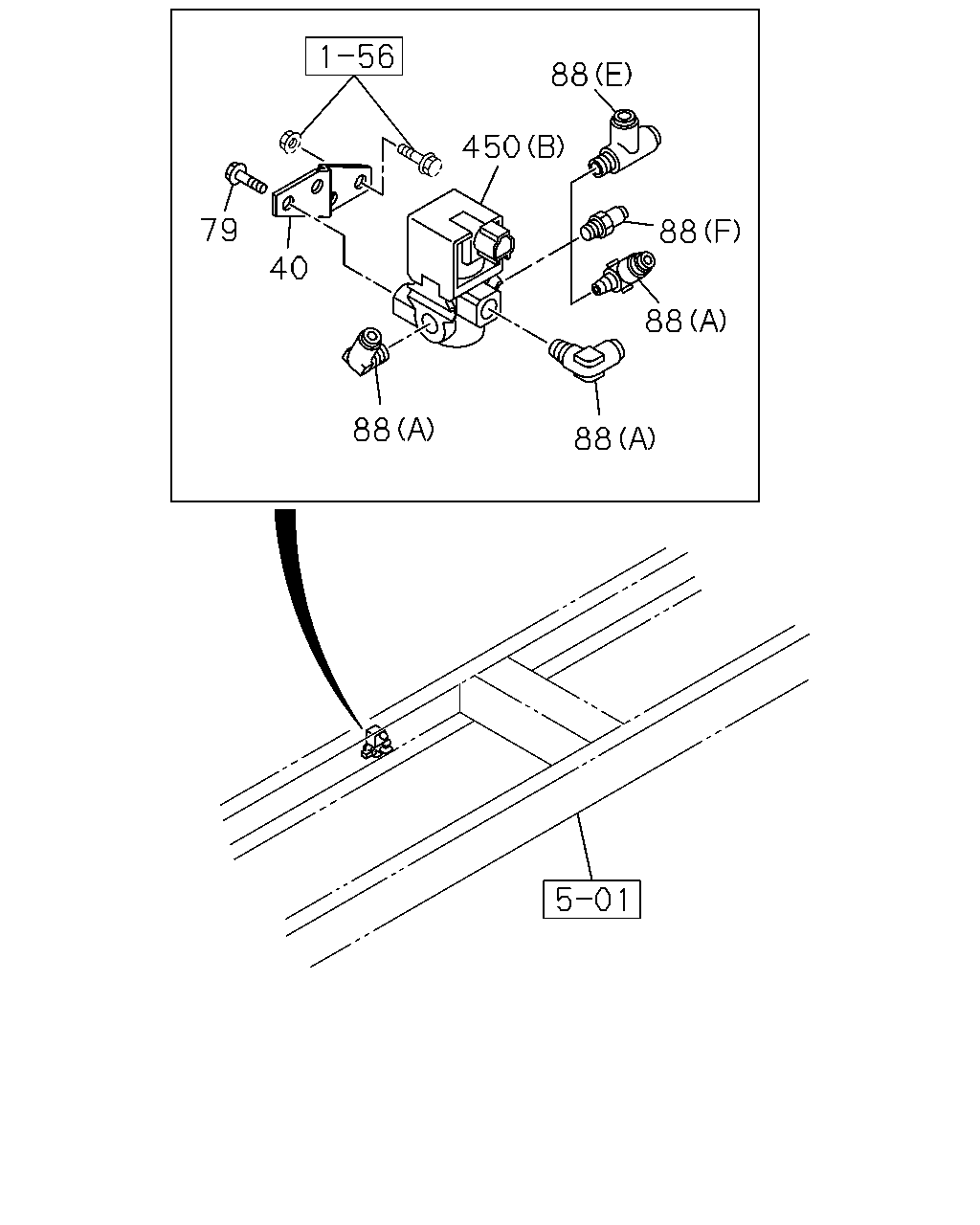

88 450 79 88 40 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98057-863-0	01	1	0906-0907
40	BRACKET; MAG VLV ZF6S1000 M/T(Y5D)	8-98057-863-0	01	1	0908-1006
40	BRACKET; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98057-863-0	01	1	0908-1006
40	BRACKET; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98057-863-0	01	1	1007-
79	BOLT; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0906-0907
79	BOLT; MAG VLV ZF6S1000 M/T(Y5D) M8X20 FLANGE	0-28650-820-0	02	1	0908-1006
79	BOLT; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0908-1006
79	BOLT; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	1007-
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-0907
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0908-1006
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0908-1006
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1007-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0906-
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-
450	VALVE; MAG (B)	1-82563-871-2	01	1	0906-0907
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-0907
450	VALVE; MAG (B)	1-82563-871-2	01	1	0908-1006
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0908-1006
450	VALVE; MAG ZF6S1000 M/T(Y5D) (B)	1-82563-871-2	01	1	0908-1006
450	VALVE; MAG (B)	1-82563-871-2	01	1	1007-1011
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1007-1011
450	VALVE; MAG ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG (B)	1-82563-871-2	01	1	1112-
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1112-

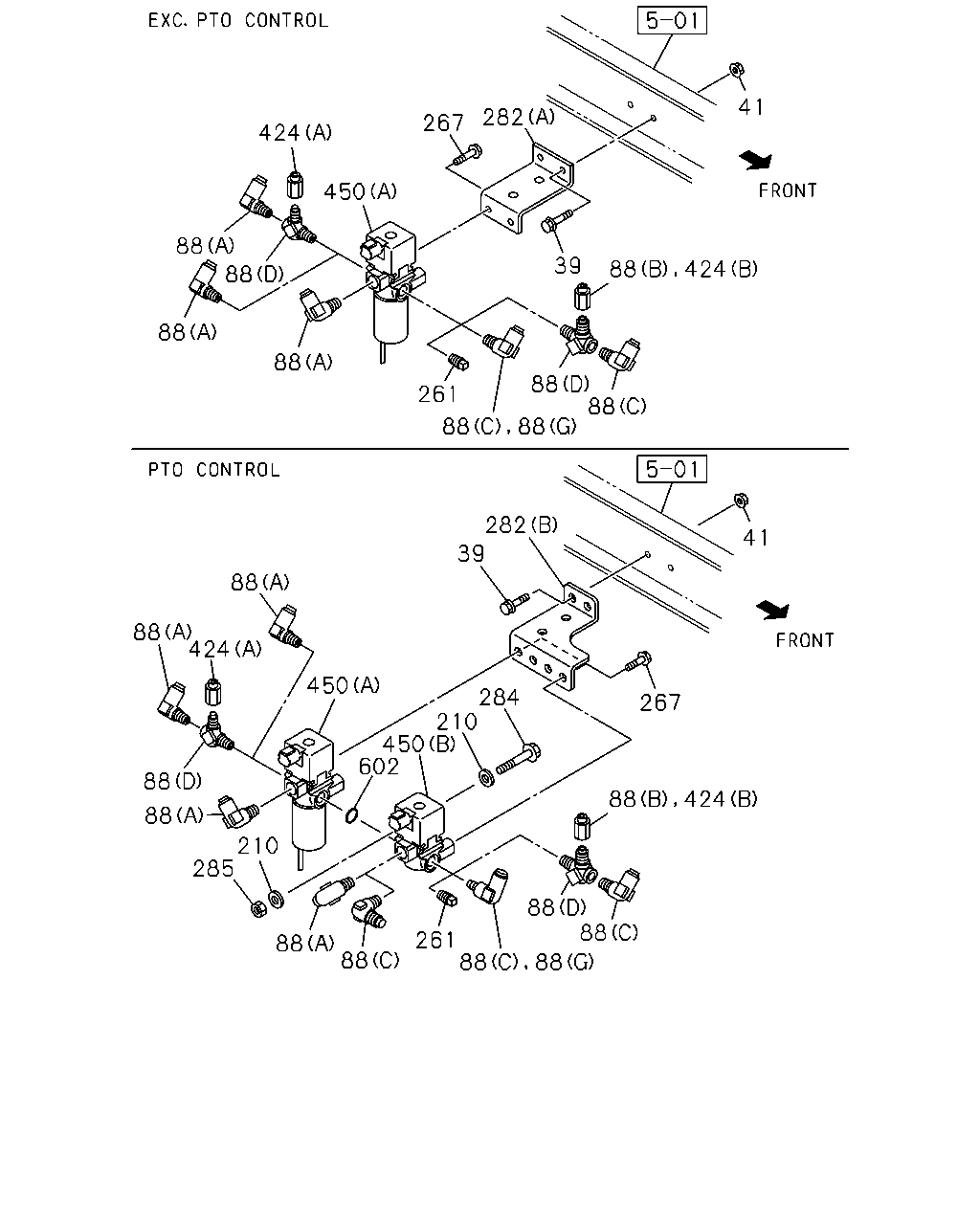

41 282 267 424 450 88 39 88 88 88 88 88 261 282 41 39 88 88 424 450 284 210 450 602 267 88 88 210 285 88 88 261 88 88 88 424 88 88 88 88 88 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0906-
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0906-
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-0907
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0908-1006
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0908-1006
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1007-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0906-
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0906-
261	PLUG; MAG VLV MZW6P M/T(RSZ) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1012-1111
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0906-
282	BRACKET; MAG VLV PTO CONTROL<SV6> (B)	8-98101-296-0	01	1	0906-
282	BRACKET; MAG VLV EXC. PTO CONTROL<SV6> (A)	1-47471-374-1	01	1	0906-1004
282	BRACKET; MAG VLV EXC. PTO CONTROL<SV6> (A)	8-98154-633-0	01	1	1005-
284	BOLT; MAG VLV PTO CONTROL<SV6> M6X50 FLANGE	0-28050-650-0	01	1	0906-
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0906-
424	ADAPTER MZW6P M/T(RSZ) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1111
424	ADAPTER ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
424	ADAPTER ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-
450	VALVE; MAG (B)	1-82563-871-2	01	1	0906-0907
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-0907
450	VALVE; MAG (B)	1-82563-871-2	01	1	0908-1006
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0908-1006
450	VALVE; MAG ZF6S1000 M/T(Y5D) (B)	1-82563-871-2	01	1	0908-1006
450	VALVE; MAG (B)	1-82563-871-2	01	1	1007-1011
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1007-1011
450	VALVE; MAG ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG (B)	1-82563-871-2	01	1	1112-
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1112-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0906-
