◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#61349) — 99 parça

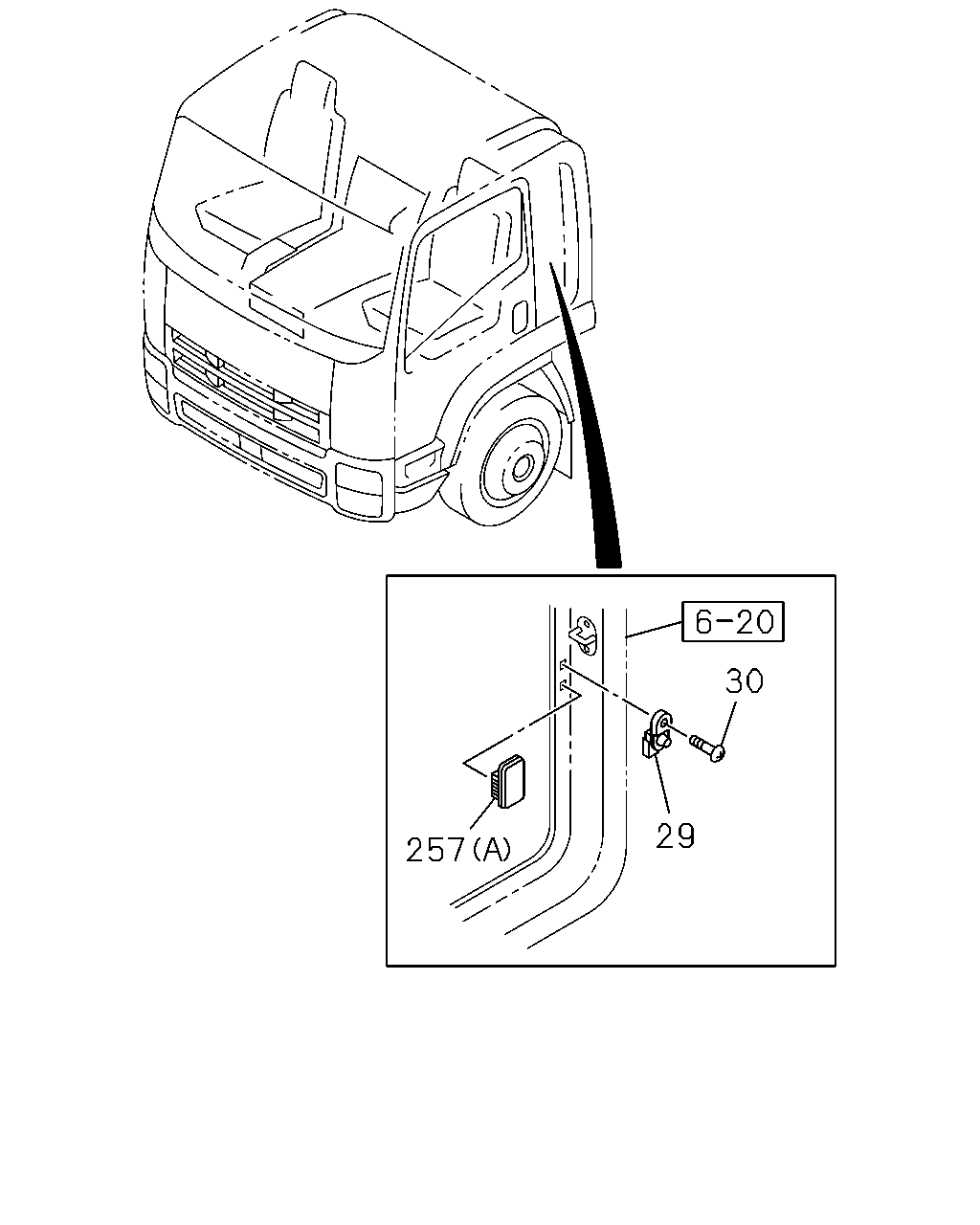

çizim 164659
30 29 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0906-
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> BLACK 		8-98022-211-0 01 1 0906-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0906-
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> M5X18 		8-98047-201-0 01 1 0906-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0906-1011
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A) 		8-98029-917-0 01 1 0906-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0906-

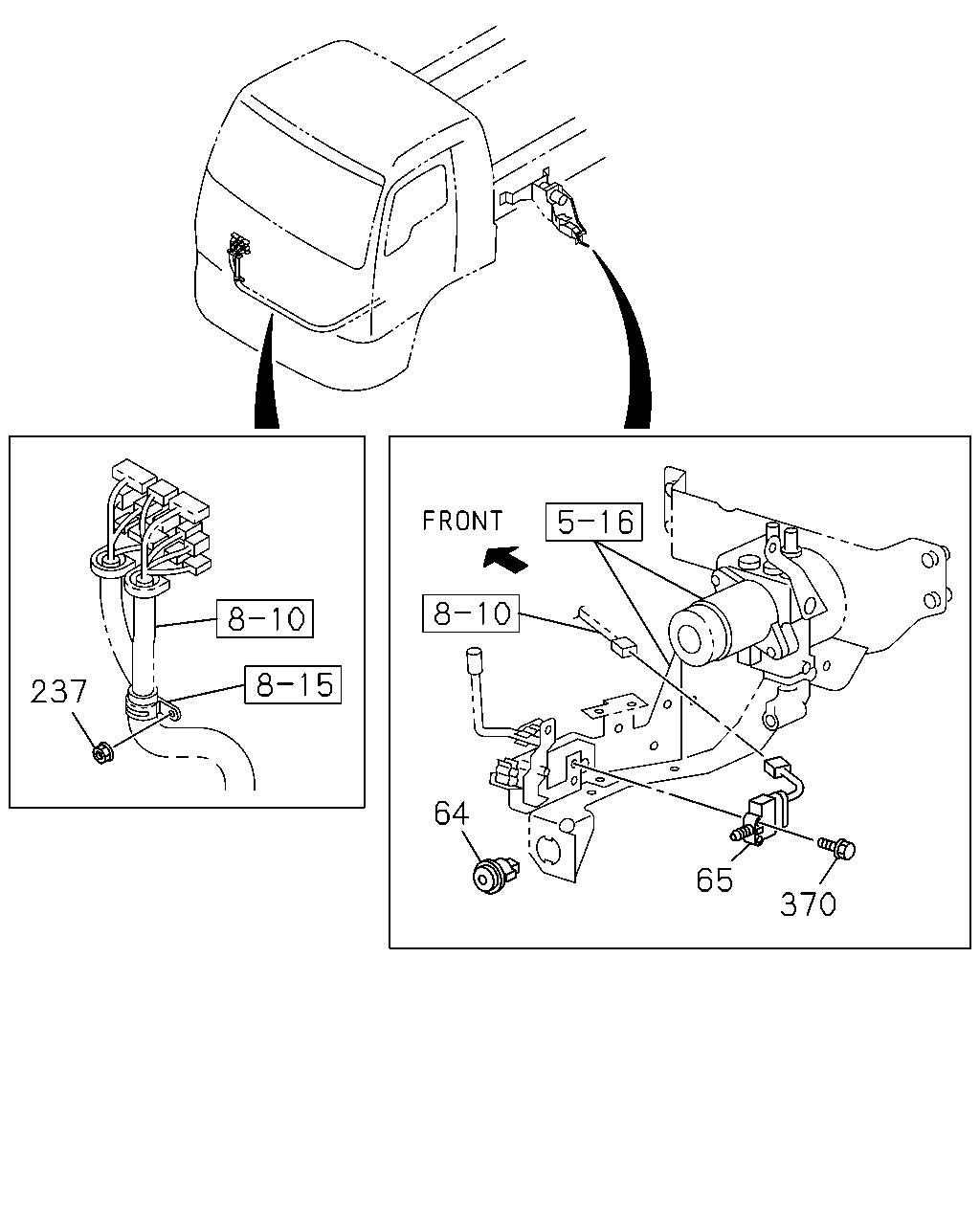

çizim 164672
237 64 65 370
BalonParca AdiParca NoAdetTipApplied Date
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-173-2 01 1 0906-
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 01 1 0906-
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-
370 BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE 		0-28650-630-0 02 1 0906-

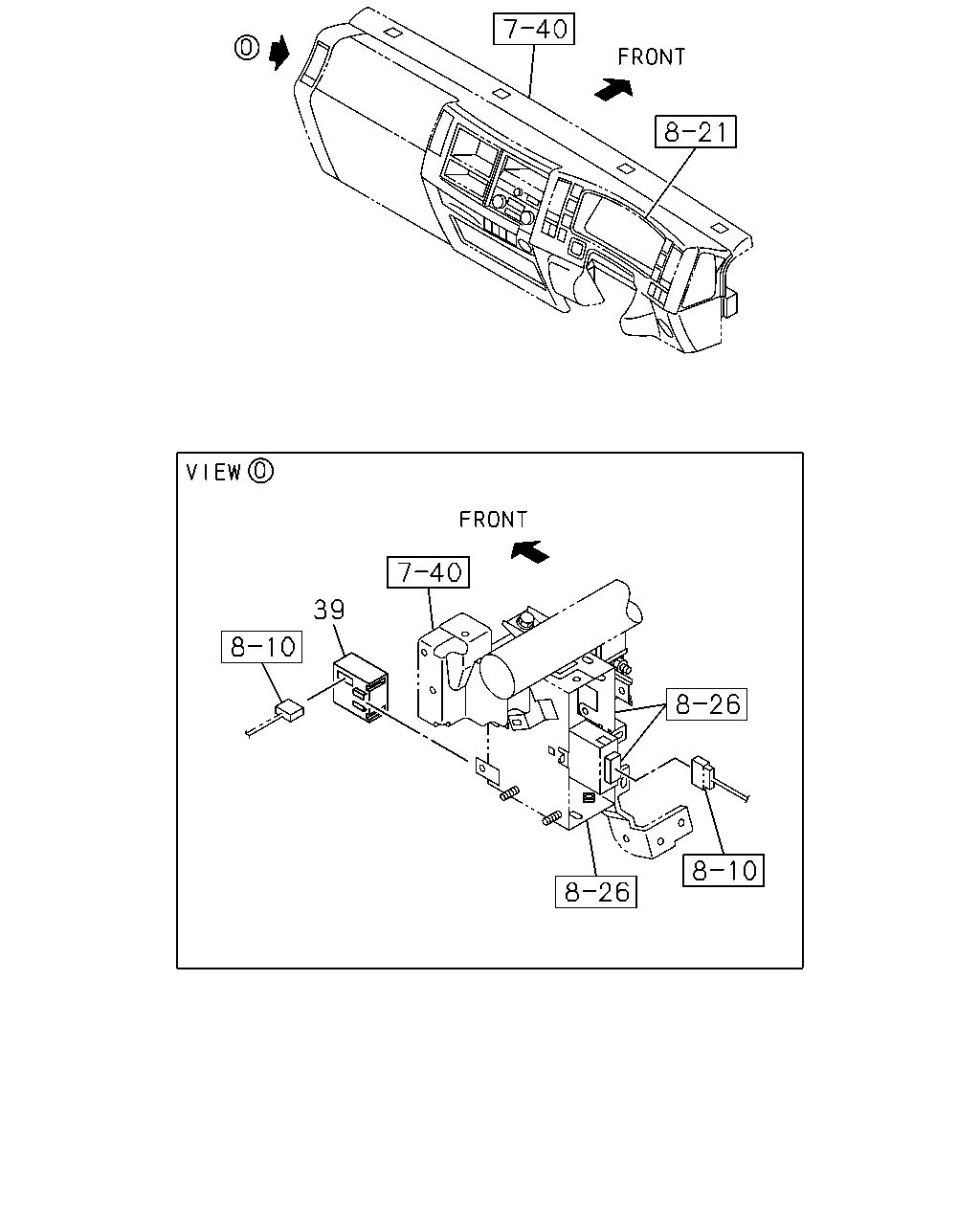

çizim 164717
39
BalonParca AdiParca NoAdetTipApplied Date
39 RELAY; DOOR LK 8-98060-789-0 01 1 0906-

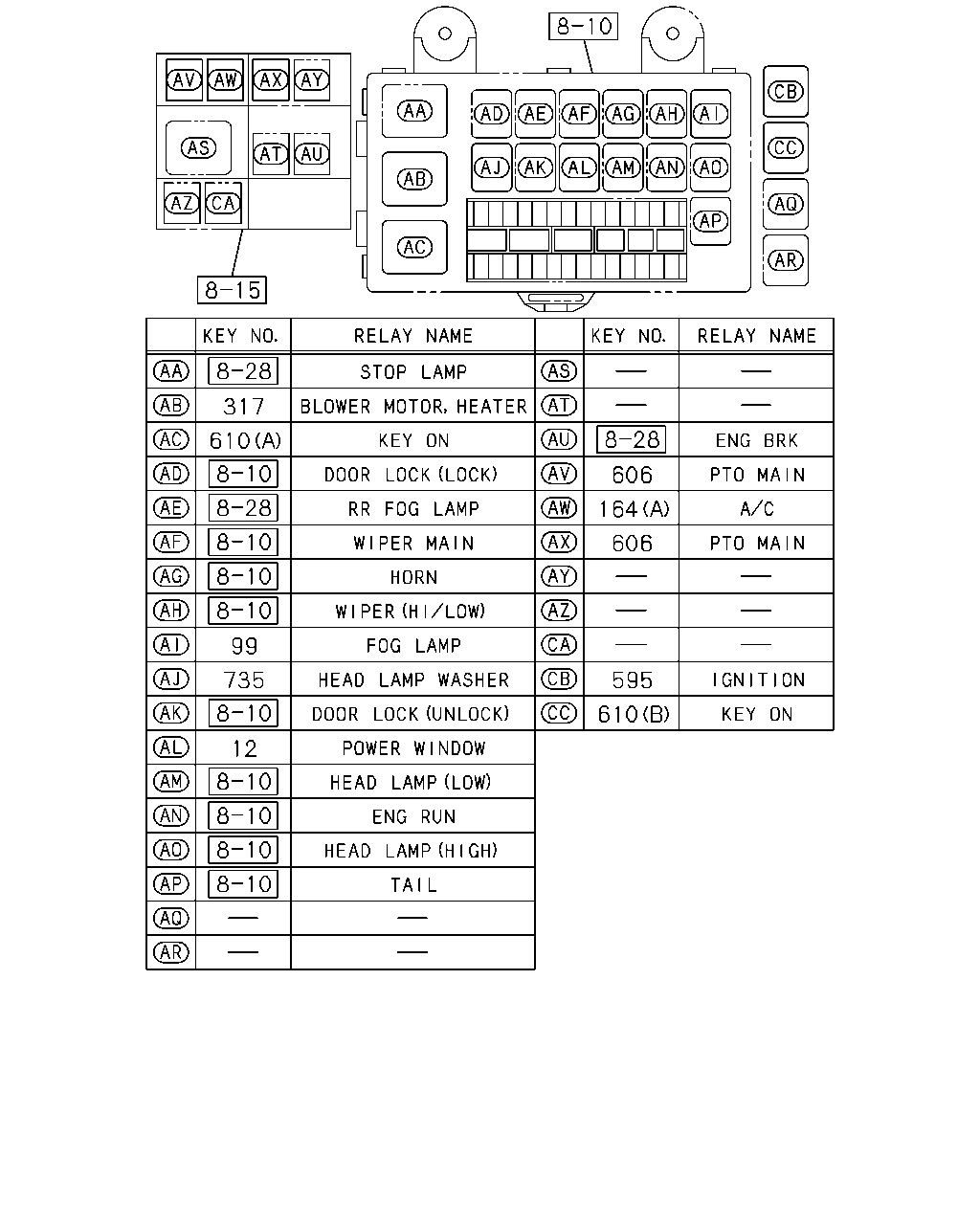

çizim 164718
12 735 99 610 317 610 595 606 164 606
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1207-
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1011
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1011
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-
735 RELAY; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
çizim 164719
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-

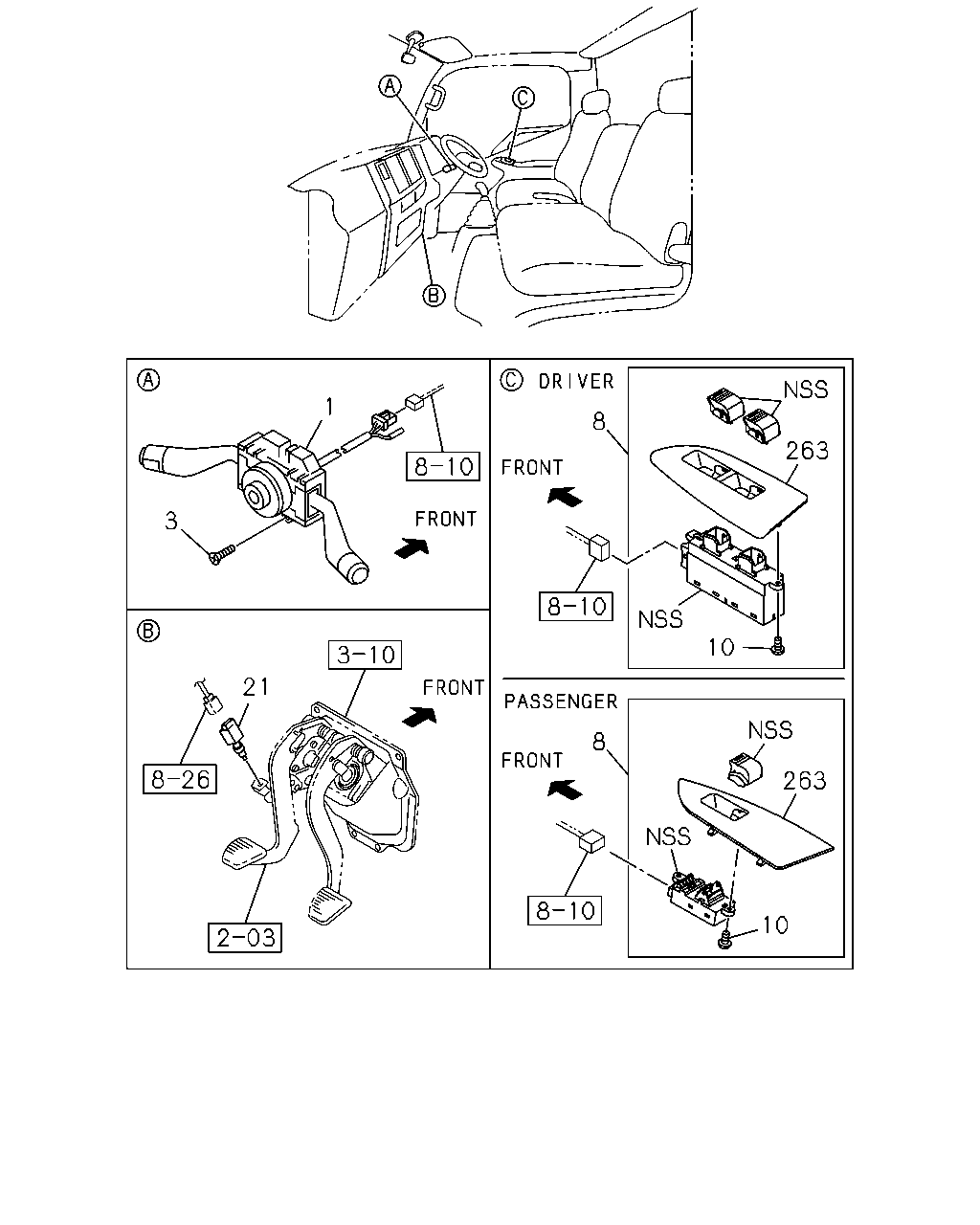

çizim 164865
1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) RR FOG LAMP<T79> 		8-98146-621-0 01 1 0908-1005
1 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3) 		8-98150-839-0 01 1 0908-1005
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. RR FOG LAMP<T79> 		8-98146-618-0 01 1 0906-1210
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. RR FOG LAMP<T79> 		8-98217-820-0 01 1 1211-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. RR FOG LAMP<T79> 		8-98243-691-0 01 1 1311-
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-98060-302-1 01 1 0906-1310
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-98243-704-0 01 1 1311-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0906-
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0906-1509
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-750-0 01 1 1510-
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-844-0 01 1 0906-1001
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1002-1509
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-415-0 01 1 1510-
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0906-
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) 		8-94337-761-0 01 1 0906-1011
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1012-
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 0906-1011
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1012-
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0906-
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0906-

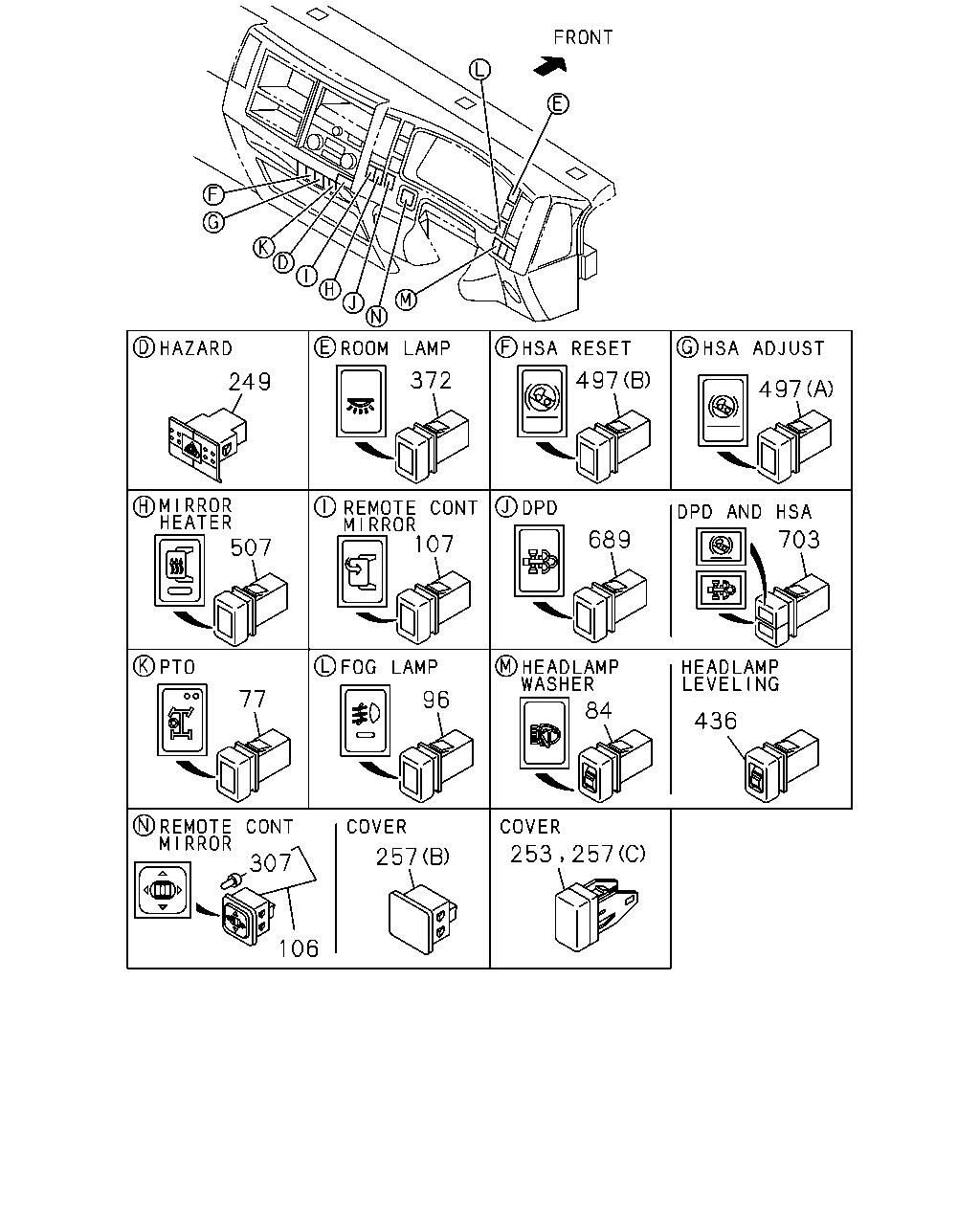

çizim 164867
372 497 249 497 507 107 689 703 84 77 96 436 257 307 106 253 257
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		8-97615-488-2 01 1 0906-1011
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1012-
84 SWITCH; WASHER,HEADLAMP
HEAD LAMP WASHER<CE4> 		8-97614-052-1 01 1 0906-
96 SWITCH; FOG LAMP 8-97387-031-4 01 1 0906-
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0906-
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98011-343-2 01 1 0906-
249 SWITCH; HAZARD 8-97386-922-1 01 1 0906-1011
249 SWITCH; HAZARD 8-97386-922-1 01 1 1012-
253 COVER; SW HOLE 8-98025-954-1 02 1 0906-1004
253 COVER; SW HOLE 8-98025-954-1 01 1 1005-
253 COVER; SW HOLE 8-98025-954-1 01 1 1005-
253 COVER; SW HOLE 8-98025-954-1 01 1 1005-
253 COVER; SW HOLE 8-98025-954-1 01 1 1005-
253 COVER; SW HOLE 8-98025-954-1 01 1 0906-1004
253 COVER; SW HOLE 8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0906-1011
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0906-1011
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1012-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A) 		8-98029-917-0 01 1 0906-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0906-
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0906-
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0906-
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0906-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0906-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0906-
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 0906-
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0906-
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0906-
