Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#61346) — 424 parça

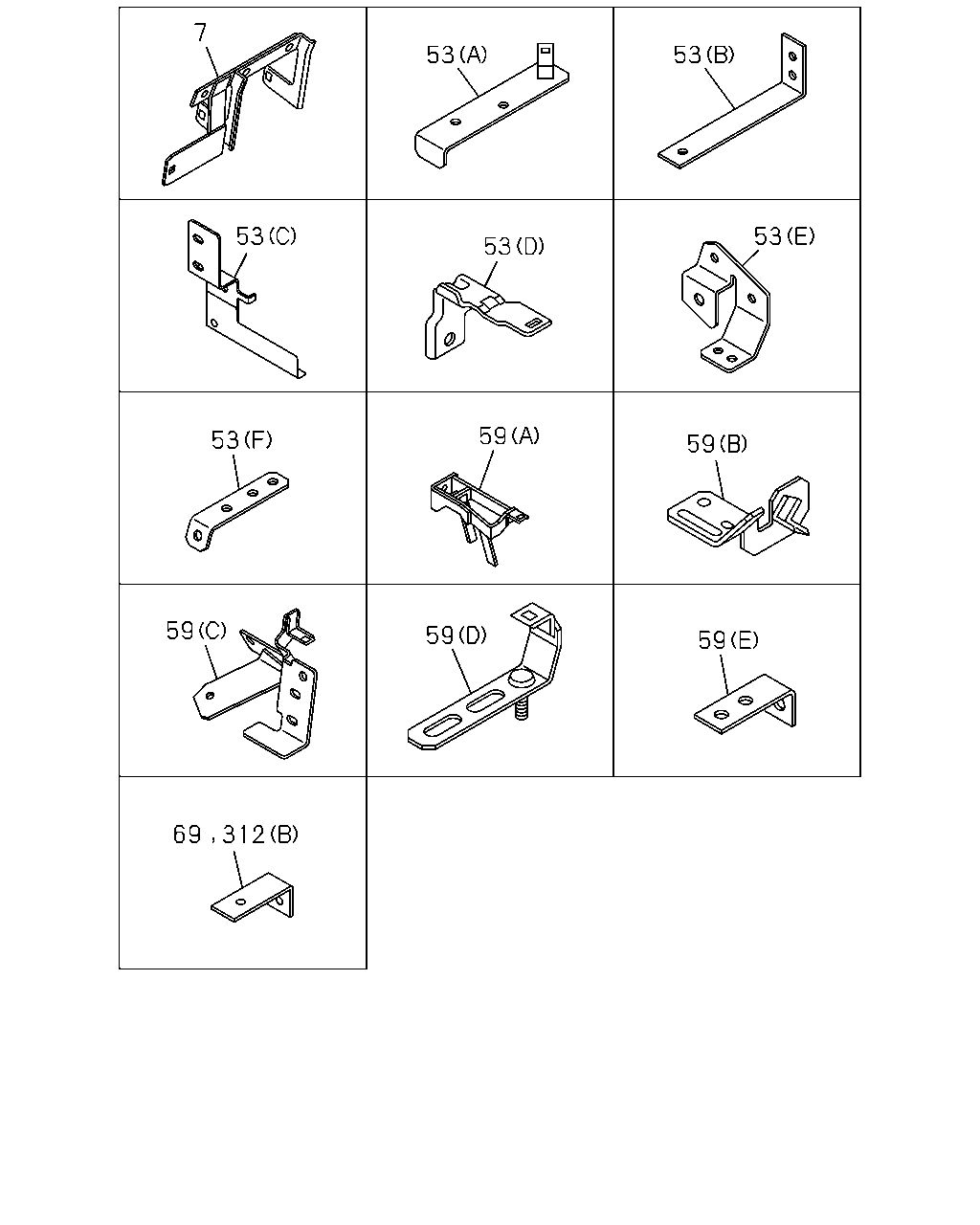

7 53 53 53 53 53 59 53 59 59 59 59 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0906-
53	BRACKET; HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (F)	1-82698-167-0	01	1	0906-1011
53	BRACKET; HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (F)	1-82698-167-0	01	1	1012-
53	BRACKET; HARNESS ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C)	8-97620-485-0	01	1	0906-1011
53	BRACKET; HARNESS MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C)	8-97620-485-0	01	1	1012-
53	BRACKET; HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (C)	8-97620-485-0	01	1	1012-
53	BRACKET; HARNESS ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C)	8-97620-485-0	01	1	1012-
53	BRACKET; HARNESS (D)	8-98052-458-0	01	1	0906-
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (B)	1-47479-674-0	01	1	0906-
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (A)	8-97616-959-0	01	1	0906-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) (E)	8-98084-590-0	01	1	0906-
59	BRACKET; FRAME HARNESS (E) L=62	1-21464-170-2	01	1	0906-
59	BRACKET; FRAME HARNESS ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A)	8-97609-264-2	01	1	0906-1011
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1012-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	0906-1502
59	BRACKET; FRAME HARNESS (B)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-98047-730-0	02	1	0906-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	0906-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0906-
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	0906-

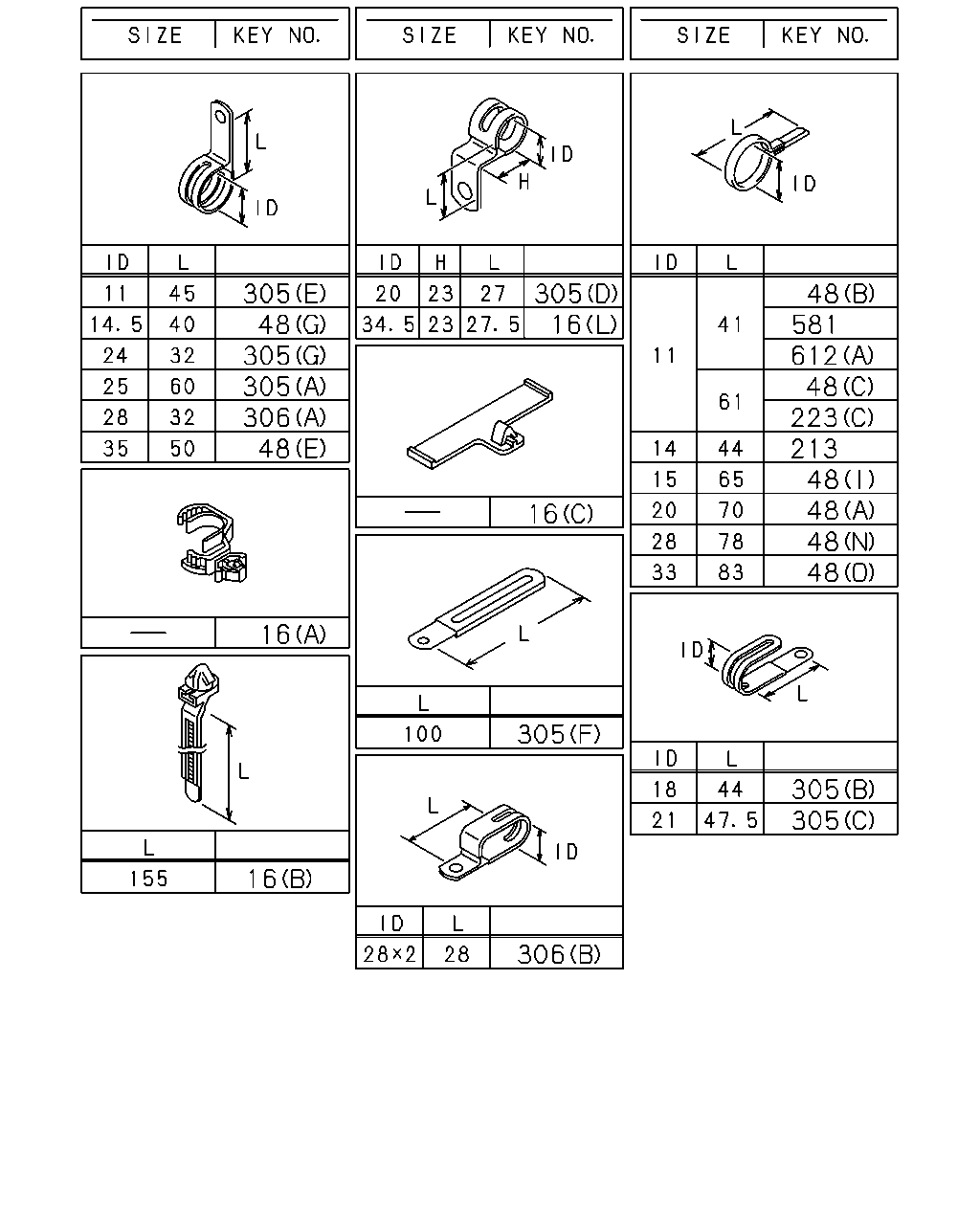

16 48 14 16 37 183 194 206 217 225 235 612 612 14 14 48 530 538 1 1 503 178 178 596 178 596

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0906-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0906-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0906-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0906-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	0906-1205
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	13	1	1206-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	0906-
16	CLIP; HARNESS (F) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	0906-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=11 H=45 L=25	1-09700-866-0	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	0906-
48	CLIP; FRAME HARNESS (O) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	01	1	1104-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	38	1	0906-1005
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	19	1	1006-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1006-1011
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=15 L=65	1-09700-466-0	07	1	1006-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	05	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	0906-1011
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1012-1201
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (N) ID=28 L=78	1-09700-858-0	02	1	0906-
48	CLIP; FRAME HARNESS (O) ID=33 L=83	1-09701-291-0	03	1	0906-
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-1005
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-1005
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (M) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16> (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) ID=11 L=61	1-09700-484-0	03	1	0906-1011
48	CLIP; FRAME HARNESS HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) ID=11 L=61	1-09700-484-0	03	1	1012-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	15	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	08	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	04	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	21	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	12	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=13.5	1-09709-180-0	01	1	0906-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=13.5	1-09709-180-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (J) ID=16 L=20	0-95235-536-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (K) ID=16 L=60	0-95235-596-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=14.5 L=40	1-09701-014-0	01	1	0906-
178	GROMMET; HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0906-0907
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1008-1011
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1012-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	0906-1011
178	GROMMET; HARNESS 6HK1-TCS ENG(80L) (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
178	GROMMET; HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0906-
194	CLIP; BAND MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) L=250	5-09707-030-1	01	1	1102-1107
194	CLIP; BAND AUTO CAB TILT<WV2> L=250	5-09707-030-1	02	1	0906-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0906-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0906-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	06	1	0906-0906
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-1005
503	CONNECTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82690-668-0	01	1	0906-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0906-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0906-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0906-
596	GROMMET MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-1012
596	GROMMET 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-
596	GROMMET ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0906-1011
596	GROMMET MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-1012
596	GROMMET ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-1012
596	GROMMET 6HK1-TCS ENG(80L) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
596	GROMMET 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
612	CLIP; HARNESS DPD 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	0906-1011
612	CLIP; HARNESS DPD 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	1012-1103
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (A) ID=11 L=41	1-09700-403-0	02	1	1012-1103
612	CLIP; HARNESS DPD 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	1104-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-1103
612	CLIP; HARNESS DPD ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) ID=11 L=41	1-09700-403-0	01	1	1104-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-
612	CLIP; HARNESS DPD ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) L=135	1-09987-143-1	02	1	0906-1011
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) L=135	1-09987-143-1	01	1	1012-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (C) L=135	1-09987-143-1	01	1	1012-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) L=135	1-09987-143-1	02	1	1012-
612	CLIP; HARNESS DPD ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) L=135	1-09987-143-1	02	1	1012-

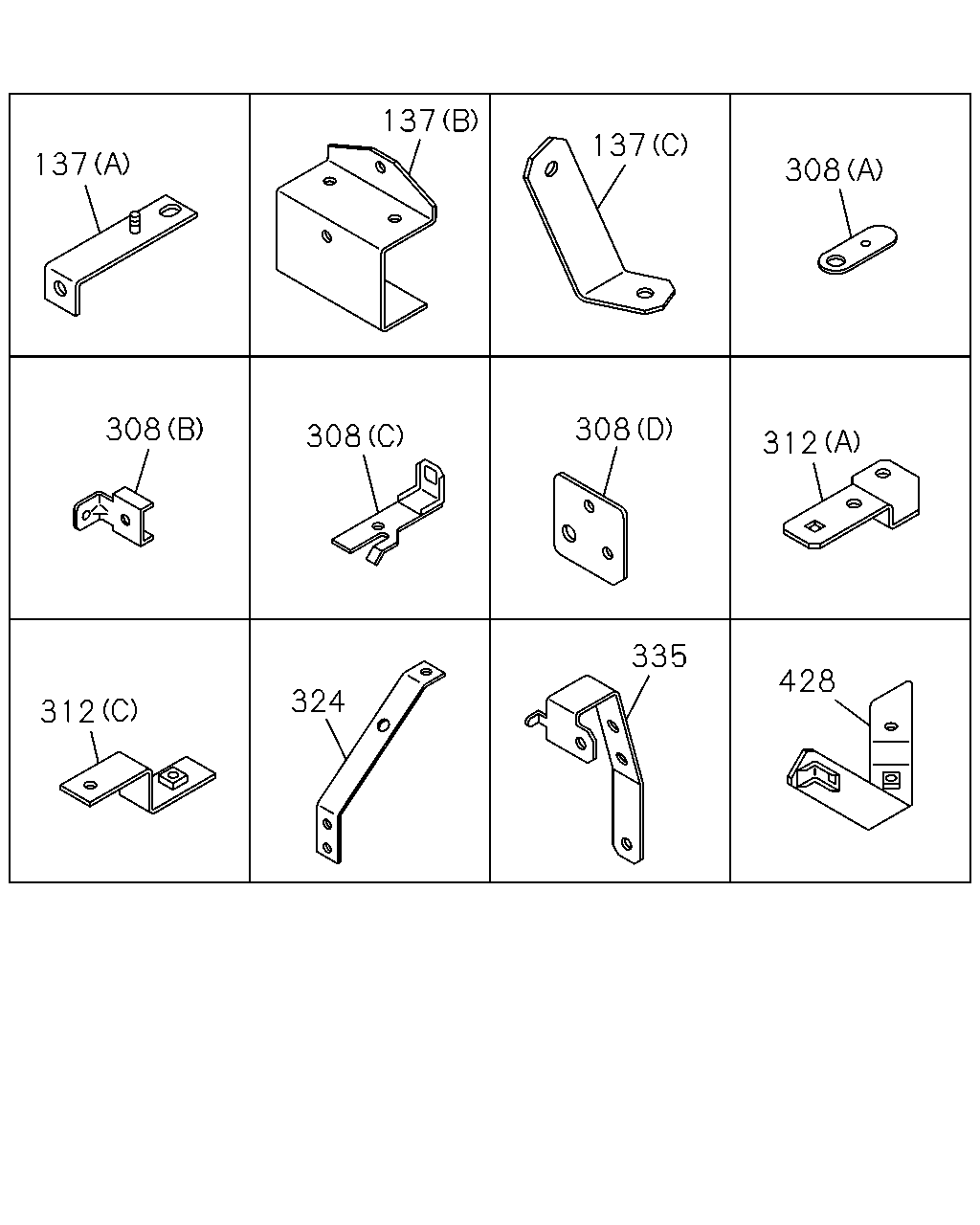

137 137 137 308 308 308 308 335 428 324 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	0906-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0906-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0906-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0906-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0906-
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	0906-
324	BRACKET; CLIP	1-47479-430-0	02	1	0906-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0906-1011
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1012-
428	BRACKET	8-97620-514-0	01	1	0906-1011
428	BRACKET	8-97620-514-0	01	1	1012-

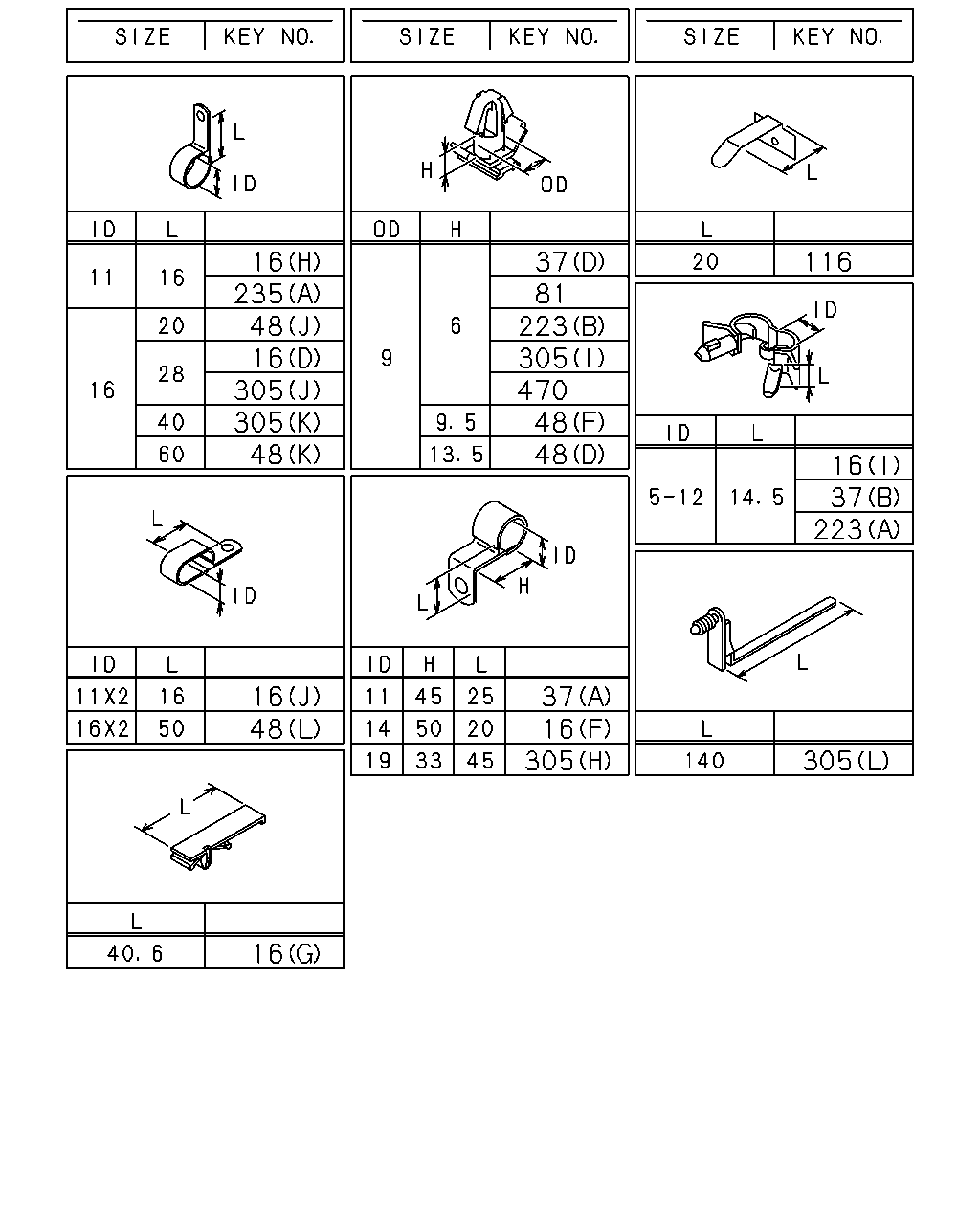

305 48 305 305 306 48 305 16 48 581 612 48 223 213 48 48 48 48 16 16 305 305 305 16 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	0906-
16	CLIP; HARNESS (F) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	0906-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
48	CLIP; FRAME HARNESS (O) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	01	1	1104-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	38	1	0906-1005
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	19	1	1006-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1006-1011
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=15 L=65	1-09700-466-0	07	1	1006-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	05	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	0906-1011
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1012-1201
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (N) ID=28 L=78	1-09700-858-0	02	1	0906-
48	CLIP; FRAME HARNESS (O) ID=33 L=83	1-09701-291-0	03	1	0906-
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-1005
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-1005
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (M) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16> (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) ID=11 L=61	1-09700-484-0	03	1	0906-1011
48	CLIP; FRAME HARNESS HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) ID=11 L=61	1-09700-484-0	03	1	1012-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	15	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	08	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	04	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	21	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	12	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=13.5	1-09709-180-0	01	1	0906-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=13.5	1-09709-180-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (J) ID=16 L=20	0-95235-536-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (K) ID=16 L=60	0-95235-596-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=14.5 L=40	1-09701-014-0	01	1	0906-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0906-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0906-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	0906-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-
305	CLIP; ENG HARNESS (H) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0906-
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	0906-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	0906-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	0906-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	0906-
581	CLIP; HARNESS,REAR SUSP HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> ID=11 L=41	1-09700-403-0	03	1	0906-
612	CLIP; HARNESS DPD 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	0906-1011
612	CLIP; HARNESS DPD 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	1012-1103
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (A) ID=11 L=41	1-09700-403-0	02	1	1012-1103
612	CLIP; HARNESS DPD 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	1104-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-1103
612	CLIP; HARNESS DPD ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) ID=11 L=41	1-09700-403-0	01	1	1104-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-
612	CLIP; HARNESS DPD ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) L=135	1-09987-143-1	02	1	0906-1011
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) L=135	1-09987-143-1	01	1	1012-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (C) L=135	1-09987-143-1	01	1	1012-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) L=135	1-09987-143-1	02	1	1012-
612	CLIP; HARNESS DPD ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (C) L=135	1-09987-143-1	02	1	1012-

16 235 48 16 305 305 48 37 81 223 305 470 48 48 116 16 37 223 16 48 37 16 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	0906-
16	CLIP; HARNESS (F) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	0906-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=11 H=45 L=25	1-09700-866-0	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	0906-
48	CLIP; FRAME HARNESS (O) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	01	1	1104-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	38	1	0906-1005
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	19	1	1006-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1006-1011
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=15 L=65	1-09700-466-0	07	1	1006-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	05	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	0906-1011
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1012-1201
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (N) ID=28 L=78	1-09700-858-0	02	1	0906-
48	CLIP; FRAME HARNESS (O) ID=33 L=83	1-09701-291-0	03	1	0906-
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	0906-0906
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-1005
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-1005
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1006-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (M) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16> (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) ID=11 L=61	1-09700-484-0	03	1	0906-1011
48	CLIP; FRAME HARNESS HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) ID=11 L=61	1-09700-484-0	03	1	1012-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	15	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	08	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	04	1	0906-0906
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	21	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	12	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=13.5	1-09709-180-0	01	1	0906-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=13.5	1-09709-180-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (J) ID=16 L=20	0-95235-536-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (K) ID=16 L=60	0-95235-596-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	0906-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=14.5 L=40	1-09701-014-0	01	1	0906-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0906-1005
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1006-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	0906-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	0906-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-1005
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0906-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	0906-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-
305	CLIP; ENG HARNESS (H) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0906-
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	0906-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	0906-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	0906-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	0906-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0908-1103

304 139 304 304 304 38 304 313 127 139 184 38 150 313 242 38 150 139 38 313 139 313 242 313 139 139 139 242 47 524 219 525 294 552 294 516 358 377 38 386 38 386

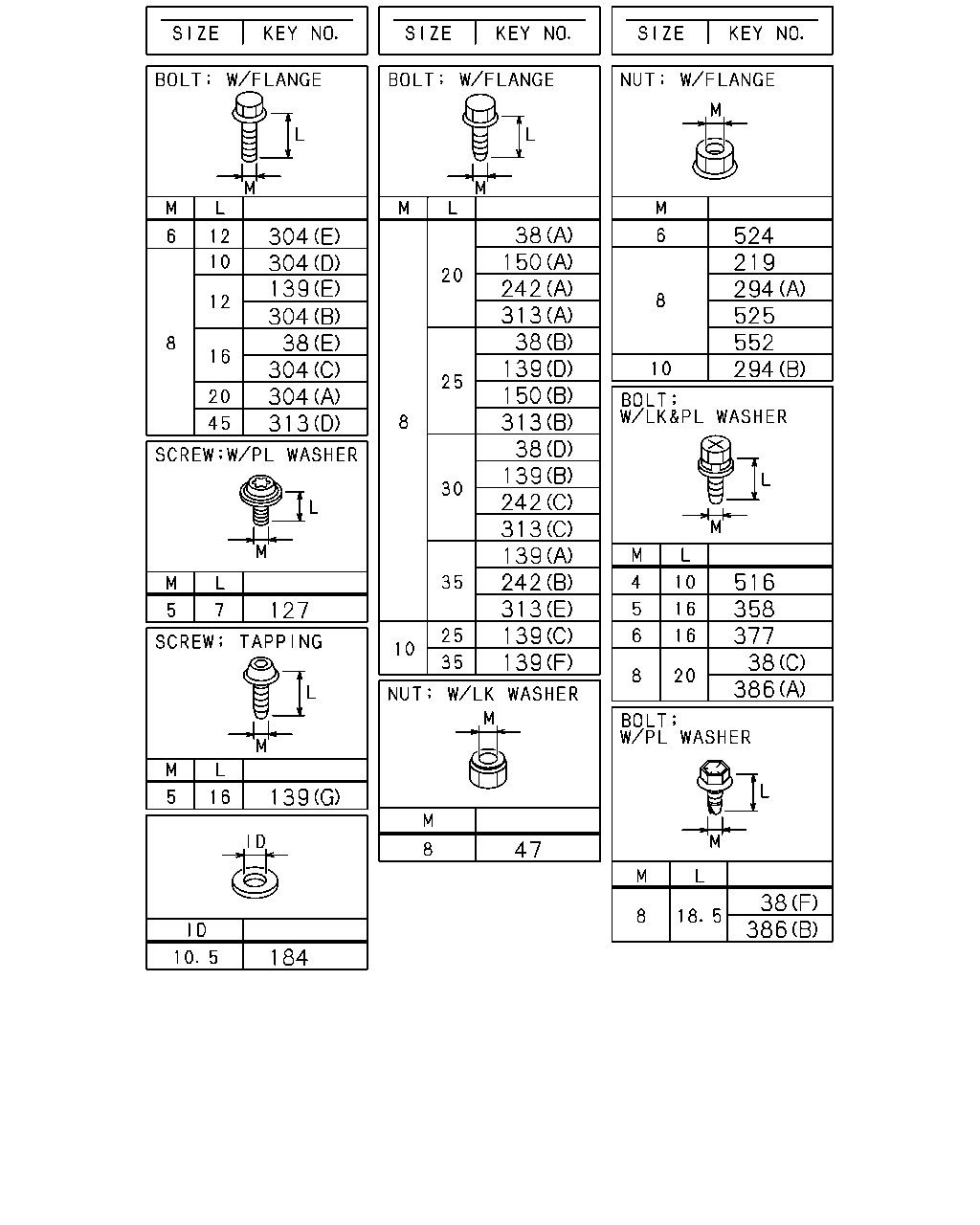

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (E) M8X16 FLANGE	0-28050-816-0	02	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0906-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0906-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0906-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0906-1011
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1012-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS AUTO CAB TILT<WV2> (D) M8X30 FLANGE	0-28650-830-0	01	1	0906-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0906-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0906-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0906-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-
139	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0906-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0906-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0906-1005
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0906-1005
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1006-1011
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1012-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0906-1004
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1005-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0906-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0906-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1006-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0906-1004
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005
219	NUT M8 FLANGE	0-91180-108-0	02	1	1006-1011
219	NUT M8 FLANGE	0-91180-108-0	01	1	1012-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0906-1011
219	NUT M8 FLANGE	0-91180-108-0	02	1	1012-
219	NUT M8 FLANGE	0-91180-108-0	04	1	0906-1004
242	BOLT; BRKT,HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) M8X30 FLANGE	0-28650-830-0	01	1	0906-1011
242	BOLT; BRKT,HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (C) M8X30 FLANGE	0-28650-830-0	01	1	1012-
242	BOLT; BRKT,HARNESS ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE	0-28650-835-0	01	1	0906-1011
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1012-
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (B) M8X35 FLANGE	0-28650-835-0	01	1	1012-
242	BOLT; BRKT,HARNESS ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE	0-28650-835-0	01	1	1012-
242	BOLT; BRKT,HARNESS CAB SUSPENSION FULL FLOATING<W16> (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-1004
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-1004
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1005-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1005-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	0906-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0906-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0906-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0906-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0906-
313	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0906-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0906-
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	0906-
313	BOLT; BRKT AUTO CAB TILT<WV2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
358	BOLT; EARTH AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0906-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0906-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0906-1011
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1012-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0906-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0906-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-
525	NUT; CLIP AUTO CAB TILT<WV2> T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0906-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0906-
552	NUT; BRKT,HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	0906-1011
552	NUT; BRKT,HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE	0-91180-108-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
